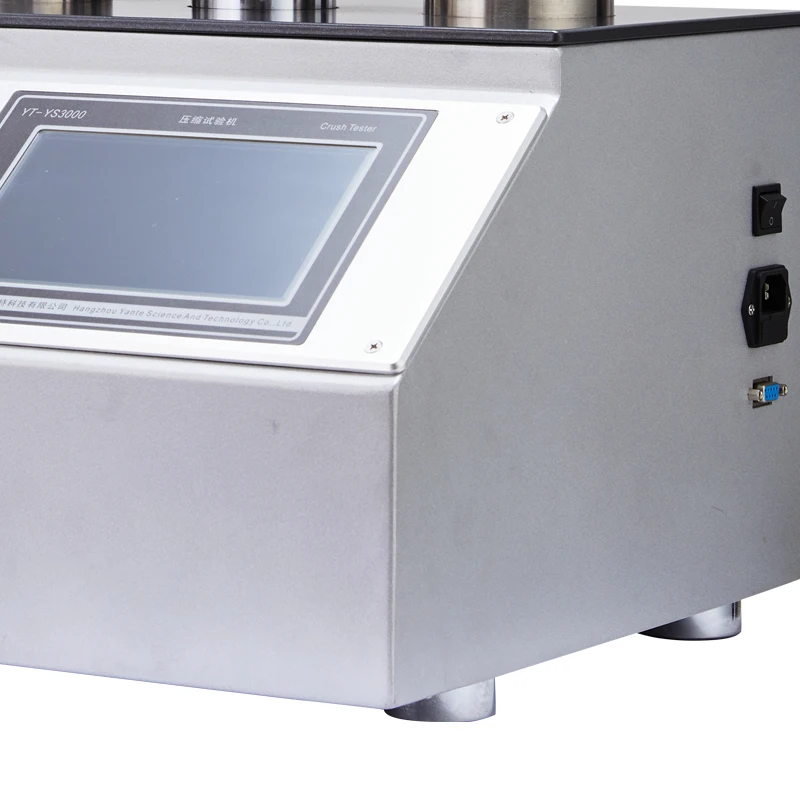

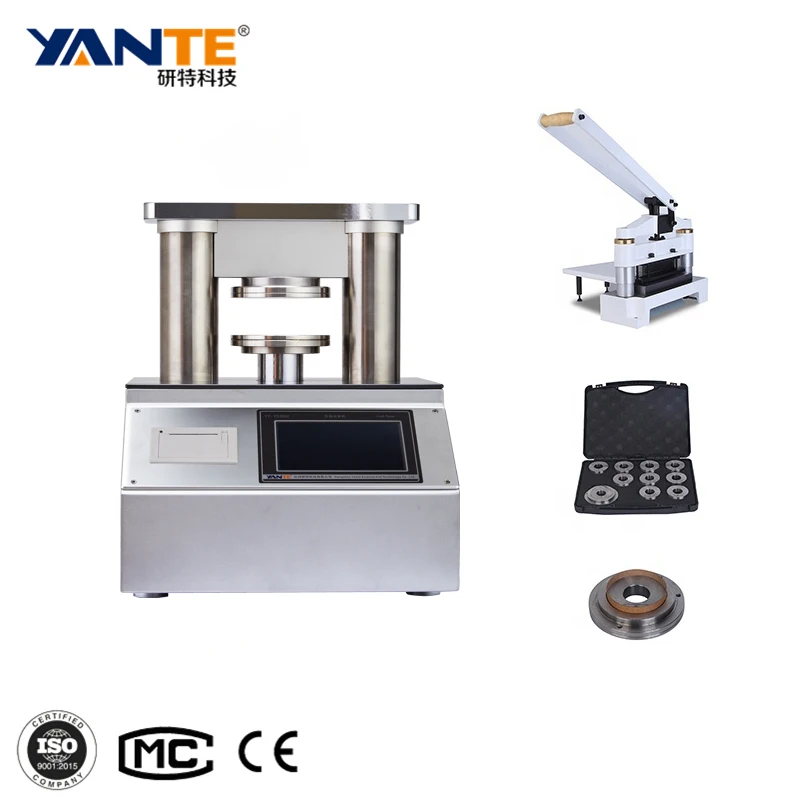

Ring Crush Tester/Edge Crush Tester/Flat Crush Test
- Category: Testing Equipment >>>
- Supplier: Hangzhou Yante Science And Technology Co. Ltd.
Share on (60605770960):
Product Overview
Description
Product Overview
Crush Tester is an ideal auxiliary test tool for papermaking companies, cardboard manufacturers, carton manufacturers, carton users, and quality supervision and inspection departments.
Features At A Glance
High-precision load cell, ball screw drive, dual guide shafts.
ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.
Real-time display of the pressure change curve during the test.
Over-range automatic reset to protect the precision sensor.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Cooperate with computer software for communication (purchased separately).
ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.
Real-time display of the pressure change curve during the test.
Over-range automatic reset to protect the precision sensor.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Cooperate with computer software for communication (purchased separately).
Details Images
Application Range
Paper, cardboard
Execute Standard
GBT 2679.8,GBT 6546, GBT 22874,GBT 6548, GBT_2679.6
ISO 12192,ISO 3037,ISO 3035,ISO 7263,ISO 16945
TAPPI T822,TAPPI T839,TAPPI T825,TAPPI T809,TAPPI-T843
ISO 12192,ISO 3037,ISO 3035,ISO 7263,ISO 16945
TAPPI T822,TAPPI T839,TAPPI T825,TAPPI T809,TAPPI-T843
Product Function
Measure corrugated base paper ring crush strength（RCT）
Measure corrugated cardboard edgewise crush strength（ECT）
Measure corrugated cardboard flat crysh strength（FCT）
Measure corrugated cardboard pin adhesion（PAT）
Measure corrugated base paper crush resistance strength（CMT）
Measure corrugated base paper edgewise compression strength（CCT）
Measure corrugated cardboard edgewise crush strength（ECT）
Measure corrugated cardboard flat crysh strength（FCT）
Measure corrugated cardboard pin adhesion（PAT）
Measure corrugated base paper crush resistance strength（CMT）
Measure corrugated base paper edgewise compression strength（CCT）
Sales And Service Network
Product Paramenters
No. | Parameter item | Technical index |
1 | Power Supply | AC 100～240V, 50Hz/60Hz 100W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen |
4 | Measuring Range | （10～3000）N，customizable（10～5000）N |
5 | Indication error | ±0.5％(Range 5%～100%) |
6 | Indication resolution | 0.1N |
7 | Indication variability | ≤0.5％ |
8 | Test speed | (12.5±1)mm/min，(1～500) mm/min adjustable |
9 | Parallelism of upper and lower platens | ＜0.02mm |
10 | Maximum distance between upper and lower platens | 80mm |
11 | Print | Built-in thermal printer |
12 | Communication Interface | RS232 (default) (USB, WIFI optional) |
13 | Dimension | 415×370×505 mm |
14 | Net weight | 58 kg around |
