2, изготовленные на станке Рука кормления автоматический ПЭТ бутыло выдувные машины

Share on (60609559081):


Price:15 500,00 $

Quantity:


Product Overview

Description


Detailed Images
Product Description

Product Application


hand feeding blowing machine is specialized for saving cost by simplifying the structure of machine,

hand feeding pet blowing machine is simple blowing machine without preform autoloader, it is feasible for different volume and neck,

hand feeding pet bottle blowing machine The cost is much lower than fully-automatic blowing machine and much automatic than semi-automatic blowing machine,

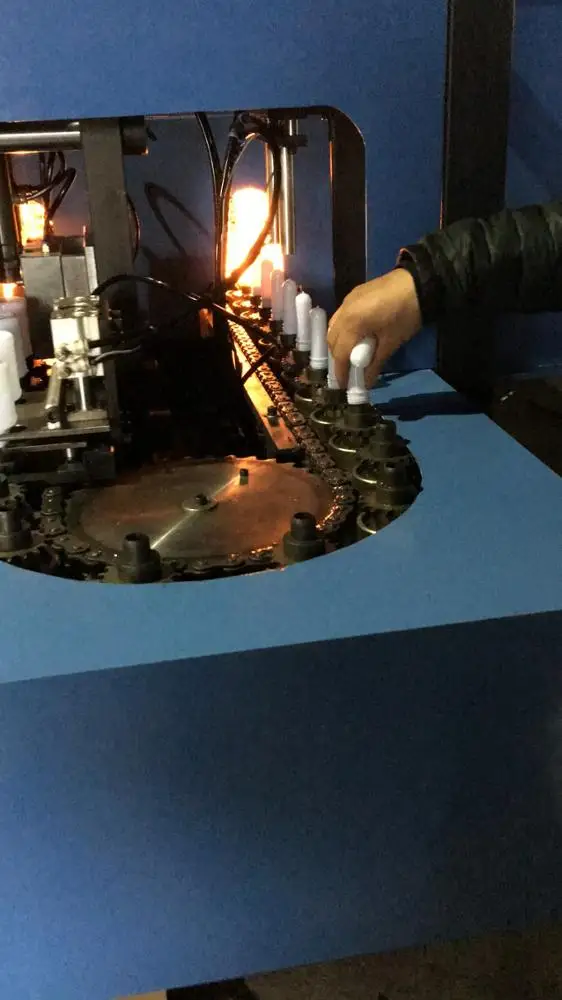

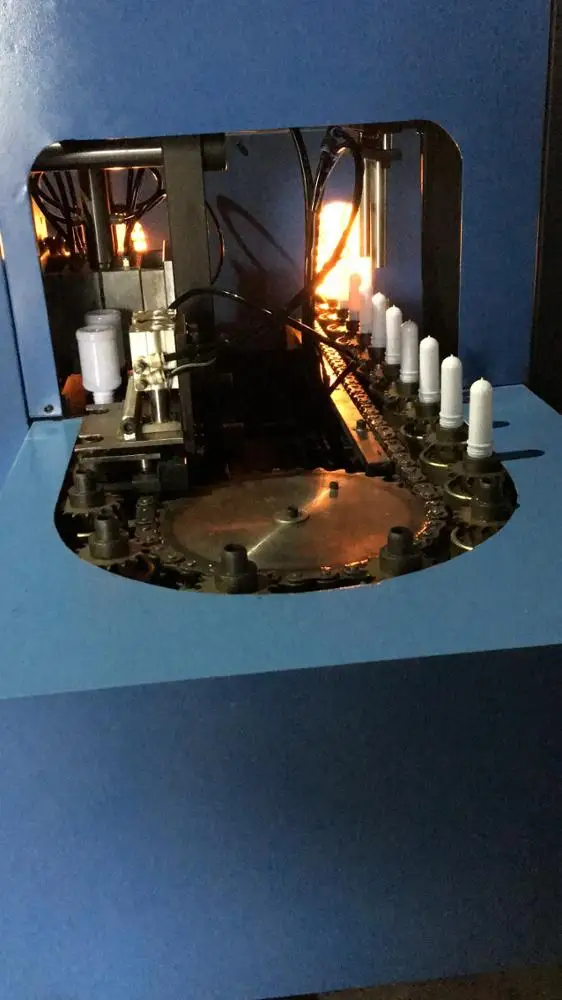

the preform have to be manual put onto the preform holder, then transmit to heating oven,the heated preform will be automatic transmit to the blow mould and blowing, the final bottle will be automatic ejected to package,

Main Specification
\t
MODEL
\t
Unit
\t
ZA2000H
\t
Container
\t
Max.container volume
\t
ml
\t
1500
\t
Max. neck diameter
\t
mm
\t
38
\t
Max. container diameter
\t
mm
\t
95
\t
Max. container height
\t
mm
\t
320
\t
Number of cavities
\t

\t
2
\t
Theoretical output
\t
BPH
\t
1500
\t
Electricity
\t
Installed power
\t
Kw
\t
16
\t
Max. heating power
\t
Kw
\t
14
\t
Compressed Air system
\t
Operation pressure
\t
Mpa
\t
0.7
\t
Low pressure Air consuming
\t
M3 /min
\t
2.0
\t
Blowing pressure
\t
Mpa
\t
3.5
\t
High pressure Air consuming
\t
M3 /min
\t
1.6
\t
Chilled water
\t
Pressure
\t
Mpa
\t
0.3-0.5
\t
Temperature
\t
\t
10-12
\t
Flow rate
\t
L/min
\t
30
\t
Machine size and weight
\t
Size(L*W*H)
\t
m
\t
2.6X1.3X1.8
\t
Weight
\t
 Kg
\t
2200
Components List
\t
S/N
\t
Main Components Name
\t
Brand
\t
1
\t
PLC
\t
XINJE,CANADA
\t
2
\t
TOUCH SCREEN
\t
XINJE,CANADA
\t
3
\t
STRETCHING PISTON(CYLINDER)
\t
FESTO,GERMAN
\t
4
\t
CLAMPING SERVO MOTOR
\t
XINJE,CANADA
\t
5
\t
PREFORM TRANSMISSION SERVO MOTOR
\t
XINJE CANADA
\t
6
\t
ACTION VALVE
\t
FESTO,GERMAN
\t
7
\t
PROXIMITY SENSOR
\t
OMRON,JAPAN
\t
8
\t
PHOTOELECTRIC SWITCH
\t
OMRON,JAPAN
\t
9
\t
FILTER
\t
CKD,JAPAN
\t
10
\t
CONTACTOR
\t
SCHNEIDER,FRANCE
\t
11
\t
POWER SUPPLIER
\t
MEANWELL,TAIWAN
Accessory machines

Shangair brand High Pressure Air compressor

High pressure Air Tank

Air Cooling Dryer With two Air Filters

Water Chiller Air Cooling Type
