Highway noise barrier is a kind of sound barrier applied to the railway,highway, expressway etc to absorb the noise generating from vehicles. It is installed between the sond source and the recipient.
1.Thickness: 4 To 16mm 2.Maximum width: 2,100mm 3.Length: any dimension 4.Specific gravity: 1200kg/m³ 5.Colors: clear, blue, green, opal, brown, bronze, etc.
Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red(Other color can be ordered according to you request)
Wind pressure vaiue
(kN/m2)
Height
Vertical force N
(kN)
Horizontal forceSva
(kN)
Mbending moment M
(kN*m)
w.≤0.45
2.0
1.70
9.1
9.4
2.5
2.64
11.4
14.7
3.0
3.30
13.7
21.1
3.5
4.28
16.0
28.6
4.0
4.92
18.3
37.3
0.45<w.≤0.75
2.0
1.85
15.2
15.8
2.5
2.90
19.0
24.5
3.0
3.62
22.8
35.1
3.5
4.32
26.7
47.7
4.0
5.40
3.0.5
62.1

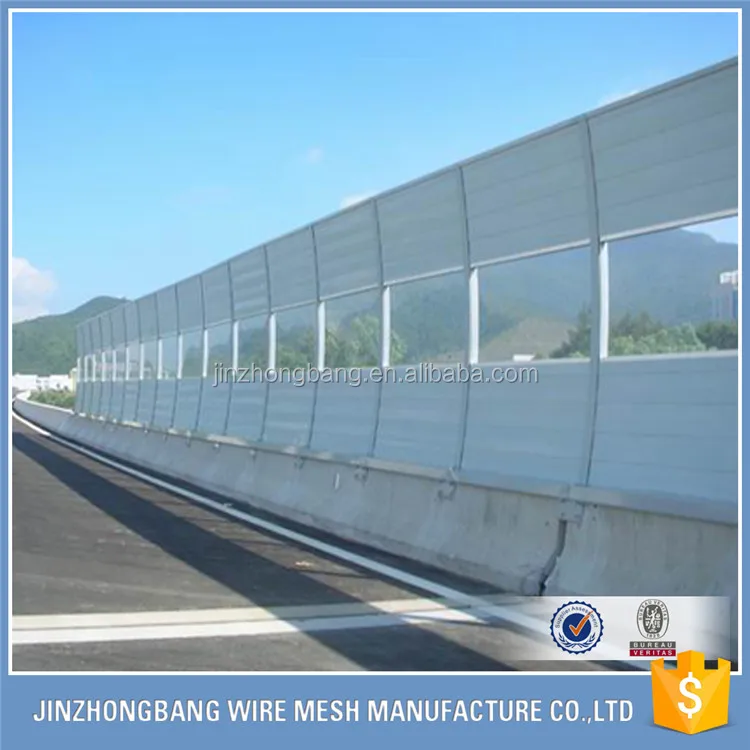

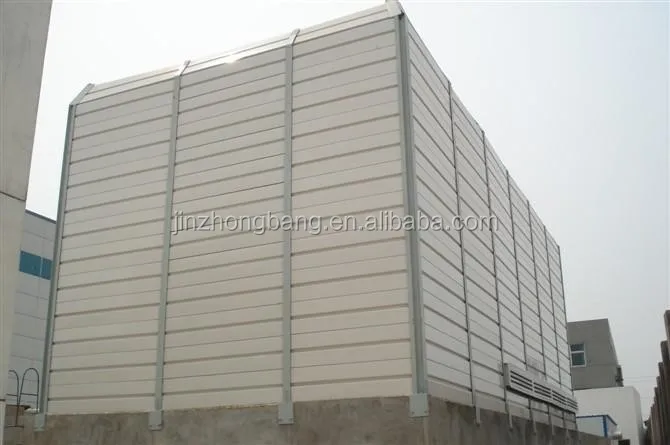

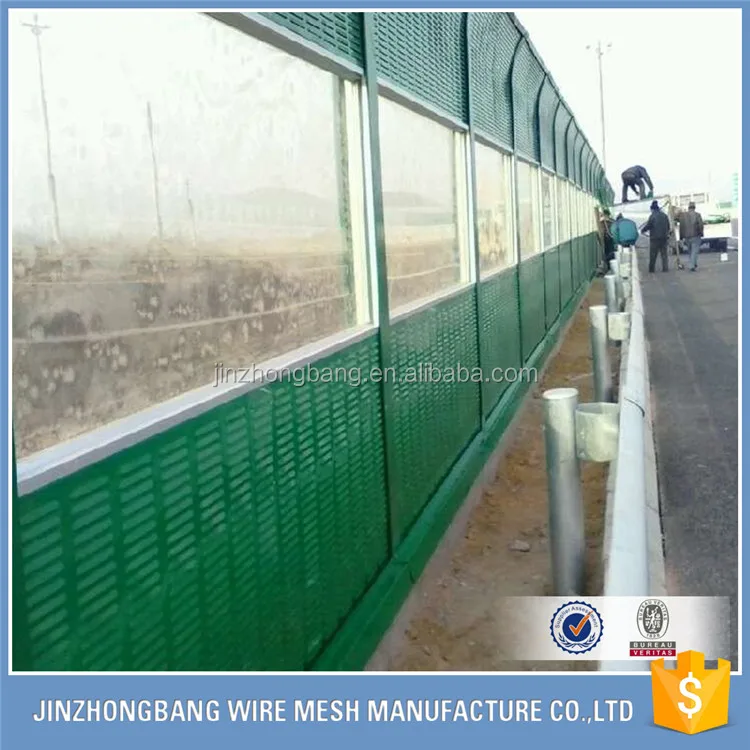

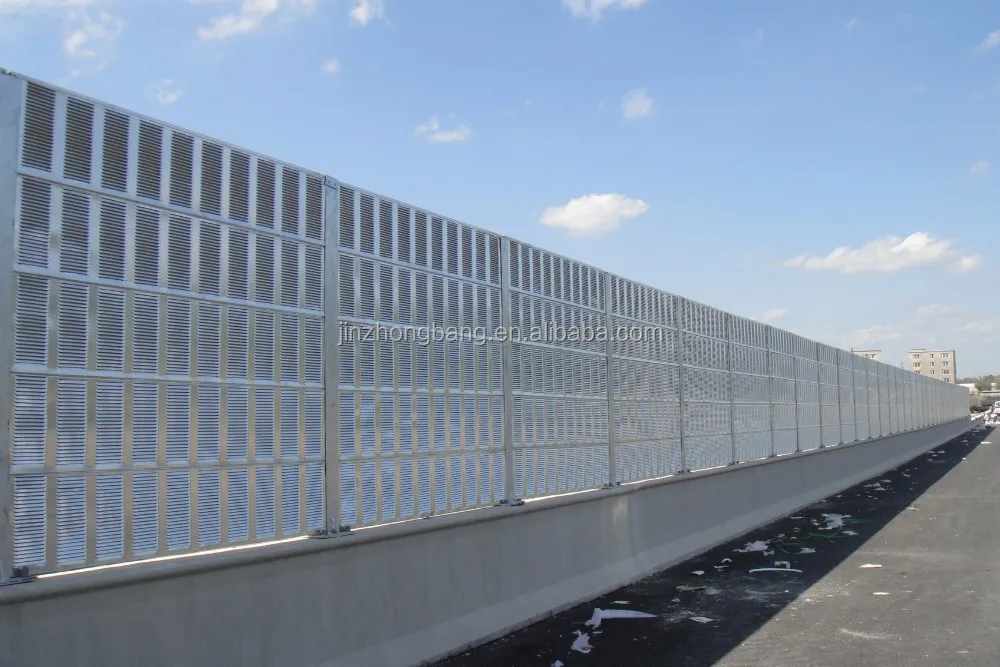

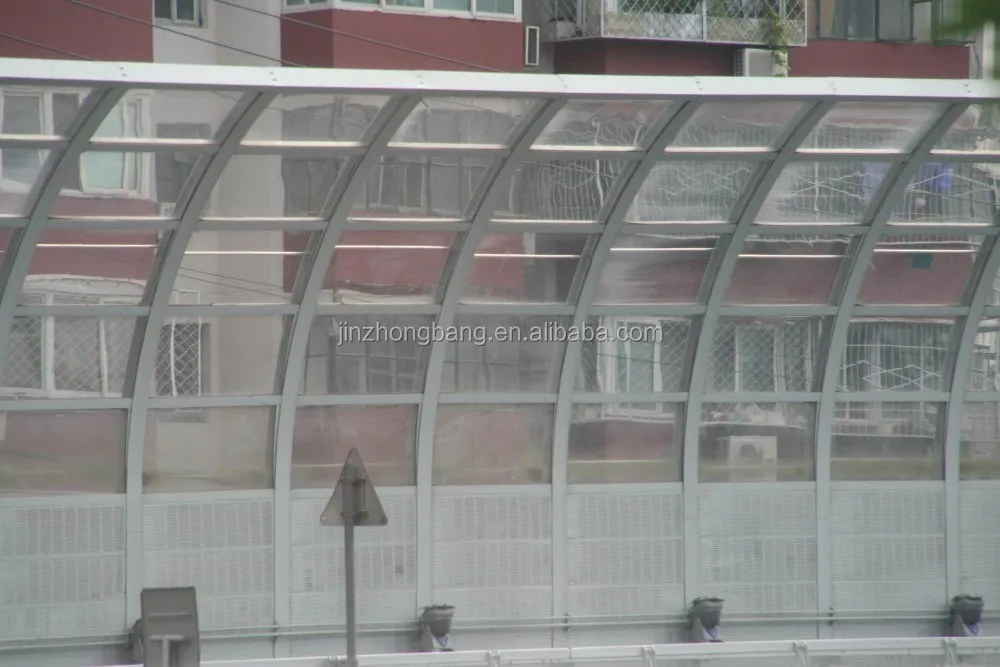

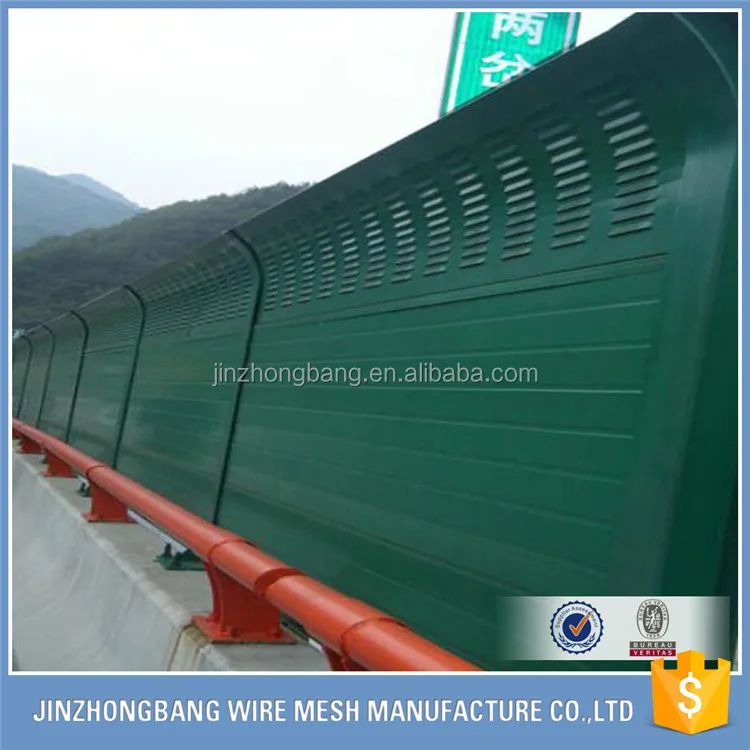

Product Pictures

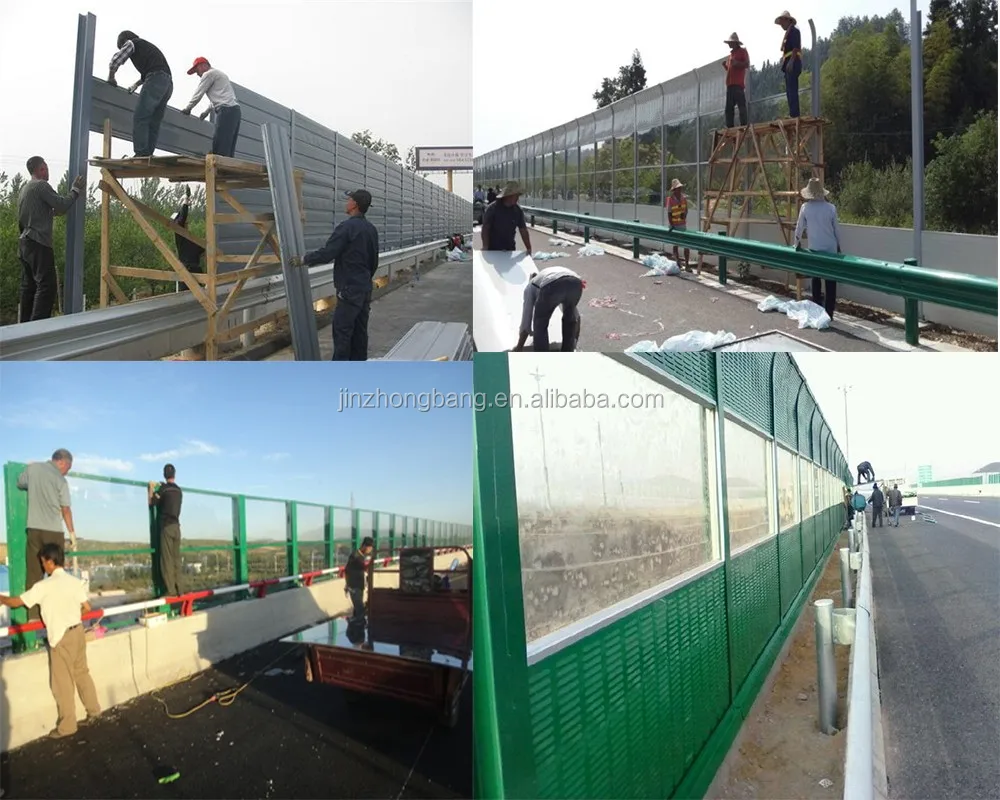

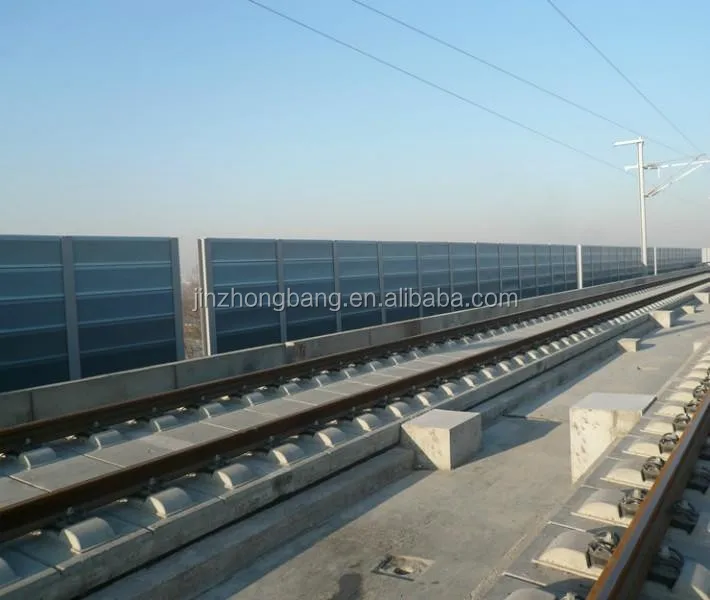

Installation

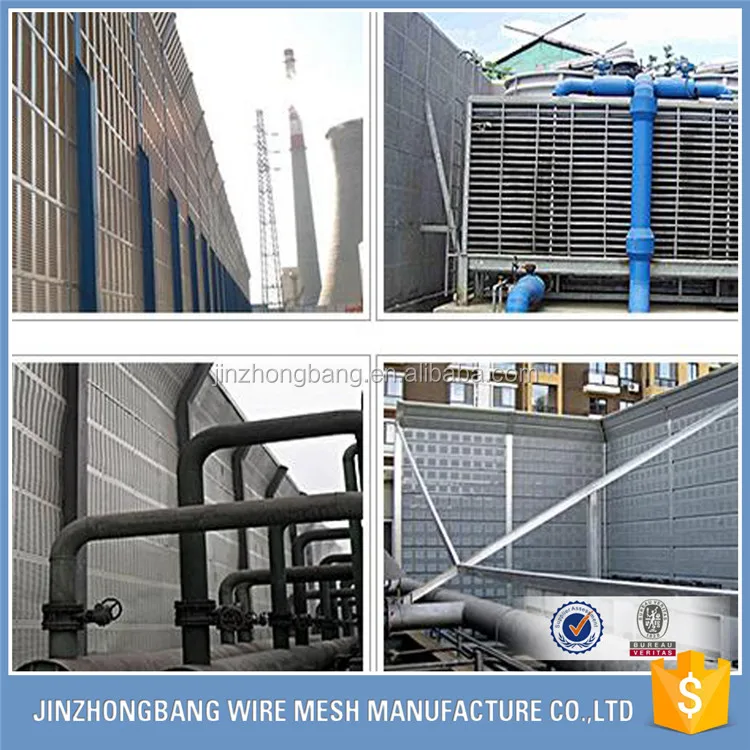

Application
*highway acoustic panels
*railway acoustic panels
*residential area acoustic panels
*industrial area acoustic panels
FAQ
1. What is our factory size?
Our factory is nearly 20,000 sqaure meters, has 200 workers. We have three welded machines, ten wire straighteners, two automatic pvc coated assembly line
2.How to get us?
Our factory is located in Anping Country, Hengshui City,Hebei Provence,China. 250km away from Beijing and 130km away from Shijiazhuang. If you want to visit us, we can pick you up at Beijing or Shijiazhuang Airport.
3.Can I get samples?
Jinzhongbang will provide free samples for your evaluation.
Express charges are payed by customers.
The sample sizes are usually 4” x 4” maximum.
If you need larger pieces, please contact us for a quotation.
4.what is your minimum order?
We have a $3000.00 minimum for most wire mesh items available from stock.
Prices are subject to change.
5.What are your payment terms?
Jinzhongbang’s standard payment terms are 30%T/T,and balance upon the B/L copy .
