ELP VGA 640*480 OV7725 Wide Angle 170 Degree Fisheye USB Camera Module CMOS for Machinery Equipments
- Category: Webcam >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60611649233):
Product Overview
Description
ELP VGA 640*480 OV7725 Wide Angle 170 Degree Fisheye USB Camera Module CMOS for Machinery Equipments
Features
*CMOS VGA 640*480 sensor for high quality image and low power consumption.
*1/4 inch OV7725 CMOS sensor
*Wide angle fisheye lens, true and undistorted color image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low illumination – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 30 fps in 640*480 resolution
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Free driver, easily plug and play
*Support IR CUT for ture color day night vision

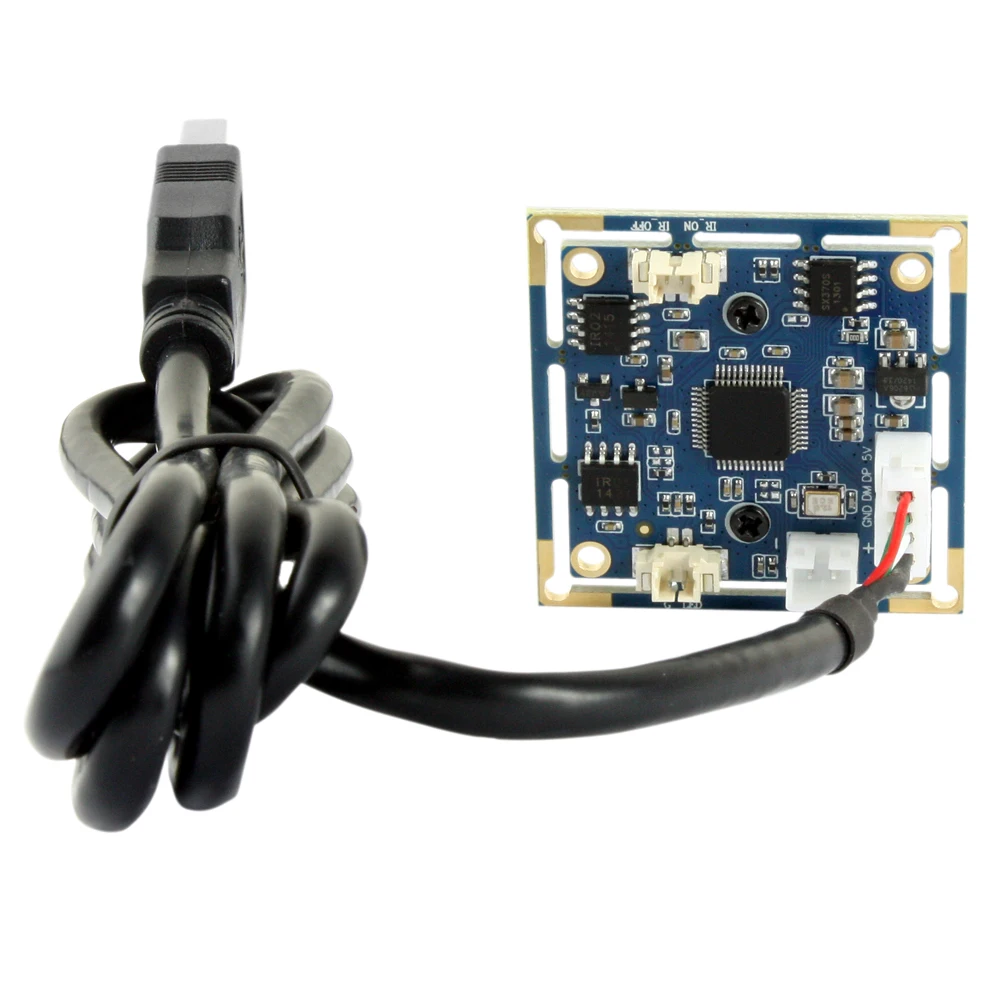

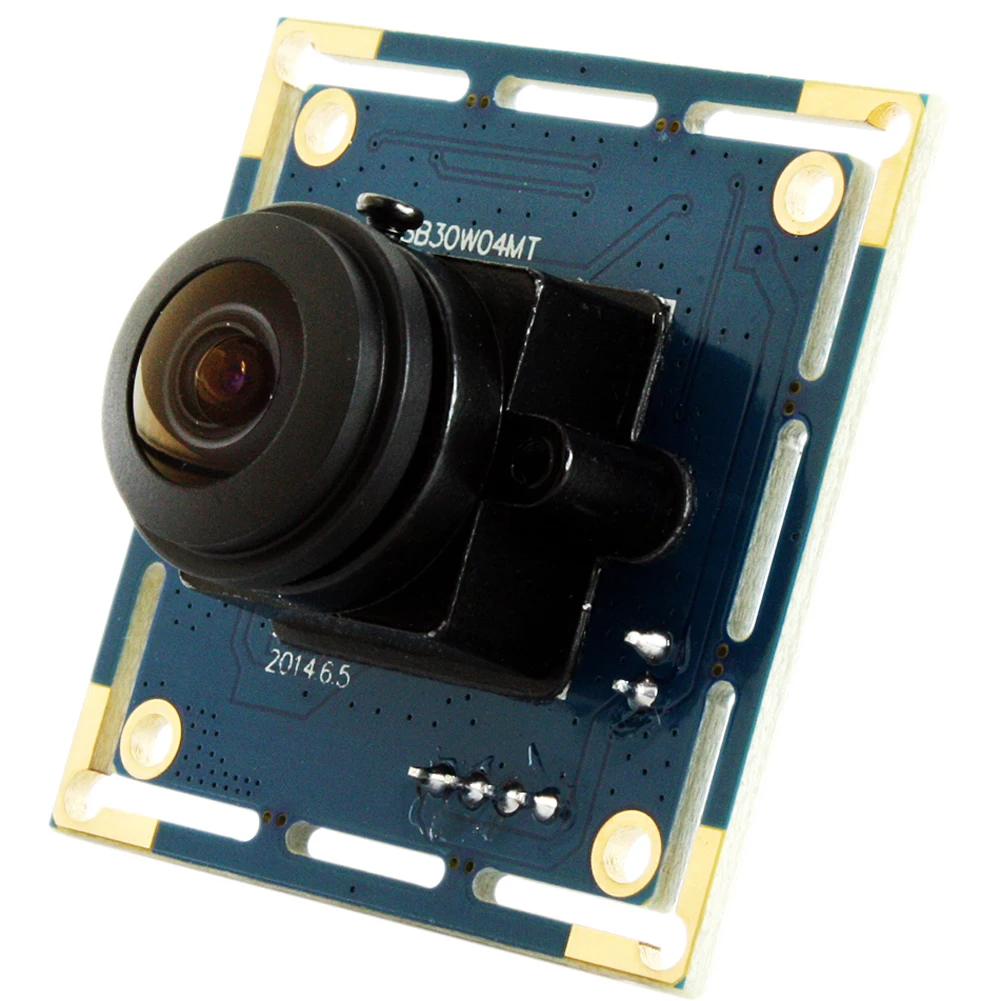

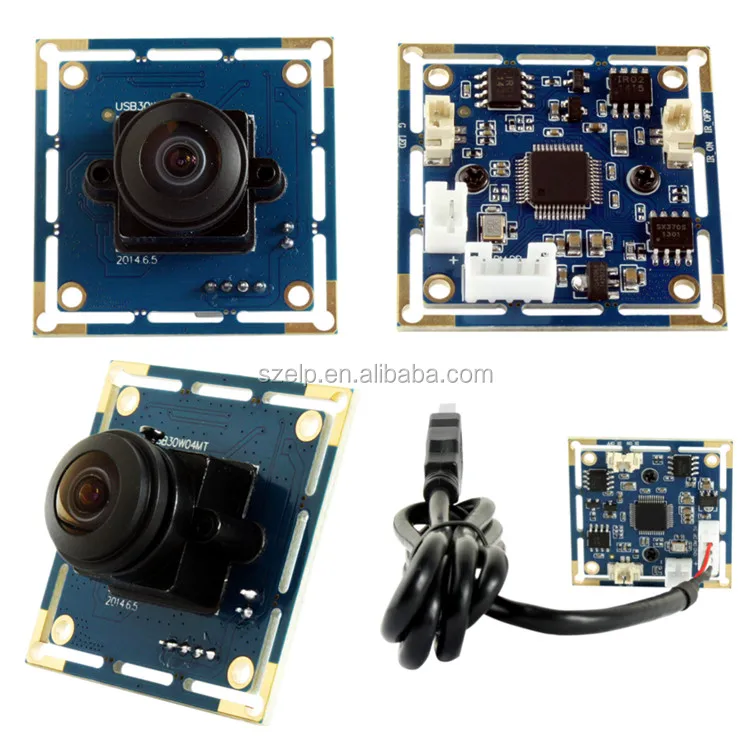

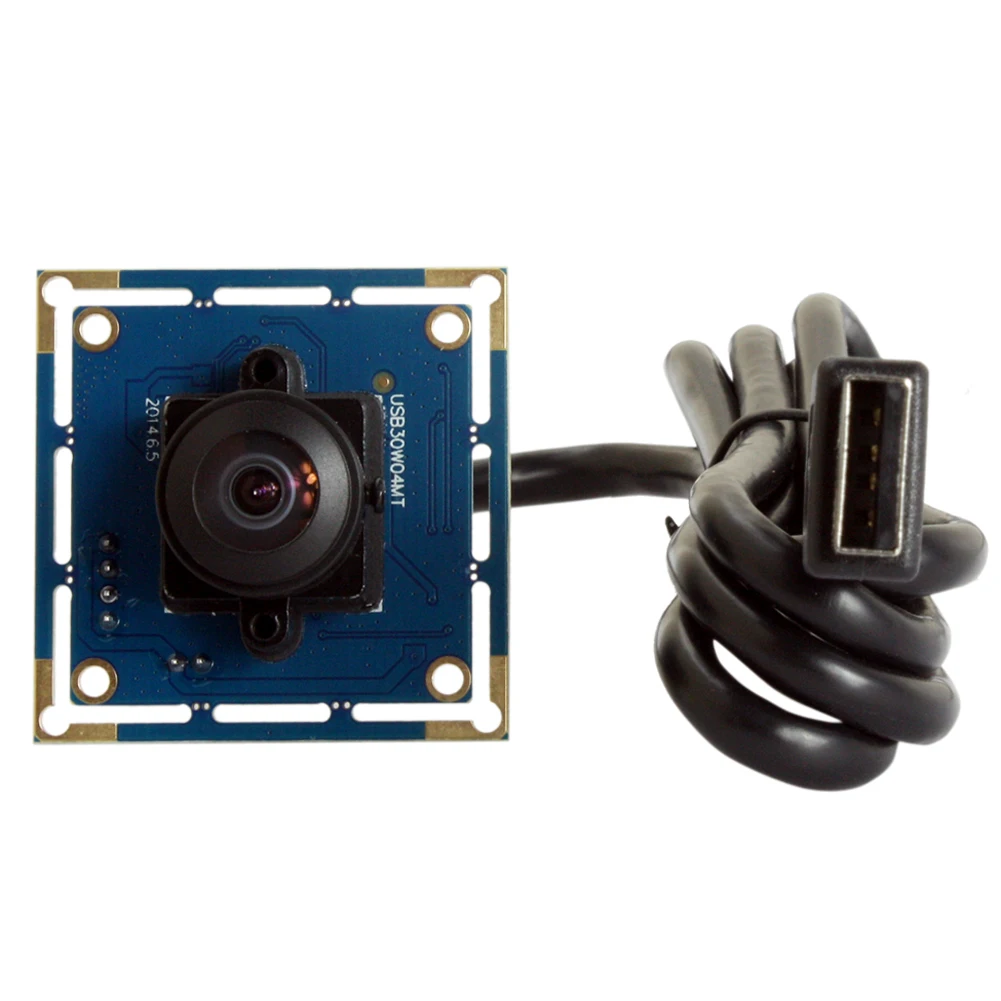

Product Display
Specifications
Model | ELP-USB30W04MT-L21(2.1mm lens) |
Sensor | OV7725 |
Lens Size | 1/4 inch |
Pixel Size | 6.0um X 6.0um |
image area | 3984 µm x 2952 µm |
Max. Resolution | 640(H)X480(V) |
Compression format | MJPEG / YUV2(YUYV) |
Resolution & frame | 640X480 MJPEG@ 30fps YUY2@ 30fps/ / 352X288 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps |
Adjustable frame | 5 fps,10 fps,15 fps,20 fps,25 fps,30 fps |
USB Protocol | USB2.0 HS/FS USB1.1/USB1.0 |
S/N Ratio | 50dB |
Dynamic Range | 60dB |
Sensitivity | 3.8V/lux-sec@550nm |
Mini illumination | 0. 2lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Lens Parameter | Standard 3.6mm, optional 2.1/2.8/6/8/12mm/no distortion lens/fisheye lens |
IR CUT Connector | Support 2P-1.25mm socket |
LED board test connector | Support 2P-1.25mm socket |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Power supply | DC5V |
Operating Voltage | 110mA~130mA |
Working current | -10~70℃ |
Working temperature | -20~85℃ |
Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
Cable | Standard 1M / optional 2M,3M,5M |
Operating system request | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Applications
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Related USB Cameras
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
