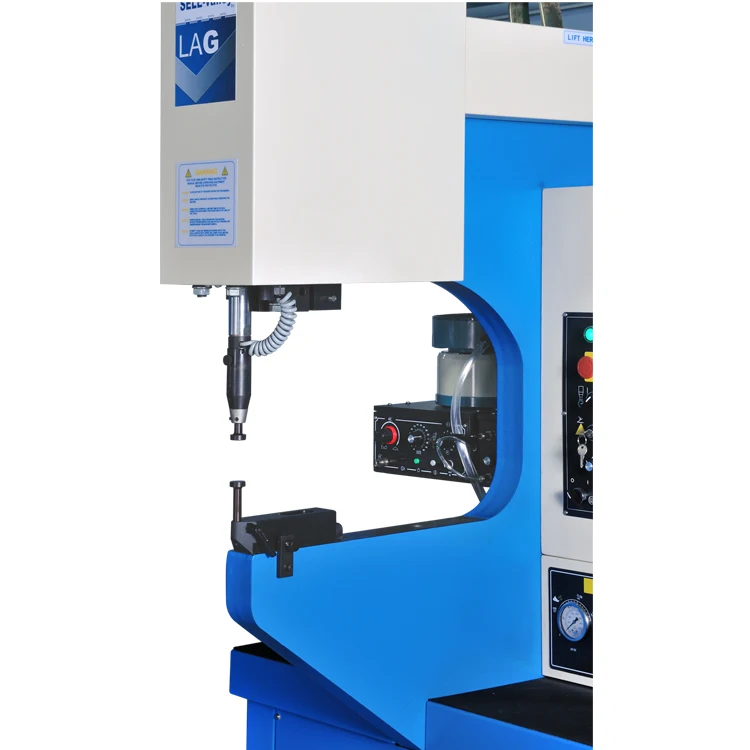

Ручной и автоматический вставляющий пресс (модель 824 с автопитателем)

FASTENER INSERTION MACHINE-416 MODEL

Force:44KN

Throat Depth:406mm

Throat Height:340mm

Stroke Length Adjustable:Yes

Number of Inserts Per Hour(Manually)1200

Ram Force Repeat Accuracy:+/-1%

Safety Device:Yes

Manual Turret Insertion System(Optional):Yes

Automatic Feeding System(Optional):No

Clinching Joint System(Optional):Yes

Dwell time:No

Batch Counter(Optional):No

Main Power:1.5KW

Tank Capacity:38L

Power Supply:220V/single phase/50HZ

Dimension(W*D*H)m:1.28*1.1*2.1m

Net Weight:350kg

FASTENER INSERTION MACHINE-618 MODEL

Force:54KN

Throat Depth:450mm

Throat Height:381mm

Stroke Length Adjustable:Yes

Number of Inserts Per Hour(Manually)1200

Ram Force Repeat Accuracy:+/-1%

Safety Device:Yes

Manual Turret Insertion System(Optional):Yes

Automatic Feeding System(Optional):Yes

Clinching Joint System(Optional):Yes

Dwell time:Standard

Forward Limited:Option

Batch Counter(Optional):Yes

Main Power:2.2KW

Tank Capacity:38L

Power Supply:380V/3 phase/50HZ

Dimension(W*D*H)m:1.28*1.1*2.1m

Net Weight:650kg

FASTENER INSERTION MACHINE-824MODEL

Force:72KN

Throat Depth:610mm

Throat Height:421mm

Stroke Length Adjustable:Yes

Number of Inserts Per Hour(Manually)1200

Ram Force Repeat Accuracy:+/-1%

Safety Device:Yes

Manual Turret Insertion System(Optional):Yes

Automatic Feeding System(Optional):Yes

Clinching Joint System(Optional):Yes

Dwell time:Standard

Forward Limited:Standard

Batch Counter(Optional):Yes

Main Power:3.75KW

Tank Capacity:76L

Power Supply:380V/3 phase/50HZ

Dimension(W*D*H)m:1.64*1.12*2.4m

Net Weight:950kg

-High Stiffness, structure, high stability, less vibration, high accuracy

-Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator

-Quick press force setting and repeatability +/-1%

-Force range MAX 54KN

-Throat depth 458mm

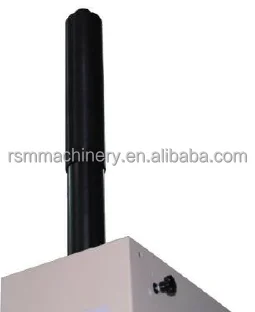

-100% safety system

-Energy saving re-design reliability and eneryy efficiency of a full hydraulic system

-Optional auto feeding system and clinching joint system

-Possibility to insert M10 nut with the mild steel

-RED & GREY color OR BLUE & WHITE color

-Standard power supply 3 phase 380V/50HZ

FASTENER INSERTION MACHINE WITH 100% SAFETY DEVICE: https://www.youtube.com/watch?v=W3khvxhbSII

HYDRAULIC INSERTING PRESS 618 MODEL+BTM CLINCHING JOINT SYSTEM:
https://www.youtube.com/watch?v=XW0fBPhYVQI

INSERTION PRESS 618 MODEL+TOPFEEDER FOR STANDOFF
https://www.youtube.com/watch?v=YqrQ_WN3OAw

INSERTION PRESS 618 MODEL+BOTTOMFEEDER FOR NUT
https://www.youtube.com/watch?v=rAg1nORaViQ

INSERTION PRESS 824 MODEL+TOPFEEDER FOR NUTS01
https://www.youtube.com/watch?v=3XKWRA4cKPc

INSERTION PRESS 824 MODEL+TOPFEEDER FOR NUTS02
https://www.youtube.com/watch?v=Wohd8OUyllo

INSERTION MACHINE 824 MODEL+BTM CLINCH JOINT
https://www.youtube.com/watch?v=R9rlQ0h_bz8

HARDWARE INSERTION MACHINE WITH AUTO BOTTOMFEEDER TOOLING FOR NUTS
https://www.youtube.com/watch?v=htLA76iph6Q

INSERTION MACHINE WITH PRESSURE PARAMETERS:
https://www.youtube.com/watch?v=DhShty4EMdA

FASTENER INSERTION PRESS 416 MODEL:
https://www.youtube.com/watch?v=lA_1E2AIdkQ

HARDWARE INSERTION MACHINE 416 MODEL+TIS PARTS(OPTIONAL)
https://www.youtube.com/watch?v=f4zusyQuxNc
