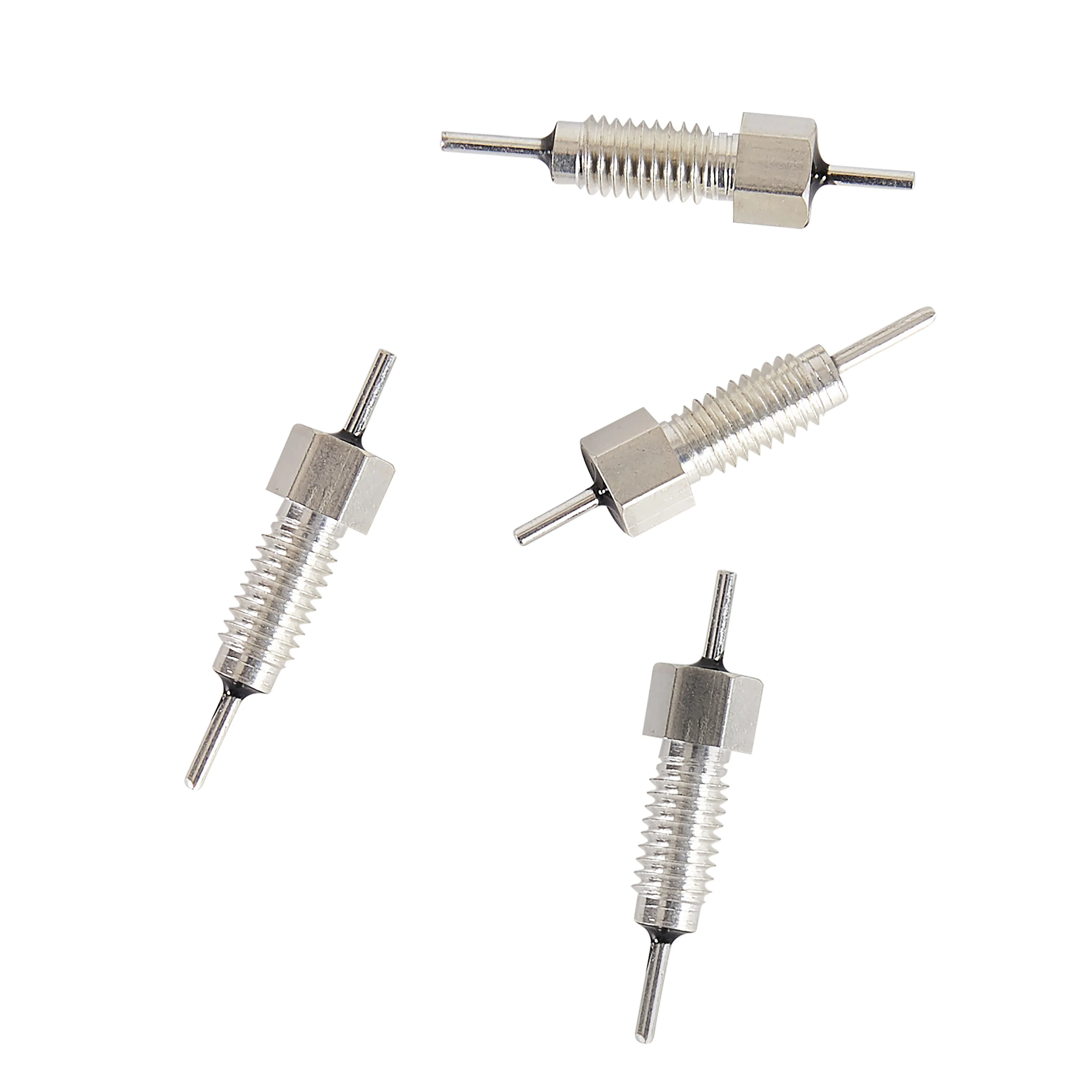

LC12C 100V 472Z 1A 5A 8A 10A Low pass filter feedthrough capacitor

Product Overview

Description



 feedthrough capacitor



                Feedthrough Capacitor LC12C-100V-472Z  1A 5A 8A 10A  Low pass filter







1)Rated Current :≤8A



2)Working Voltage :100VDC



3)Dielectric Withstanding Voltage:250VDC



4)Capacitance :4700pF(+80%,-20%)



5)Insulation Resistance:Rj≥10000MΩ



6)Dissipation Factor:tgδ≤0.035



7)Temp. range:-55℃-+85℃



8)Installation:Solder-in



9)Circuit type :C type

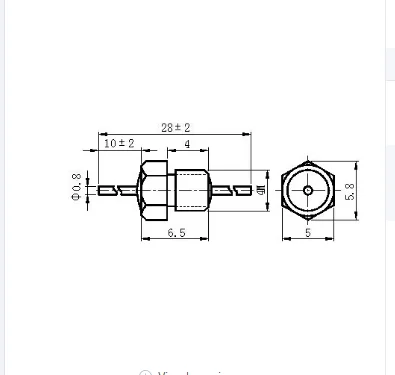

LC12C-100V-472Z EMI Filter Dimmension

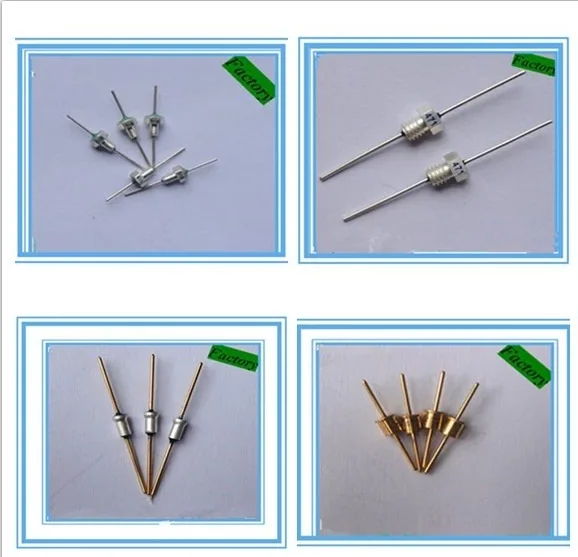

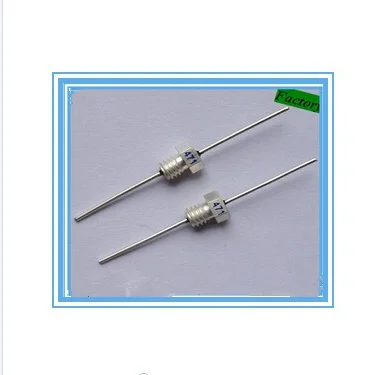

Low pass filter/Feedthrough capacitor

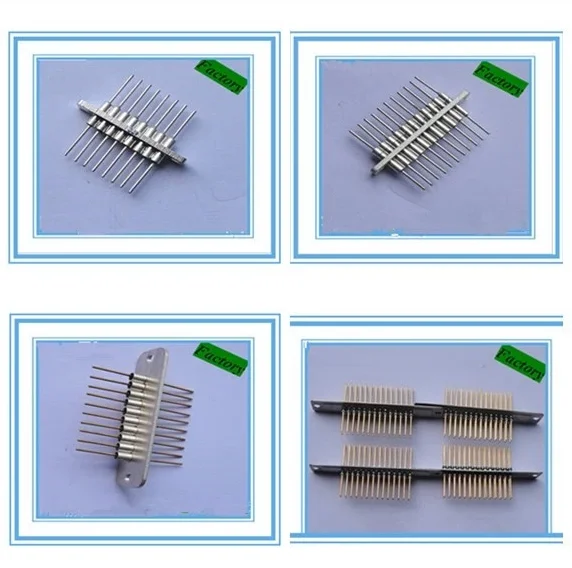

Filter Array







About us



TongYueXin Commerical and Trading Co.,Ltd(Chengdu) is a technical factory of mainly  manufacturing

 and develping
 high power resistor,wirewound potentiometer,carbon film potentiometer,precision parts and AC power noise filter.EMI Filter.Feedthrough Capacitor.





 The established maxim of our company is technical innovation, keeping improvement and meeting

customer demands





 Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.





  Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry
