Cast Nihard 4 billets/liners for Feeding Chute liner protection 55 60HRC

Typical applications of Wear Plates include Discharge Chutes, Hoppers, Rock Boxes, Excavator Buckets, Loader Buckets, Dragline Buckets, Face Shovel Buckets, Spider Arm Guards on Crushers.

\\

Hyster produce three kinds of wear plates to the mining and quarry market:

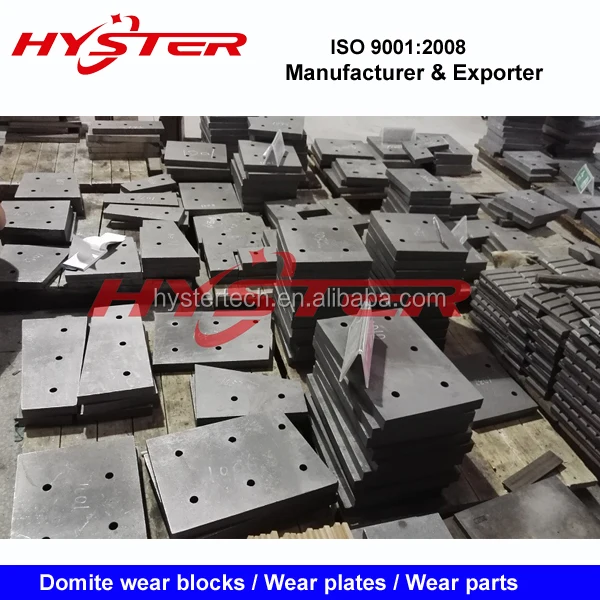

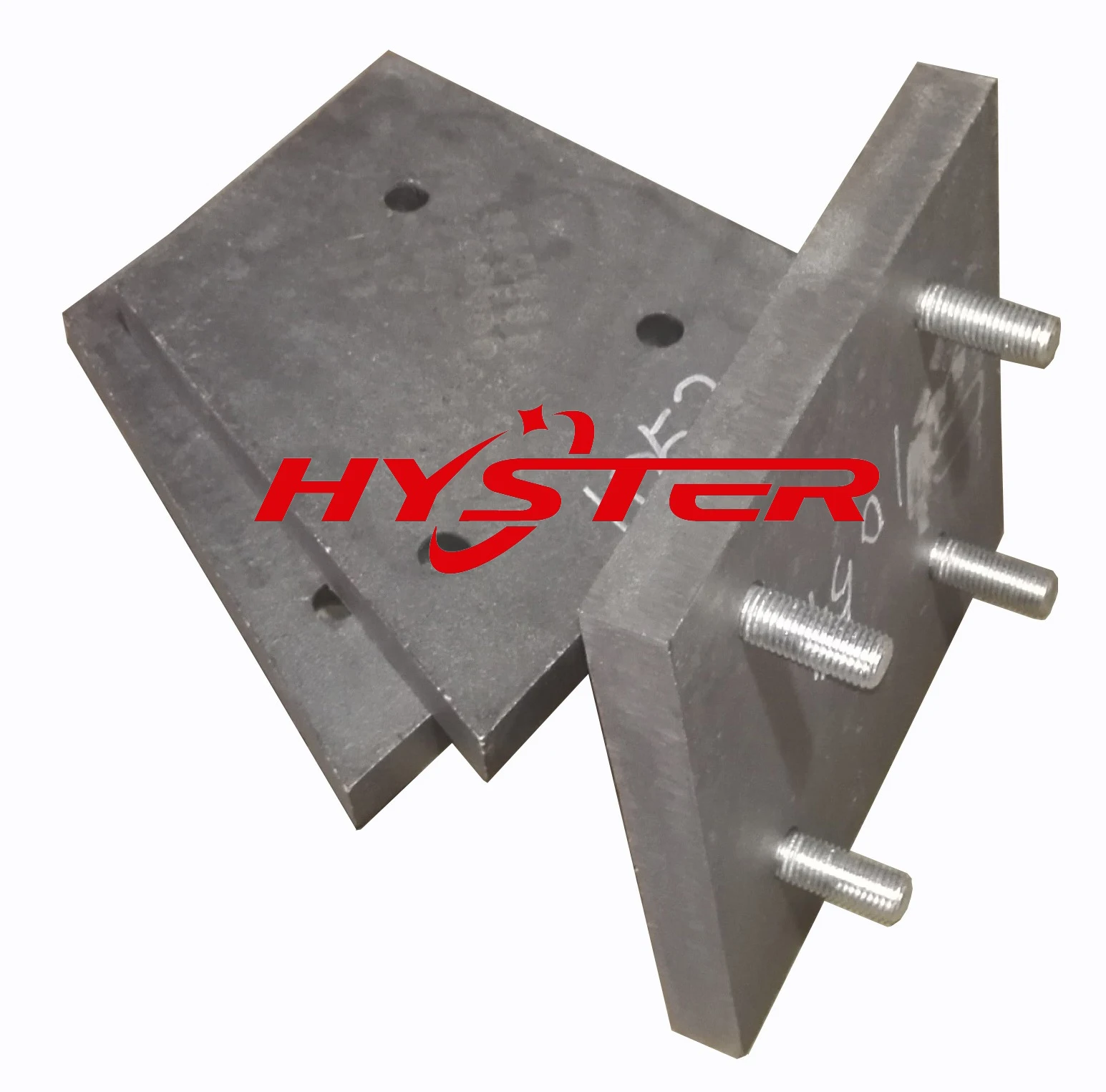

>> White iron laminated wear plates/Domite wear plates

They combine very high wear resistant qualities of a high white iron plate(ASTM A532 15/3CrMo, 700BHN-63HRC) with a weldable & high impact toughness mild steel plate through vacuum brazing to create a product that is exceptionally resistant to impact and abrasion while retaining.

For different work conditions, we can control the thickness of the layer to reach the overall performance requirements, thus, at the same time, satisfy the abrasion-resisting demand and structural requirement of the wear-resistant parts, then to realize the efficient use of the scarce resources. Most usual thickness ranges from 15mm to 90mm.

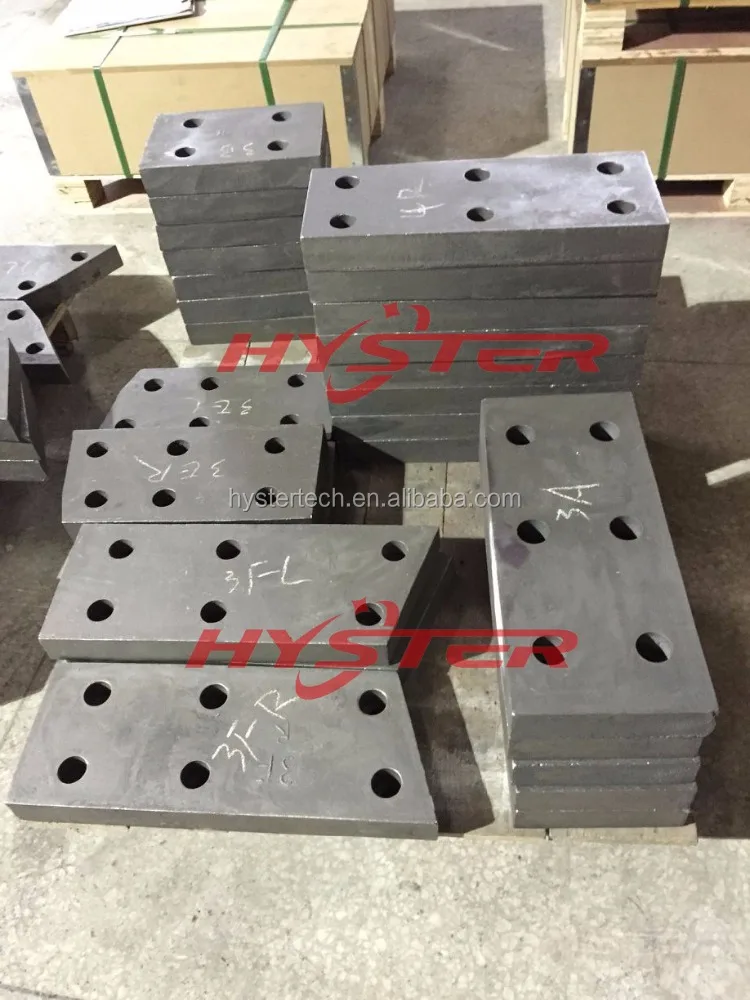

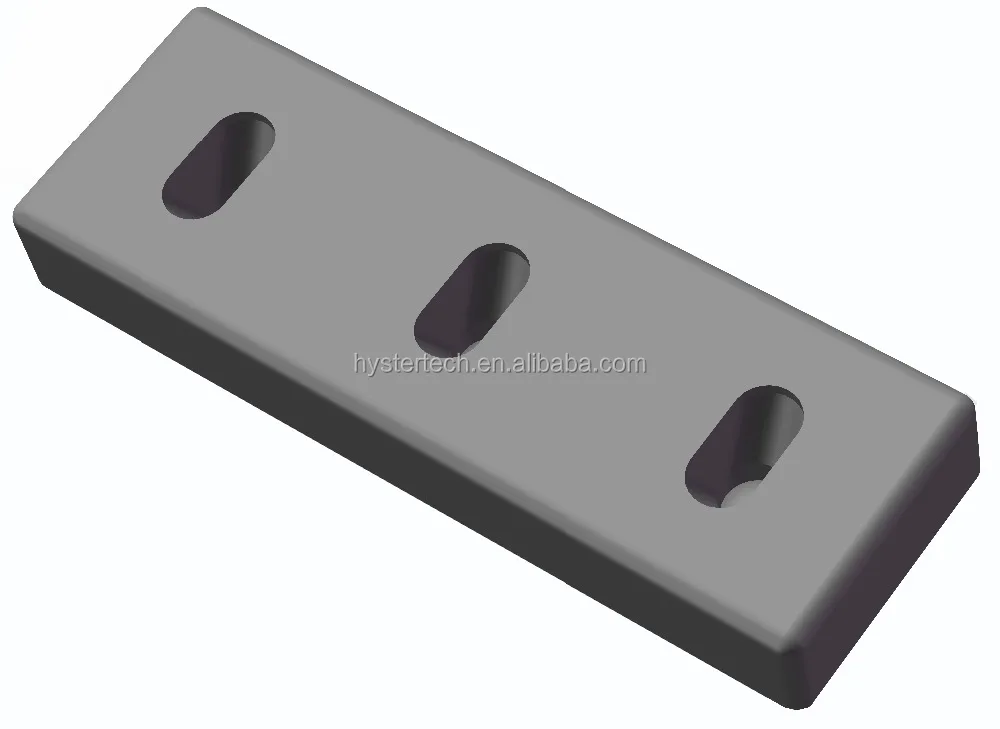

>> Nihard Wear Plates/liners

NiHard is a well-established white iron product alloyed with nickel and chromium to give significant abrasion and impact resistant properties. The structure of NiHard is composed of iron and chromium carbides, fixed in a matrix rendered martensitic by the nickel content. This structure allows NiHard to be utilised in abrasive and high impact conditions found throughout the construction, mining, manufacturing and mineral processing industries.

Our NiHard products include billets and liner plates that can be made to the customers' specification or supplied from our range of stock sizes. Our NiHard products can be custom designed to meet any situation regardless of any size and shape concerns. We can also supply cut and shaped liners to be strategically placed on fixed plant equipment so that a unique wear package can be created, maximising wear life. This makes NiHard the perfect material for chutes, drop boxes, bin and hopper liners.

We primarily supplies cast billet and liner plates produced to the NiHard 4 specifications.

However, we can produce billets and liner plates from the following alloys on special request:

   > NiHard 1 & 2

   > 27 Chrome Alloy

   > 15/3 White Iron

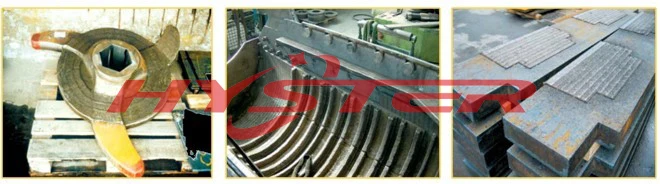

>> Chromium Carbide Overlay Wear Plates

OVERLAY-PLATE is welded by Chromium carbide overlay on a mild steel backing plate. Manufactured by our own design's welding machine with exclusive technique.

OVERLAY-PLATE has excellent performance in abrasion and impact.

Standard sheet size we can produce is 1500x3000mm, 1200x2400mm.

Thickness we can produce 4+4, 6+4, 6+6, 8+5, 8+6, 10+5, 10+9, 10+10, 12+12, 12+17, 10+20.

Note:

1. Other sizes can be made on request.

2. Liners can be cut to size on request.

3. Bolts/Nuts/Washers are available on request.

4. Holes are to suit M20 fishtail bolt

About Us

Hunan Hyster Material Technology Co., LTD. was founded in 1995, we are a professional manufacturer & exporter of composite Bi-metallic wear blocks/wear plates, Bimetallic wear pipes, Chocky bars, Wear buttons(CrMo white iron vacuum brazed onto a mild steel base plate, hardness 63HRC/700BHN), Chromium carbide overlay wear plates, Ni-hard wear Liners/Billets, and other wear castings for Mining, Quarrying, Construction and other heavy industries. We factories are located in New and High-Tech Development Zones of Changsha city, capital of Hunan province, middle of China.

Over 95% products have been sold to nearly 300 customers in more than 40 countries and regions, such as Australia, Canada, Brazil, America, Chile, Argentina, South Africa, Indonesia, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.

Quality Guarantee

Quality Report to be submit ahead of delivery: include Metallographic Analysis & Hardness & Chemical Composition Analysis & Welding Quality(UT) & Dimensions & G65 Dry Sand/Rubber Wheel Abrasion Test. 12 month warranty on quality.

The company is certified with ISO9001:2015. We have a dedicated R&D team that can tailor various products with special requirements (such as wear resistance, corrosion resistance, impact resistance, heat resistance, etc.) and provide professional wear resistance solutions. Since its establishment, the company has carried out a lot of experiments on improving the wear resistance and composite bonding strength, various heat treatment technology on different products, and the selection of wear-resistant alloys under different working conditions. The production process and product performance are continuously optimized.

Mrs. Shing Xiao | technical sales manager

Over 95% products have been sold to nearly 300 customers in more than 40 countries and regions, such as Australia, Canada, Brazil, America, Chile, Argentina, South Africa, Indonesia, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.

The main industries we serve:

  -Mining & Quarrying

  -Construction

  -Crushing

  -Dredging

  -Cement

  -Sugar Mill

  -Steel plant

  -Oil & Gas
