VEVOR точный режущий станок с ЧПУ, USB гравировальный станок, сверление/Фрезерование 6040 X/Y/Z 3 осевой с подходящими винтами 1605
- Category: Woodworking Machinery >>>
- Supplier: Shanghai Sihao Machinery Equipment Co. Ltd.
Share on (60616121638):
Product Overview
Description

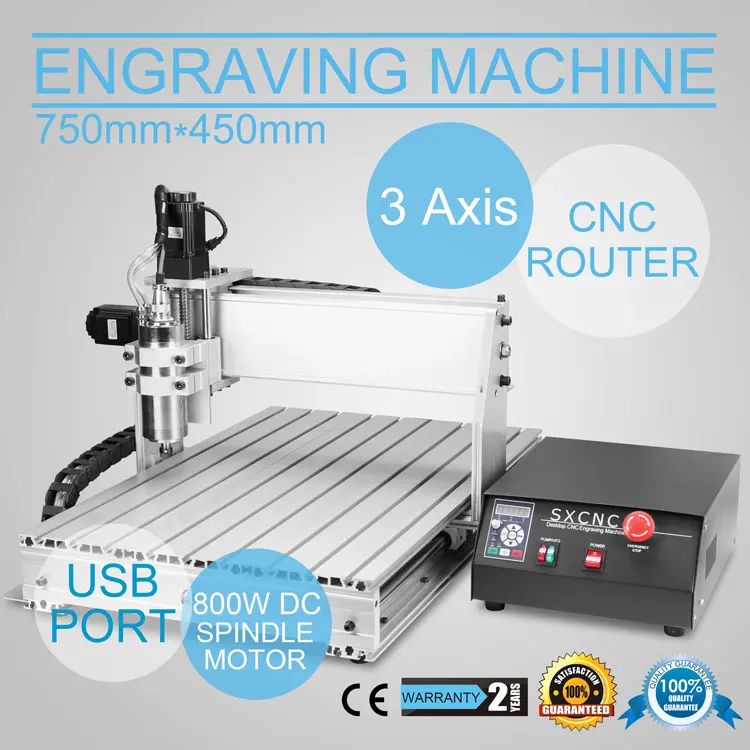

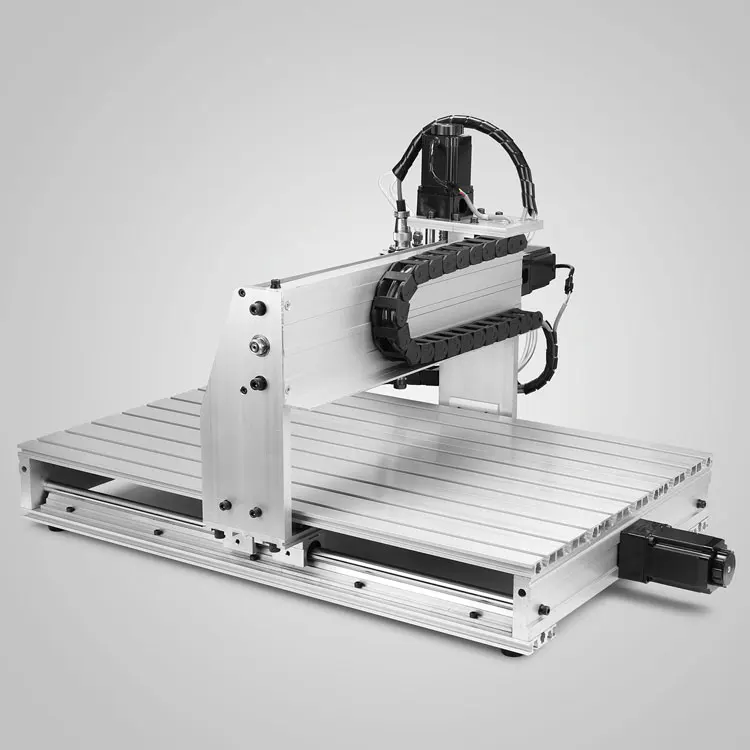

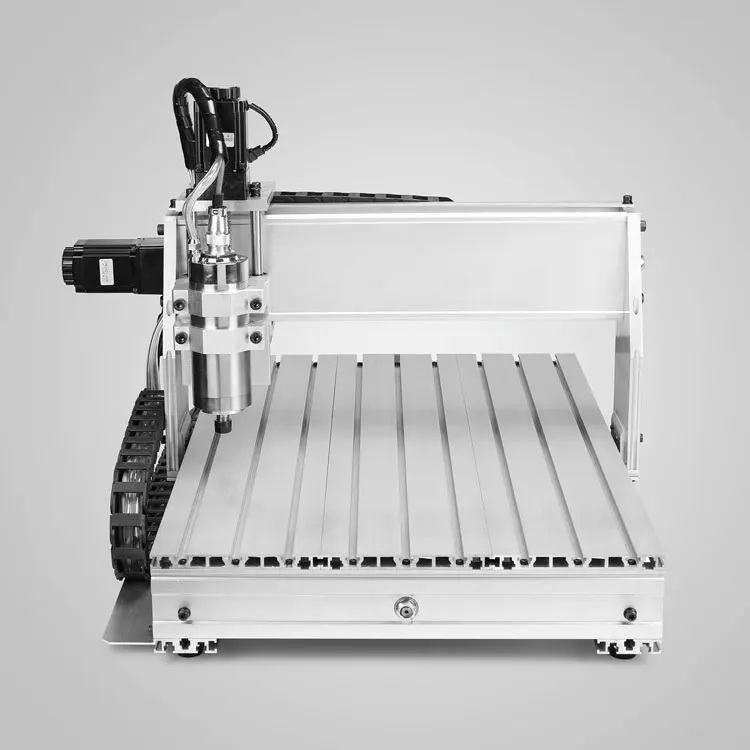

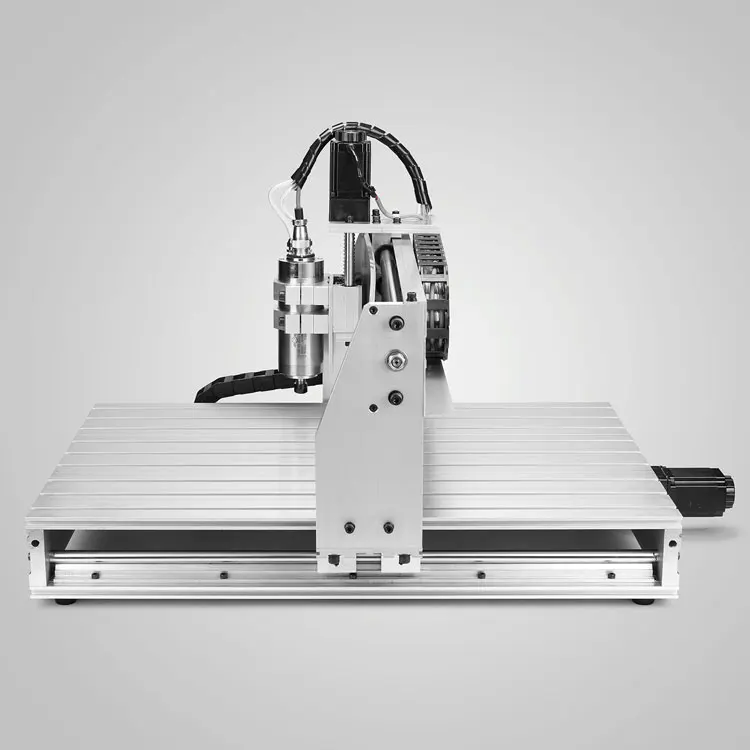

VEVOR Precision CNC Router USB Engraver Machine Drilling/Milling 6040 X/Y/Z 3-Axises With The Matching 1605 Ball Screws
Product Description

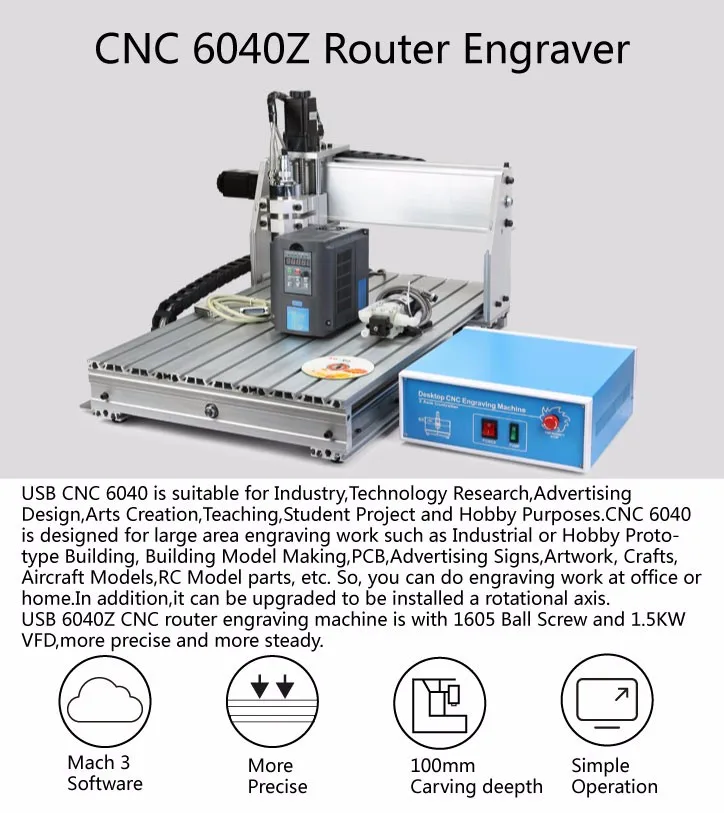

USB CNC 6040 is suitable for Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.CNC 6040 is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making,PCB,Advertising Signs,Artwork, Crafts, Aircraft Models,RC Model parts, etc. So, you can do engraving work at office or home.In addition,it can be upgraded to be installed a rotational axis.
USB 6040Z CNC router engraving machine is with 1605 Ball Screw and 1.5KW VFD,more precise and more steady.
Application
USB CNC 6040 is designed for large area engraving work .The Computerized CNC Engraving and Cutting Machine is suitable for various materials, such as WOOD,PMMA or other plastic,MDF board,native wood,PVC,Acrylic, wood,composite board plywood,It can be used widely to process or make advertising signs,PCB,nameplates, badges, seals,bronzing plate,aluminium alloy,acryplates,ABS resin double color plate,PVC foaming board,indentation plates, signs, construction models,instrument panels,wooden products,etc.
If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you.
How to use:
1.Assembling and locating the CNC machine on steady desk well.
2.Make sure that your computer has a on-board parallel port output.3.Installing a CNC control software and Drive such as the CNCUSB on your computer.
4.Connecting the control box with the CNC machine and you computer.
5.Fllowing our manual or guideline to set uo the software.
6.You can enjoy making you dream with using our CNC machine now.
- Simple operation and installation.
- More steady and strong equiped with aluminum alloy frame materials.
- Can be controlled only by desktop computer,not suitable for laptop
- Mach 3 software is simple and intelligent
- Can control the engraving more precise
- Emergency stop buttonenhance security
- Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic.
- Stepping motor knob is useful for small positioning adjustment,with steady and strong support structure.
- Cover plates reducing pollution for the screws and shafts.
- Thick 15 mm aluminum 6063 plate,more stronger.
- The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
- The chrome shafts is not easy to deform,suitable for long time use.
- Flexible coupling can be used for high torque transmission.
- High Precision Stepping motor makes engraving more precise .

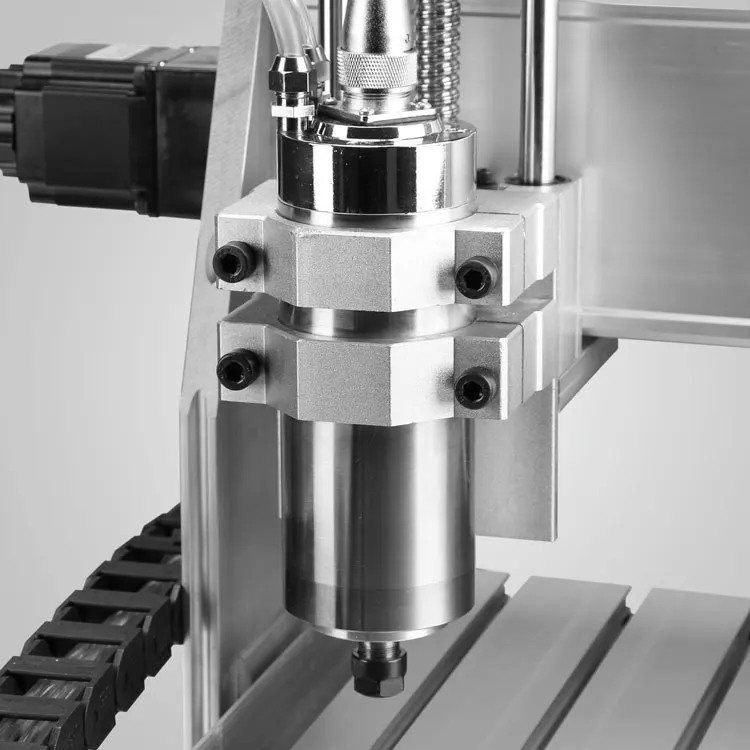

- The NEW 0.8KW water-cooled VFD spindle is available operating for long time,which can reinforced the processing abilty of the machine and can be used to process aluminum alloy and hard wood.
- This item already be equiped NEW 1605 ball screws.Anti-blackflash,high precision,long life circle.
- 2 years Free warranty.

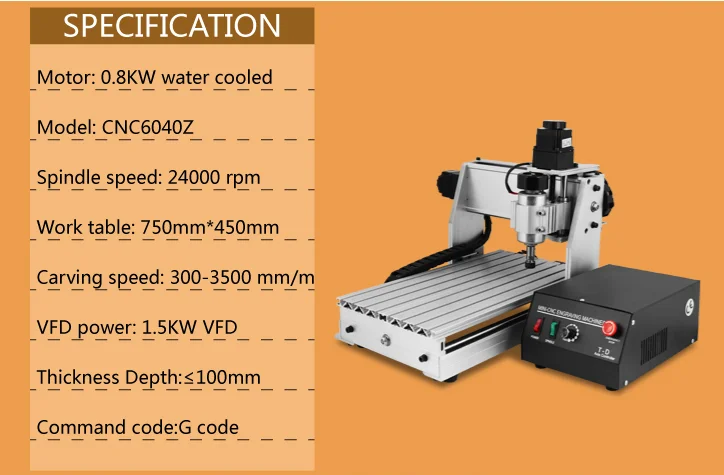

6040 triaxial engraving machine part parameters:
- Effective working travel:400(X)mm*580(Y)mm*75(Z)mm
- Shape dimension:880*670*530mm
- Max.thickness of the materials:≤100mm(the distance between Z axis and the bottom of the working station)
- Max.workpiece dimension:750mm*450mm
- Work table dimension:750mm*480mm*20mm
- Frame materials:6061 aluminum alloy + 6063 Industrial aluminum
- Driving units X axis:NEW 1605 ball screws
- Driving units Y axis:NEW 1605 ball screws
- Driving units Z axis:NEW 1605 ball screws
- Sliding units X axis:Dia.16mm chrome plate shafts
- Sliding units Y axis:Dia.20mm chrome plate shafts
- Sliding units Z axis:Dia.13mm chrome plate shafts
- Stepping motor type :57 two-phase 3A ,super-low noise ,NEW
- Spindle motor:0.8KW water cooled
- VFD power: 1.5KW VFD
- Principal axis collet:ER11/3.175 collet
- Spindle speed:24000rpm/min (PWM stepless speed regulation)
- Empty line speed:0-4000mm/min
- Resetting accuracy:0.05mm
- Engraving accuracy:better than 0.04 mm (has been tested)
- Spindle precision:radial runout≤0.03mm
- Control unit:triaxial one-piece drive + ring variable power + PWM speed
- Carving Instructions:G code/TAB files/nc file/NCC files
- Communication interface:through parallel connection with computer
- Software environment:all
- Carving speed:300-3500 mm/min (different materials differ)
- Machine weight:55 KG
Control box parameters:
- Operating Voltage:110V or 220V 50/60Hz(we also stock USA.UK.EU.AU.plugs.)
- Work theory:3977 3-axis control box with the power supply + spindle speed regulator
- Control unit:3A stepping motor driver plus adjustable spindle speed controller
- Computer connection:on board parallel port,USB
- Command code:G code
- Acceptable software:only CNCUSB
- Protection:Emergency stop button
