SGUV 650B Automatic uv coating machine glaze coating machine uv varnish machine coater with 520mm 650mm
- Category: Coating Machines >>>
- Supplier: Zhejiang Fengming Industrial Co. Ltd.
Share on (60616166515):
Product Overview
Description
Latest Design SGUV-650B Automatic Small Whole UV Varnish Machine UV Coating Machine with 650mm
Specifications

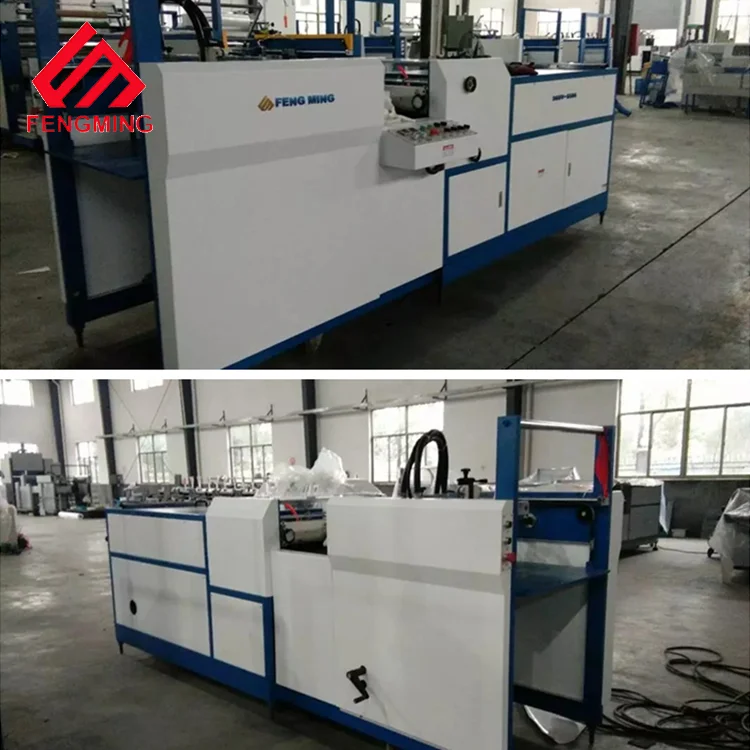

SGUV650B AUTOMATIC UV COATING MACHINE

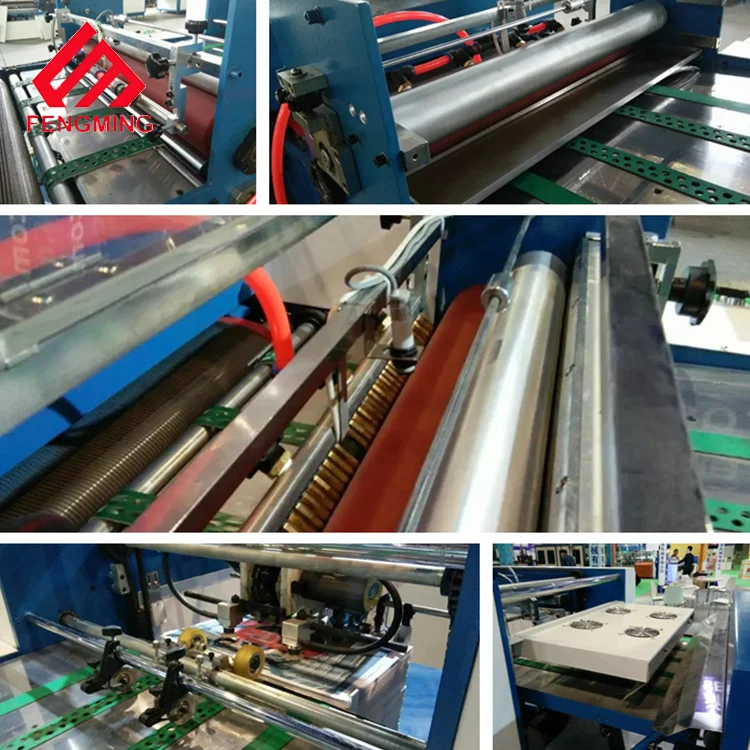

Configuration
1.PLC control
2.Two UV lamps, four IR lamps

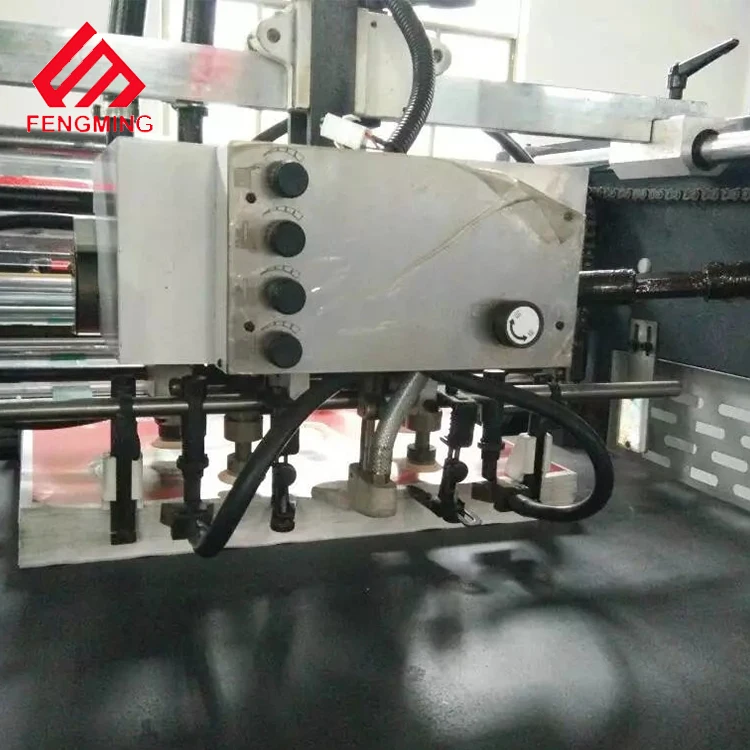

3.Automatic feeding system
4.Automatic paper stacking system

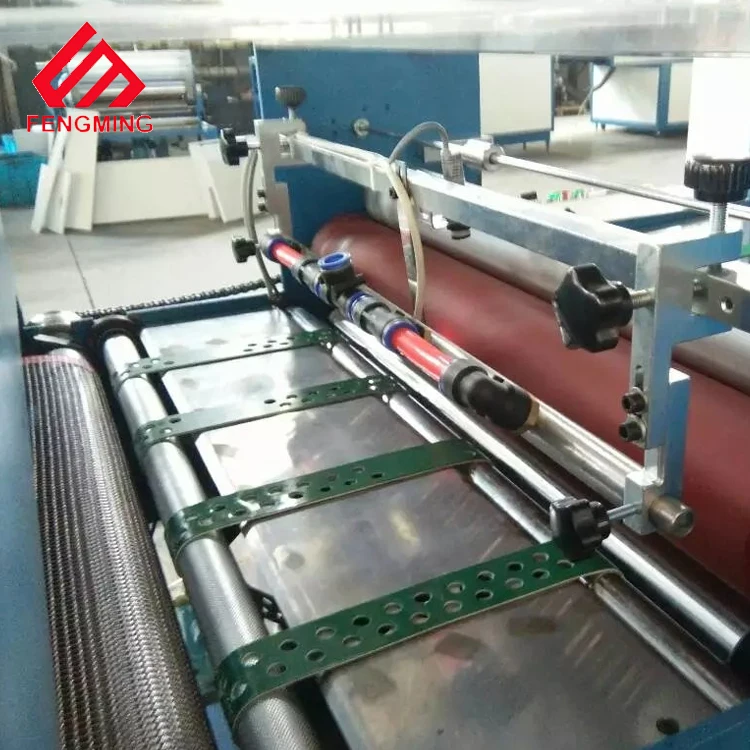

5.Air Knife(Used for thin paper coating)

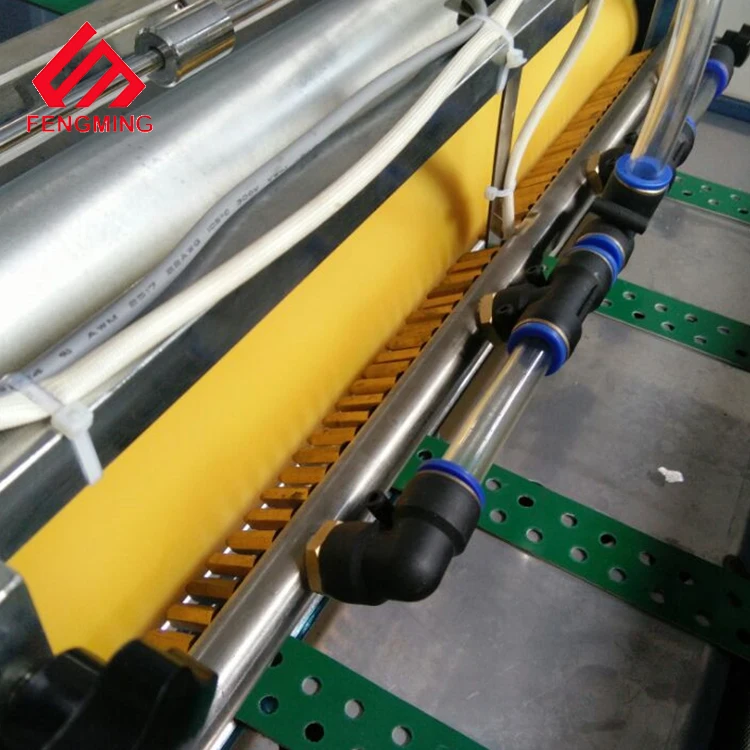

6.Equipped with Anilox Roller and Chambered Ductor Blade to make simple spot coat(strip coating,coat width can be adjusted freely).
Technical specification
MODEL | |
Max.paper size | 630*750mm |
Min.paper size | 220*280mm |
Max.Coating Width | 630mm |
Max.Feeder Speed | 35m/min |
Paper Thickness | 80-200g/m²(with air knife)
200-600g/m² |
Total Power | 9.5KW |
Total Weight | 1500kg |
Overall Dimensions | 5080mm*1250mm*1560mm |
