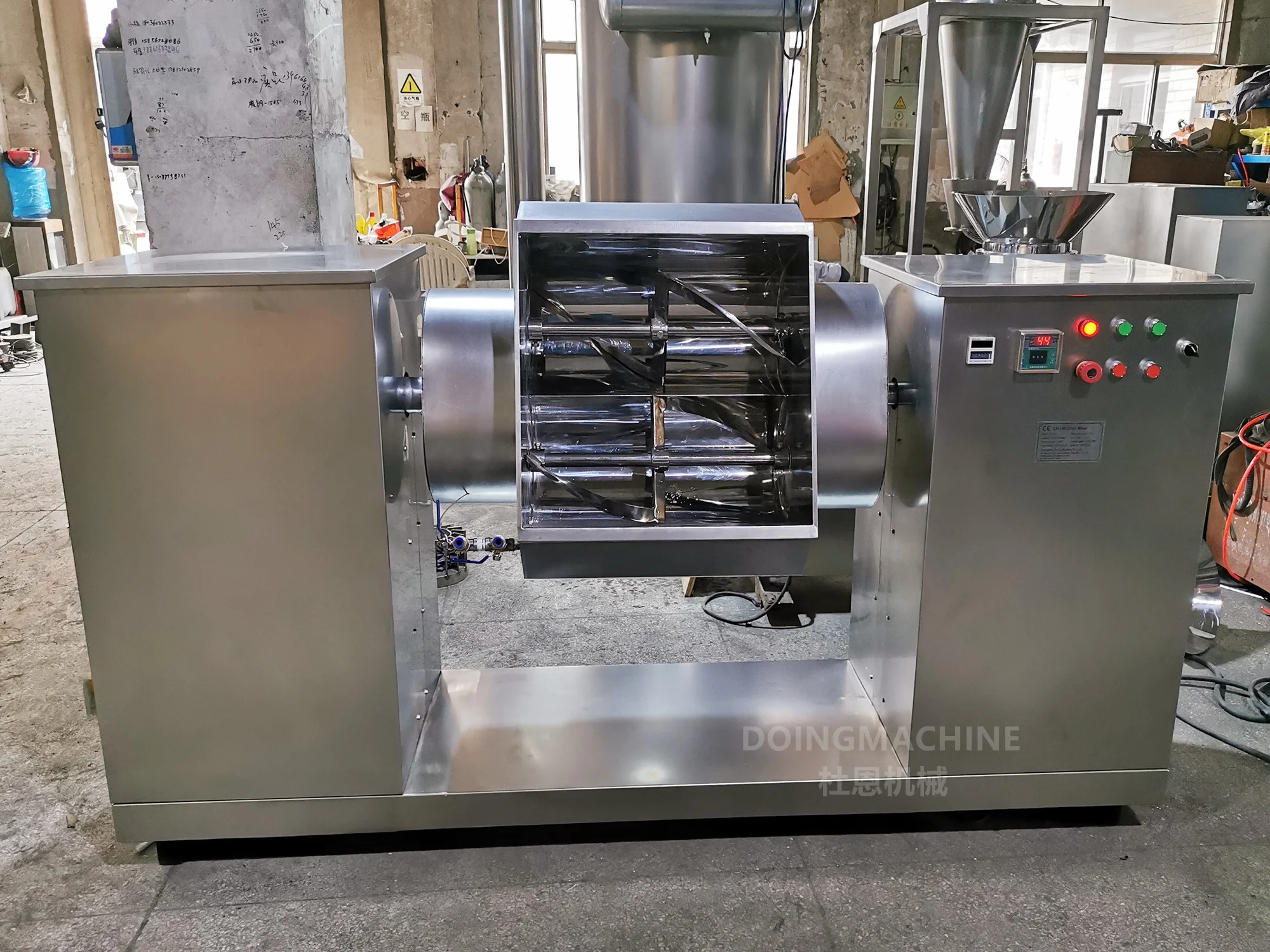

Silicone sealant mixer making machine production line
US $600.00-$650.00
Пищевой миксер с двойным лезвием sigma
- Category: Mixing Equipment >>>
- Supplier: Changzhou Doing Machine Co. Ltd.
Share on (60616603784):
Product Overview
Description
Product Description
Main features
1. For mixing of wet powders, pastes and slurries with low and medium viscosity;
2. Mixing vessel volume: 50-1000L;
3. GMP design.
4. Heating jacket can be equipped for steam, hot water or hot oil
2. Mixing vessel volume: 50-1000L;
3. GMP design.
4. Heating jacket can be equipped for steam, hot water or hot oil

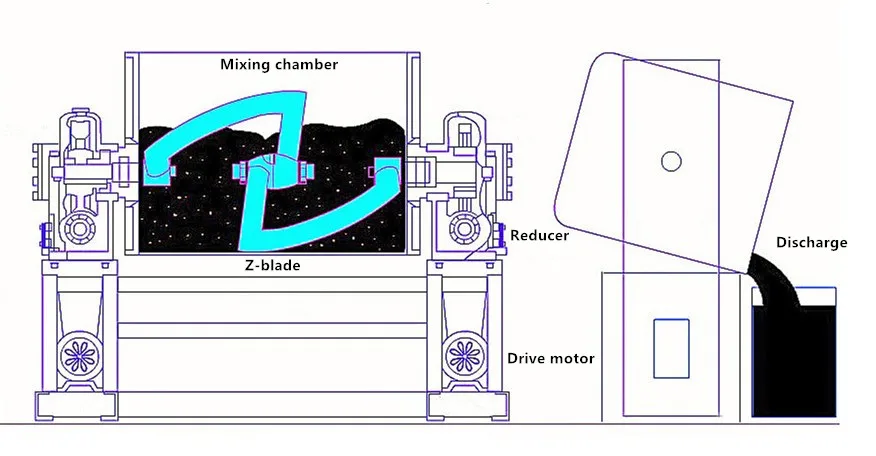

Working principle
CH series sigma/Z blade mixer is widely used for mixing wet powders, pastes and slurries with low and medium viscosity in food, chemical and pharmaceutical industry for small to medium scale production. It consists of trough-shaped mixing bowl, single or double sigma blade, drive motor, tilt motor and support frame.
Materials are gravity fed into the mixing bowl. The rotary Z blades completely stir and blend the materials to achieve uniform mixing. After mixing, tilt the mixing bowl for discharging.
Materials are gravity fed into the mixing bowl. The rotary Z blades completely stir and blend the materials to achieve uniform mixing. After mixing, tilt the mixing bowl for discharging.
Heavy duty Double sigma/Z blade mixer is also available for mixing dough and other pasty products with medium to high viscosity.
Technical advantages
1. Robust, simple and compact design requires minimum maintenace;
2. Made by SUS304 or SUS 316 and mirror polished to meet GMP pharmaceutic sanitary standards;
3. Special drive shaft sealing design can 100% make sure contamination free of product;
4. The gap between sigma blade and mixing vessel inner wall is less than 3mm;
5. High efficient mixing without dead corner
6. Heating jacket can be equipped for steam, hot water or hot oil
2. Made by SUS304 or SUS 316 and mirror polished to meet GMP pharmaceutic sanitary standards;
3. Special drive shaft sealing design can 100% make sure contamination free of product;
4. The gap between sigma blade and mixing vessel inner wall is less than 3mm;
5. High efficient mixing without dead corner
6. Heating jacket can be equipped for steam, hot water or hot oil
Main technical parameters
Model | CH-50 | CH-100 | CH-200 | CH-300 | CH-400 | CH-500 |
Volume L | 50 | 100 | 200 | 300 | 400 | 500 |
Working volume L | 30 | 60 | 120 | 180 | 240 | 300 |
Rotation speed RPM | 24 | 24 | 24 | 24 | 24 | 24 |
Motor power for mixing KW | 1.5 | 2.2 | 4 | 5.5 | 5.5 | 7.5 |
Tilt motor KW | 0.37 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 |
Dimension LxWxH M | 1.2x0.5x0.95 | 1.4x0.58x1.0 | 1.6x0.6x1.25 | 2.15x0.7x1.25 | 2.3x0.8x1.25 | 2.4x0.9x1.25 |
Weight kg | 200 | 250 | 320 | 550 | 680 | 720 |
Detailed Images

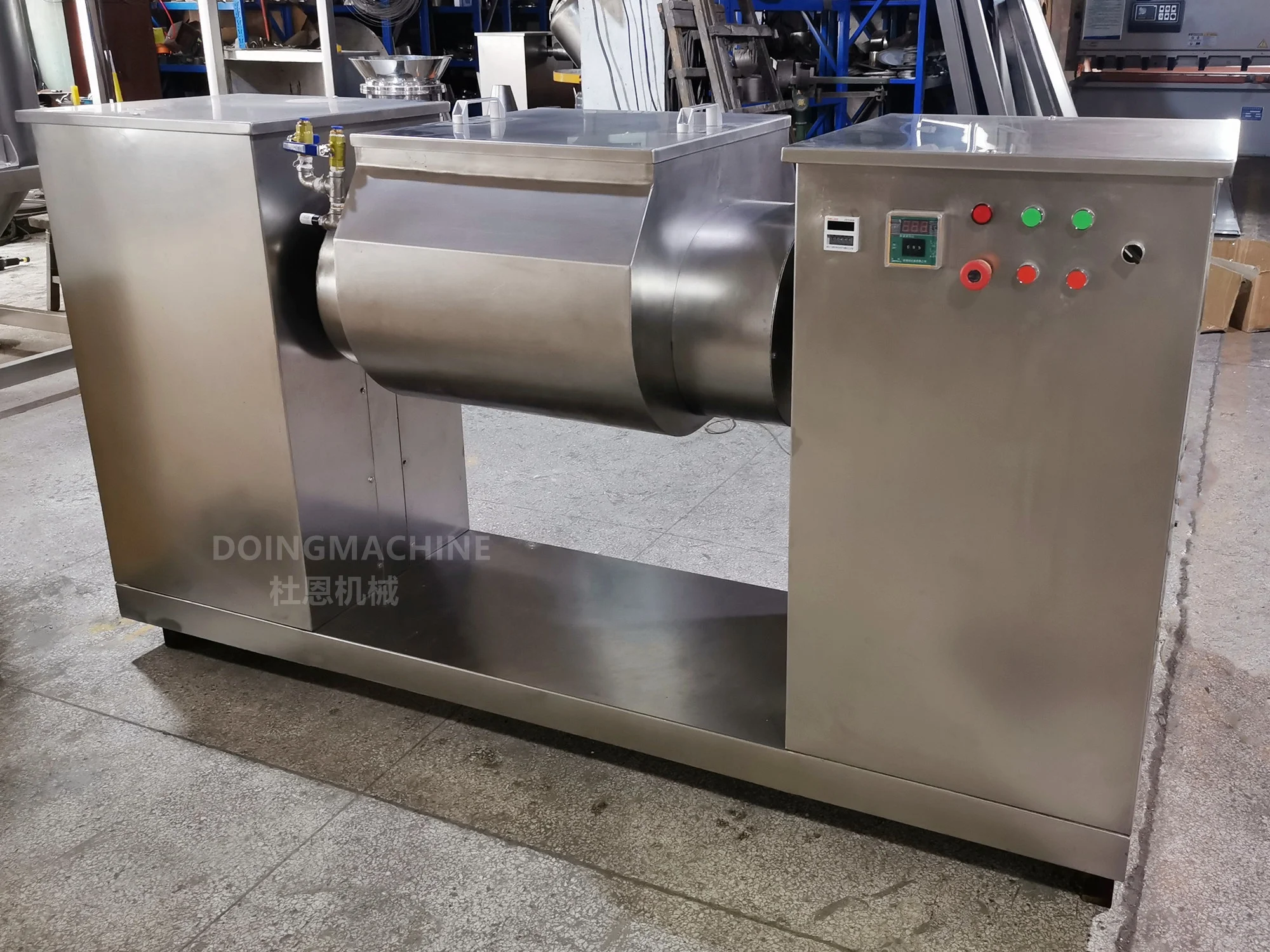

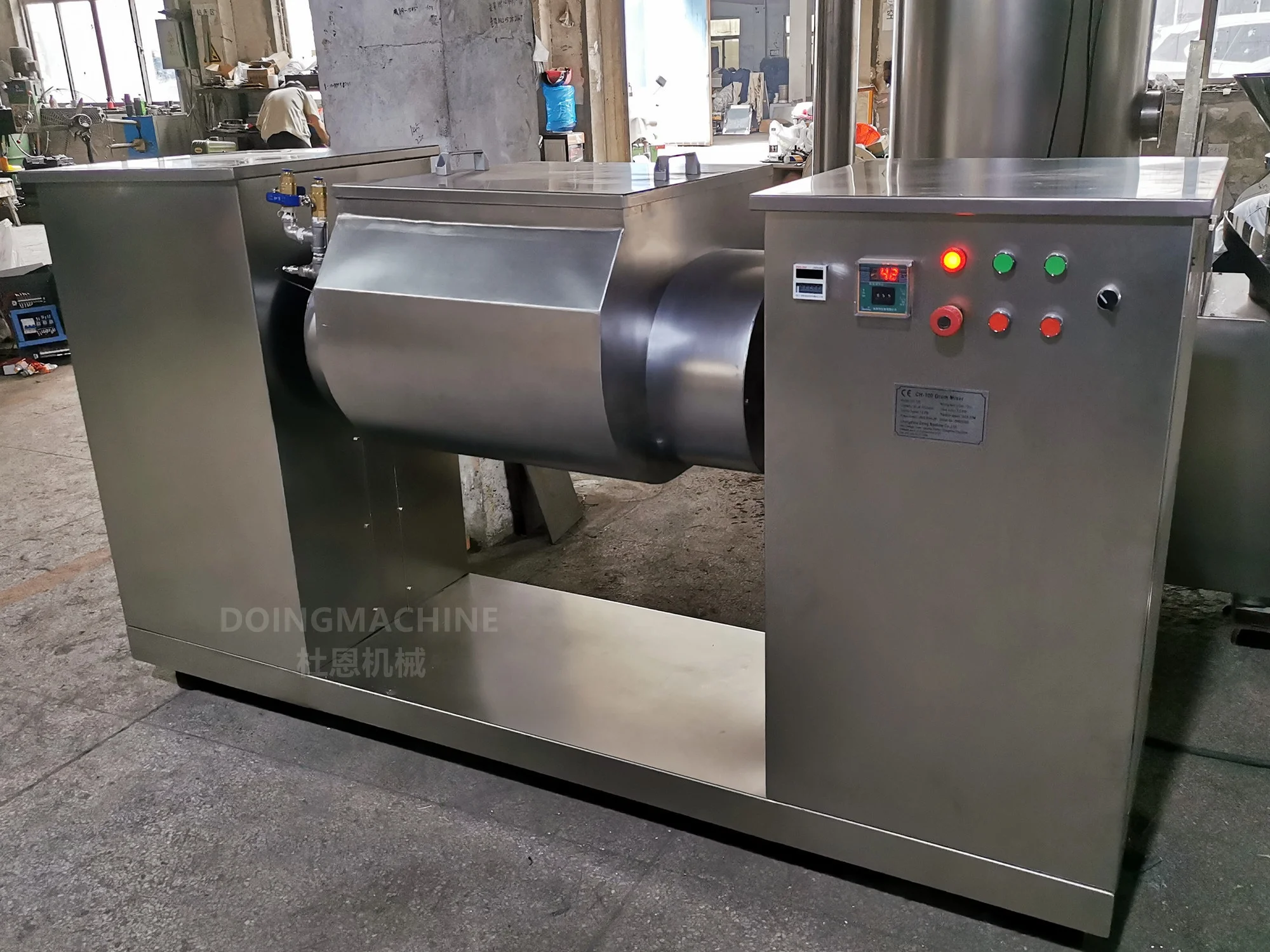

Mixing chamber outside

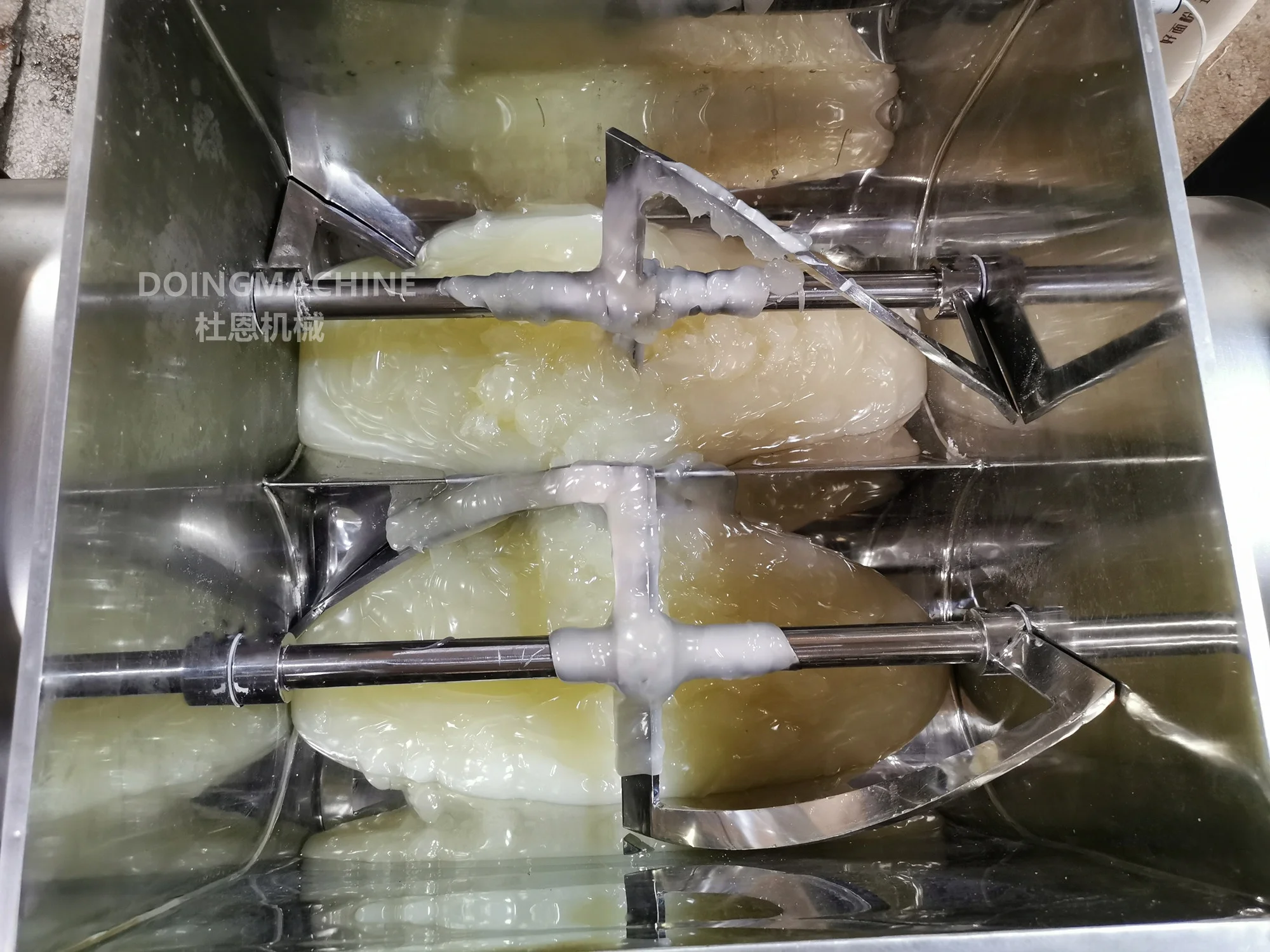

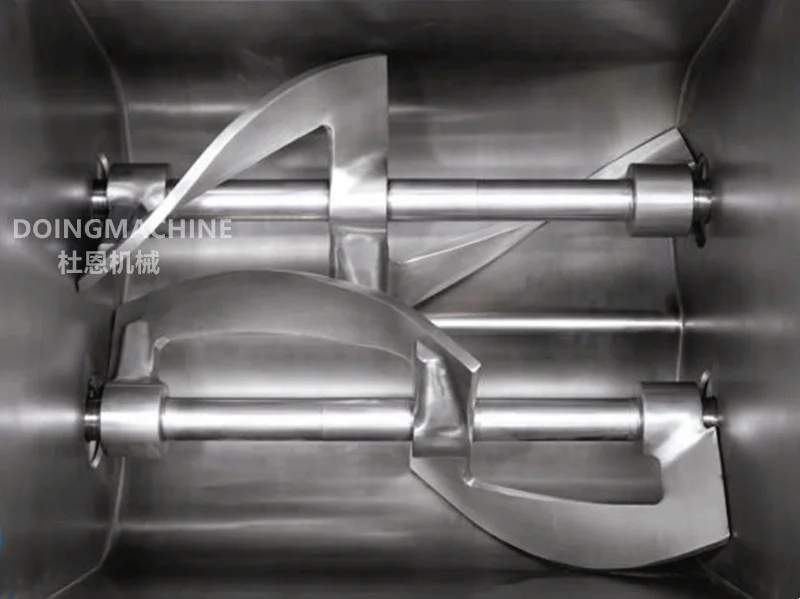

Double sigma blade
Electrical heating jacket

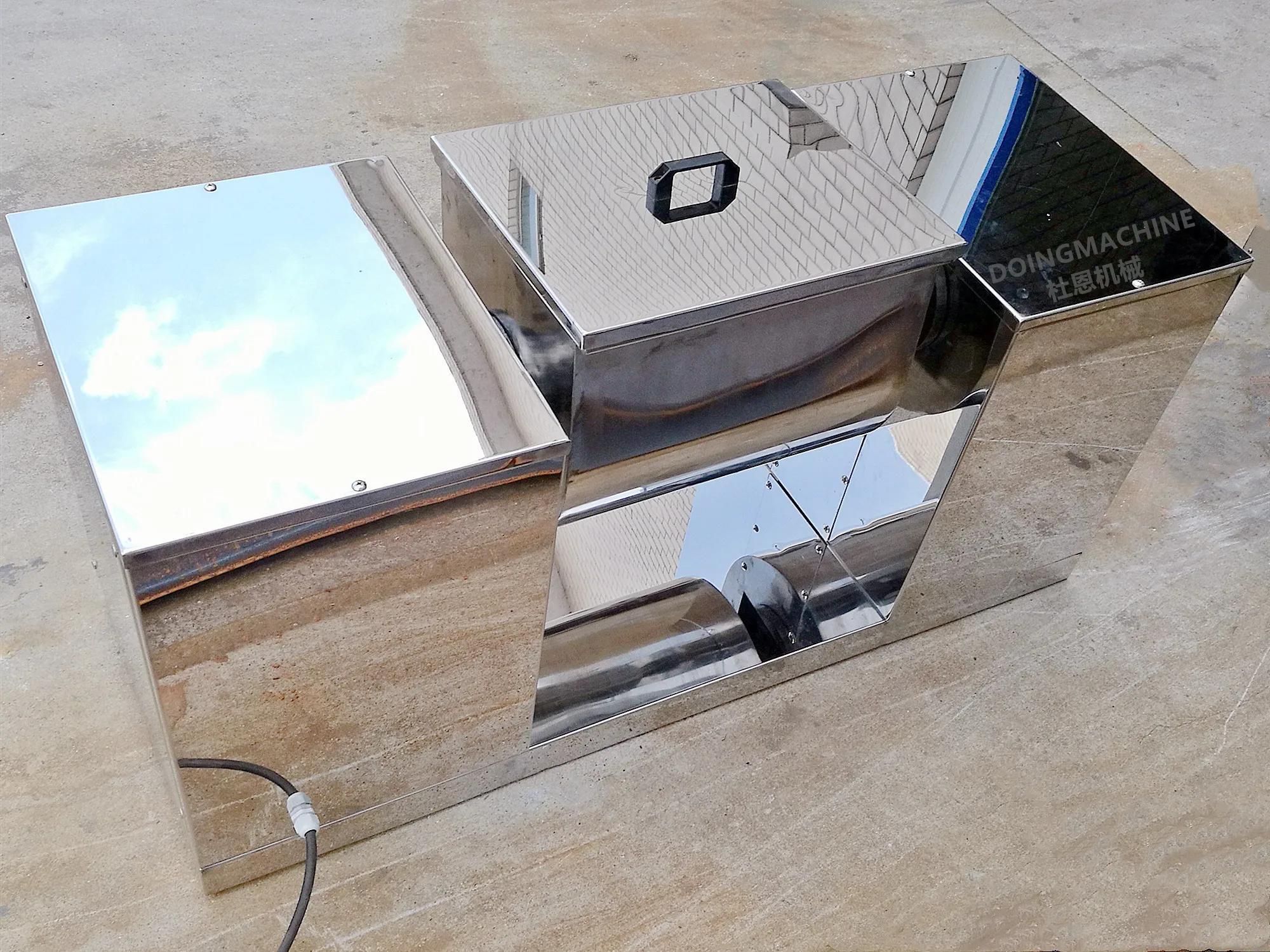

Single sigma blade
Packing & Delivery
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our Sigma/Z blade mixer can be customerized. To work out a detailed proposal or quotation, we have to know the following information:
1) What products will be mixed
2) Bulk density and particle size of your product
3) Mixing volume
4) Construction material:SUS304 or SUS316L
5) If heating jacket is needed
Q: How the machine will be delivered ?

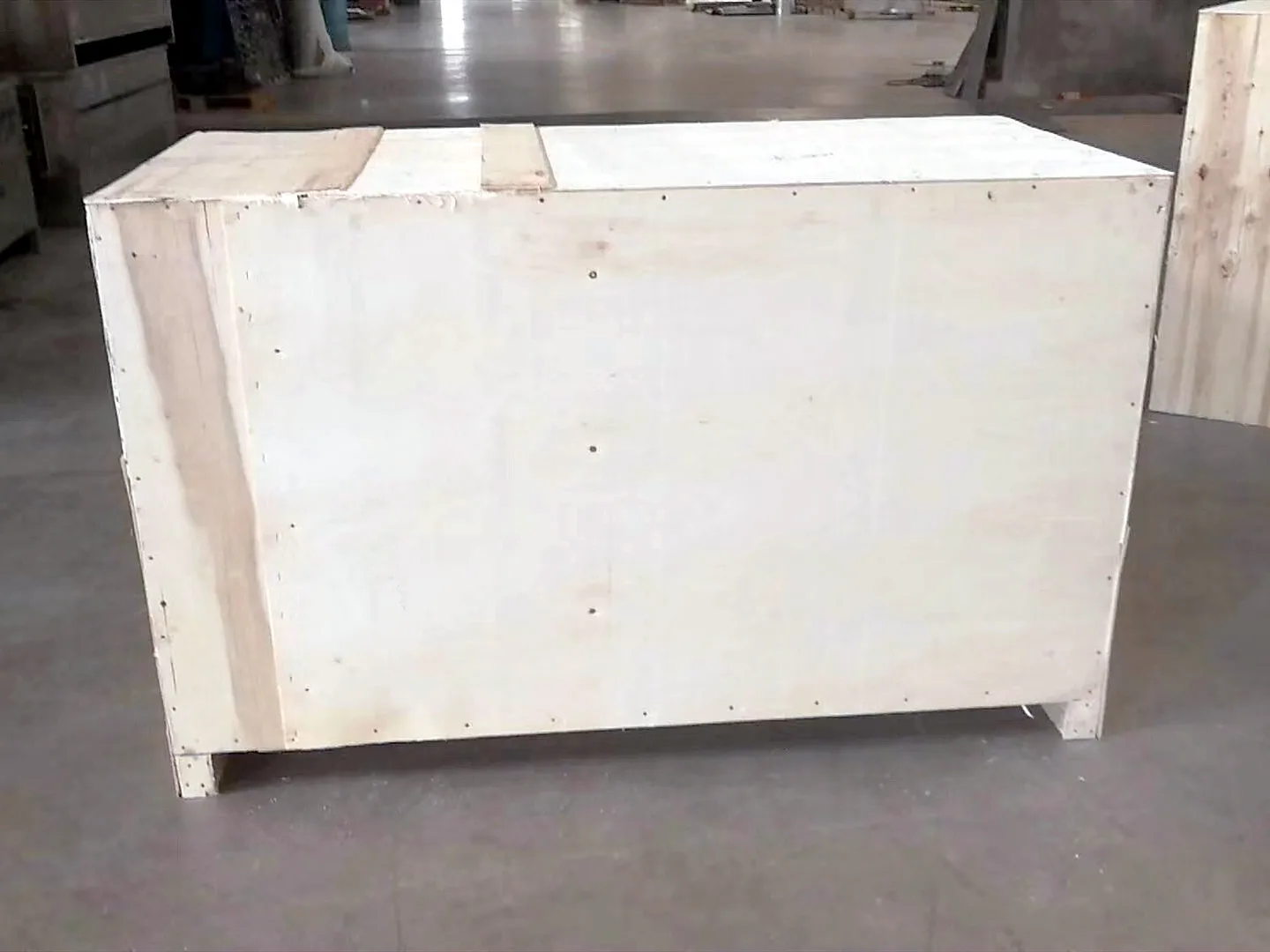

A: The mixer is packed in plywood box for shipping
