1 Вт 3030 светодиодный Диод 9 В (8,4 9,6 в) 3030 ма лм SMD LED
1 Вт 3030 светодиодный Диод 9 В (8,4-9,6 в) 3030 ма-лм SMD LED
1 Вт 3030 светодиодный Диод 9 В (8,4-9,6 в) 3030 ма-лм SMD LED
1 Вт 3030 светодиодный Диод 9 В (8,4-9,6 в) 3030 ма-лм SMD LED

1 Вт 3030 светодиодный Диод 9 В (8,4 9,6 в) 3030 ма лм SMD LED

Share on (60617786145):


Price:0,02 $ - 0,03 $

Quantity:


Product Overview

Description

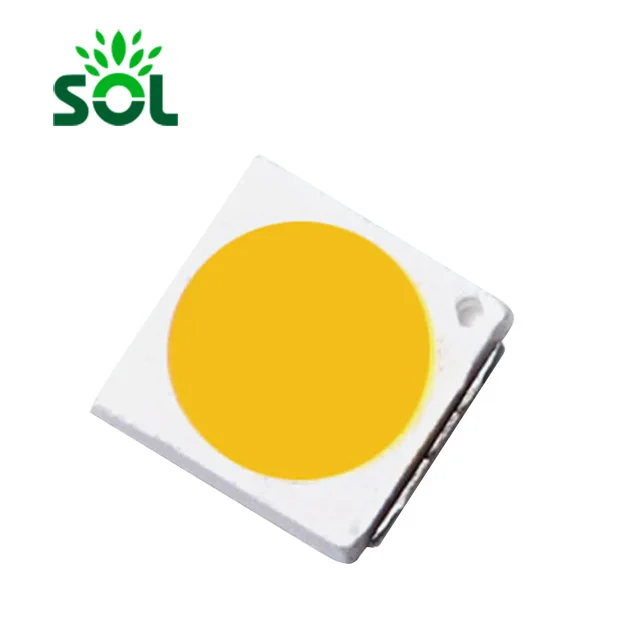

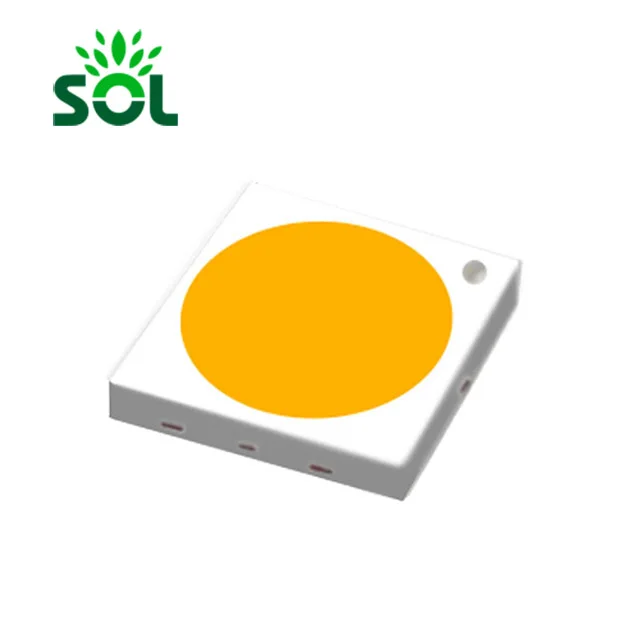

SMD LED 3030



Product Description


NINGBO SOL  3030 SMD LED are applied to LED Tube Light, LED Panel Light, LED Bulb, LED Spot Light and LED Flood Light...which advantage is:



  • IS09001:2008 Factory, SGS/ TUV Audited Factory

  • 140-160LM/W, Energy Saving over 50%

  • Good raw material used: Taiwan Chip, USA Intermatix Phosphor, 99.99% purity gold wire etc...

  • Excellent Color Consistency.(Two times of color seperation process)

  • Brightness Decay can be as low as 3%.

  • Equipped with 16 automatic production lines. ( Production capacity: 10KK high power led/month, 30kk smd led/month.)

  • Competitive factory price with superior quality (strictly tested)

  • High CRI. Ra>80, Ra>90 Available.

  • Warranty: 5 Years





Parameter


 120-155lm 3V 6V 9V 12V 18V 25V 50V 1W EMC 3030 SMD LED










































3030 smd led.jpgPower1WProduct Dimension3.0*3.0*0.52mm
Forward Voltage8.4-9.6VViewing Angle120°
Forward Current100mAStorage Temperature0- +60℃
Luminous Flux110-130LMOperating Temperature-40~ +60℃
Wavelength6500KJunction Temperature115℃
CRI>80Thermal Resistance12℃/W

3030 dimension.jpg





SOL 3030 LED Series


 3030 smd led 1W white color










































































Part No.ColorPowerVoltCurrentCCT/ WavelengthCRILuminous Flux
SOL-3030X100-03White1W2.8-3.4V300mA2700K 3000K 4000K 5600K 6500K>80110-130LM
SOL-3030X100-06White1W5.6-6.8V150mA2700K 3000K 4000K 5600K 6500K>80110-130LM
SOL-3030X100-09White1W8.4-9.6100mA2700K 3000K 4000K 5600K 6500K>80110-130LM
SOL-3030X100-18White1W16.8-19.260mA2700K 3000K 4000K 5600K 6500K>80120-140LM
SOL-3030X100-48White1W46-51V25mA2700K 3000K 4000K 5600K 6500K>80130-150LM

Note:If there is no products you need,please contact us.we accept customize.
