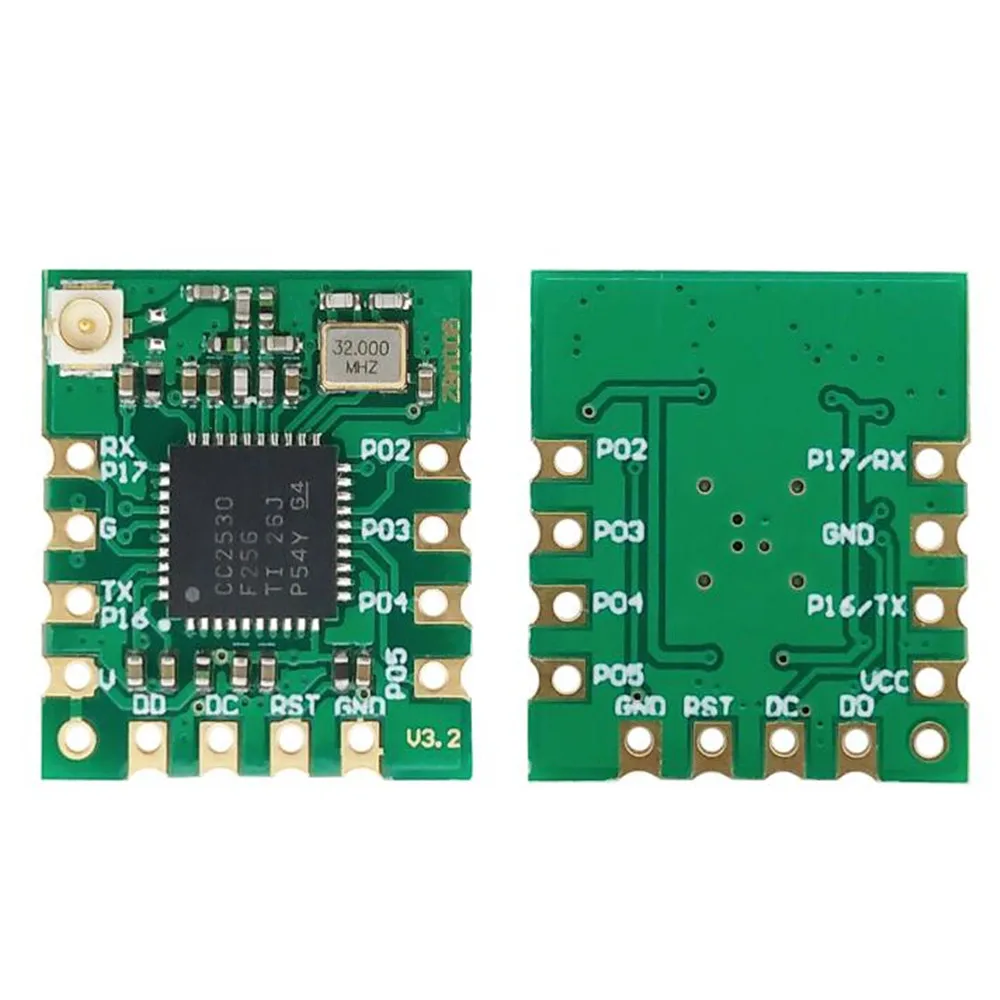

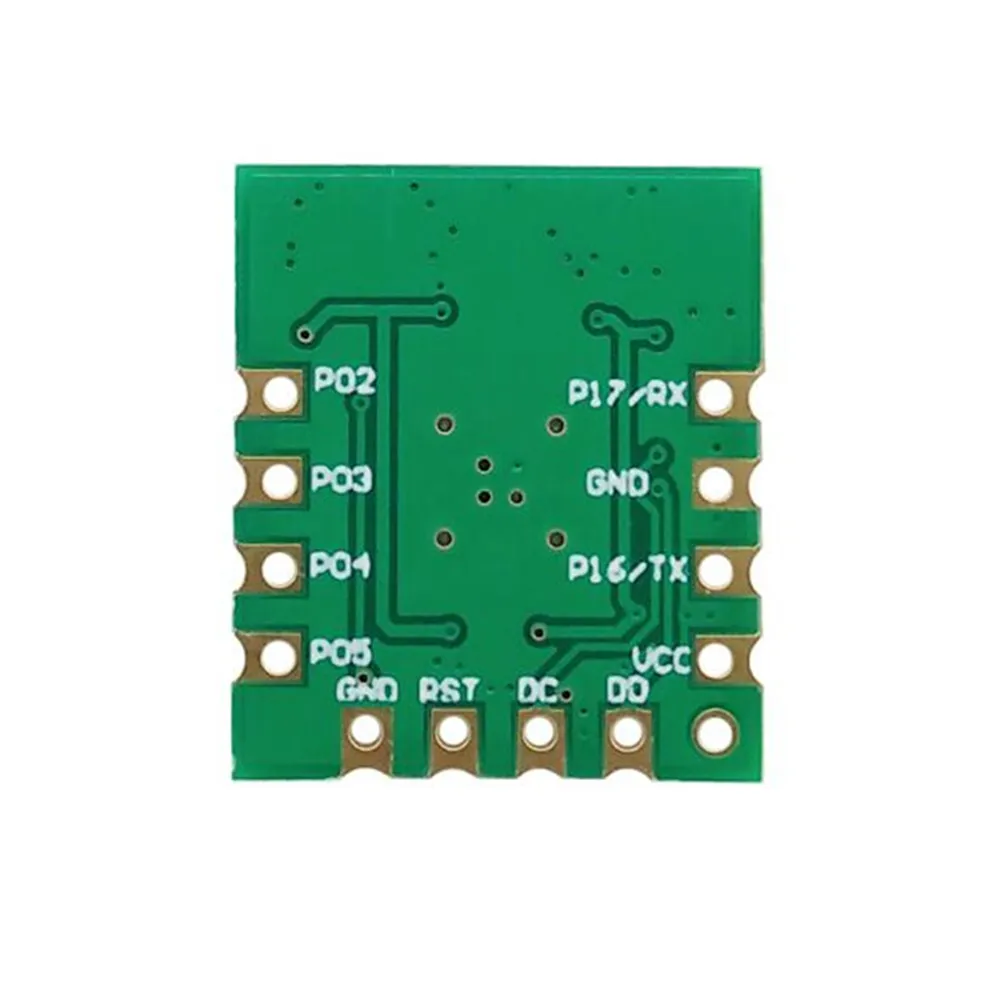

Taidacent UART Serial 2.4GHZ Wireless Zigbee Smart Home Module IPEX CC2530F256 CC2530 Smallest Zigbee Module
- Category: Zigbee Modules >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (60622438682):
Product Overview
Description
Taidacent UART Serial 2.4GHZ Wireless Zigbee Smart Home Module IPEX CC2530F256 CC2530 Smallest Zigbee Module
Product Description
Main control chip CC2530F256
Supply voltage 2V-3.6V
Normal current 24mA
Emission current 38mA
Sleep current 1uA
ESD2000V
Operating temperature -40℃-85℃

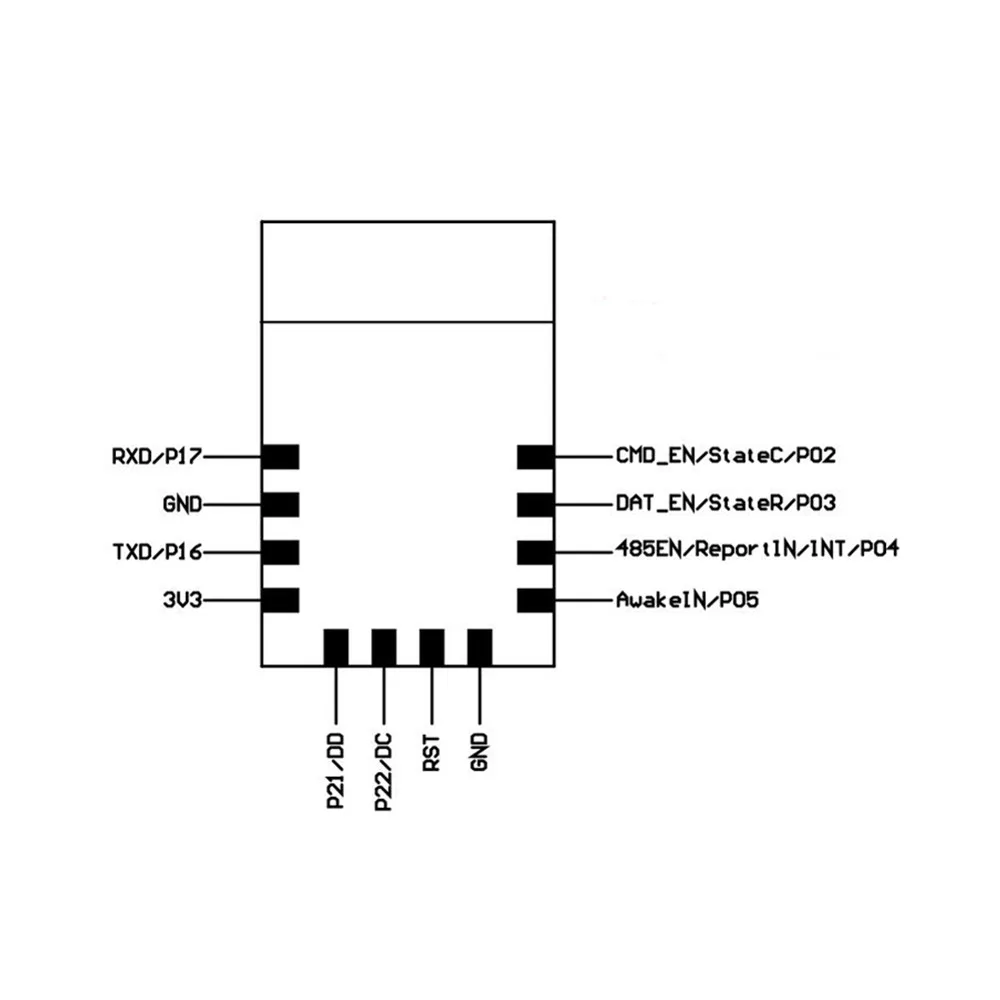

Module interface | Stamp hole patch
Communication interface Serial UART
Point-to-point transmission distance 150 meters
Single data frame capacity 64 bytes
Number of single network nodes: 60,000 end nodes
Receiving sensitivity (dBm) -97
Maximum transmit power (dBm) 4.5
Number of I/o ports 6
Supply voltage 2V-3.6V
Normal current 24mA
Emission current 38mA
Sleep current 1uA
ESD2000V
Operating temperature -40℃-85℃
Module interface | Stamp hole patch
Communication interface Serial UART
Point-to-point transmission distance 150 meters
Single data frame capacity 64 bytes
Number of single network nodes: 60,000 end nodes
Receiving sensitivity (dBm) -97
Maximum transmit power (dBm) 4.5
Number of I/o ports 6
Specification
1 | Multi-node wireless network |
2 | Star network free networking |
3 | Stable communication distance |
4 | Ultra-low power consumption and high compatibility |
