Aike, as a united team, have been devoted to orthopedic external fixation for nearly 10 years. We develop a complete product line covering unilateral fixators, Hoffmann II systems, TSF frame and Rod&Pin fixators. Our product is beyond comparison in quality with exact compatibility to international brands.
Specification

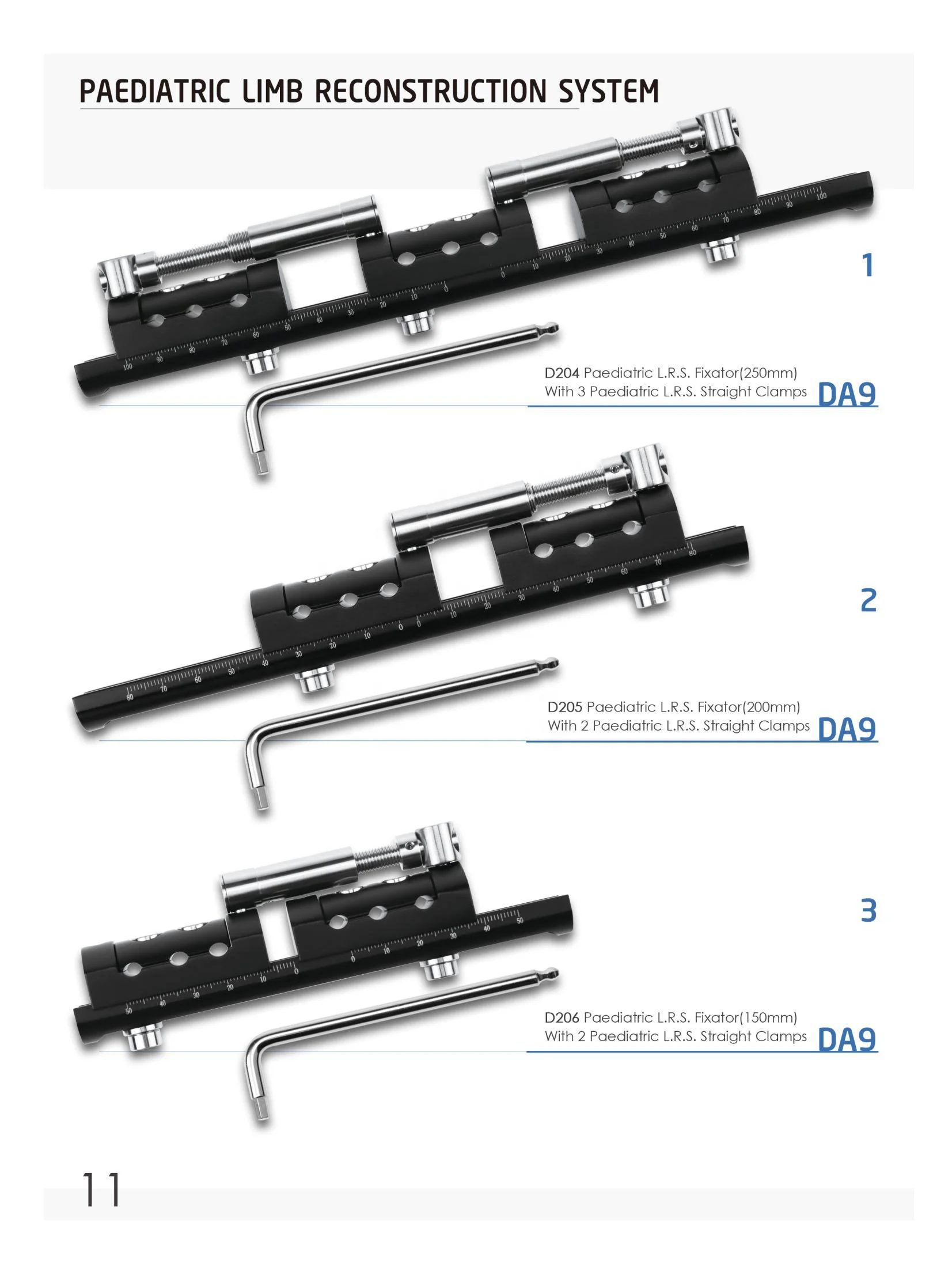

Product Name | Limb Reconstruction System |
Brand | Bfix |
Certificate | ISO13485/CE |
Category | Adult/Pediatric/LRS Advanced |
Feature | -High stability -Safety during angular correction -Availability of radiolucent components |
OEM | Acceptable |
Transportation | DHL/FEDEX/UPS/Forwarder |
Package | Carton/Sterile package |
Product Description

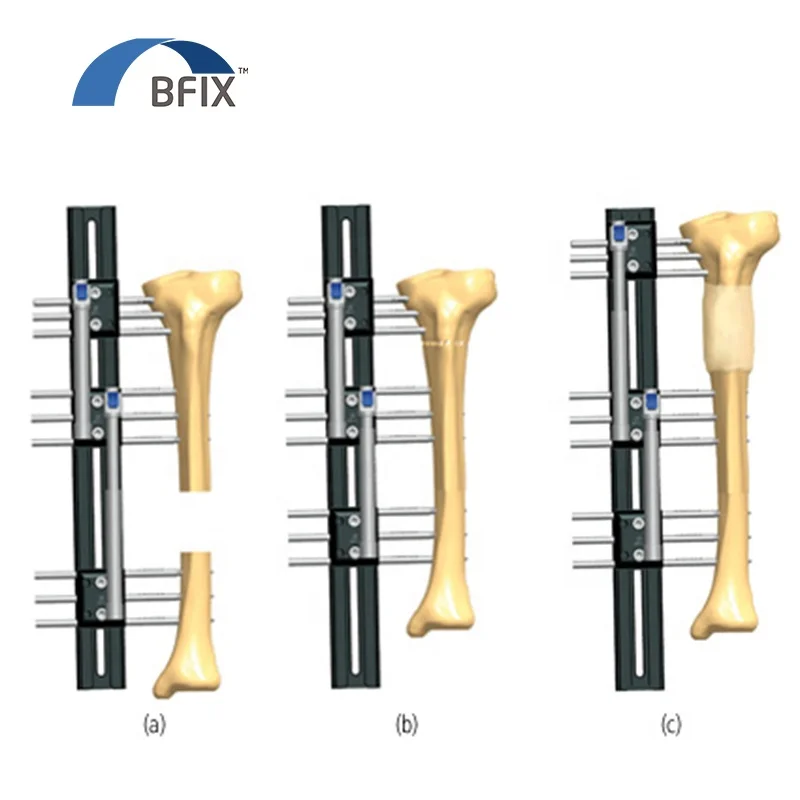

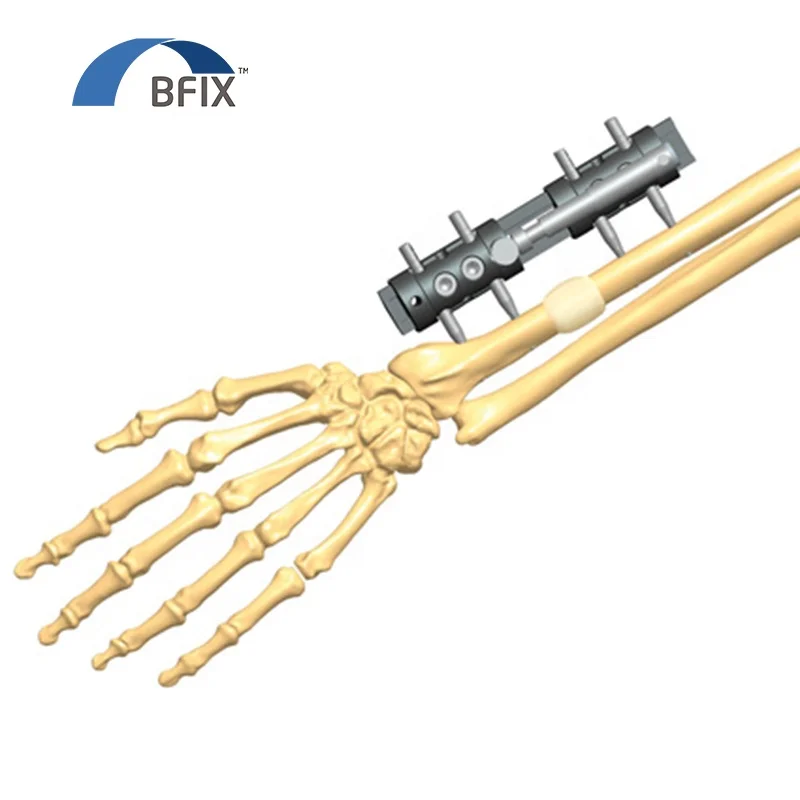

The Bfix Limb Reconstruction System (LRS) is a series of modular monolateral external fixators to be used in reconstructive procedures for treatment of limb shortening, bone loss, open fractures, non-union and angular deformities.
The Bfix Limb Reconstruction System consists of an assembly of clamps(usually two or three)which can slide on a rigid rail and can be connected by compression-distraction units.

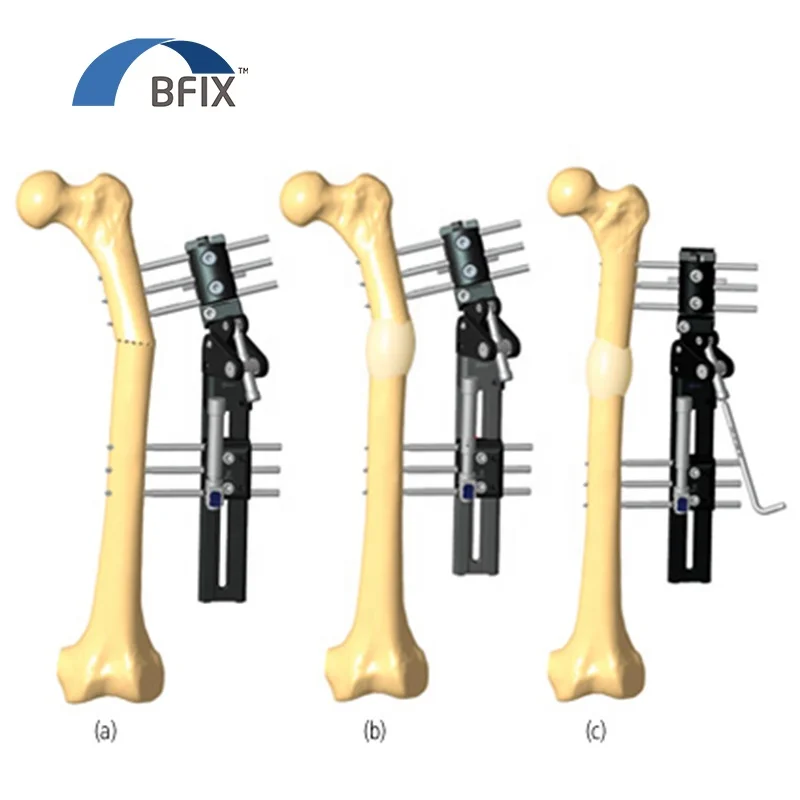

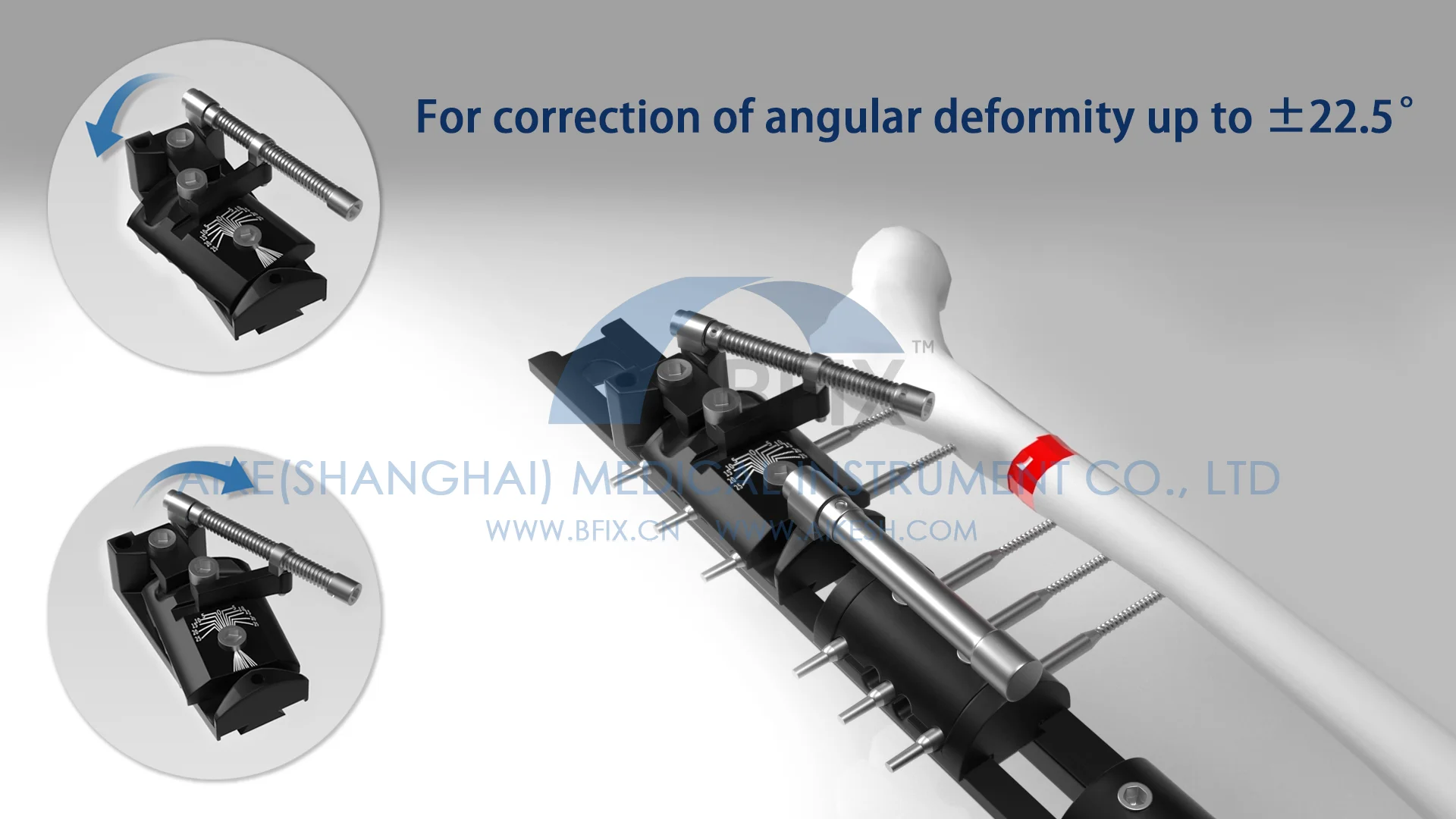

Micrometric Swivelling Clamp
• Gradual angular correction up to ±24°
• Graduated scale indicating the amount of deformity corrected
• Clamp can be rotated without loss of stability as bone screws are fixed in the clamp and rotate together on a separate platform
• The CD-unit LRS connection facilitates correction by distributing the load across the 4 holes of the clamp cover
• Graduated scale indicating the amount of deformity corrected
• Clamp can be rotated without loss of stability as bone screws are fixed in the clamp and rotate together on a separate platform
• The CD-unit LRS connection facilitates correction by distributing the load across the 4 holes of the clamp cover

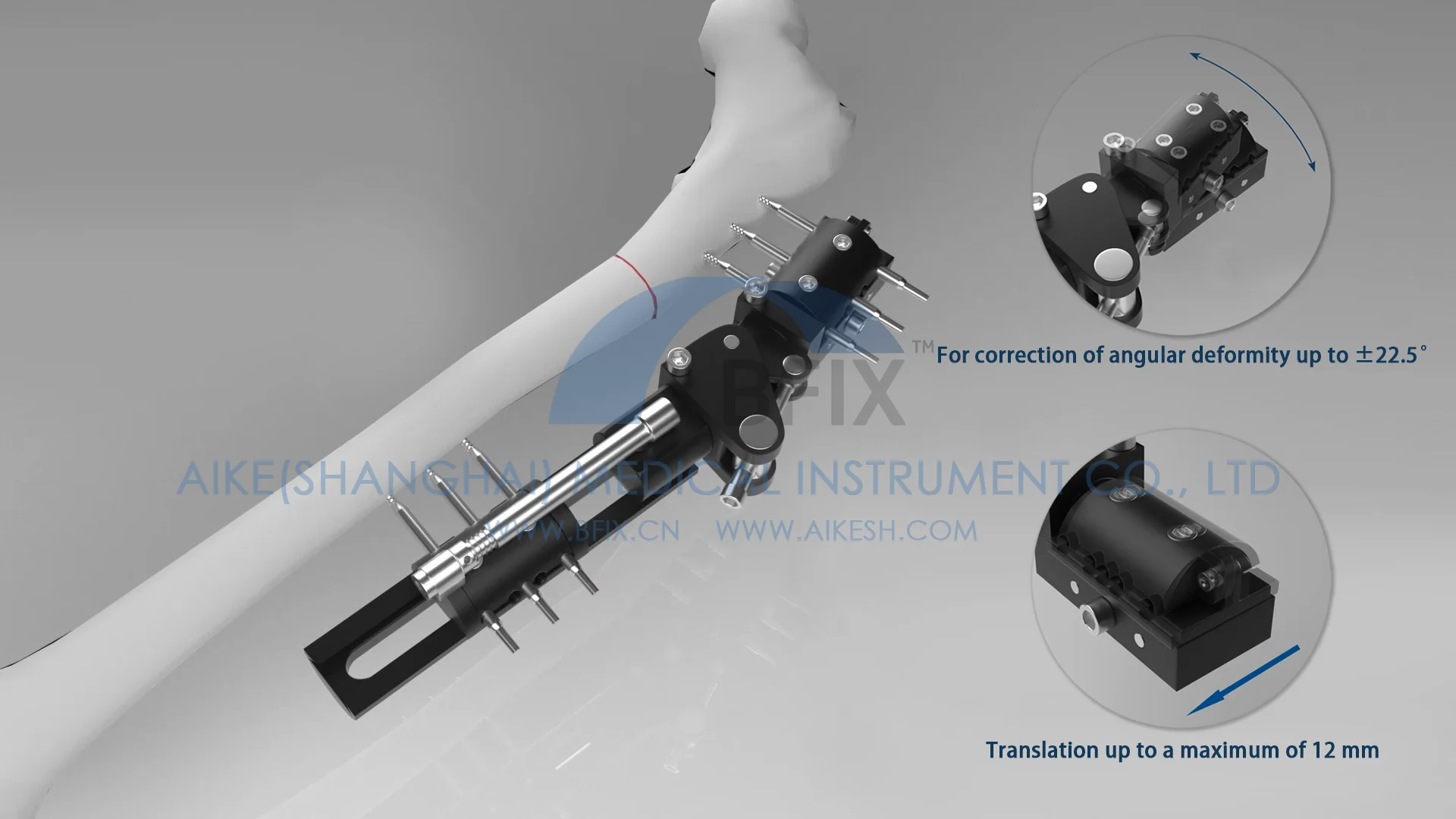

Multiplanar Clamp
• Attached to either end of the rail
• For gradual correction of angular deformity in any plane up to ±35° (including translation up to a maximum of 12 mm)
• Attached to either end of the rail
• For gradual correction of angular deformity in any plane up to ±35° (including translation up to a maximum of 12 mm)
T-Garches Clamp
• Angulates in one plane and permits:
- tibial lengthening in the proximal metaphysis, with good control of valgus or varus deviation
- angular correction in the proximal tibia by hemicallotasis
• Two lateral swivelling screw seats allow convergent siting of the outer screws
• Use with 3 bone screws is advised for optimum stability
• Ergonomic profile

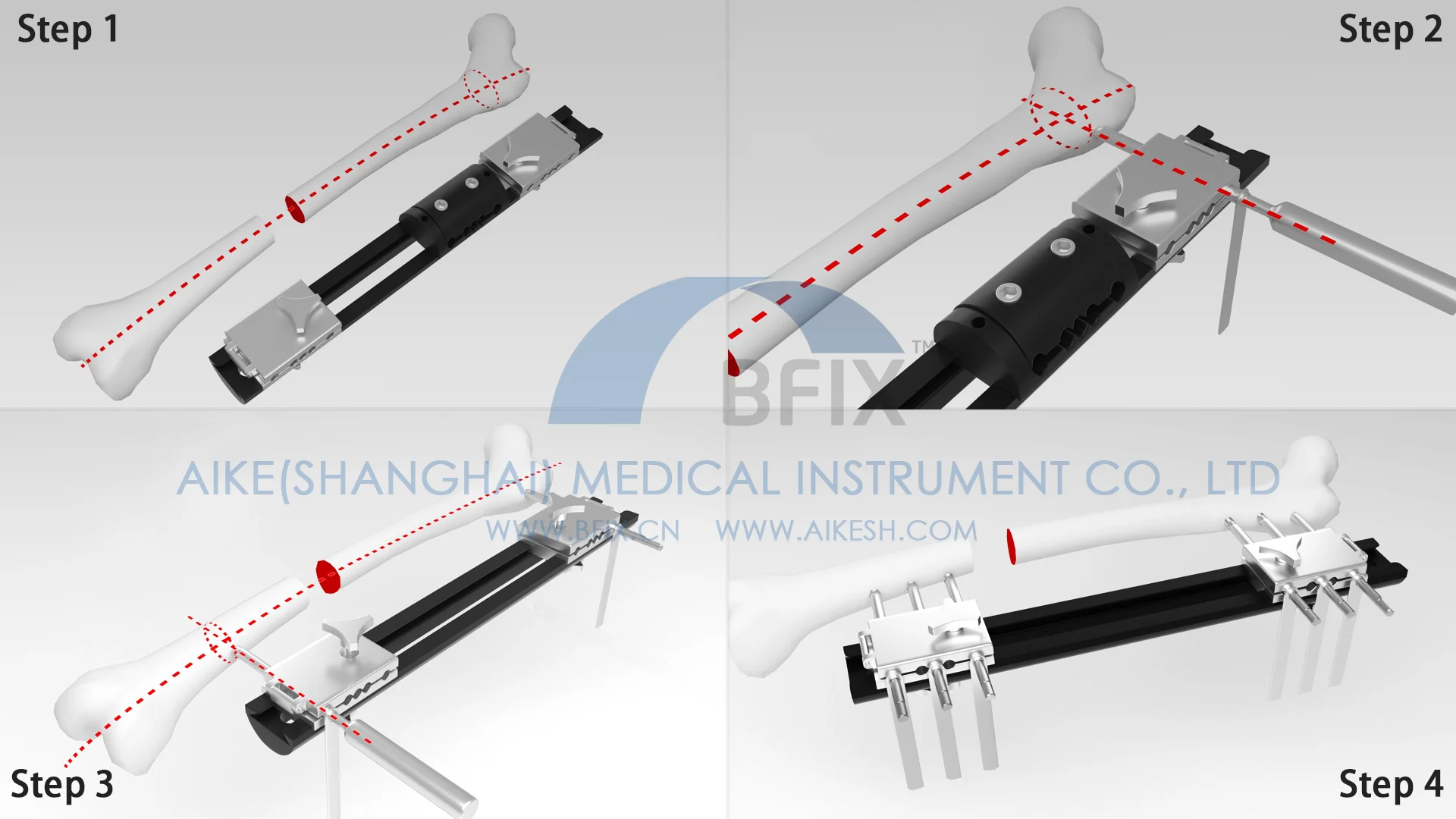

Screw Insertion
Step 1. Assemble clamp templates on rail.
Step 2. Insert first screw in usual manner. Identify center of bone at most proximal seat of proximal clamp, using trocar inserted in screw guide.
Step 3. Second screw to be inserted will be most distal one. Check that satisfactory screw insertions can be achieved at chosen sites in proximal and distal clamps.
Step 4. Insert remaining screws.

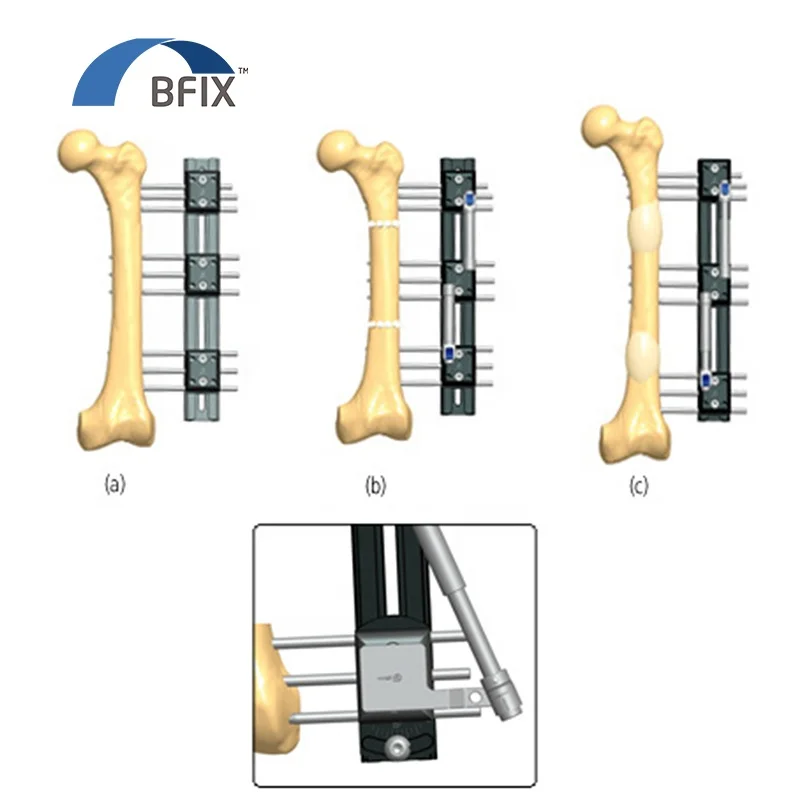

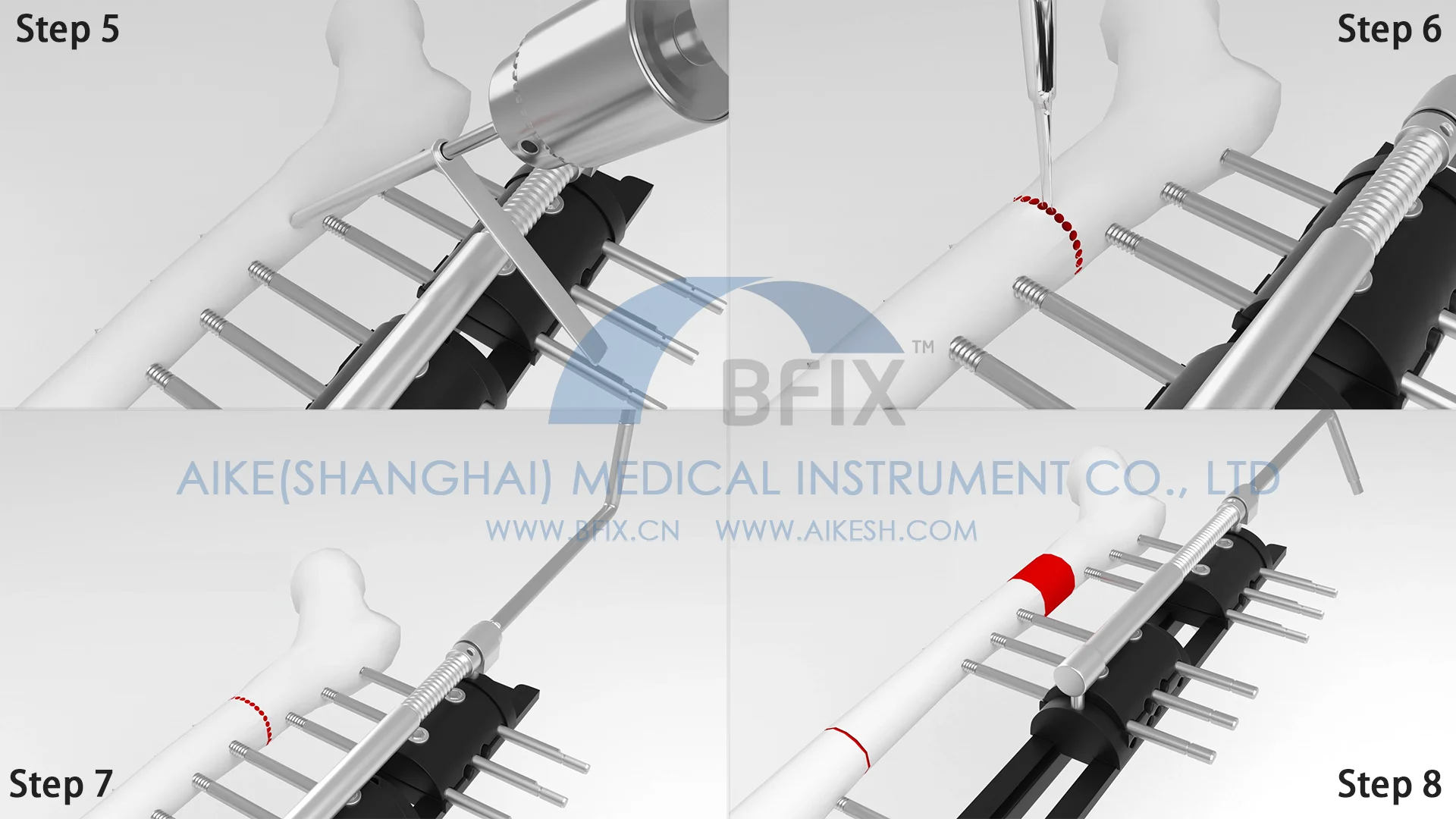

Tension Osteotomy
Step 5. Remove template clamps with definitive ones; Place CD-unit between proximal and middle clamps; With middle clamp loosened, apply distraction; Perform osteotomy using drill bit in corresponding drill guide.
Step 8. Distraction can be carried in next stage of application.
Step 5. Remove template clamps with definitive ones; Place CD-unit between proximal and middle clamps; With middle clamp loosened, apply distraction; Perform osteotomy using drill bit in corresponding drill guide.
Step 6. Connect holes with osteotome.
Step 7. Distract osteotomy to confirm complete.
Step 8. Distraction can be carried in next stage of application.

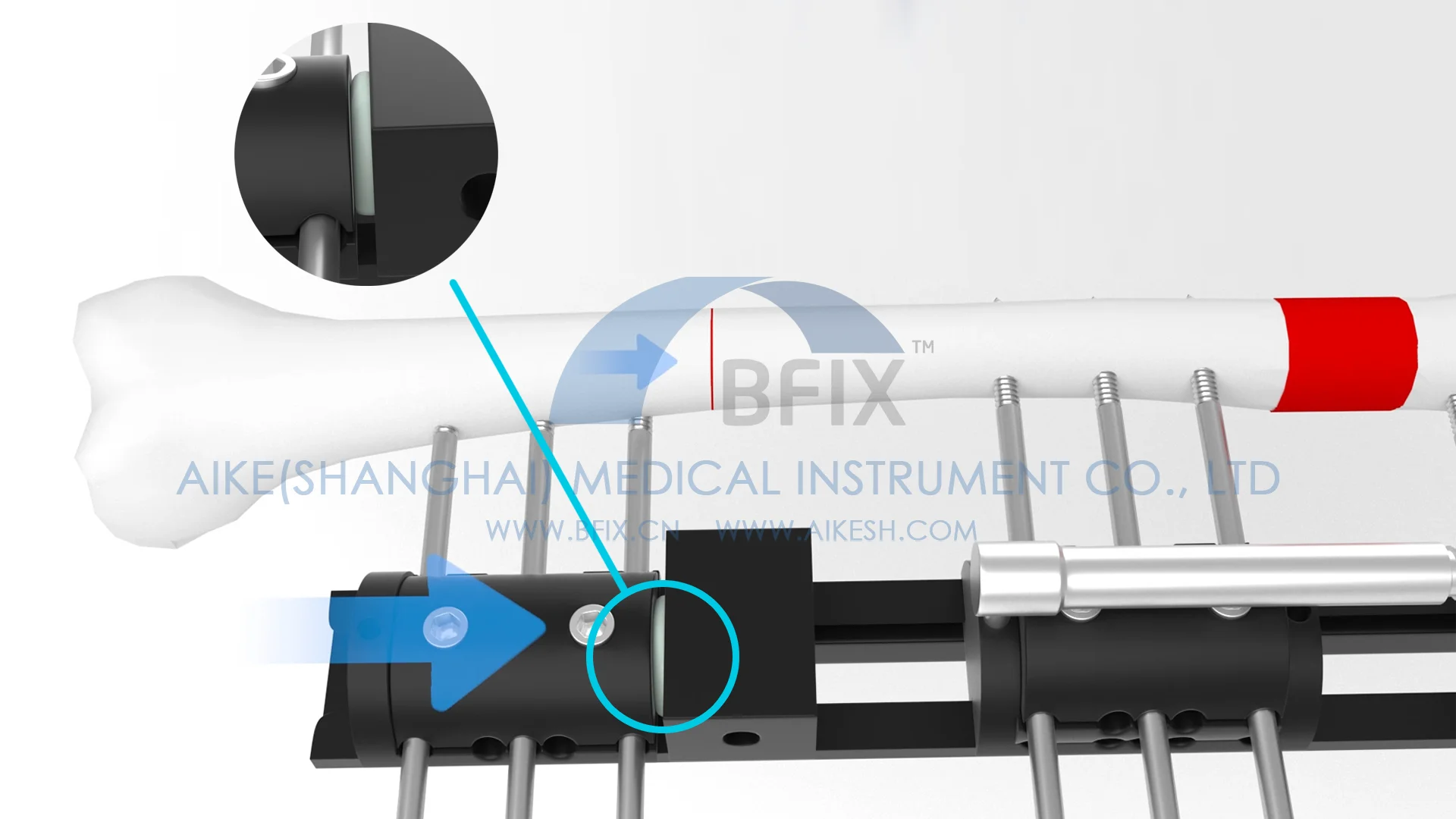

Dynamic Ring
• To be locked to the rail with its silicone cushion just in contact with the clamp which has been unlocked to enable dynamisation
• Permits controlled dynamisation of the segment concerned and thus acts as a safeguard against collapse
• Allows earlier conversion from a rigid to a dynamic mode and reduces the neutralisation period
• To be locked to the rail with its silicone cushion just in contact with the clamp which has been unlocked to enable dynamisation
• Permits controlled dynamisation of the segment concerned and thus acts as a safeguard against collapse
• Allows earlier conversion from a rigid to a dynamic mode and reduces the neutralisation period

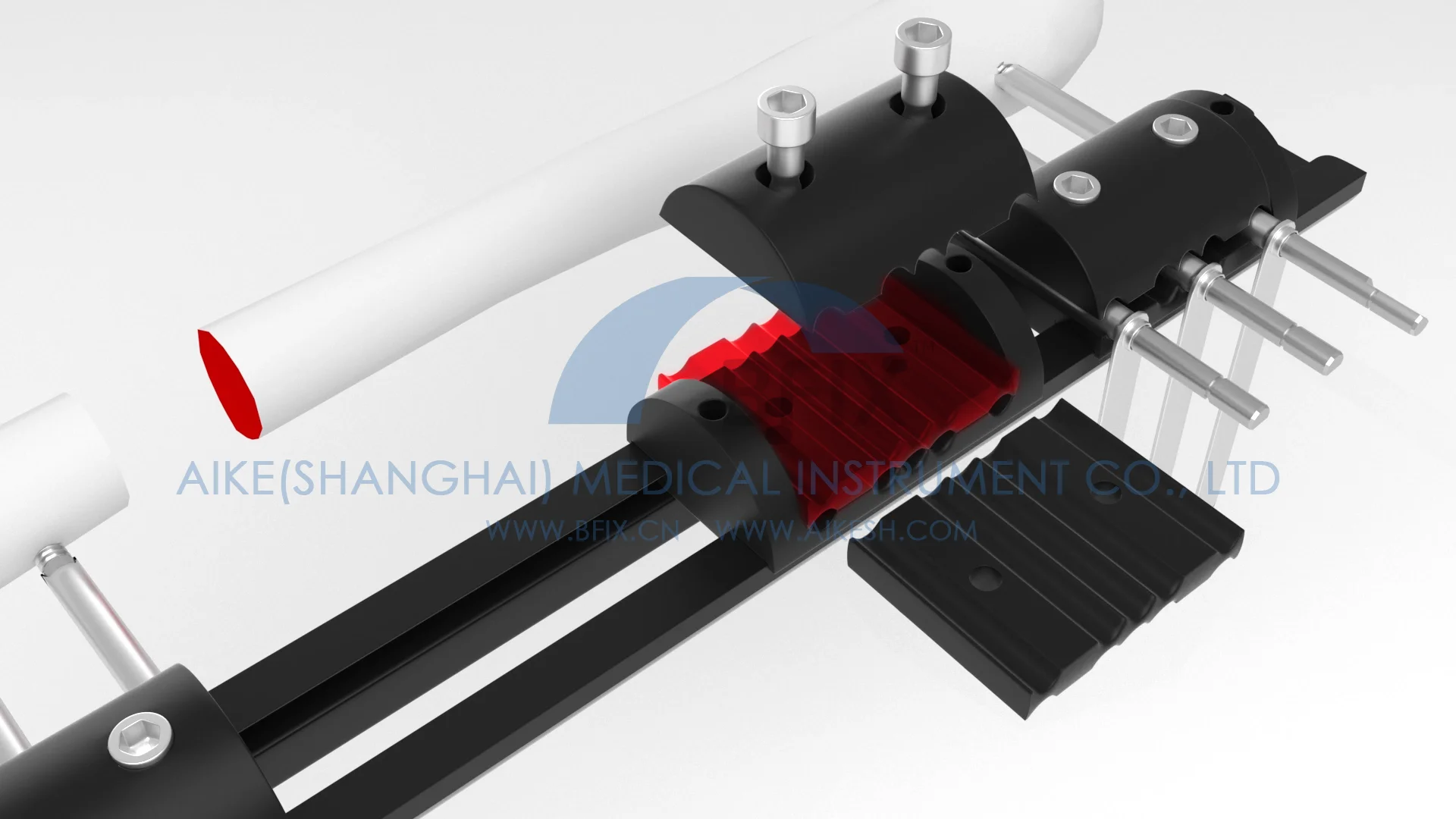

The Sandwich Clamp is inserted between the base and the cover of a LRS Straight Clamp to raise the position of screw insertion above the rail. Two models of Sandwich Clamp are available, depending on the displacement caused by the curvature of the femur.
This clamp is useful when the femur is curved, to allow placement of screws in the middle clamp in the center of the bone.
This clamp is useful when the femur is curved, to allow placement of screws in the middle clamp in the center of the bone.

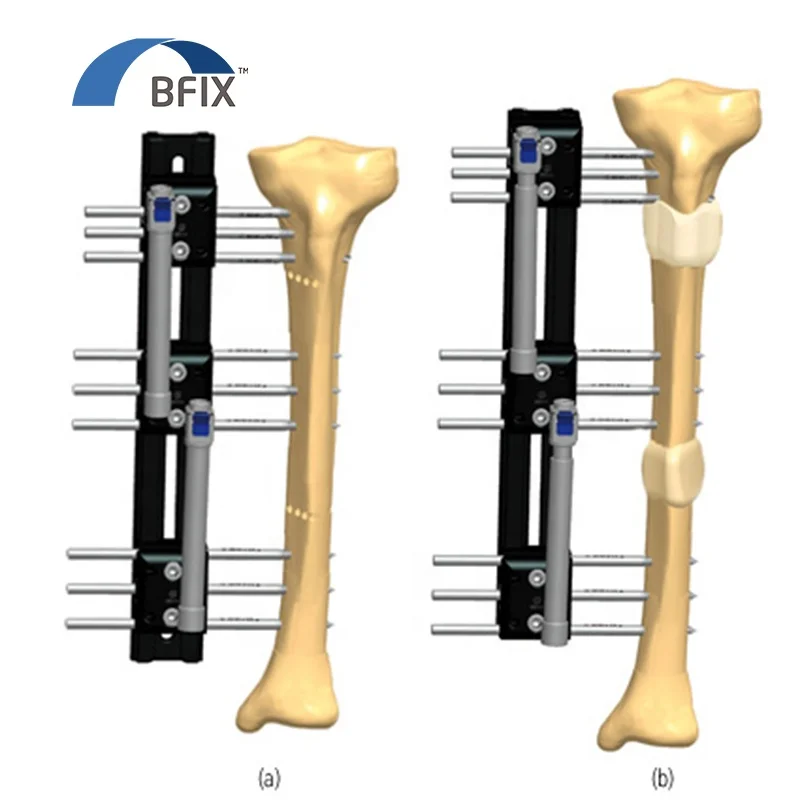

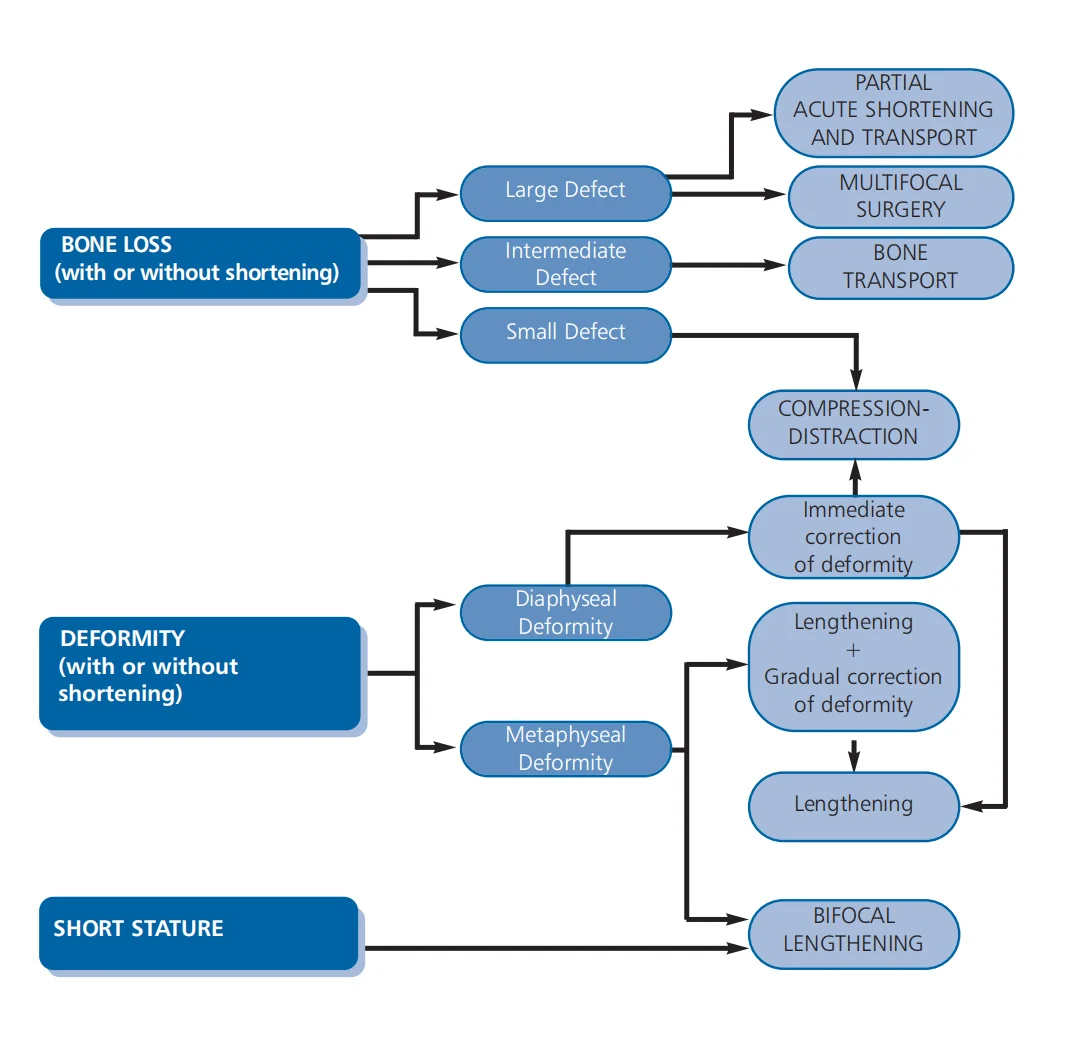

Multilevel Surgery
Patients with mental or physiological conditions who are unwilling or incapable of following postoperative care instructions.
Patients with severe osteoporosis, patients who are HIV positive and patients with severe, poorly controlled diabetes mellitus.
Patients with foreign body sensitivity where material sensitivity is suspected, tests should be made prior to implanting.
