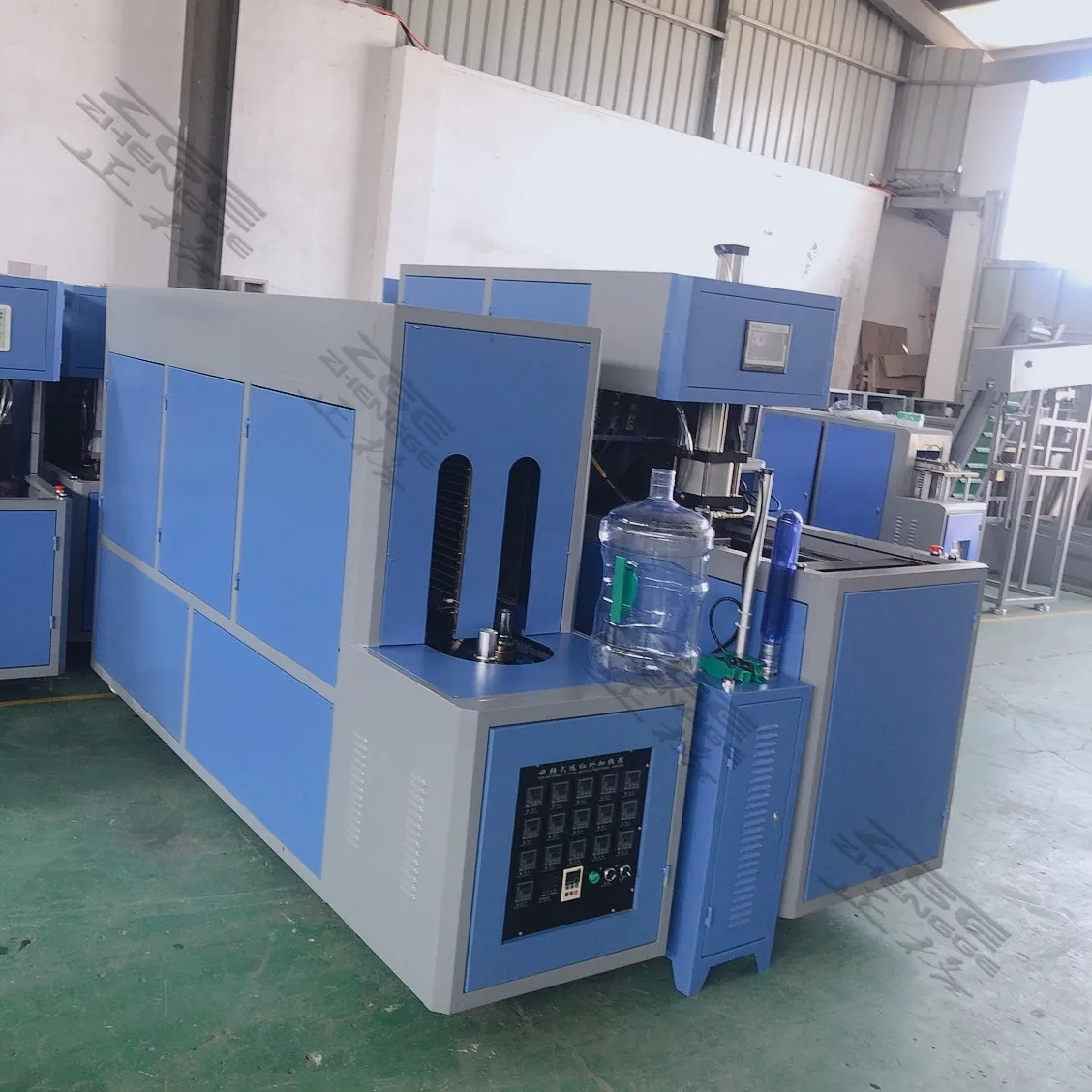

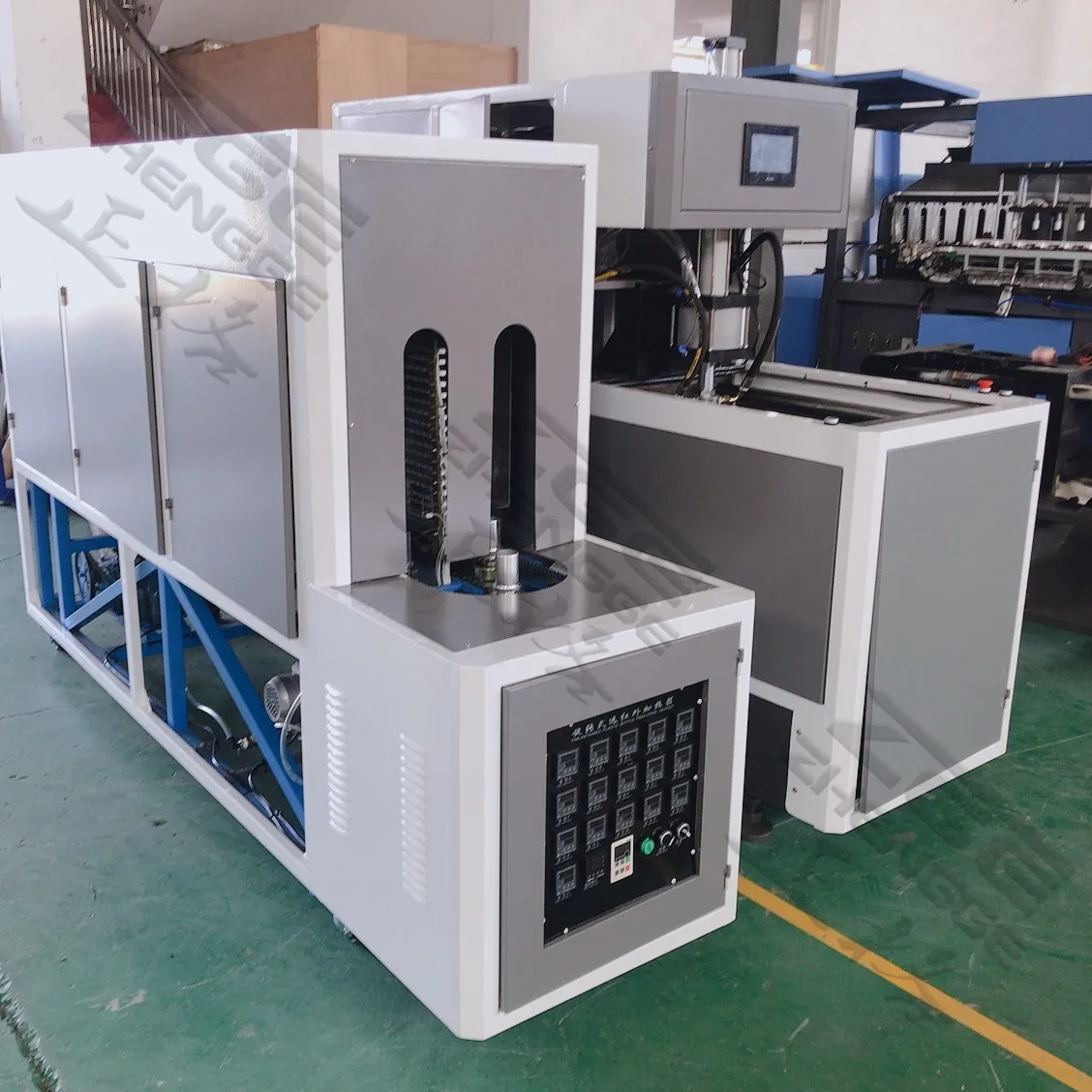

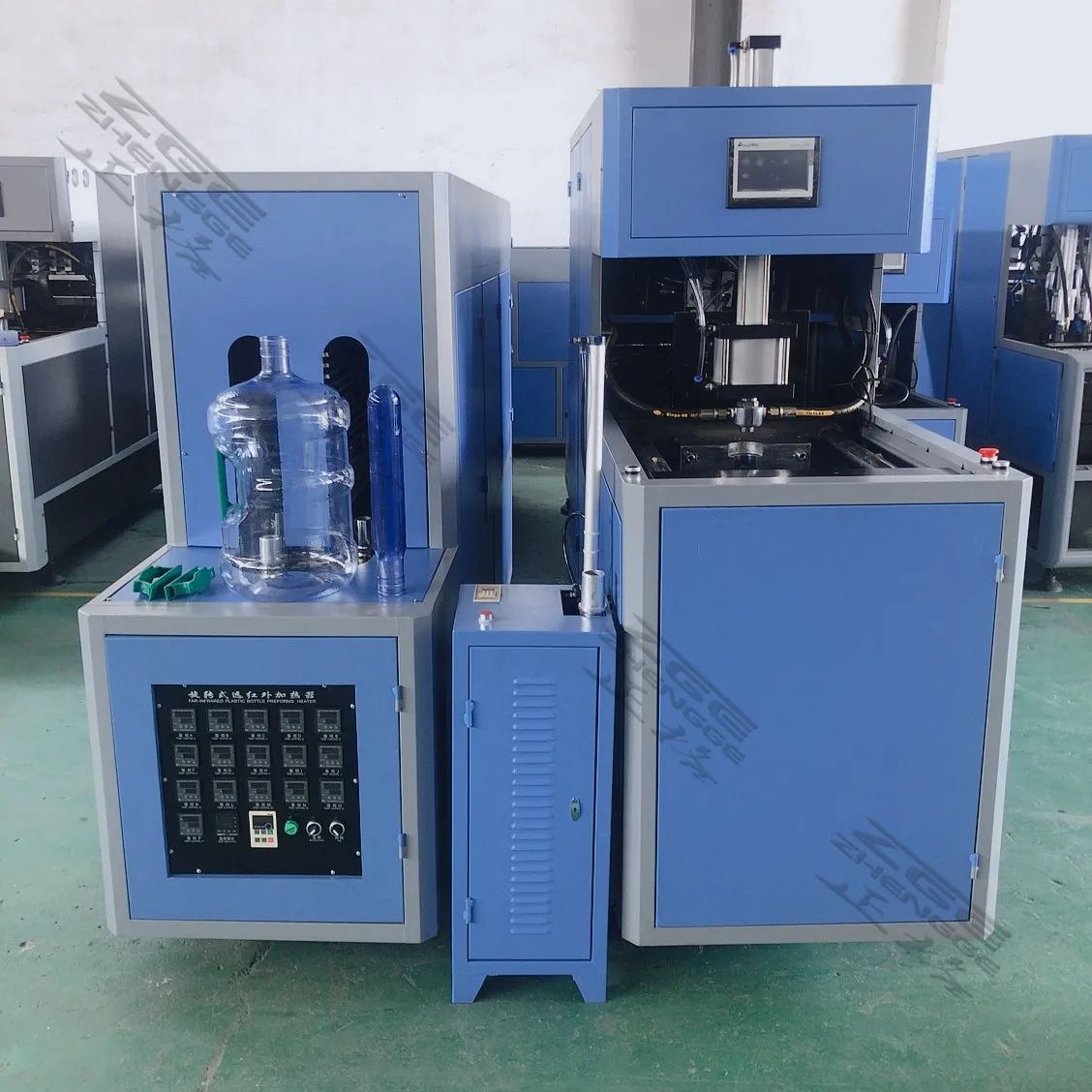

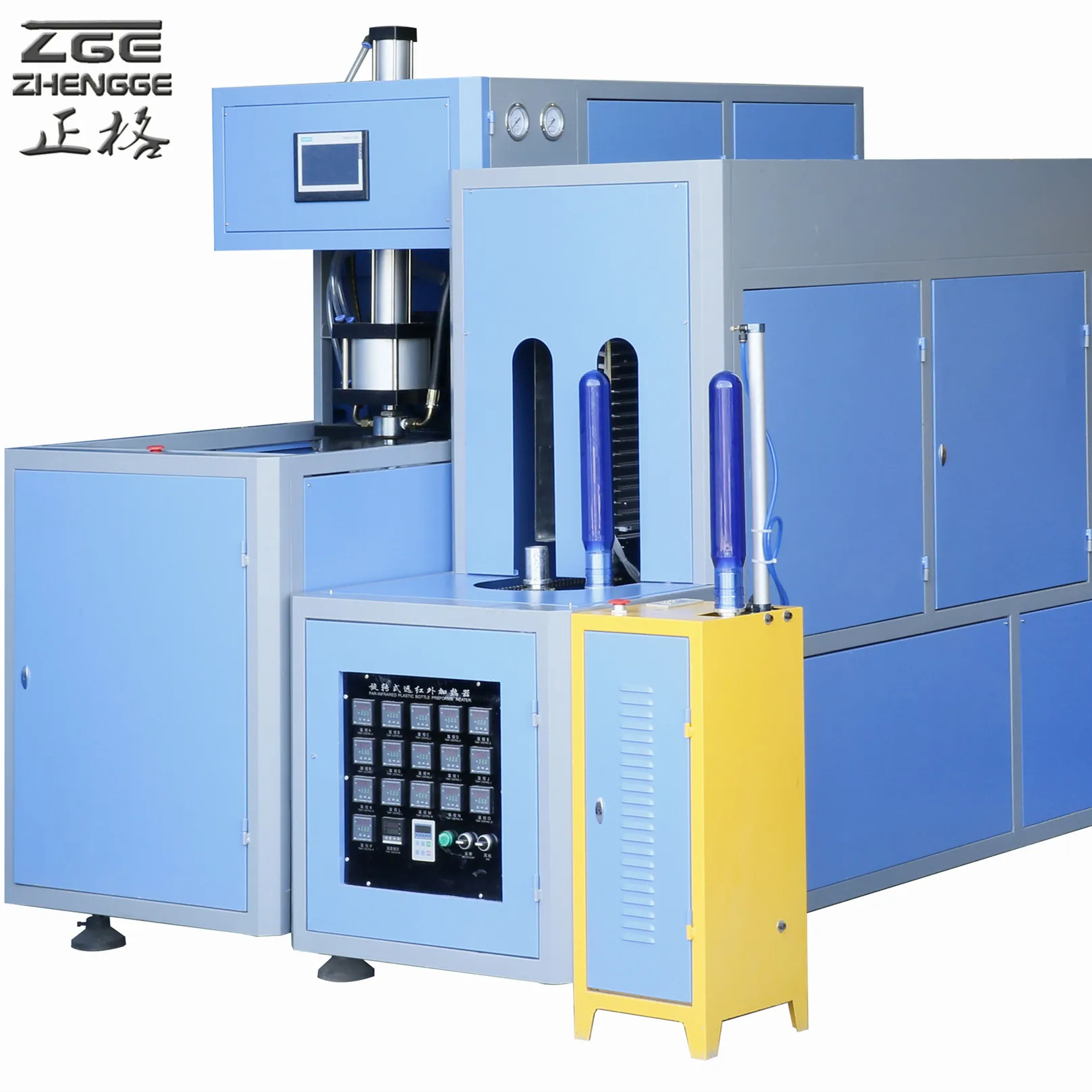

Semi Automatic PET Plastic 5 Gallon 20 Liter Water Bottle Making Blow Molding Machine
Machine Specifications:
1.Semi-automatic, new condition
2. Cavity:1
3. Bottle volume: 10-25 L 4. Mold customizing is available. 5. Theoretical capacity: 120 BPH
Main Parameter
Theoratical out put
120
BPH
Mould openning stroke
(adjustable)
350
mm
Max.container volume
25
Liter
Mold thichness
200~360
mm
Max.neck diameter
150
mm
Diameter Range
15~100
mm
Max.container height
550
mm
Installed power/ Actual power
30/10
kw
Max.container diameter
300
mm
High pressure air compressor
2.0/30
CBM/kg
Main Features
1) ZG expertise to produce all kinds of PET plastic bottles,water bottles,carbonated drink bottles,Hot juice,edible oil and other packing container
2) The system of ZG-100 is equipped with silencer,connecting rod and articulated refueling devices.
3)Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles.
4) Small,low investment,saving power,one person enough,easy to opreate and safety.
5).Adopt special electronic controlling circuit for heating; high efficiency in simultaneous controlling one lamp or more; lower power consumption.
Adopt special inner heating system,make the bottle high quality.
The Control System
A. Adopt world famous brand PLC to control the machine. Easy to operate. B. Different brand of PLC for choose: Delta,Mitsubishi,Bothfit.ect
The Heater
1. Total 19 pieces holder,make sure the capacity.
2. The heater equiped with a temperature control system.Make the machine suitable for long time work.
The Infrared Lamp
1. 16 layer heating tunnel. Total 34 pieces heating lamp. 2. Each layer of lamp controlled independently,suitable for different kinds of preform. 3. Power of each lamp: 1 Kw

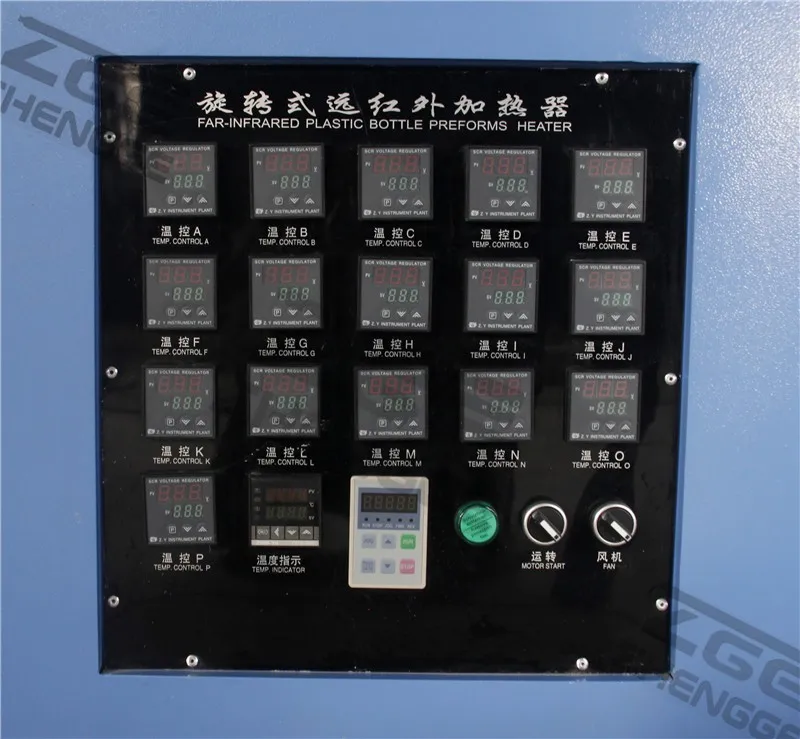

The Temperature Control System
1.Control the temperate of the lamp.
2.Control the rotary speed of the whole heater .

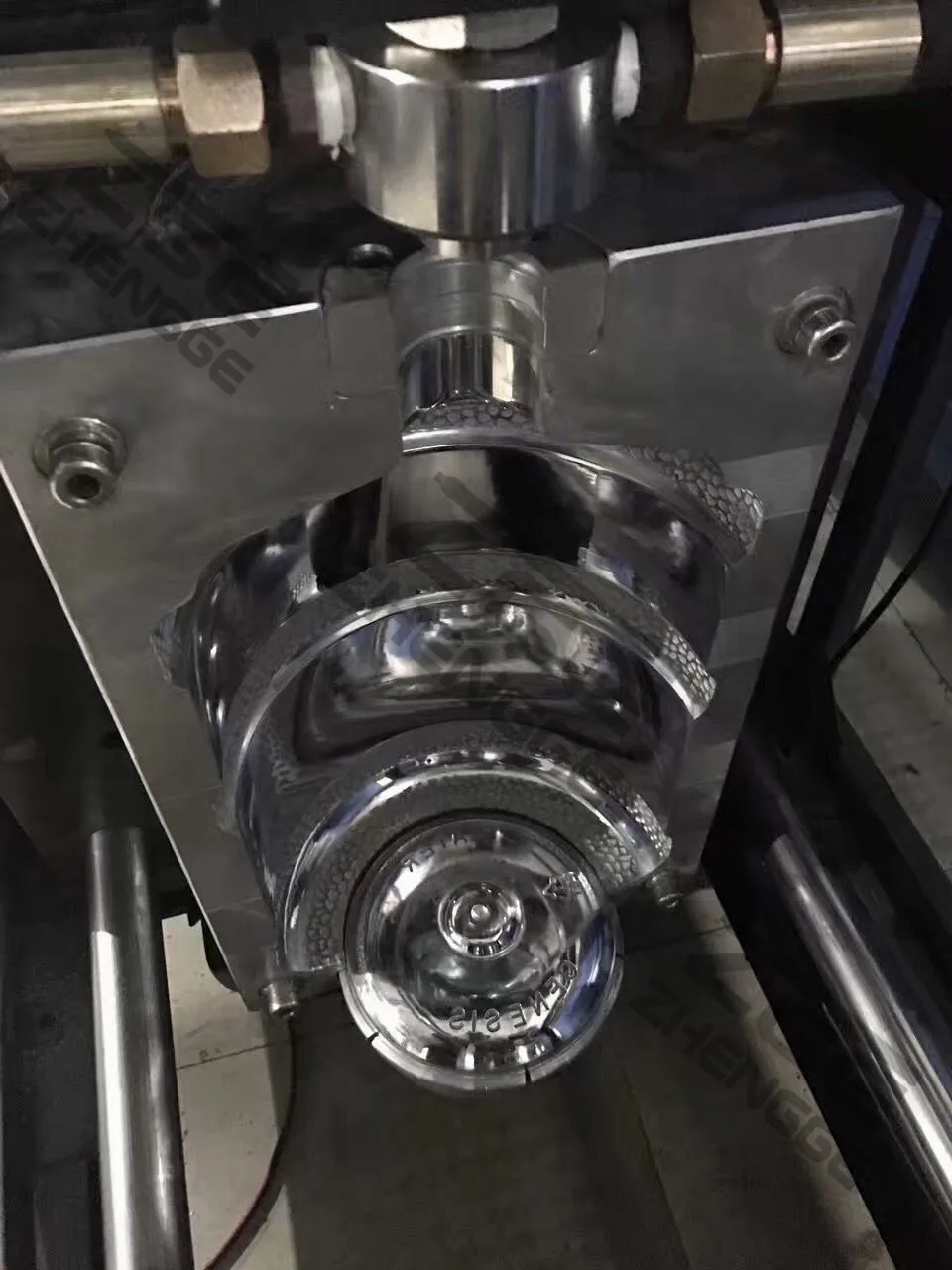

The Bottle Mold
1.The mold's raw material is #45 steel or 7075 Aircraft Aluminum. chrome plating on the surface,avoid rust.
2.Bottle design is customizable.
Workshop
Certifications
With Customer
Packing & Delivery
PE Film Inside Then Wooden Case Outside Packing For Semi Automatic PET Plastic 5 Gallon 20 Liter Water Bottle Making Blow Molding Machine
HS CODE:8477309000
Our Service
Pre-servise
* Welcome to view our Factory. * 24 hours on line anwser your question.
* Help client choose the suitable machine.
* Take video as client's request.
* Take client's other need into consideraion.
After-service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* We provide useful documents with machine.( Machinelayout, Electricity diagram,Machine certificate, General manual book/maintenance book)
* All spare parts are always available and free for your request in first year.
