Pilotech lab bench mini spray dryer price
- Category: Spray Drying Equipment >>>
- Supplier: Shanghai Pilotech Instrument & Equipment Co. Ltd
Share on (60624177459):
Product Overview
Description
Product Parameters
PRODUCT PARAMETERS
| Sr. No | Parameter | YC-500 lab spray dryer |
| 1 | Power | 1500W |
| 2 | Voltage | 220V, 50-60HZ |
| 3 | Min. Outlet Temp. | 80℃ |
| 4 | Evaporating Capacity | 500ml/h |
| 5 | Airflow | 0~330m3/h |
| 6 | Max. Inlet Temp | 200℃ |
| 7 | Heater power | 1000W |
| 8 | Temp. precision | ±1℃ |
| 9 | Nizzle jet | 0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available) |
| 10 | Nozzle type | Two fluid nozzle |
| 11 | Possible particle size range | 1~25μm |
| 12 | Mean Residence Time | 1~1.5 second |
| 13 | Operation mode | Automatic / Manual |
| 14 | Minimum Sample Volume | 20ml |
| 15 | Spray Chamber Material | SUS304 Stainless Steel |
| 16 | Cyclone Separator Material | SUS304 Stainless Steel |
| 17 | Receiving Tank Material | SUS304 Stainless Steel |
| 18 | Body Material | SUS304 Stainless Steel |
| 19 | Seal of Cyclone/cylinder | Silicone |
| 20 | Gas type | Compressed Air(for aqueous) |
| 21 | Dimension | 800*550*900mm |
| 22 | Weight | 80KG |

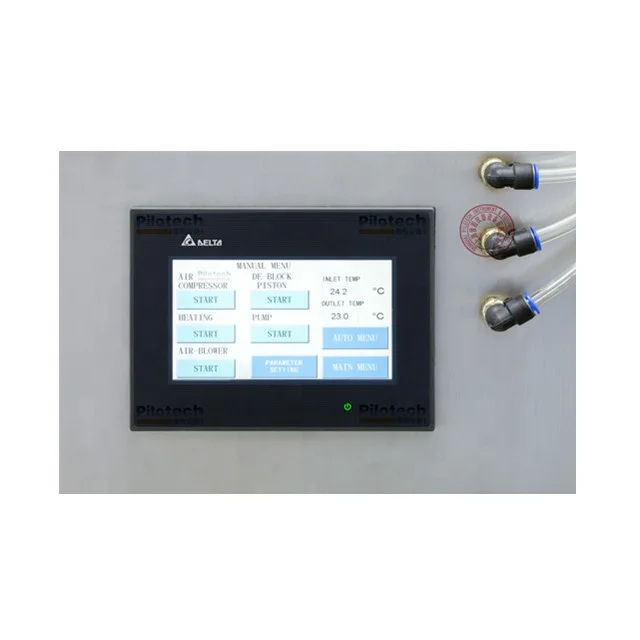

| 23 | Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| 24 | Thermal Protection | Blower does not stop until temp <90℃ |
| 25 | Deblocking | Automatic |
| 26 | Inert Loop (for organic solvents) | Optional |
Company Profile
COMPANY PROFILE
Production Show
PRODUCTION SHOW
Certificate Show
CERTIFICATE SHOW
Our Customers
OUR CUSTOMERS
Our company's laboratory equipment is widely used by well-known universities in China such as Tsinghua University, Peking University Fudan University, Shanghai Jiaotong University, Hong Kong University of Science and Technology, Wuhan University, Huazhong University of Science and Technology, Sun Yat-Sen University, Zhejiang University and Nanjing University, and world-renowned companies like Coca-Cola and General Electric. It has more than 1,500 users in mainland China.
FAQ
| Do all products have English operating interfaces and operating manuals? | |
| Yes, all our equipment has English operation interfaces, and if necessary, we are also able to provide the edition in the user's native language, and all products are available in English operating instructions; if necessary, we can also provide the user's desired language version. In addition, there are are operating videos for our products for the convenience of customers to use. Q:How is the after-sales service of your company? | |
| How is the after-sales service of your company? | |
| We offer one-year quality guarantee for all the products, and for products within the warranty period, we provide free services for all damages not resulting from human beings. After the warranty expires, we will charge cost price only . | |
| How is the stability and durability of your products? | |
| The company has been established for over 10 years, and our products have been adopted by 90 percent of colleges and universities in China. The earliest products are still used by customers at present; they are really durable. In China, before purchasing our equipment, many teachers in university will listen to the views of colleagues carefully. Pilotech's equipment is reputed for its good performance and stability, and numerous new customers are recommended by old customers. | |
| As for the overseas market, what kind of policy does Pilotech have on dealers? | |
| Pilotech welcomes dealers worldwide to sell our products, and we will provide dealers with strong technical support and competitive prices. Pilotech hopes to grow and develop together with distributors from different countries. | |
