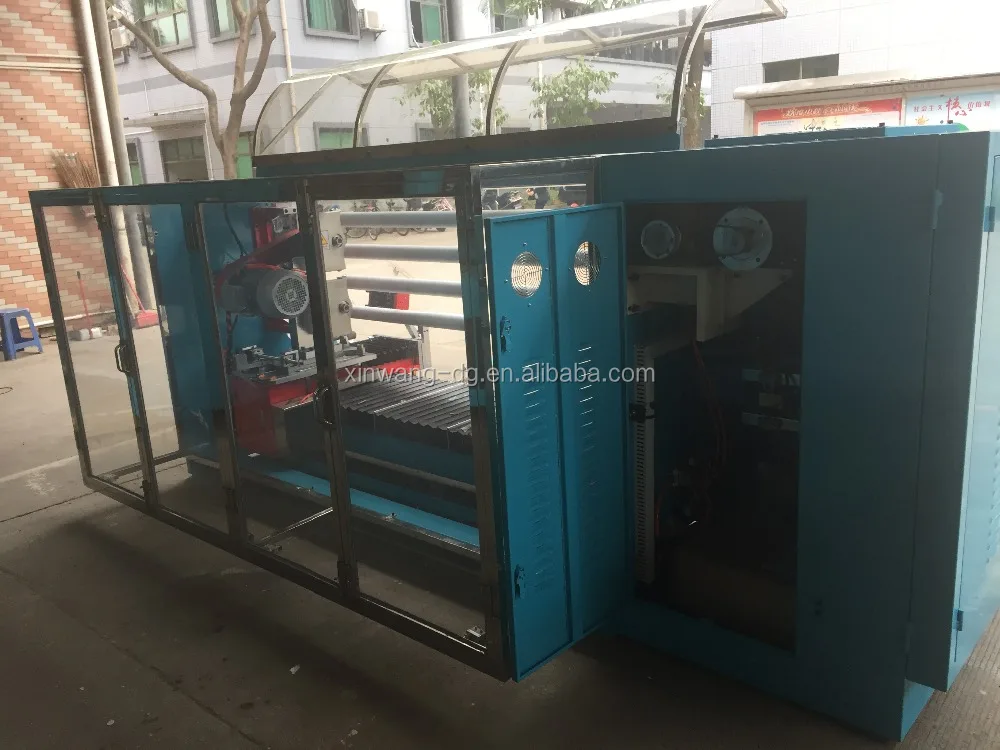

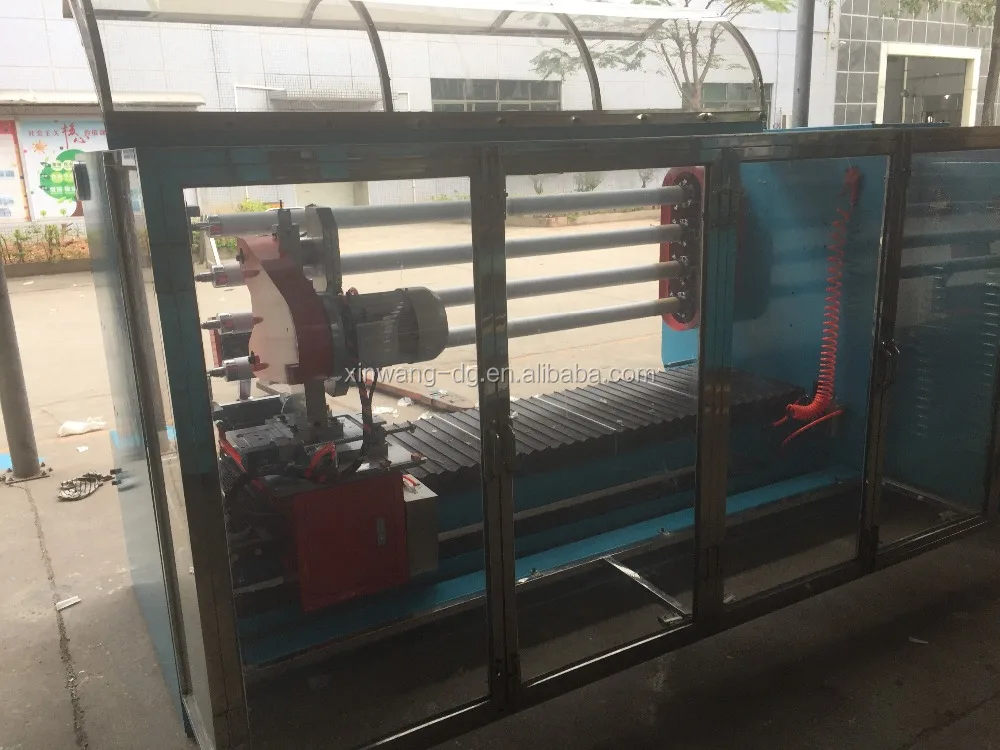

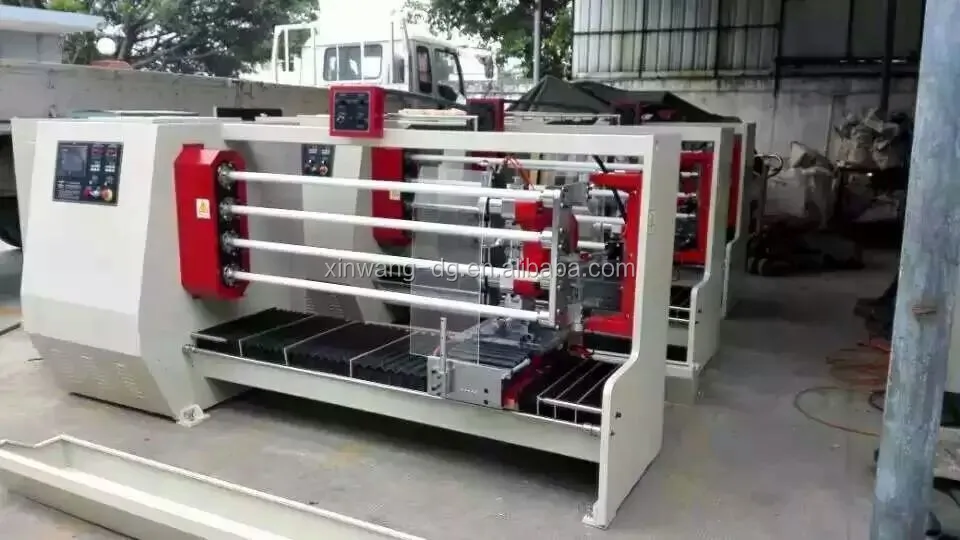

Golf Tape Making Machine, Cutting Log Roll Golf Adhesive Tape Machine

Cutting Log Roll Golf Adhesive Tape Machine,Golf Tape Cutter

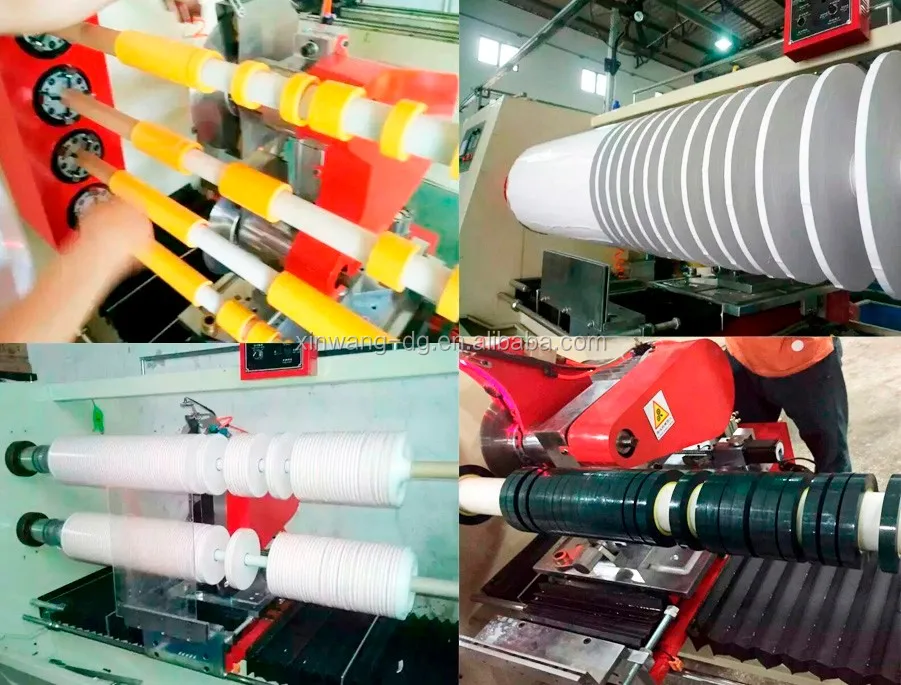

Product Application

Quality Guaranteed Automatic Roll Adhesive Tape Material Cutting Machine  is applicable for all kinds of adhesive materials in roll. For example,golf tape, Mara tape ,margin tape, golf tape, BOPP tape, PVC tape, Duct Tape, Kraft Paper Tape, Washi Tape, Medicak Tape.As well as foam tape and paper/plastic tube.And cloth stripes. High precision cutting for electrical tape, PET and PI tape. Protection film.

Main Features

1.30mm armor plate & 20# U-steel for body frame. Machine keeps stable under heavy load and high speed.

2. PLC (Schneider)Control Unit: programmable central control,set data through touch screen,the machine carry out the tasks automatically. Various sizes can be set on the same shaft for automatic transfer and cutting .

3. Operating Panel: 7" color touch screen, all functions realized by Human-computer interface.

4. Cutting Location System: position controlled by the servo motor (Mitsubishi),combined with Taiwan imported 32mm high precision ball screw to set the cutting size,large linear slide rail to bear the load of the cutter seat.

5.Cutting blade driven by servo-motor (Mitsubishi).AC motor for fast & steady decelerate & acceleratete of disc blade feeding and shaft rotating.

6. Auto Adjusting of the Circular Blade Angle: CNC control to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is +/-80) .The cutting angle is changed directly when the cutting surface is not smooth, so the efficiency is improved.

Main Parameters:

(1)、Effective work width：1300mm/1600mm

(2)、Min cutting width：0.5mm

(3)、Inner core diameter：φ76mm-φ77mm

(4)、Max cutting diameter：320mm for single shaft model（Diameter can be amplified refer to customer's requirement）

(5)、Power supply:380V/50HZ 3P

(6)、Slit precision：±0.05mm

Machine Parts

Name: Follow Rest

Usuage: For small shaft under 38mm.

Name: Cutting Blade
Material: High-speed steel or  tungsten steel
Size: 6-16 inches

Type: Disc Blade or Serrated Round Blade

Edge: Single-edge or double edge.

Machine Parts

Name: Inverter
Brand: Sinee
Original: Shanghai

Name: Servo Motor
Brand: Mitsubishi
Original: Japan
