New style flatbed tow truck dimensions wrecker tow truck in Laos
Product Description
Specifications:
Classification
Item
Unit
Parameter
Vehicle
Vehicle model
CLW5070TQZQ4 flatbed tow truck dimensions
Overall dimensions
mm
7250×2350×2200
Platform Size
5600×2350
GVW
kg
7300
Curb weight
4280
Traction system
4×2
Transmission
5-speed with over drive
Max speed
km/h
105
Chassis
Chassis model
QL1070A1KAY
Number of springs
8/6+5
Wheel base
mm
3815
Tire specification
7.00-16
Number of tires
6
F/R track base
mm
1504/1425
Engine
Engine model
4KH1-TCG40
Manufacturer
Qingling Motors Co. Ltd.
Engine horse power
hp
120
Displacement
ml
2999
Emission standard
Euro 4
Lift function
Rated lift quality
3000 kg
Corbel telescopic stroke
1200 mm
Max effective length
1300 mm
Max tractor speed
40 km/h
Tablet Agency
Platform Size(LxW)
5600×2350 mm
Min inclination angle
10°
working stroke
2700 mm
Max load mass
3000 kg
Winch parameters
Number
1
Rated traction mass
3000 kg
Rope length
23 m
Strand speed
8 m / min
Production cycle
10-15 working days
FOB Shanghai
USD

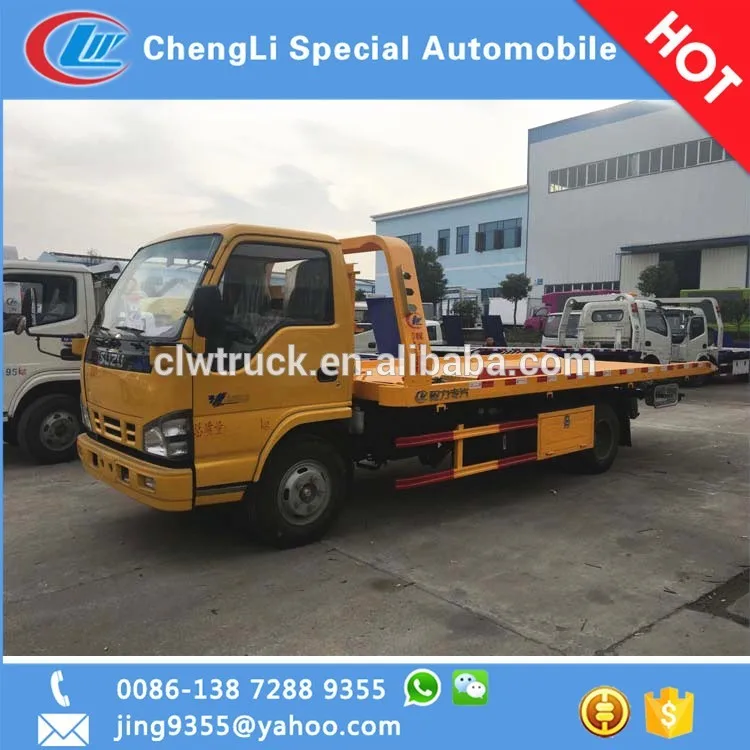

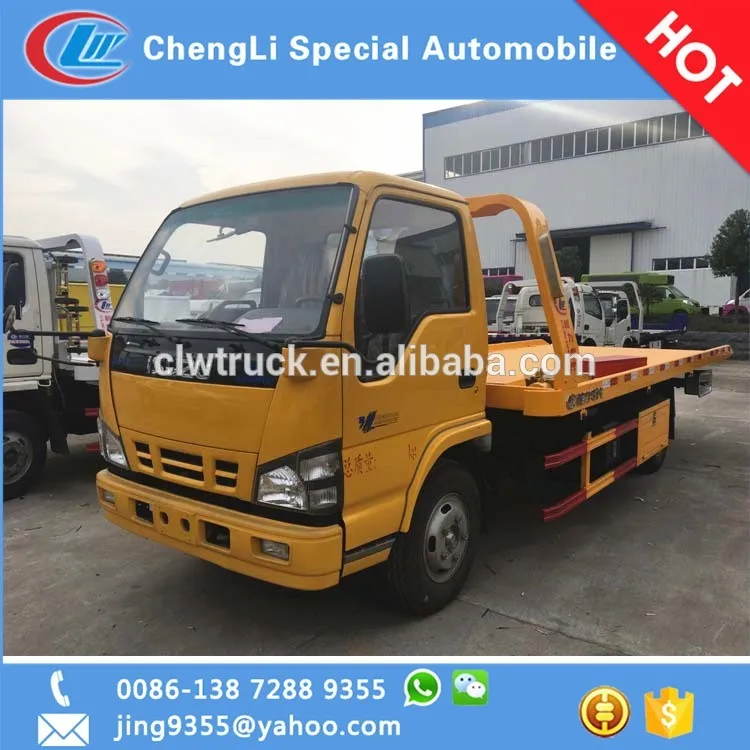

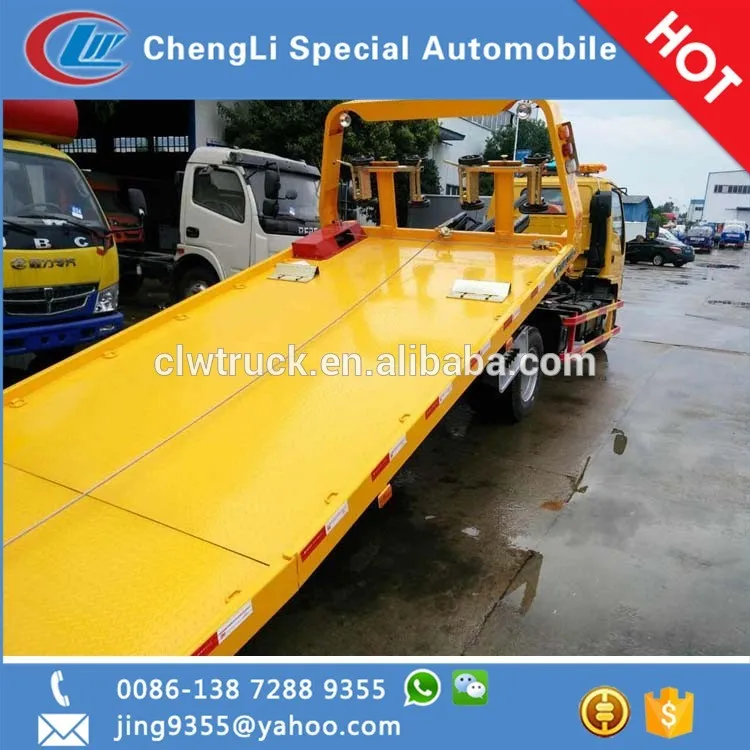

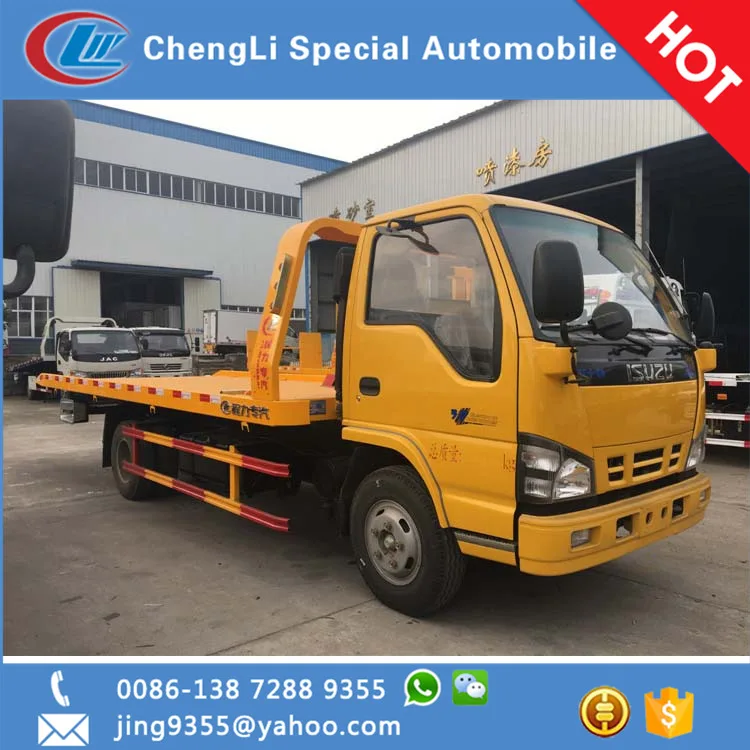

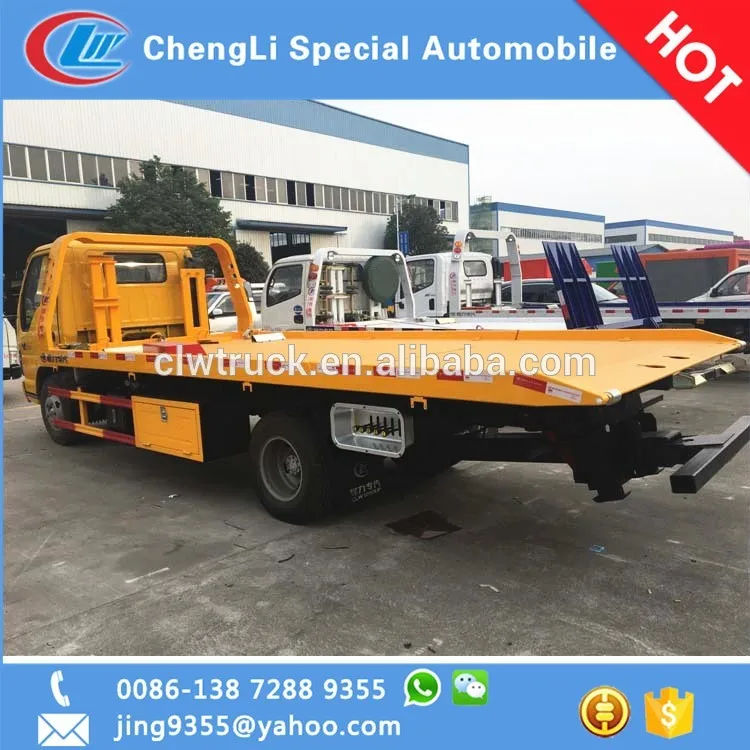

Related photos
Workshop show:
Packaging & Shipping
1> Packaging:Nude,but waxed before shipment in our factory.
2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements.
Our Services
1. We are the biggest professional special trucks manufacturer in China,being in this field for 10 years.
2. We can supply more than 300 kinds of special trucks for your needing.
3. OEM Sevice: we can produce the trucks according to your request,such as the material,the size,the colour and the logo is optional for you.
Company Information
1> Our company has solid technology, flawless inspection, advanced equipment, reliant quality and flexible modes operation.
2> We have roundly passed the certification of ISO9001-2008, the 3C (China Compulsory Certification) and other certifications that export needed.
3> We have more than 2000 workers and factory is more than 690,000m2, we have successfully exported to Ghana, Sudan, Kuwait,Nigeria, Angola ,Tajikistan, Azerbaijan,Namibia, Burma, Korea, Iran, Afghanistan,Iraq, Philippines ,Vietnam , Saudi Arabia ,Mexico,Chile ,Bolivia etc. more than 5000 trucks to many Africa & Asia countries.
4> We can produce 12,000 trucks every year, our brand "CLW" obtain "the Chinese well-known trademark".
5> We cooperate with famous chassis manufacturers, such as DONGFENG, FAW, FOTON, JMC, JAC, and NAVECO, etc.
Welcome to visit ChengLi Special Automobile Co.,Ltd !
