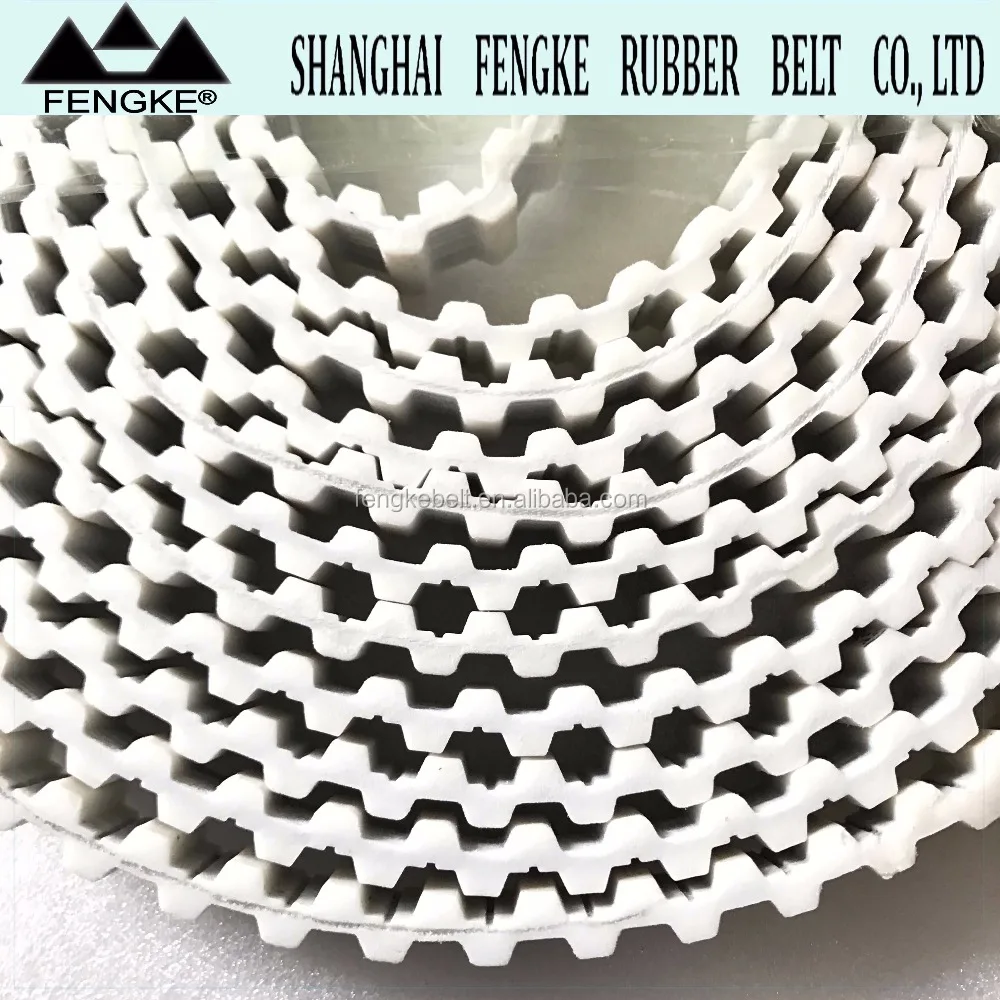

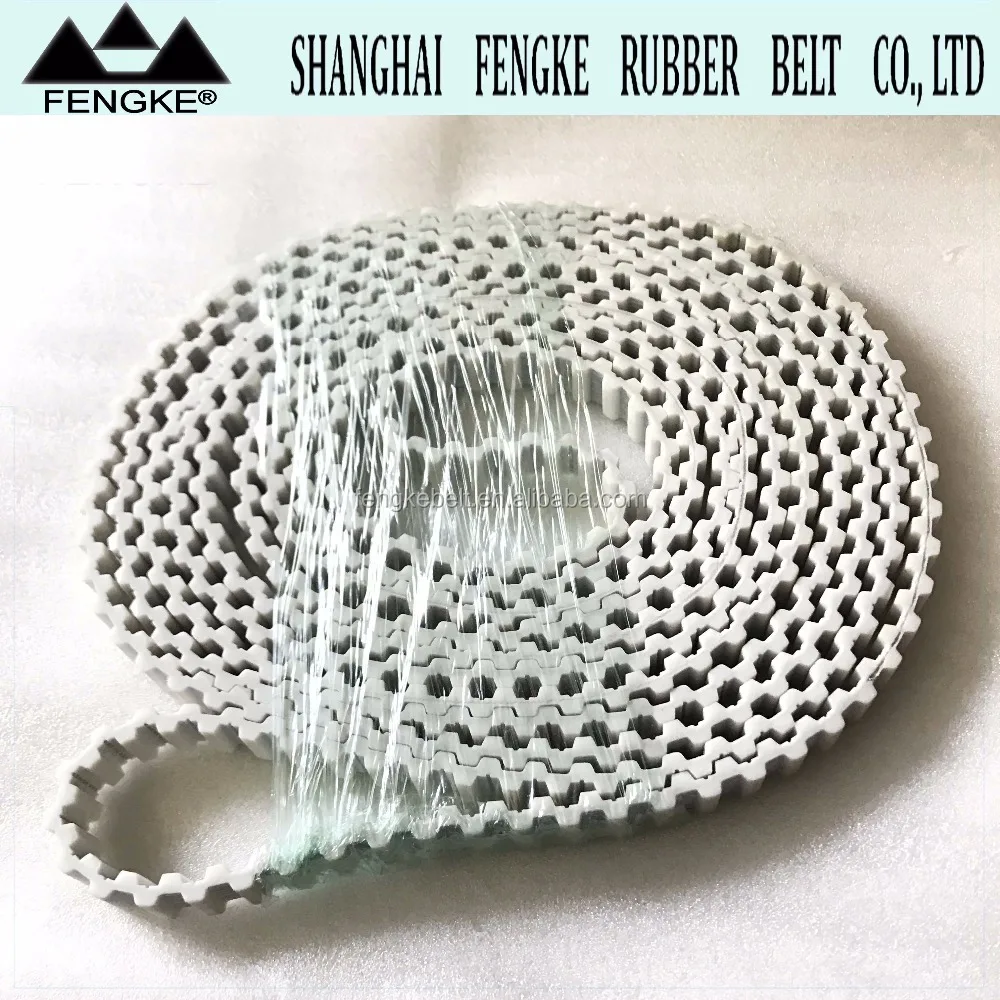

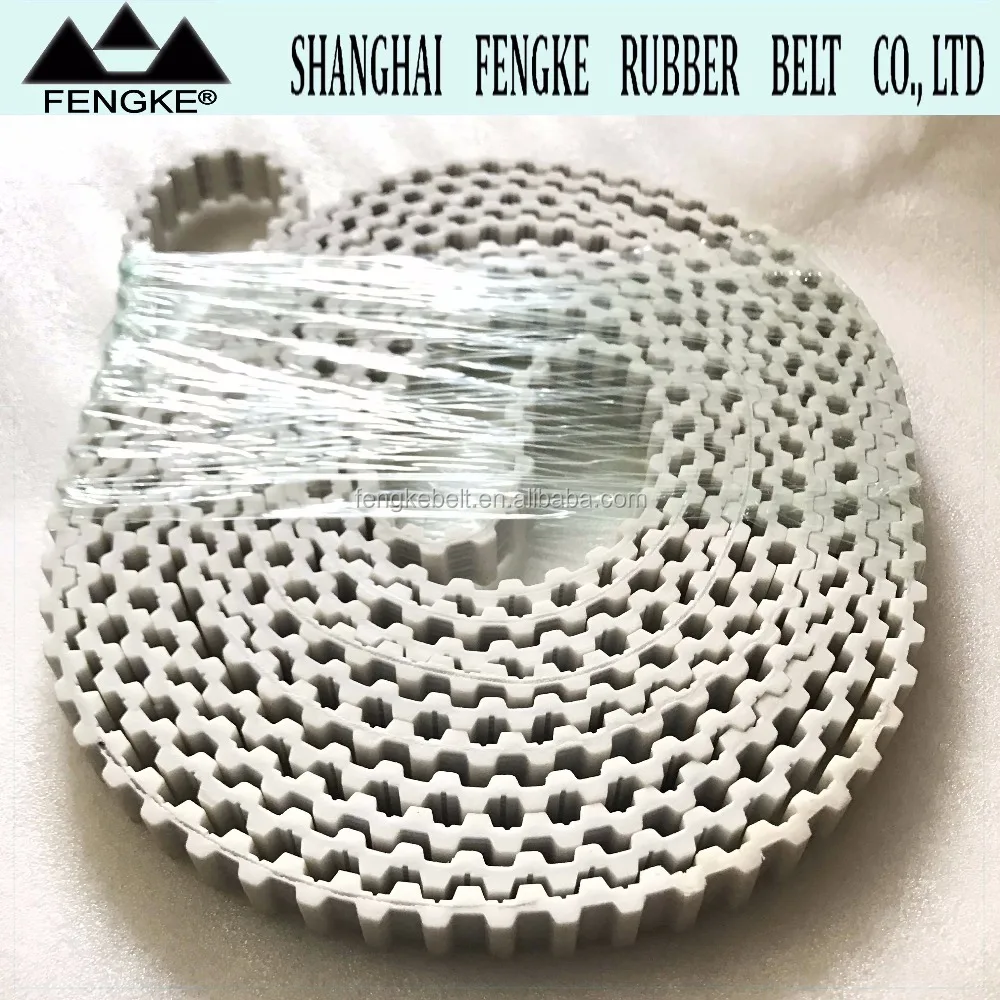

Бесшовные двусторонние ремни ГРМ из ПУ (код DT10)
- Category: Power Transmission Parts >>>
- Supplier: Shang Hai Fengke Rubber Belt Co. Ltd.
Share on (60625249850):
Product Overview
Description
Applications:
Suitable for positioning system, wood industry, textile machine, glass industry, stone and marble industry, packaging industry, tobacco industry, paper and carton industry, chemist and pharmaceutical industry.
Features:
Fine size stability
Low noise
High anti-wear ability
Good elasticity
Specifications:
| TYPE | PITCH (mm) | TOOTH THICKNESS (mm) | BELT TICHINESS(INCLUDING TEETH) (mm) |
| T2.5 | 2.5 | 0.7 | 1.6 |
| T5 | 5 | 1.2 | 2.2 |
| T10 | 10 | 2.5 | 4.5 |
| T20 | 20 | 5 | 8 |
| AT5 | 5 | 1.2 | 2.7 |
| AT10 | 10 | 2.5 | 4.5 |
| AT20 | 20 | 5 | 8 |
| H | 12.7 | 2.29 | 4.29 |
| XH | 22.225 | 6.35 | 11.2 |
| L | 9.525 | 1.91 | 3.61 |
| XL | 5.08 | 1.27 | 2.3 |
| 3M | 3 | 1.21 | 2.4 |
| 5M | 5 | 2.1 | 3.7 |
| 8M | 8 | 3.38 | 5.6 |
| 14M | 14 | 6.1 | 10 |
| S3M | 3 | 1.14 | 2.9 |
| S5M | 5 | 1.85 | 3.35 |
| S8M | 8 | 3.05 | 5.3 |
| S14M | 14 | 5.3 | 10.2 |
| RPP5M | 5 | 2.05 | 3.8 |
| RPP8M | 8 | 3.2 | 5.4 |
| RPP14M | 14 | 5.85 | 9.7 |
For more details, please contact us!
