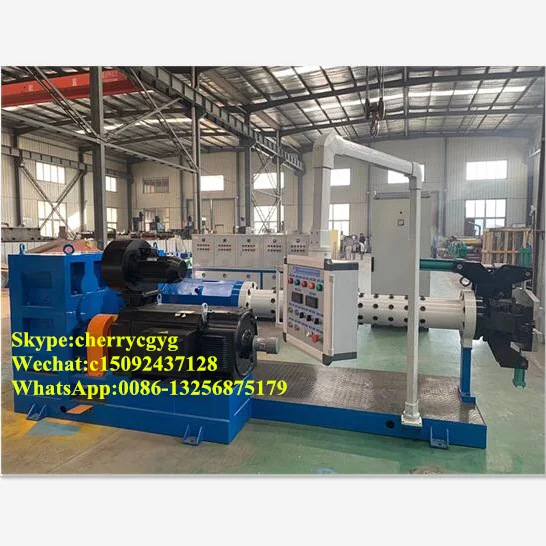

Mitsuba rubber sheet extruder machine with control panel of temperature and pressure

Product Overview

Description

 Mitsuba rubber sheet extruder machine with control panel of      temperature and pressure





Use:

Pin-barrel cold feed rubber extruder is used for extrusion of various rubber products and rubber feeding.



Structural Features:

1.Pin-barrel cold feed rubber extruders are made by the Company with introduced technologies .Different extrusion heads are applied to extrude various half-finished rubber products.The machines can also be used to feed rubber to manglers.



2.The barrel is composed of several zones .In the feeding zone ,the spiral slots work with the side rolls to enhance feeding capability .In the plastication and extrusion zones ,different numbers of pins are fitted on the barrel .



3.The screw is processed and polished with the foreign-made milling machine and is featured by excellent geometric precision.Nitrogenation treatment makes it more wear-resistant .



4.The gears in the reducer are made of alloyed steel ,whose teeth are hard .



5.A hot water circulation device automatically controls temperature in each zone .



6.The machine is driven by a DC motor.



7.The advantages of the machine include better plastication result ,higher extrusion capability ,lower temperature of the outgoing rubber and smooth operation.



8.The Company also make special feeding unit for the pin-barrel cold feed rubber extruder to convey rubber slabs .



Main technical specifaction:



Model Item			XJD-90	XJD-120	XJD-150	XJD-200	XJD-250
Screw dia		mm	90	120	150	200	250
L/D Ratio			12	12;14	14;16	12:14:16	12;14;16
Max.Screw speed		r/min	60	50	43	35	26;30
Hopper		mm	130*100	164*130	220*130	260*180	310*230
Row QTY of pin			8	8;10	10	10;12	10;12
Pin QTY of each row			6	6	8	10	12
Power supply			380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Power		KW	75-90	90-110	200-220	315-355	355-480
Zone of hot water circulation			4	4	4	4	4
Total power of hot water circulation heating		KW	32	48	48	64	64
Capacity		Kg/h	250-360	600-900	1000-1500	1600-2600	3000-3500
Overall dimensions	L	mm	2570	3010	4000	5500	6000
	W	mm	1335	1320	1810	2100	2400
	H	mm	1500	1855	1620	1850	1850
About weight		T	~4.5	~6	~7.25	~12	~17





Detailed pictures of pin-barrel cold feed rubber extruder:



Pin-barrel cold feed rubber extruder





Cold feed rubber extruder







Hot feeding rubber extruder



Rubber strainer



Welcome to visit our factory and we can show you the machine in working condition:



If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make non-standard machines according to your request.
