Морской якорь с белым шнуром для спасательной и спасательной лодки

Product Overview

Description

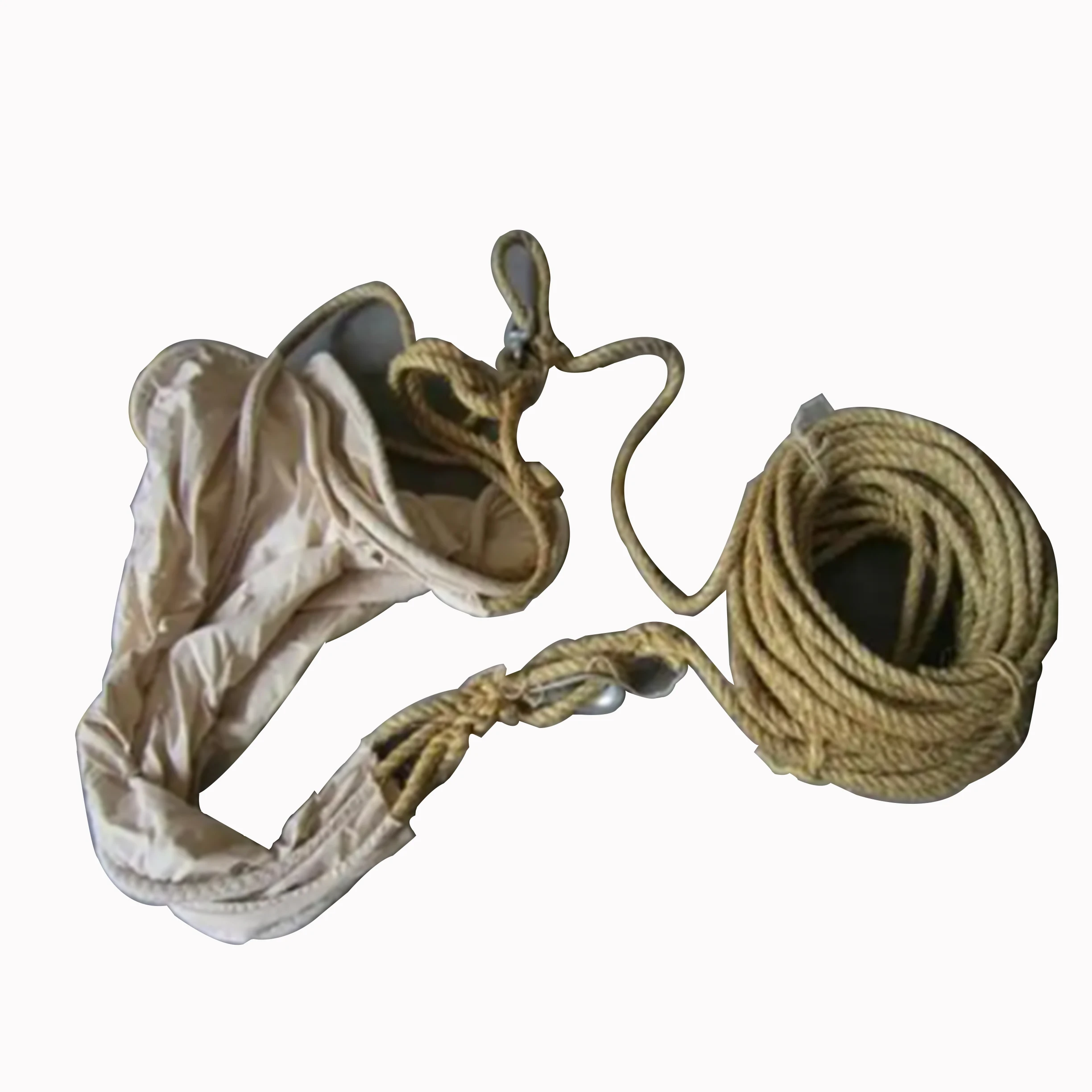

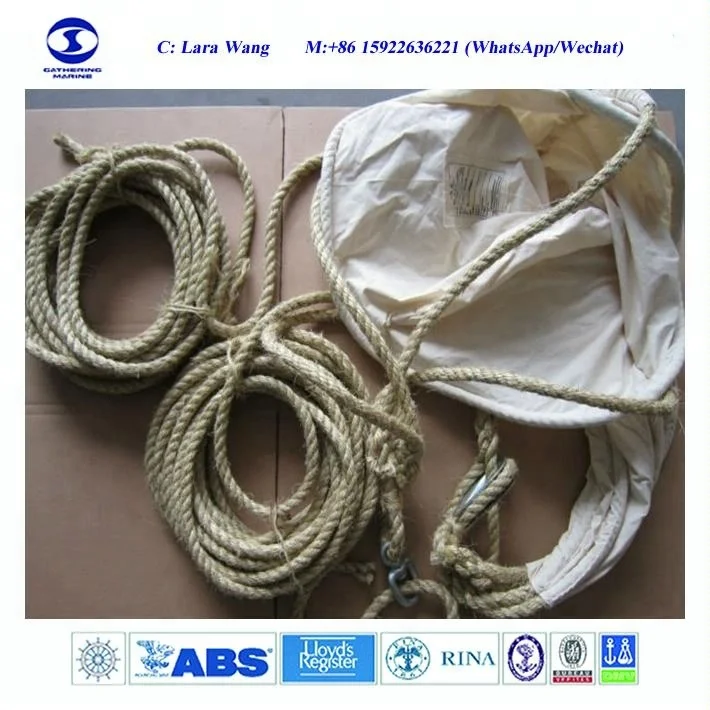

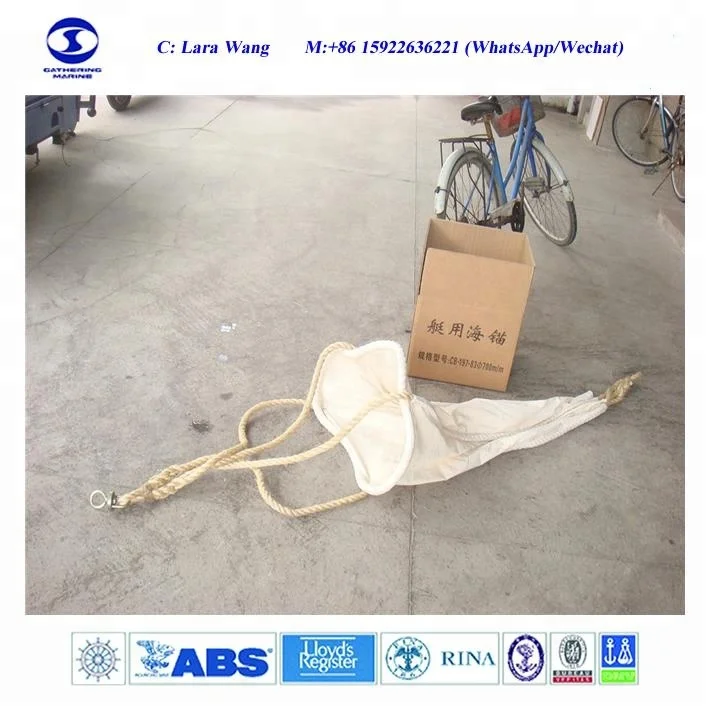

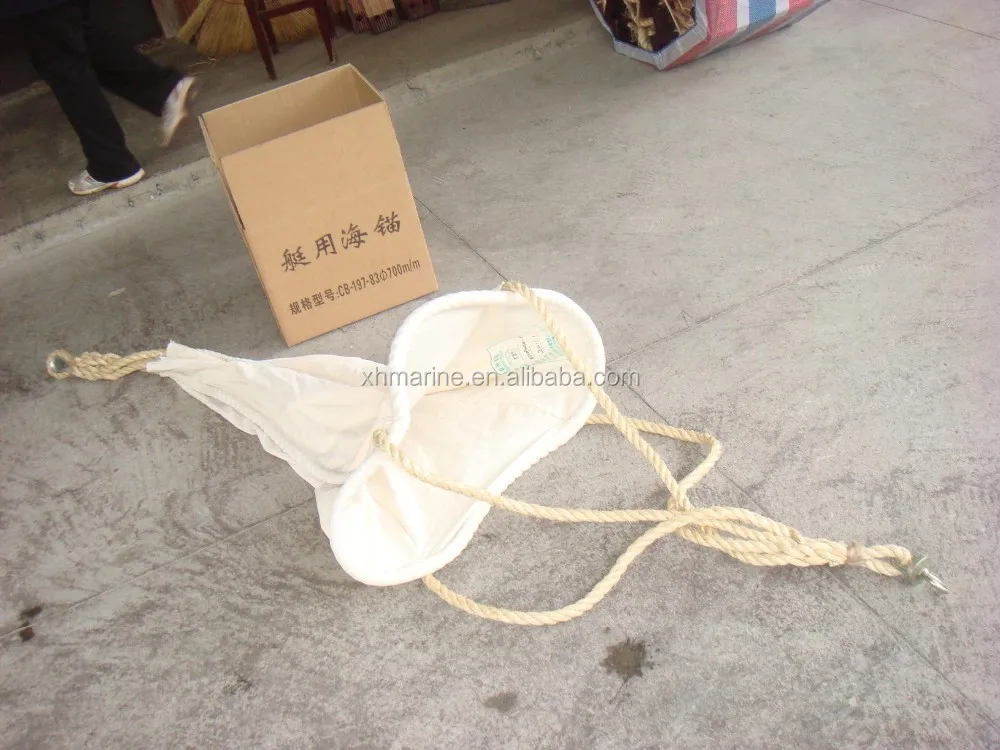

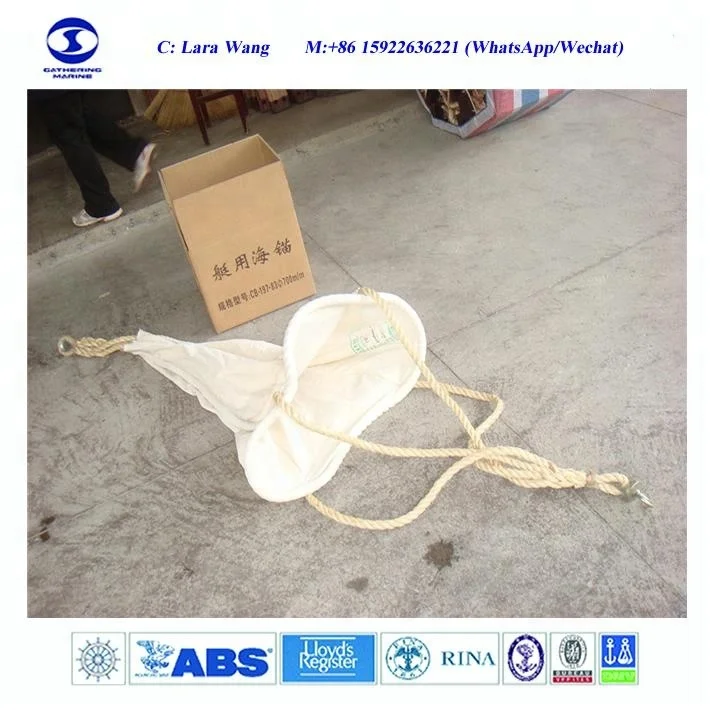

 Sea Anchor for Liferaft / Lifeboat

The Sea Anchors are applicable for Lifeboat and Liferaft of sea boats to reduce their sailing speed.
Product Inspection Standard: Requirements of 1996 Amendments to SOLAS 1974 and LSA Code and Resolution MSC. 81(70).

Sea Anchor Details
Material: Canvas
Sea Anchor Rope: White Coir Rope
Rope Diameter: 22mm
Rope Length: 37m
Anchor Mouth Diameter: 700mm



SOLAS Marine Inflation Liferaft for 4~150 man

• EC/CCS/GL Approved


• Capacity: 4~150 persons


• With all accessories+Life saving equipment+GRP Container


• Warranty: 17 months

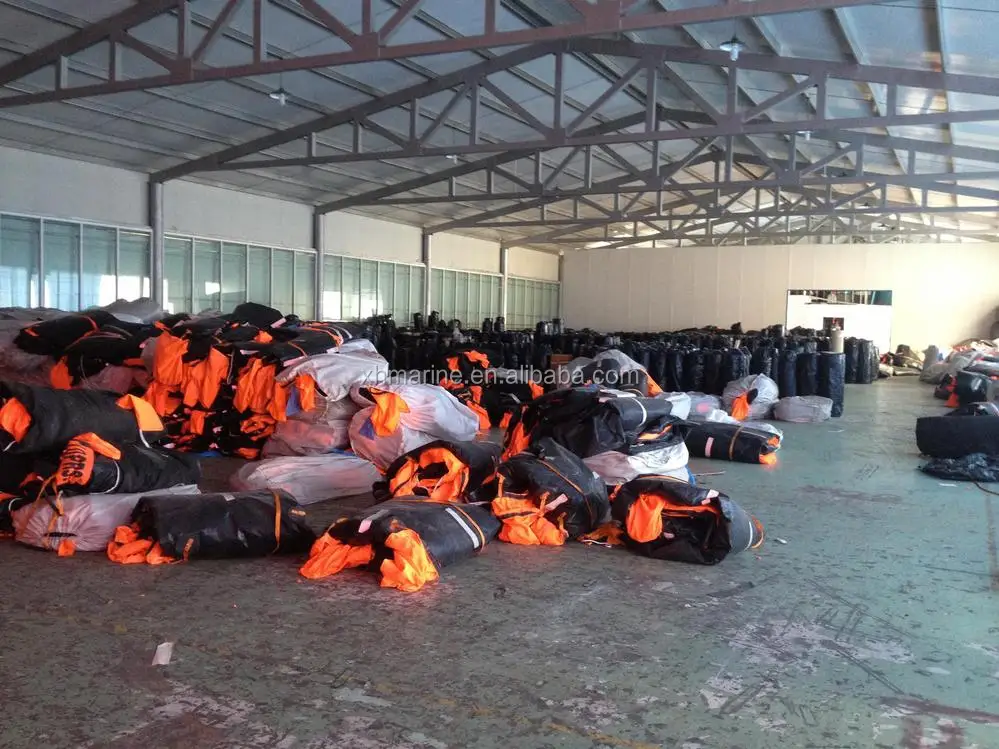

SOLAS Marine Inflation Liferaft Introduce

GRA Type Throw Over Board Inflatable Liferafts are in accordance with 1996 Amendment to the International Convention for the Safety of Life at Sea, 1974, MSC.81 (70) , MSC.218(82), MSC.226(82) and ISO 15738-2002.

This product has been approved by CCS, EC (GL) and ABS. It can be used in the ships engaged on international voyages.











SOLAS Marine Inflation Liferaft Technology specifications



Type		GRA-6	GRA-8	GRA10	GRA-12	GRA-15	GRA16	GRA20	GRA25	GRA30
Capacity		6	8	10	12	15	16	20	25	30
Length (mm)		2170	2460	2730	2990	3300	3350	4390	4770	5576
Width (mm)		2170	2460	2730	2990	3300	3350	3040	3370	3275
Height (mm)		1250	1300	1400	1400	1500	1500	1500	1500	1600
Pack (mm)	Dia.	545	545	615	615	670	670	690	730	730
	Length	1045	1045	1095	1095	1135	1135	1285	1440	1440
Weightkg ≤		78	90	107	122	137	142	170	185	198







Other Type Inflatable Liferafts are available and suitable Area:



Type	CAPACITY	DETAIL
GRA	6,8,10,12,15,16,20,25,30	Throw-over Board Type,design for ships engaged in international voyage.
GRD	12,15,16,20,25	Davit-launch Type,design for ships engaged in international voyage.
GRZ	6,10,15,20,25,50,100,110,125	Self-righting Type, design for ships engaged in international voyage.
GRY	4,6,8,10,12	Inflatable Leisure Liferaft According to ISO standard 9650-2:2005.
GRK	4,10,25,30,50,65,100	Open Reversible Liferaft,Design for ships engaged in zhujiang area.(self-righting



 Totally Enclosed Lifeboat Specification



Type	Dimension	Persons	Hook Distance	Depth	Craft weight	Full load	Speed	Engine
GRB50C/F	5*2.3*2.84m	25	4.5m	1.0m	2115/2457kg	4260/4602	≥6	380J-3/YANMAR3JH25A/BUKH DV24 RME
GRB57C/F	5.8*2.32*3.1m	33	5.3m	1.15m	2284/2262kg	5006/5344	≥6
GRB65C/F	6.6*2.32*3.1m	40	6.1m	1.15m	2861/3136kg	6161/6436	≥6
GRB75C/F	7.6*2.78*3.1m	55	7.1m	1.2m	3000/3300kg	7537/7857	≥6	380J-3/YANMAR3JH30A/BUKH DV29 RME
GRB80C/F	8.0*2.96*3.1m	65	7.6m	1.2m	3125/3500kg	8487/8862	≥6
GRB85C/F	8.5*3.3*3.3m	90	8.1m	1.25m	4361/4691kg	11786/12116	≥6
GR93C/F	9.3*3.45*3.35m	106	8.9m	1.3m	5160/5461kg	13810/14220	≥6	380J-3
GRB99C/F	10.05*3.8*3.45m	120	9.4m	1.25m	6050/6500kg	15950/16400kg	≥6	N485J-3/BUKH DV48RME
GR102C/F	10.28*3.5*3.35m	130	8.95m	1.3m	5658/5960kg	15375/15775kg	≥6	380J-3
GR117C/F	11.7*3.55*3.4m	150	11.3m	1.3m	5317/5617kg	18190/18600kg	≥6	380J-3
Note:   F: TANKER VERSION     C: CARGO VERSION



Contact us please if you are interested in Sea Anchor,Life Raft, Lifeboat or other items. Thanks

24hour / 7 days Service available
