Small Scale Water Bottling Machine Price / Pure Water Bottling Filling Machine

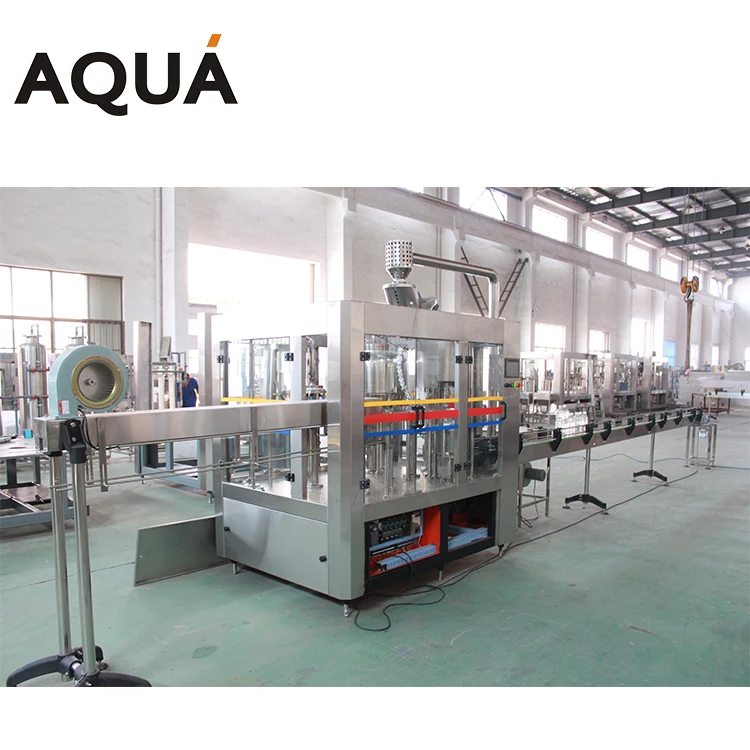

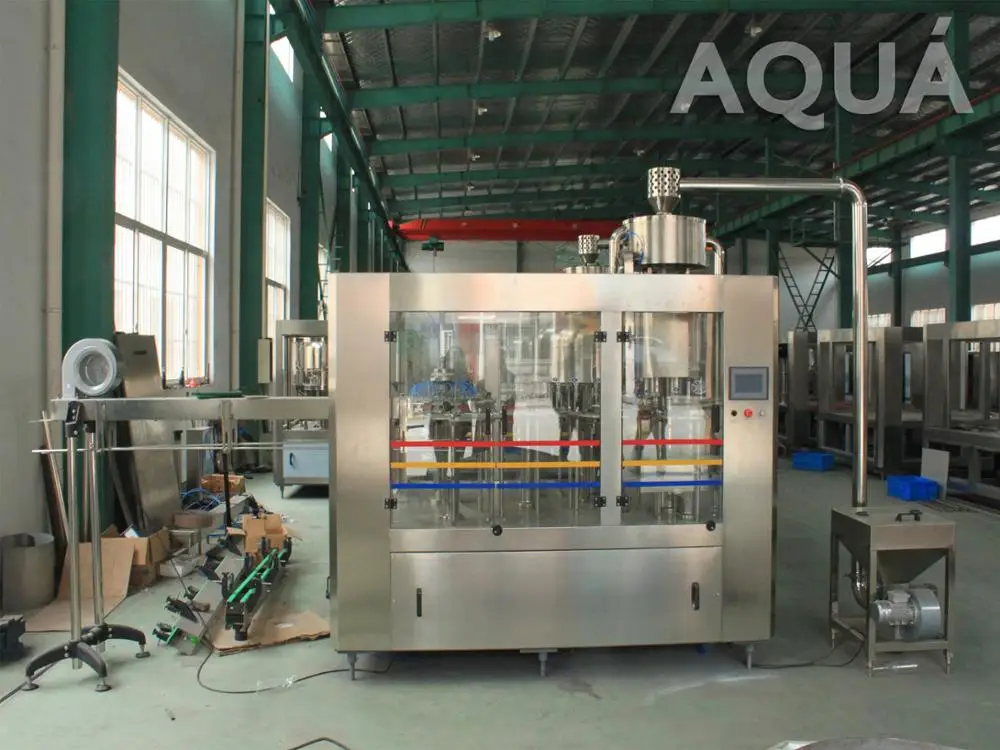

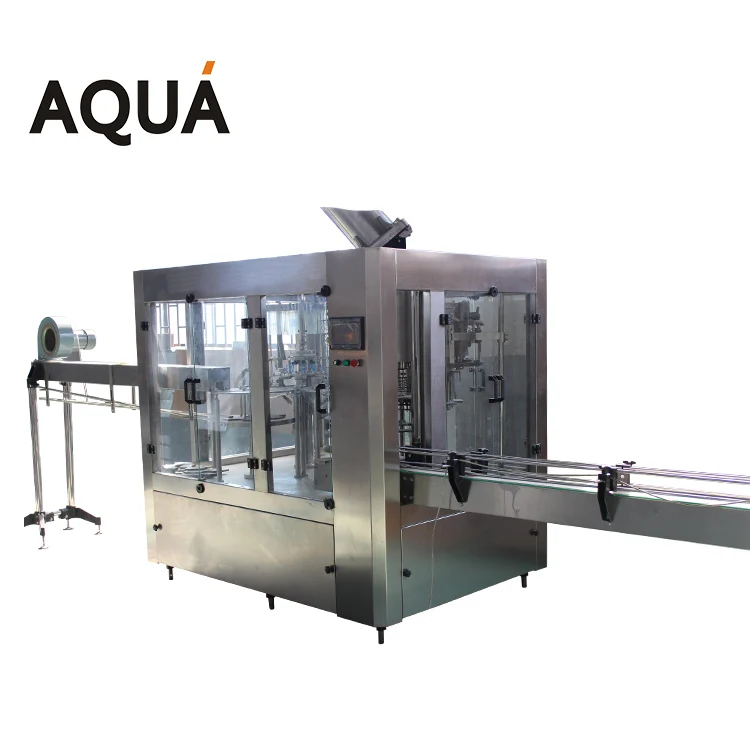

This series of monobloc 3 in 1 drinking water plant are applied to the production of pure water, mineral water, it integrates bottle washing, filling and capping into one body of the machine. It is very convenient to change bottle size by means of advanced bottle conveying technology-bottleneck clamping and bottle suspending technology.
Main Feature:
This filling machine has a compact structure, perfect control system, easy to operate and highly automated.
The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

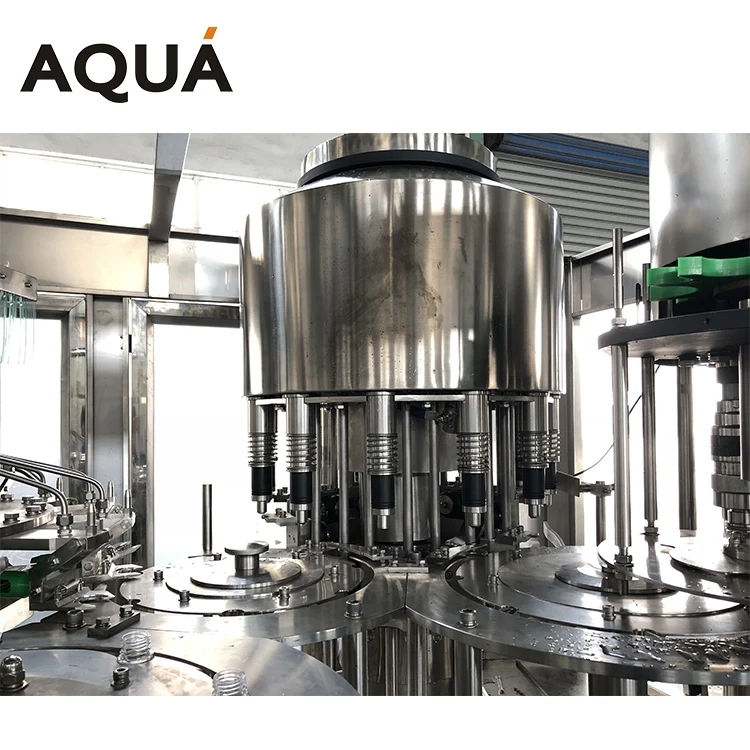

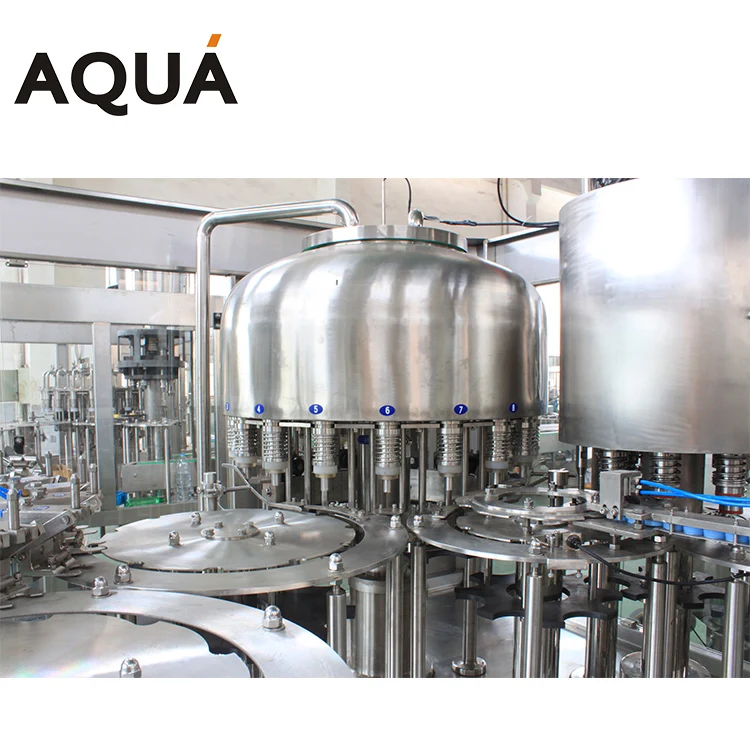

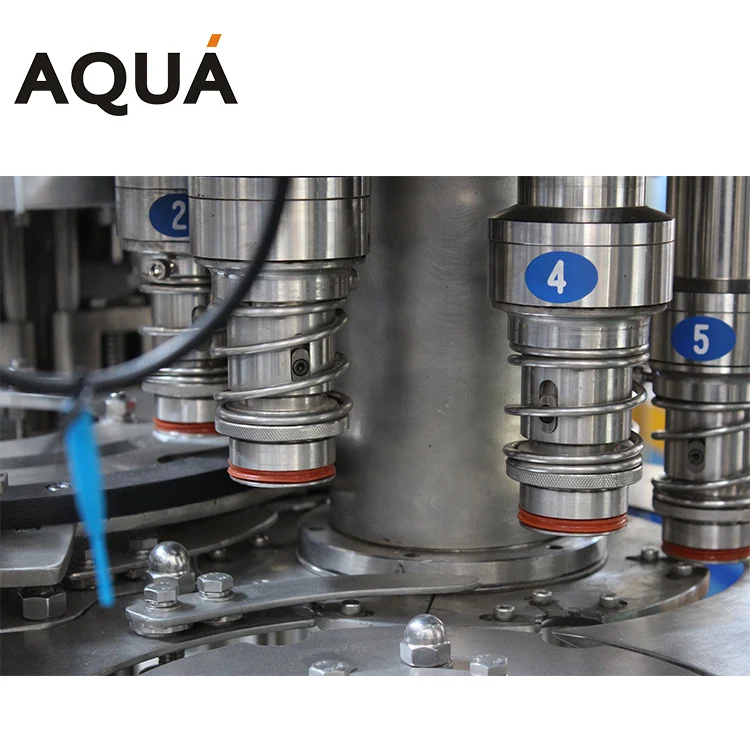

By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

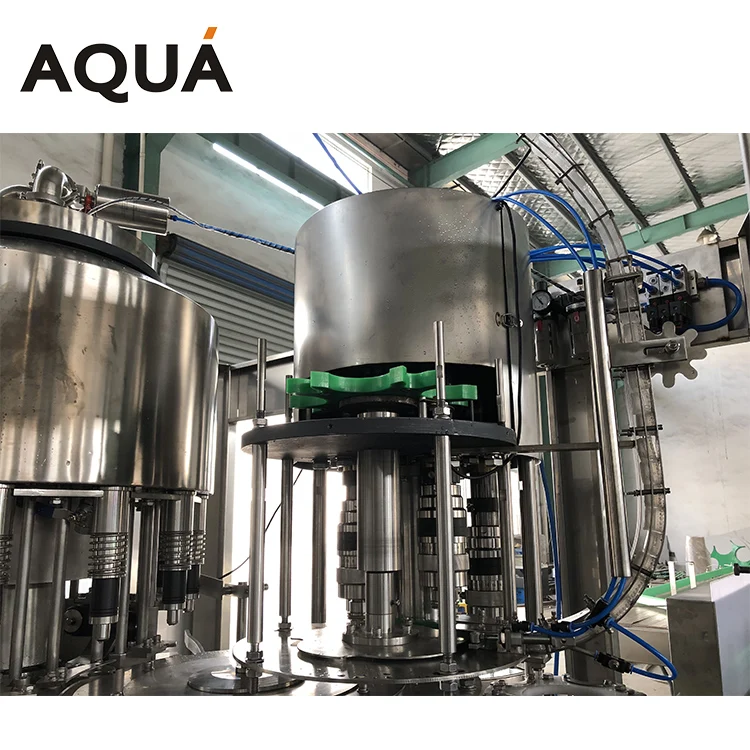

The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
Equipped with perfect clean management system to ensure the bottle clean.
Only by changing the star-wheel, can realize to fill the changed bottle shape.
The machine adopts perfect overload protective device can ensure the operator and machine safe.
This machine adopts adjustable frequency converter.
The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
The electric components and pneumatic components are all introduced from world famous brand products.

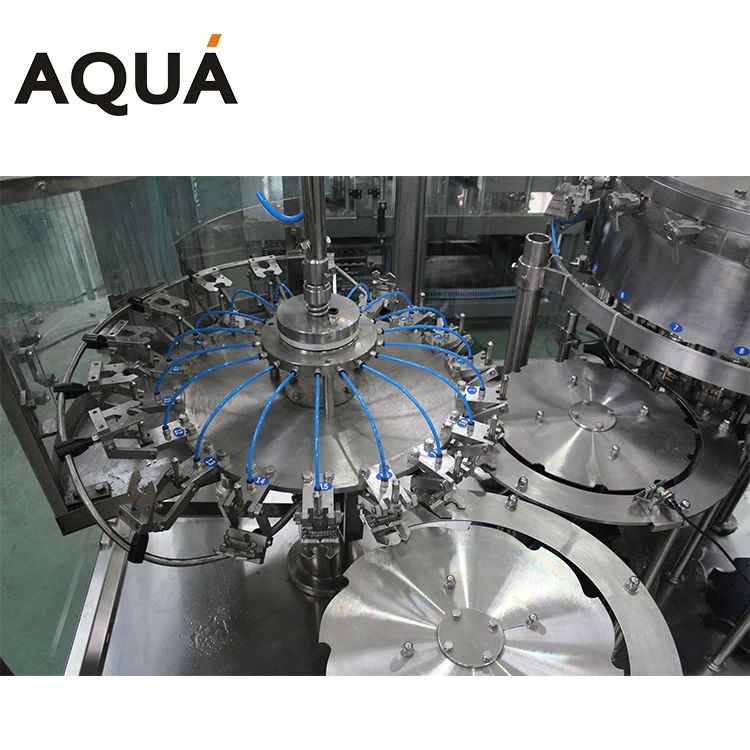

Rinser Filler Capper Part
Technical Dates
Model: | CGF8-8-3 |
Production Capacity:500ml(B/H) | 1000-2000 |
Filling precision | ≤5mm(liquid level) |
Suitable bottle standard:(mm) | Bottle diameter: φ50-φ110 bottle height: 100-320mm |
Suitable cap standard:(mm) | Plastic screw cap |
Pressure for washing bottle(Mpa) | 0.18 |
Water consumption for washing bottle(Kg/H) | 200 |
Spraying position | 5 |
Dripping bottle position | 3 |
Gas source pressure(Mpa) | 0.6 |
Gas consumption(m3/Min) | 0.3 |
Total power(Kw) | 1.5kw |
Overall dimension(L×W×H, mm) | 1900×1800×2000 |
Total Weight:(Kg) | 1800 |
