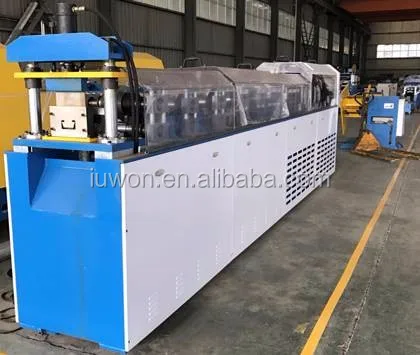

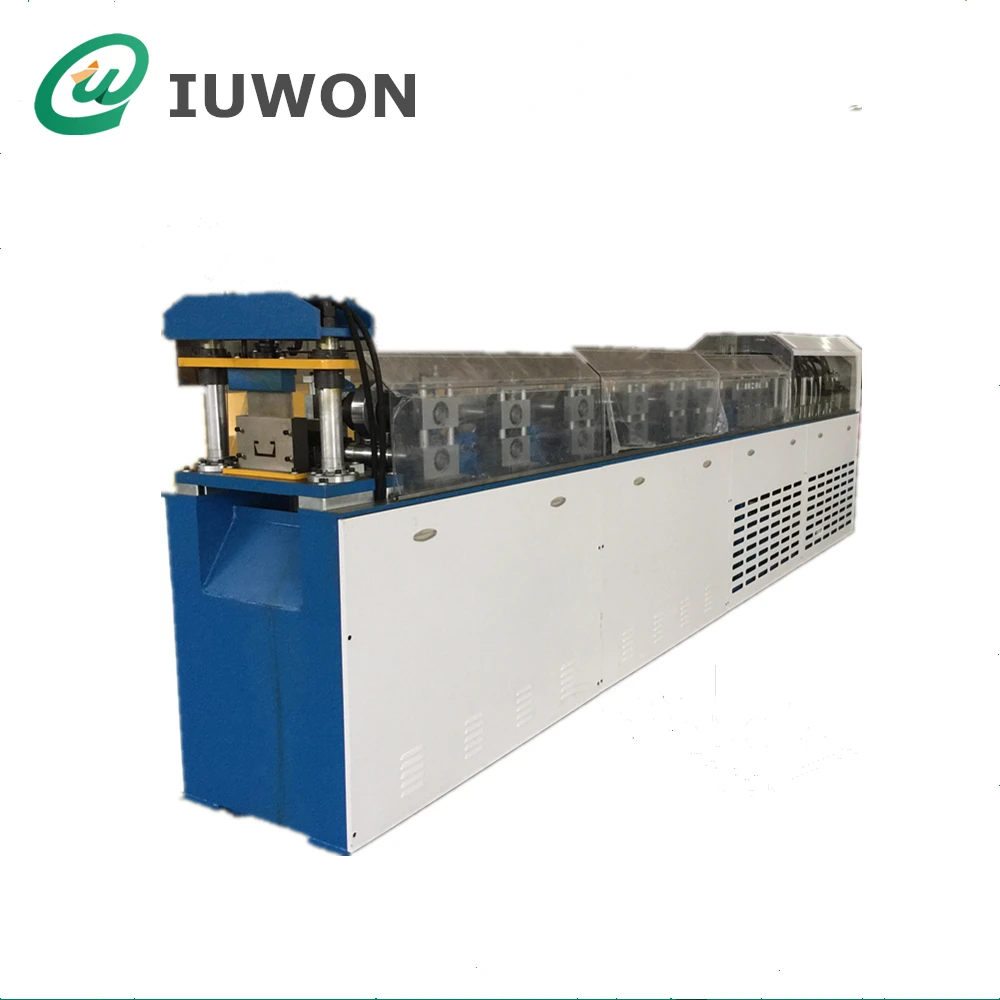

Iuwon Galvanized Steel Light Keel frame cad Roll Forming Machine

Product Overview

Description

iUwon Galvanized Steel Light Keel Frame Cad Roll Forming Machine



Main Technical Parameter

Item		Parameter	Remark
Suitable Material	Type	Galvanized Steel
	Width(mm)	182
	Thickness(mm)	0.95-1.15
	Yield Strength(Mpa)	230-300
Producing Speed(m/min)		15	Product Length>13m Punching Time<18m
Roller Material		45#Chromed
Cutting Model		Hydraulic Cutting
Power	Type	380V/3PH/50HZ
Source	Total Power	17.5kw	According to actual design
Dimension		See to the Layout



Layout

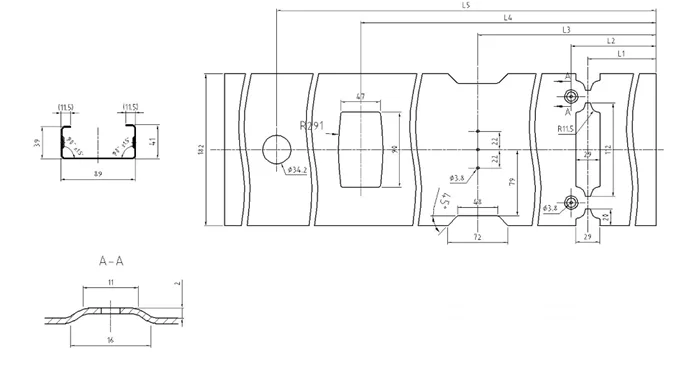

Profile





We Promise :



1).Take the EUROPEAN Quality Standard;



2). Choose the Best Material and Components.



3). Over 30-Year-Experienced Experts and Top International Sales to Care Your Needs.



4). Offer The Highest Quality but The Best Price in Prevailing Market.



5). Customize for You.
