120ton 90t 70 tons rear dump tipper trailer cargo 100 tons semi tipper trailer
- Category: Trailers >>>
- Supplier: Qingdao Juyuan International Trading Co. Ltd.
Share on (60628492002):
Product Overview
Description
Products Description
★High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

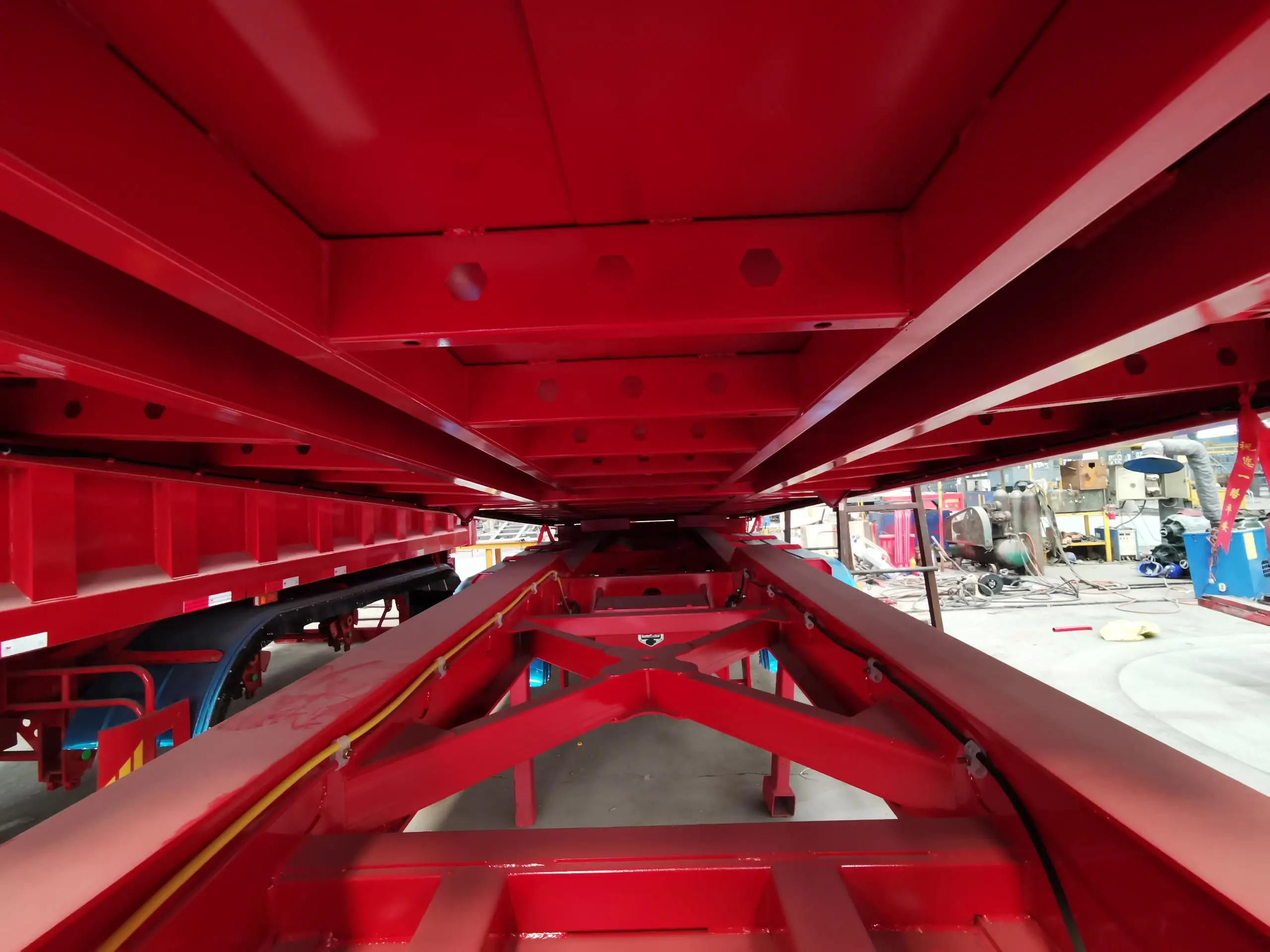

★The most skilled workers make welding of this dump trailer more frequent and strong.
★Dump box dimensions , box thickness,hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
★The most skilled workers make welding of this dump trailer more frequent and strong.
★Dump box dimensions , box thickness,hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.

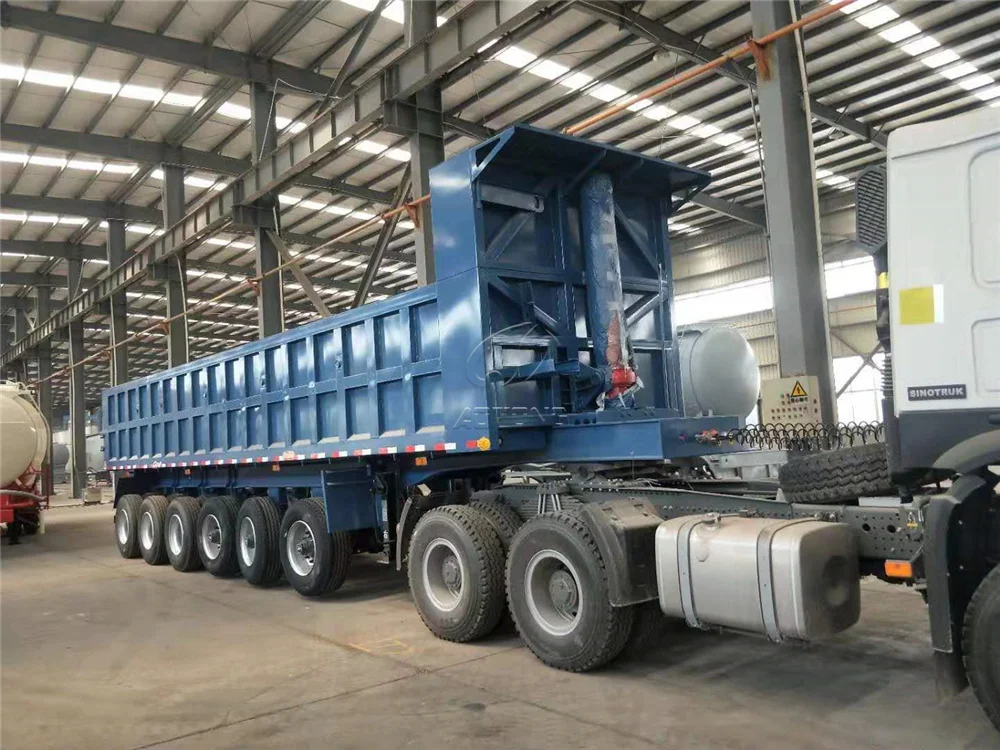

Product | Dump / Tipping semi trailer | ||||||
Brand Name | Aotong Brand | ||||||
Outside Dimensions (L*W*H) | 8000-12000 * 2500 * 3900 mm | ||||||
Rated Load | 30 - 60 tons | ||||||
Tare Weight | 9-11 tons | ||||||
Hydraulic Cylinder | HAYA | ||||||
Tires | Specification | 12R22.5 ,11.00R20 or depends on customer | |||||
No. of tires | 8/12 | ||||||
Brand | Double coin, Triangle or Michelin | ||||||
Spare tire carriers | 2 or 1 including a riser. | ||||||
Axles | Brand | FUWA (BPW German optional or JINSHENG) | |||||
No. of axles | 2/3 | ||||||
Axle load | 13000 kgs | ||||||
Wheel Rim | 8/12 units of 7.50-20 rim or 8.00 | ||||||
Suspension | Leaf spring suspension or air suspension | ||||||
Pieces of Leaf-spring | 10/10/10 | ||||||
Brakes | Brand | WABCO | |||||
Brake chamber | 4/6 double chamber | ||||||
System | Dual line braking system /ABS | ||||||
Departure Angle | 14 | ||||||
Front/Rear Overhang | 1670mm | ||||||
Main Beam | material | I beam ,Q345B , automatic submerged arc welded | |||||
specificat ion | Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 10mm | ||||||
Cross Beam Material | Q235B | ||||||
Side Beam | 16# channel steel | ||||||
Plate Form | Steel Sheet 5mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.5mm,3mm,4mm,5mm,6mm) | ||||||
King Pin | 50# or 90# | ||||||
Landing Gear | Single side operation or double side operation, Static capacity 28Ton | ||||||
Accessory | One tooling box with a set of standard trailer tool | ||||||
Electrical System | 24V, 7core socket, lights according to European standards. | ||||||
Painting | Surface preparation by shot blasting. One coat of oxide primer. Two coats of enamel paint, color to be advised during construction,Any color available as client’s need. | ||||||
We have many skilled workers who have mastered excellent welding and production processes, and deal with every process strictly to ensure the sophisticated technologies.
Click for more information!

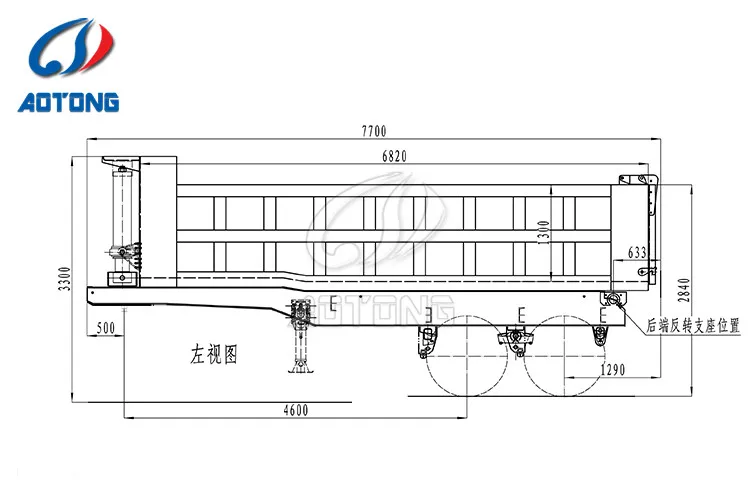

Excellent design ability
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！

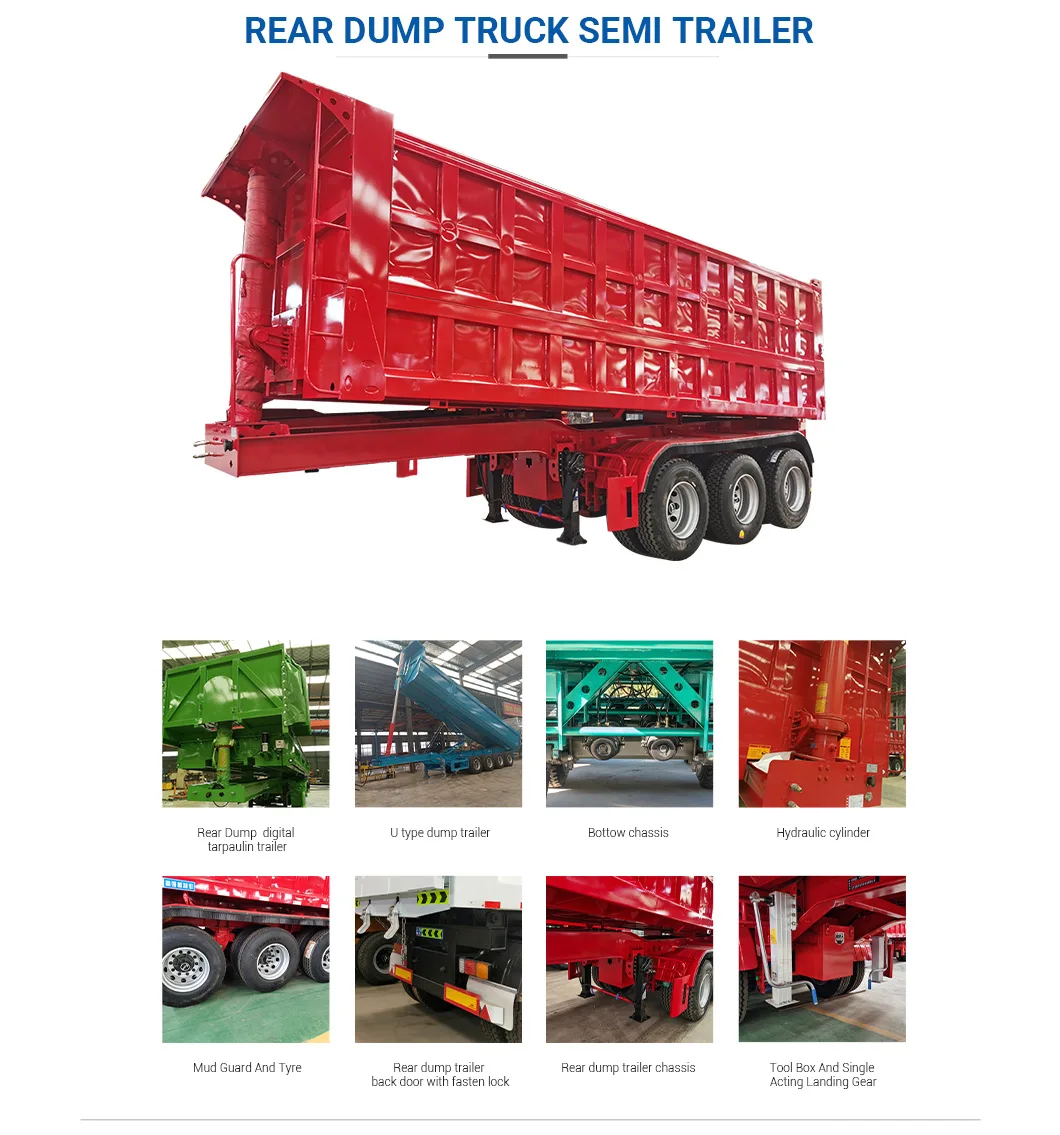

Recommend Products
We also have rich production experience in the following models.Our trailers can be designed according to customer's requirements.
1000+ Models Vehicles for Chooseing!
Click to get the models that have been shipped to your country！
Click to get the models that have been shipped to your country！

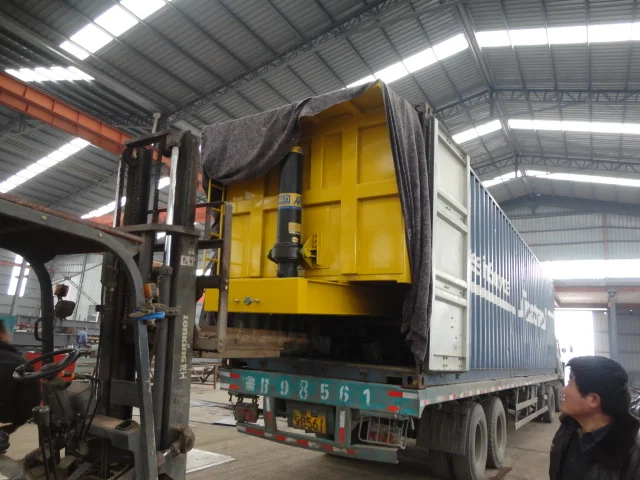

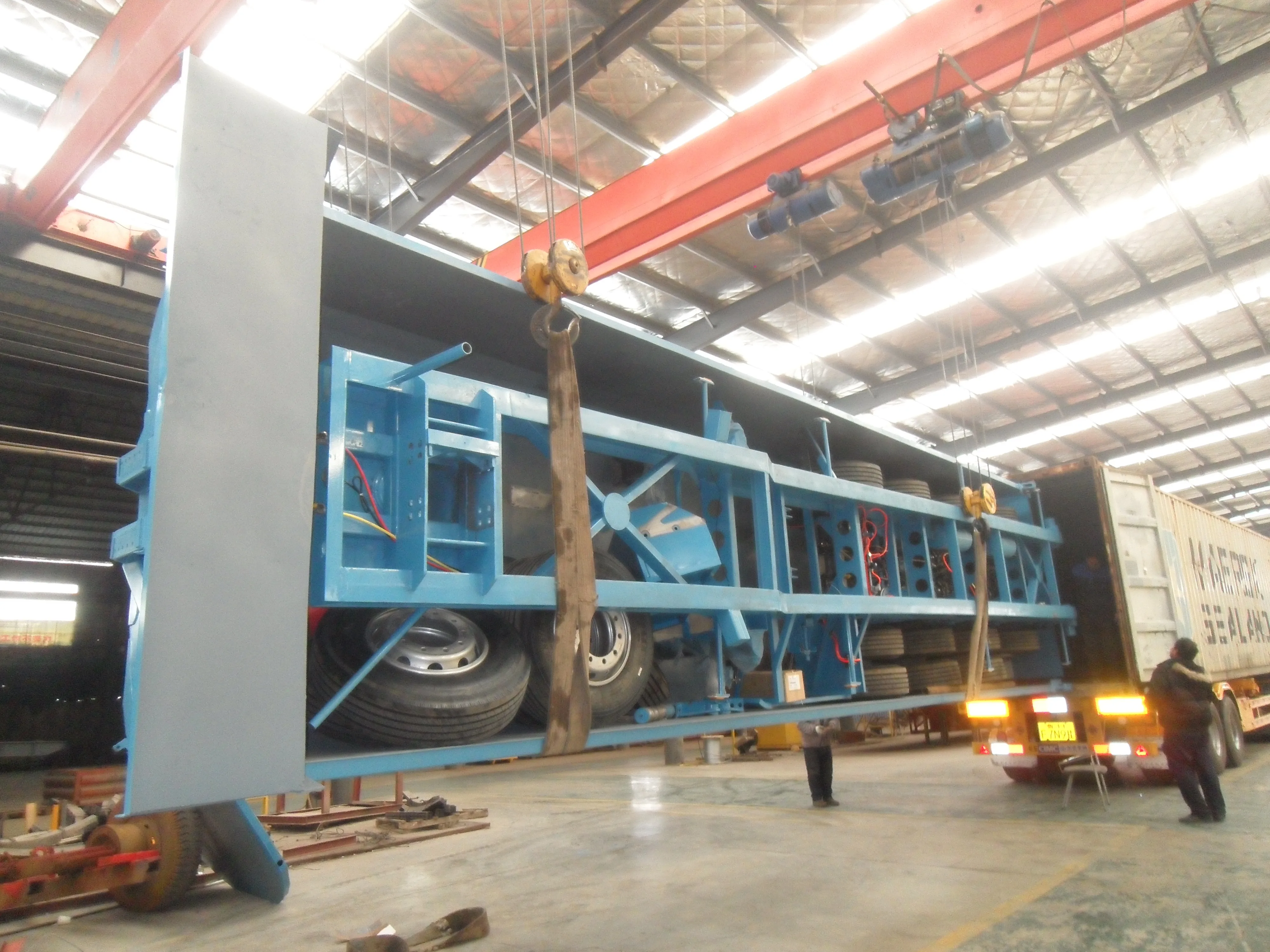

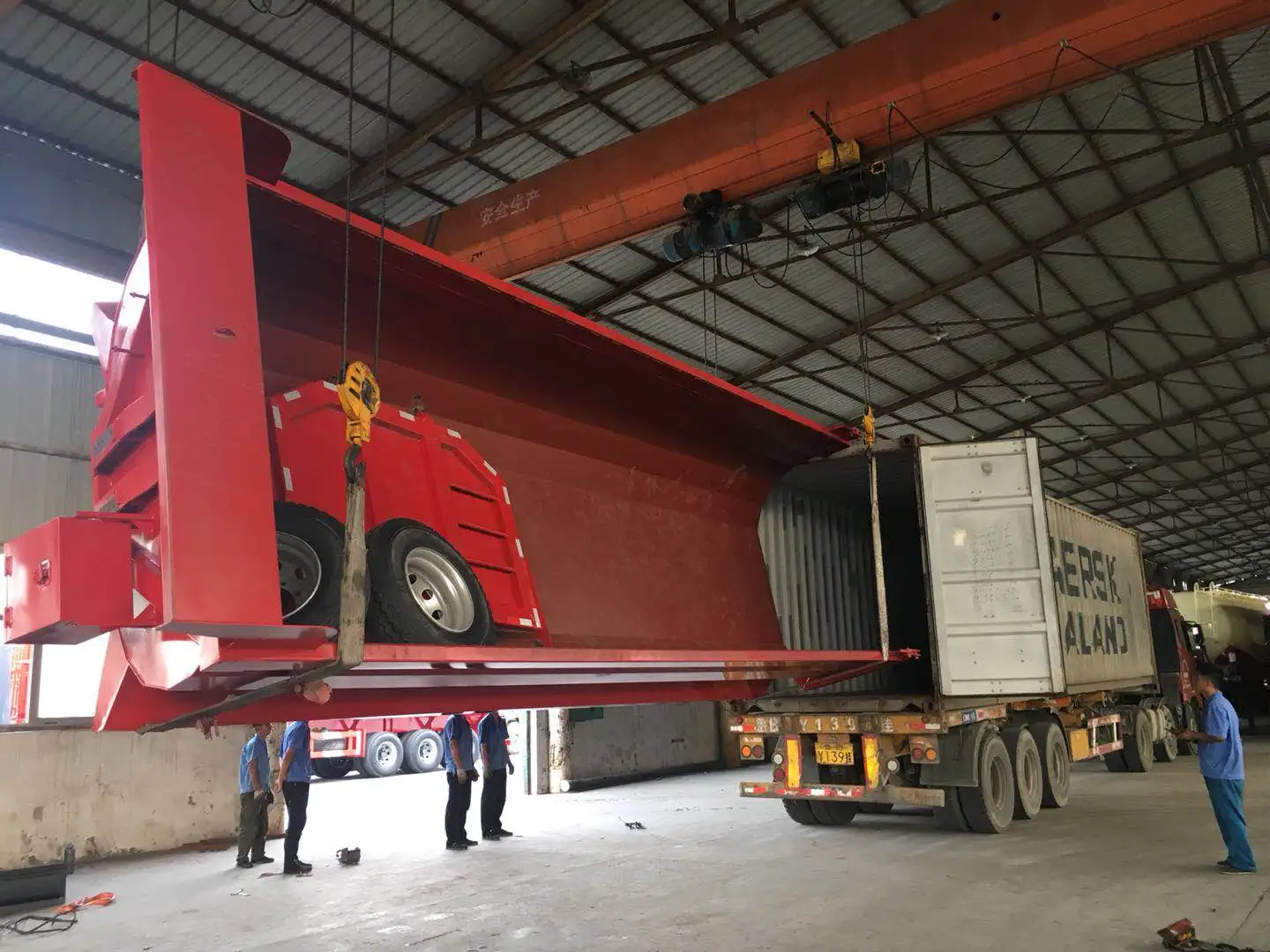

Packing and Shipment
In nude,Polish with water wax before shipment
1. By 40ft/45ft/40fr container

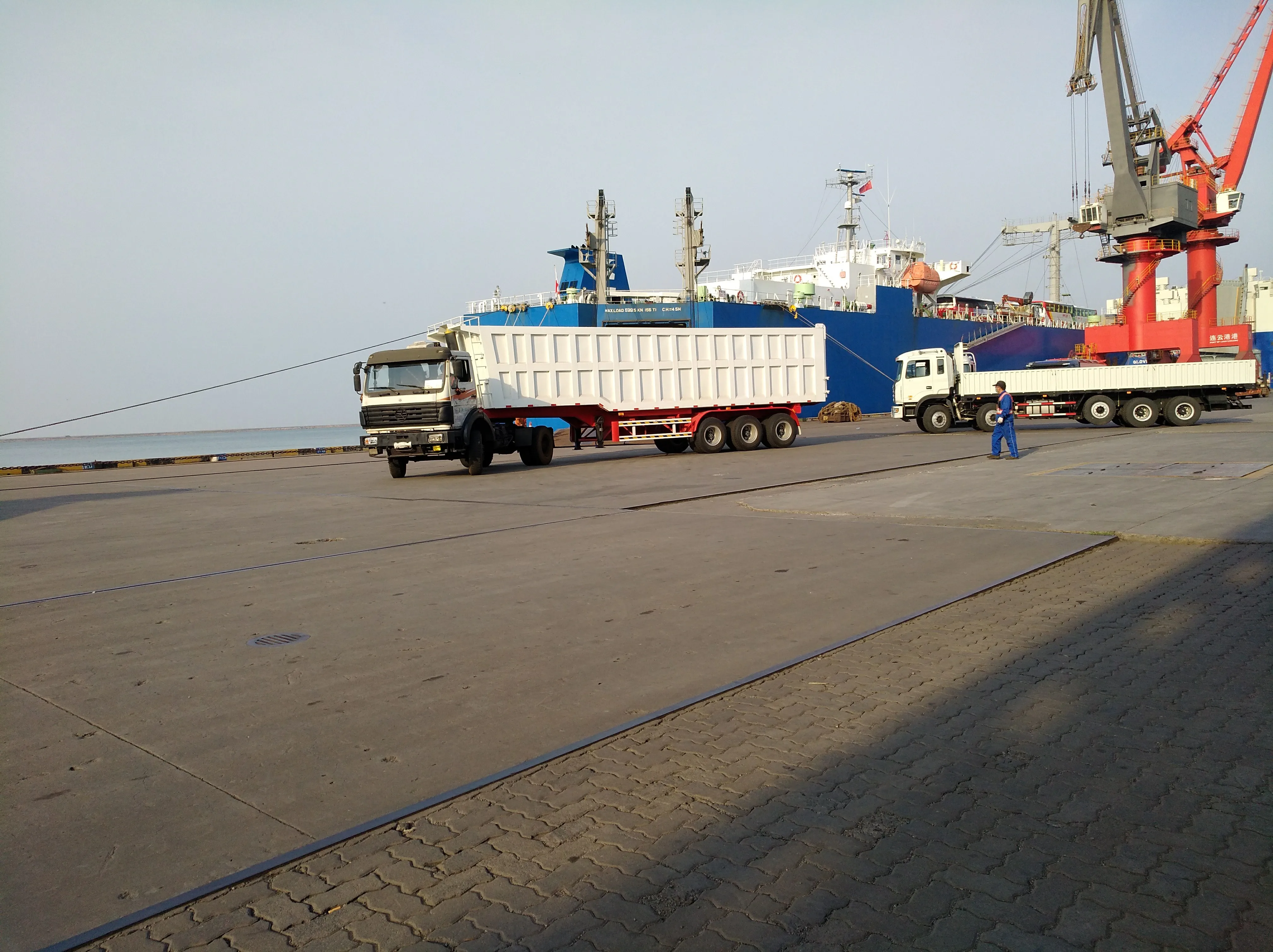

2. By bulk /roro ship
3. As your requirments.

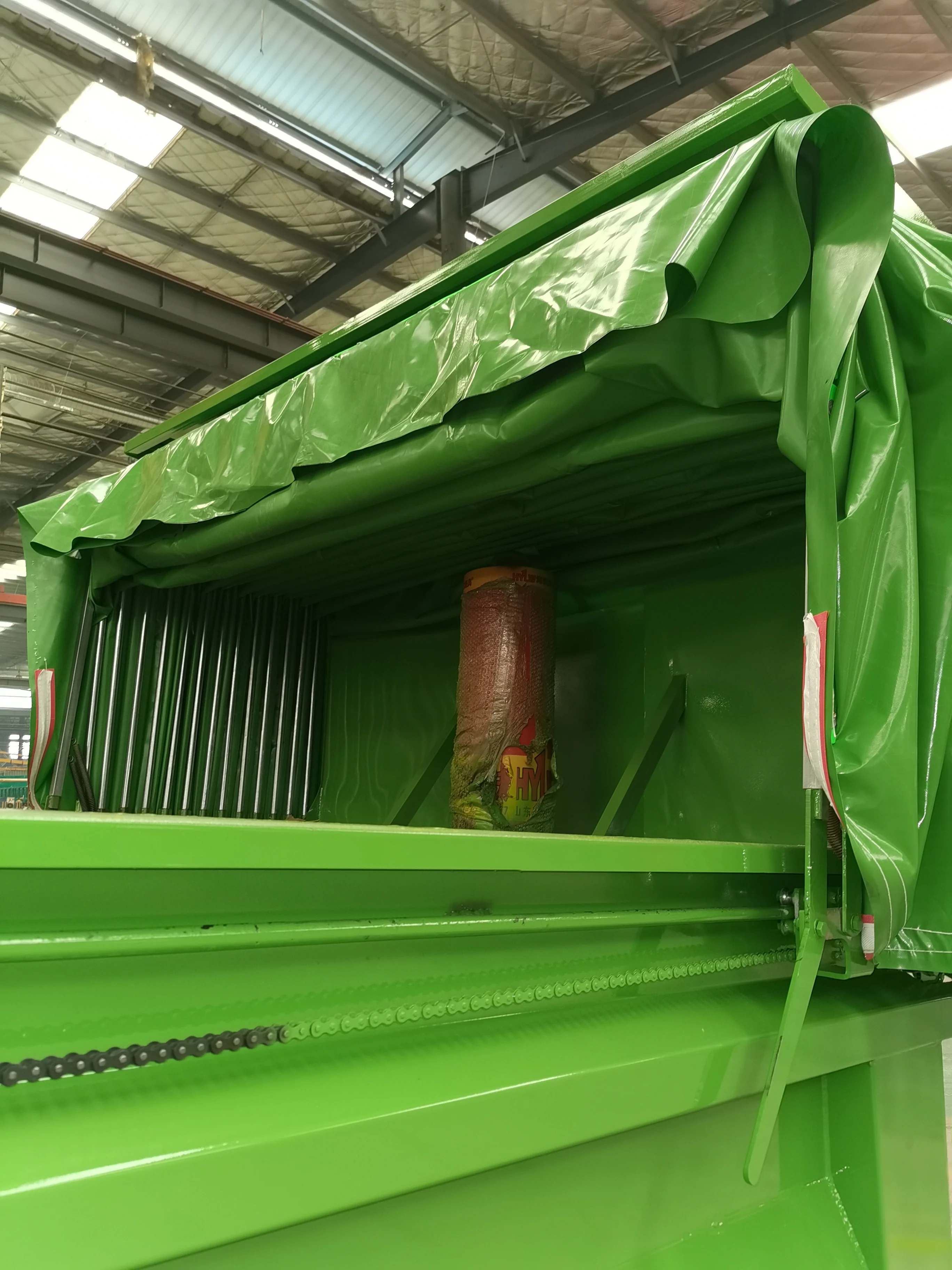

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods.
We believe that we can win-win by providing detailed services.
1. By 40ft/45ft/40fr container
2. By bulk /roro ship
3. As your requirments.
Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods.
We believe that we can win-win by providing detailed services.
Company Profile
Aotong Brand Semi Trailer
★We are the direct factory for all kinds of good quality semi trailers with competitive price.
★It's established in 1992 with more than 30years experience and well equipped testing facilities and strong technical force.
★It covers a total area of 150, 000 square meters with more than 670 workers ( 16 senior titled personnels, 118 professionals).
★Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries.
Welcome to visit our factory！
★It's established in 1992 with more than 30years experience and well equipped testing facilities and strong technical force.
★It covers a total area of 150, 000 square meters with more than 670 workers ( 16 senior titled personnels, 118 professionals).
★Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries.
Welcome to visit our factory！
Our Advantages and Service
★Years of production experience, good at controlling product quality. Choosing us, you choose professional supplier.
★ we gain Compulsory Product Certificate (CCC Certificate) , Information of P.R.C, ISO9001 certificate ,8 patent certificates , WIPO MADRID The Internationa Trademark System and etc.Provide strong technical support and quality assurance for your semi trailer.
★ we gain Compulsory Product Certificate (CCC Certificate) , Information of P.R.C, ISO9001 certificate ,8 patent certificates , WIPO MADRID The Internationa Trademark System and etc.Provide strong technical support and quality assurance for your semi trailer.
★We have a professional and enthusiastic service team .According to your order, we provide suitable trailer.
★ We also provide rational packing and shipping program , let shipment save money and security.
★ We also provide rational packing and shipping program , let shipment save money and security.
★ We serve customers in many countries and get their praise and recognition.Just trust us, you will get a satisfactory answer.
AFTER-SALE SERVICE | ||||||||||
THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE): | ||||||||||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||||||
MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |||||
SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||||||
KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||||||
BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||||||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||||||
BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |||||
BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||||||
AIR RESERVOIR | 6 MONTHS | |||||||||
ITEM NAME | WARRANTY | |||||||||
OTHERS | LEAF SPRING | 3 MONTHS | ||||||||
BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||||||
EMERGENCY RELAY VALVE | 3 MONTHS | |||||||||
BRAKE SHOE | 3 MONTHS | |||||||||
RELAY VALVE | 3 MONTHS | |||||||||
Customer recognition
Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries such as Australia, Singapore, Japan, Sudan, and other Middle East, Southeast Asia and Africa countries.
Our services and products are highly recognized by customers.
Welcome to send us your inquiry at any time!
