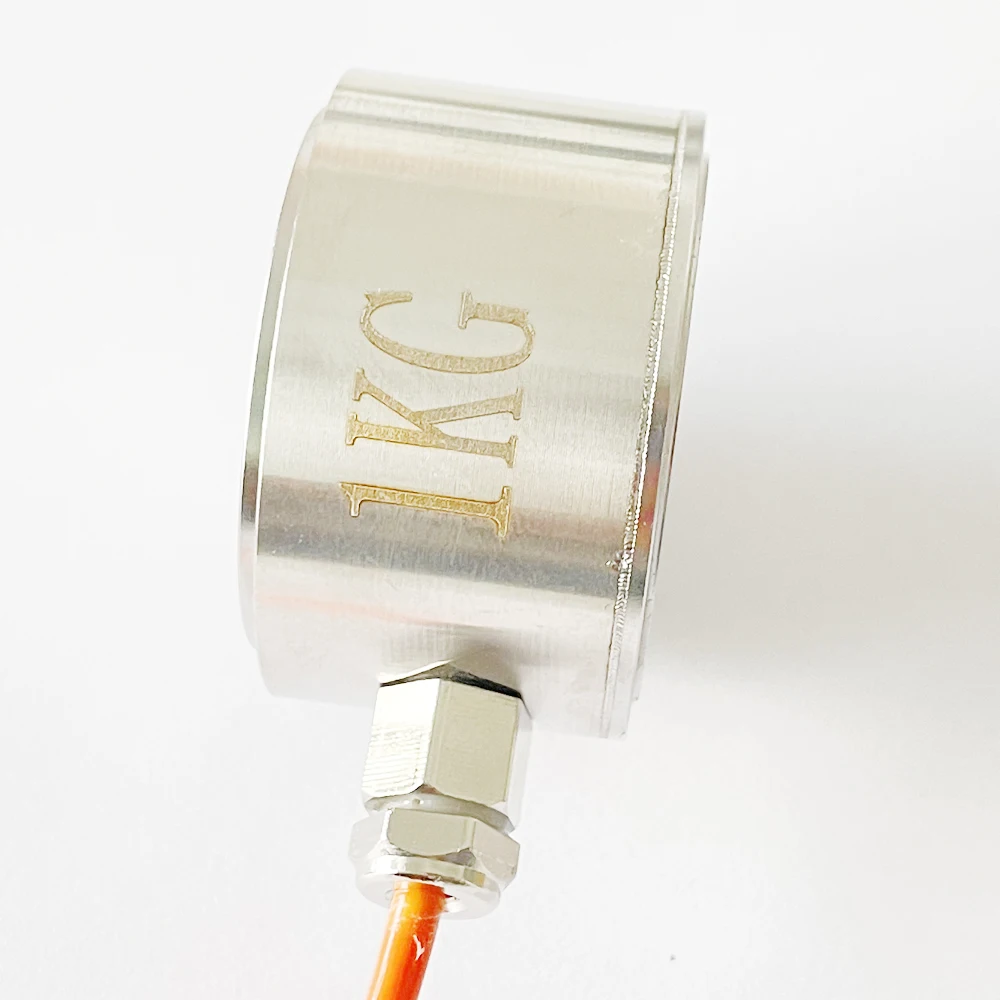

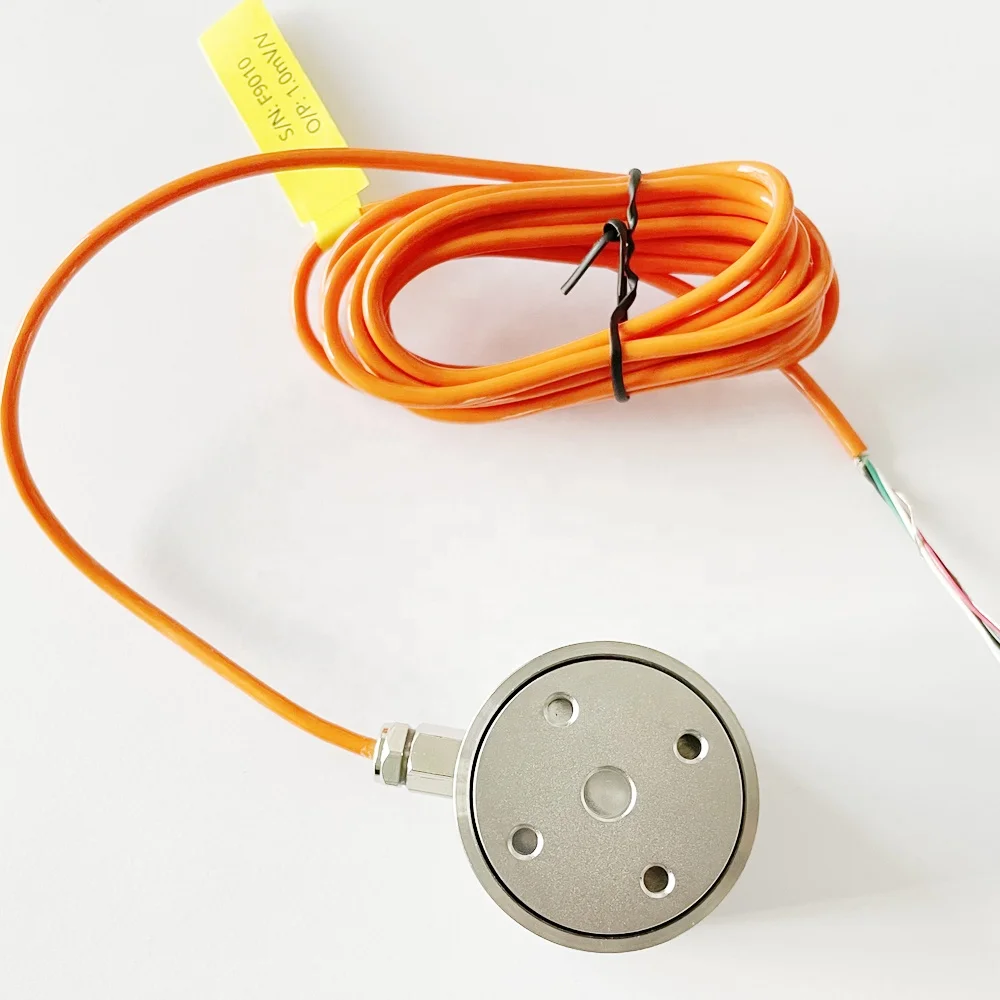

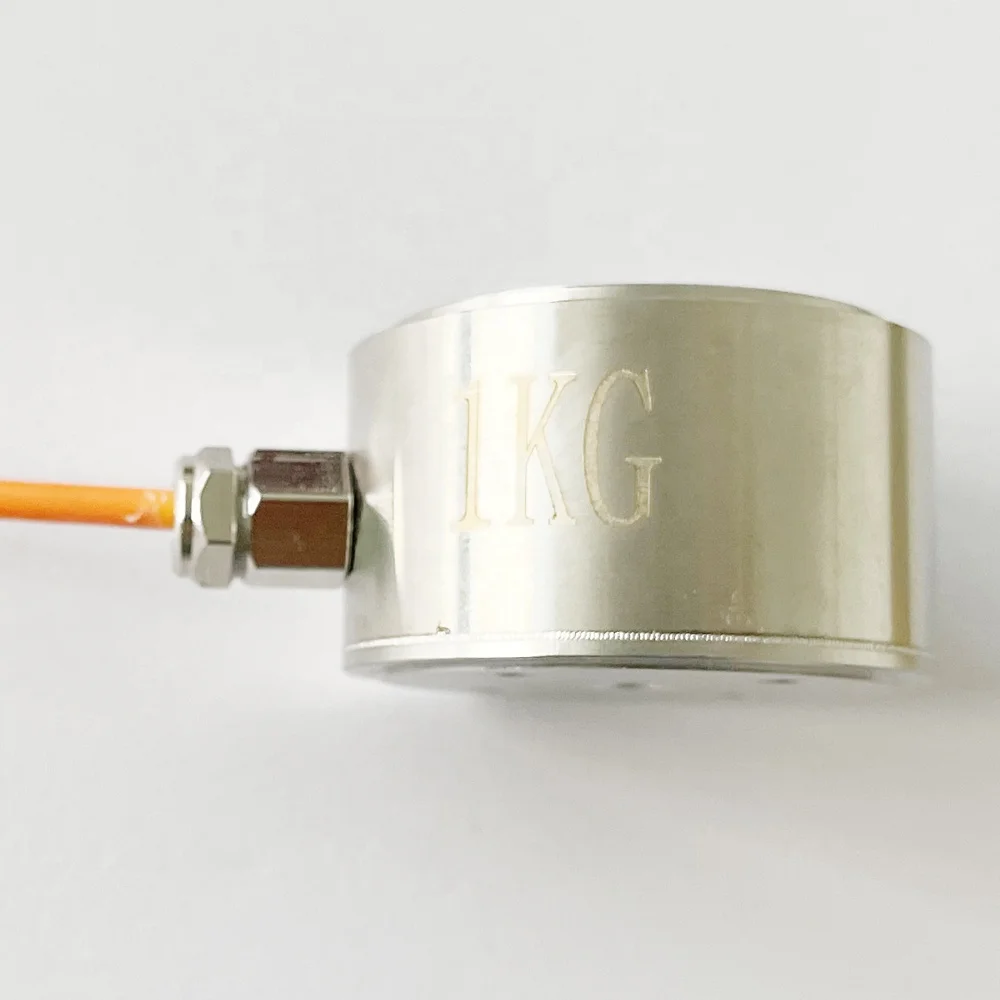

Column type load cell for tension and compression force measurement 1kg 2kg 5kg 10kg 20kg 50kg 100kg
- Category: Sensors >>>
- Supplier: HT Sensor Technology Co. Ltd.
Share on (60628724431):
Product Overview
Description
Welcome to HT Sensor
Features:
◆Capacity ：1~100kg
◆Material: stainless steel
◆Type: compression and tension type
◆Defend grade: IP66.

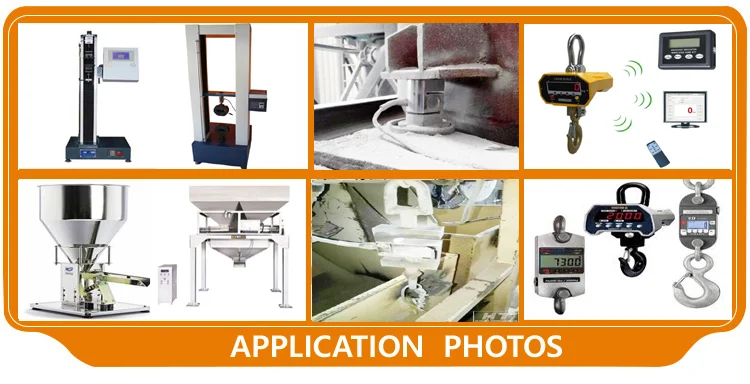

◆Application: the compression and tension
measurement in insertion force tester, riveting
machine, welding machine, hot and cold
laminating machine, etc., tensile testing equipment, automation equipment, testing field
◆Capacity ：1~100kg
◆Material: stainless steel
◆Type: compression and tension type
◆Defend grade: IP66.
◆Application: the compression and tension
measurement in insertion force tester, riveting
machine, welding machine, hot and cold
laminating machine, etc., tensile testing equipment, automation equipment, testing field

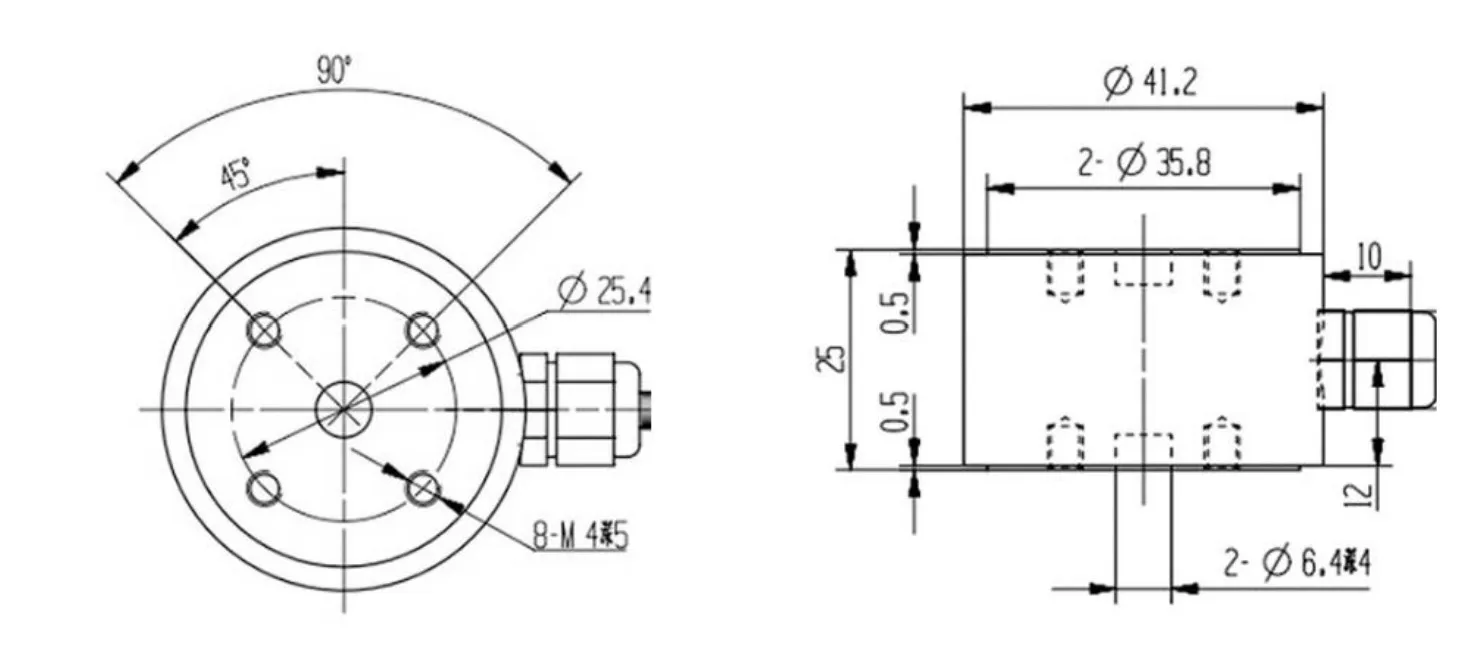

Dimensions
Specifications
capacity | kg | 1,2,3,5,10,15,20,30,40,50,100 | |
safe overload | %FS | 120 | |
ultimate overload | %FS | 150 | |
rated output | mV/V | 1.5±0.5 | |
excitation voltage | Vdc | 5~ 15 (recommend 10Vdc) | |
combined error | %FS | ± 0.1 | |
zero balance | %FS | ± 1.0 | |
non-linearity | %FS | ± 0.1 | |
hysteresis | %FS | ± 0.1 | |
repeatability | %FS | ± 0.1 | |
creep | %FS/30min | ± 0.1 | |
input resistance | Ω | 400±20Ω | |
output resistance | Ω | 350±5Ω | |
insulation resistance | M Ω | ≥ 2000 @ 50 Vdc | |
operating temperature range | ℃ | -20 ~ +55 | |
compensated temperature range | ℃ | -10 ~ +40 | |
temperature coefficient of SPAN | %FS/10℃ | ± 0.1 | |
temperature coefficient of ZERO | %FS/10℃ | ± 0.1 | |
Electrical connection | cable | 4 core shielded PVC cable, 2m | |
excitation(+):Red excitation(-):Black signal(+):Green signal(-):White | |||
