5 axsis brush making machine
US $1.00
CE certificate 4 axis CNC high speed tooth brush tufting machine
- Category: Brush Making Machines >>>
- Supplier: Rugao Huicheng Hydraulic Machinery Co. Ltd.
Share on (60629131354):
Product Overview
Description

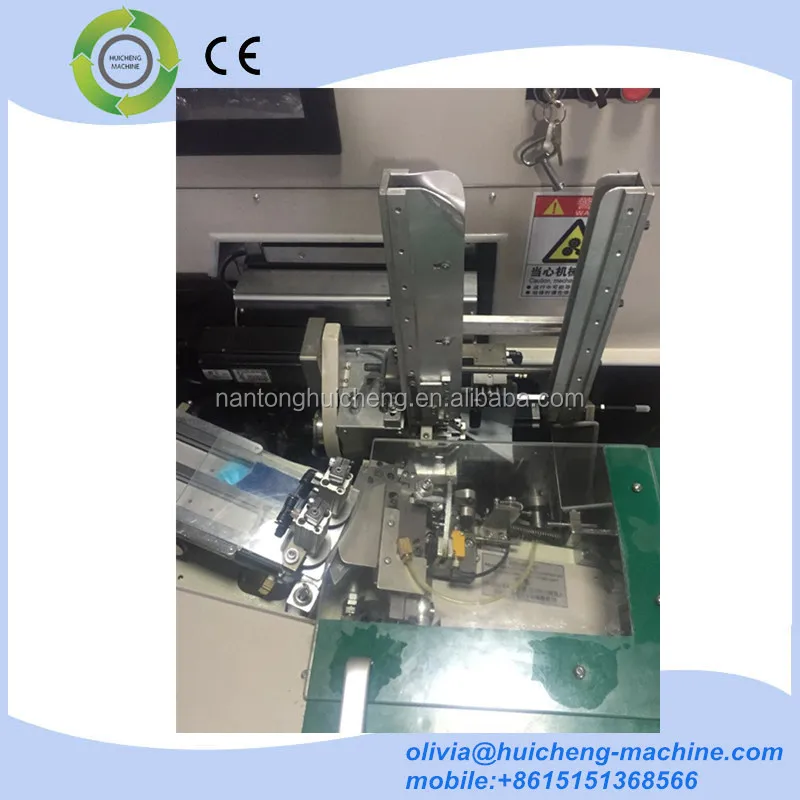

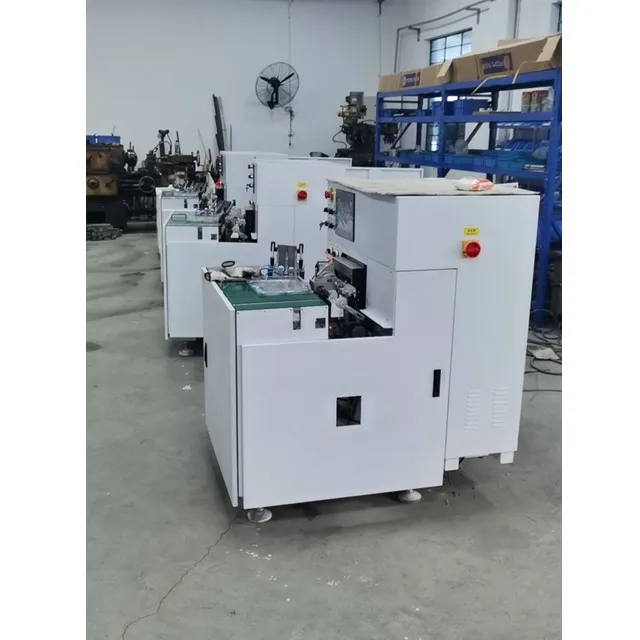

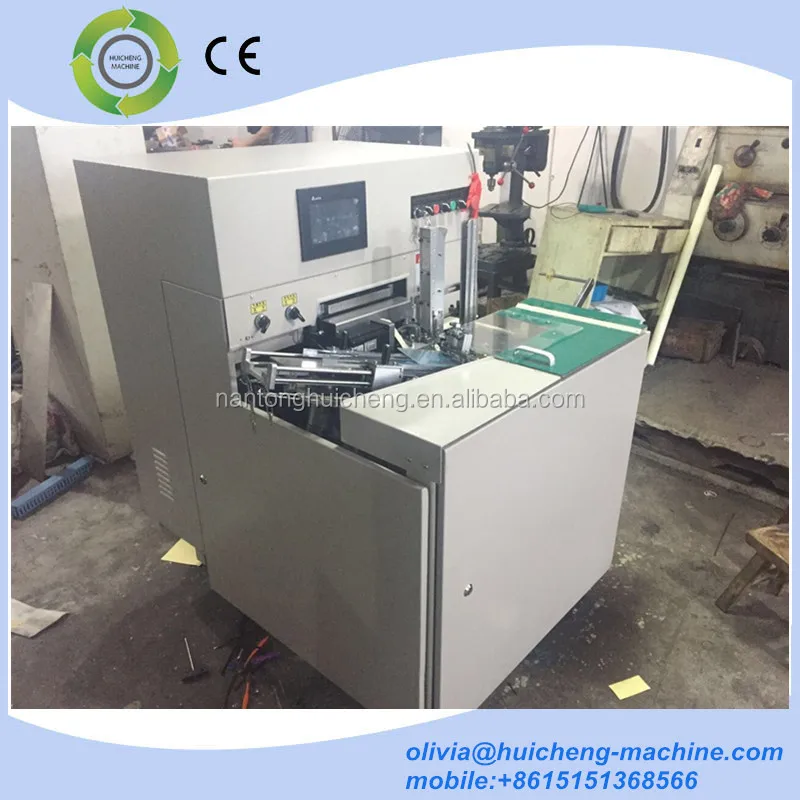

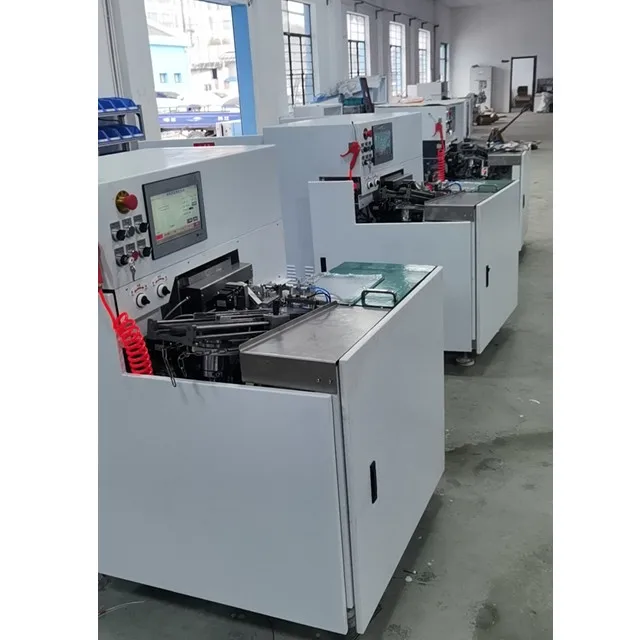

CE certificate 4 axis CNC high speed tooth brush tufting machine
Product Description
Bored with two drilling head and two planting head, high-speed processing, high efficiency.
PLC Control System, Chineseor English display, simple to understand.
Wearing parts and spare parts are standardized designs.
Models can be stored: 40 (expandable).
Power Supply: Three-phase 380V 2.5KW.
Input methods: Handheld encoder or keyboard input.
Chinese or English display, menu-driven operation, time saving.
Features
1 Automatic scanning hole coordinates
2 Automatic tracking
3 The system is stable and reliable, adapt to different environments
4 Precise positioning, easy to operate
5 The closed-loop system, strong anti-jamming capability
6 low noise, stable performance, easy to operate
7 Transfer speed can reach more than 700-800 rev/min.
Machine introduction:
|
Description |
Unit |
Parameter |
|
Max Speed |
Holes/min |
750 |
|
Maximum brush holes |
Holes/Piece |
≤100 thousand |
|
Hole diameter |
mm |
1.5-2.8 |
|
Spindle quantity |
Piece |
2&2 |
|
Journey X axis |
mm |
48 |
|
Journey Y axis |
mm |
25 |
|
Maximum program quantity |
Piece |
2000 |
|
Air pressure |
Mpa |
0.6-0.8 |
|
Power voltage, frequency |
V, Hz |
220,50 |
|
Machine power |
KW |
3 |
|
Contour size |
mm |
1400×1250×1250 |
|
Weight |
KG |
750 |
Machine Technical Parameter:
|
Control system |
CNC Controller |
|
Disturbance Display |
Chinese or English edition |
|
Safety protection |
Overload, short circuit protection |
|
Lubrication |
Auto Lubrication System |
|
Main Speed Control |
Frequency Inverter |
|
Fiber box |
Two Colors Box |
