Pv поддержка алюминиевой структуры Солнечная стойка солнечная панель Монтажный кронштейн со средними и концевыми зажимами
- Category: Solar Mounting System >>>
- Supplier: Xiamen Nacyc Energy Technology Co. Ltd.
Share on (60629634327):
Product Overview
Description
We can Supply Main Products as follow:
1> Solar Power System (Off Grid ,On Grid ,Hybrid)
2>Solar Panel
3>Inverter (Off Grid ,On Grid ,Hybrid)
4>Battery
5>Charge Controller
6>Solar Mounting Structure/Bracket Support for Roof ,Ground,Carparking and others design .
Our advantage:
1>Fast installation,Save your money on electricity
2>Maximized pre-assembled,Great save your labour cost
3>Good news: No MOQ in your first order
4>Quality assurance :10 years warranty,20 years service life .
5>Accept Free Sample

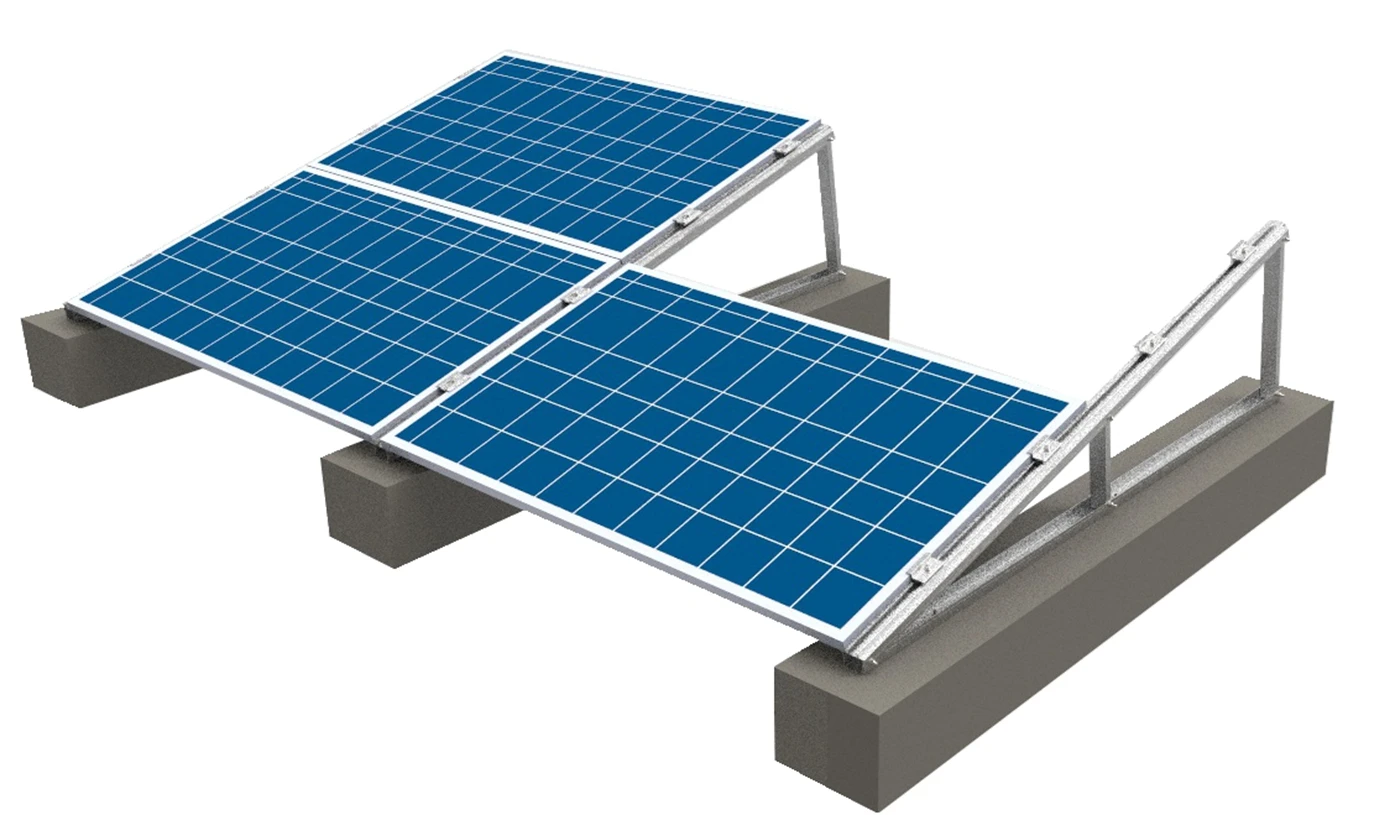

Flat Roof Triangle Solar Panel Bracket Solar Panel Structure Solar Panel Mounting Bracket N7

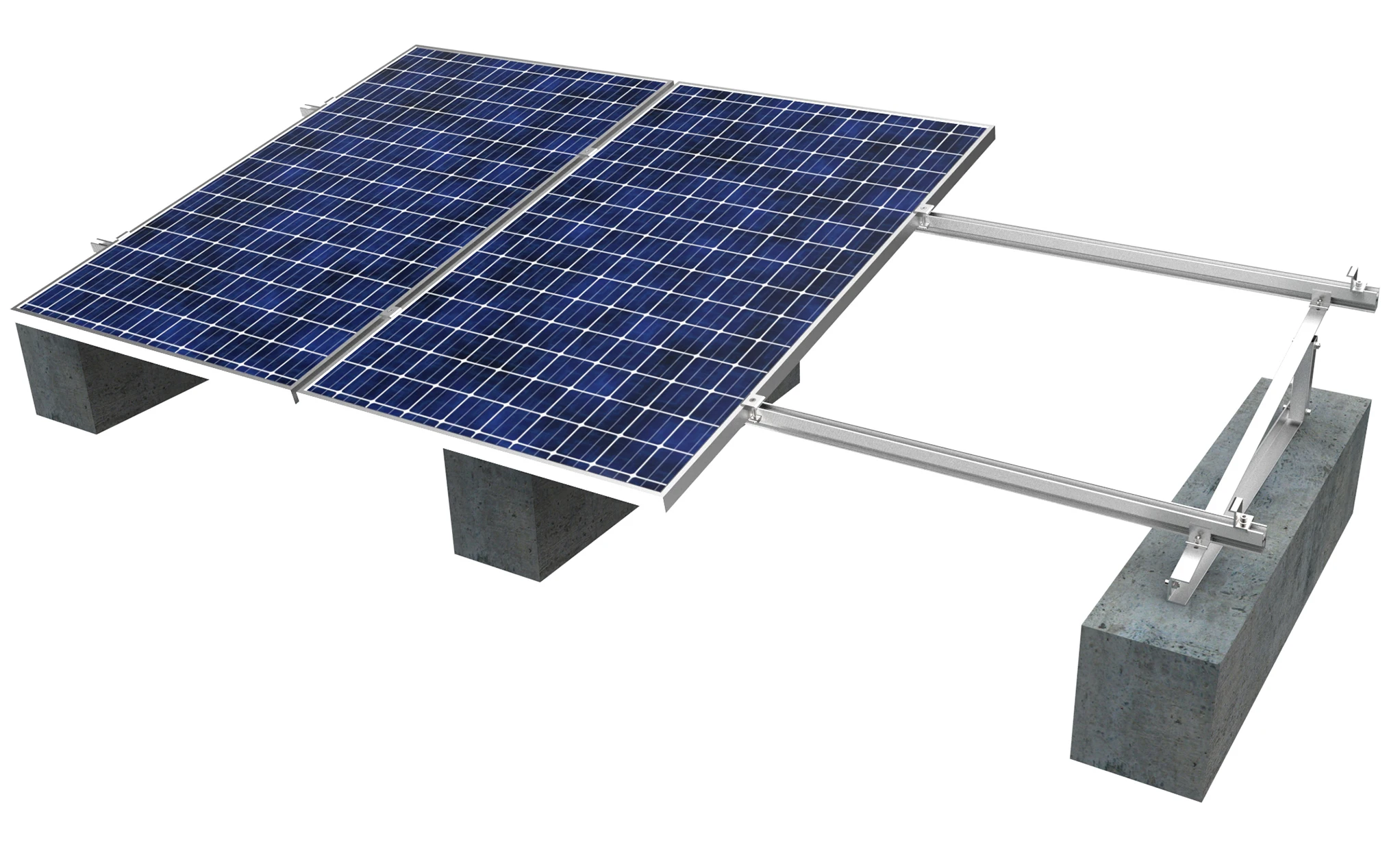

pv support aluminum structure solar rack solar panel mounting bracket With Mid and end clamps
Product Description
Solar Panel Orientation :
Style 01 - Landscape
Style 02 - Portrait
Installation Instructions:

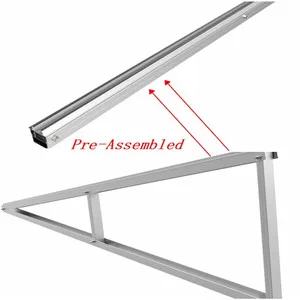

Step 1.Placing the Pre-assembled Tripod

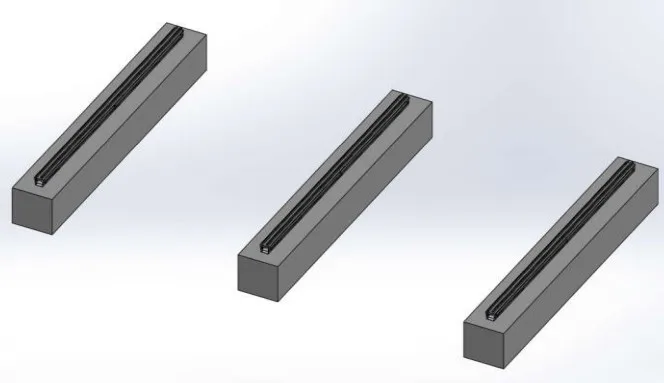

Put the tripod on concrete block (refer to the size on the drawings).

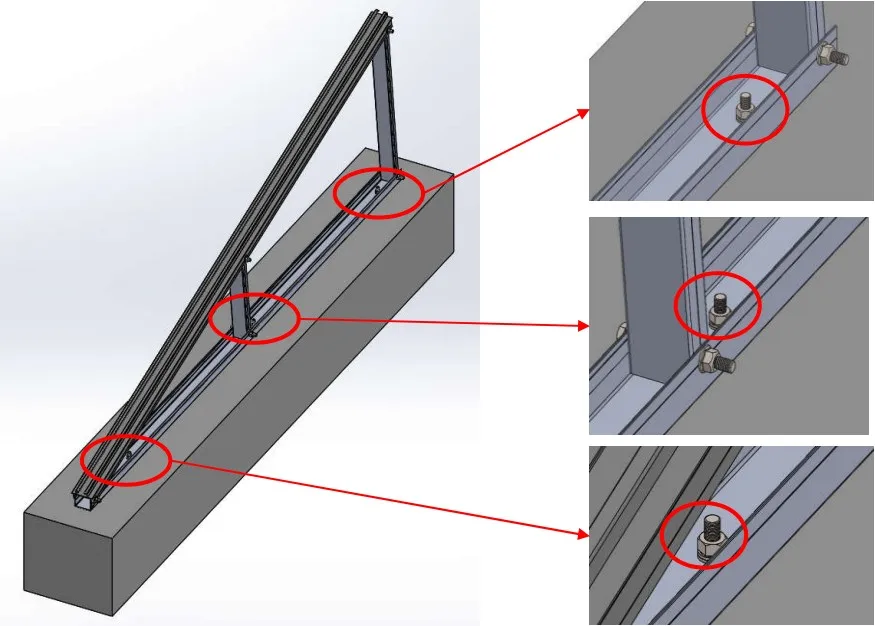

Step 2.Unfolding the Tripod
Loosen the screws in the support end
and the middle .
Pull up the rail
Pull up the rail
A set Tripod Bracket
Unfold the front suppport leg
and rear support leg, to match
the hole sites on rail and mudsill,
tighten M8×80 bolts.
and rear support leg, to match
the hole sites on rail and mudsill,
tighten M8×80 bolts.
Step 3.Fixing the Tripod
Use three M8 expansion bolts to fix tripod on the concrete block.
Step 4.Mounting the Modules and Clamps

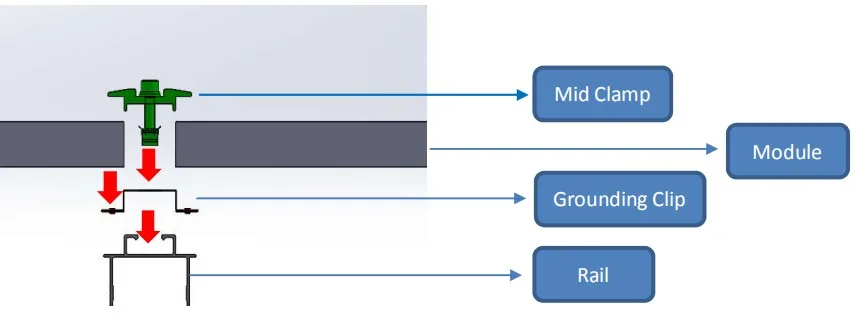

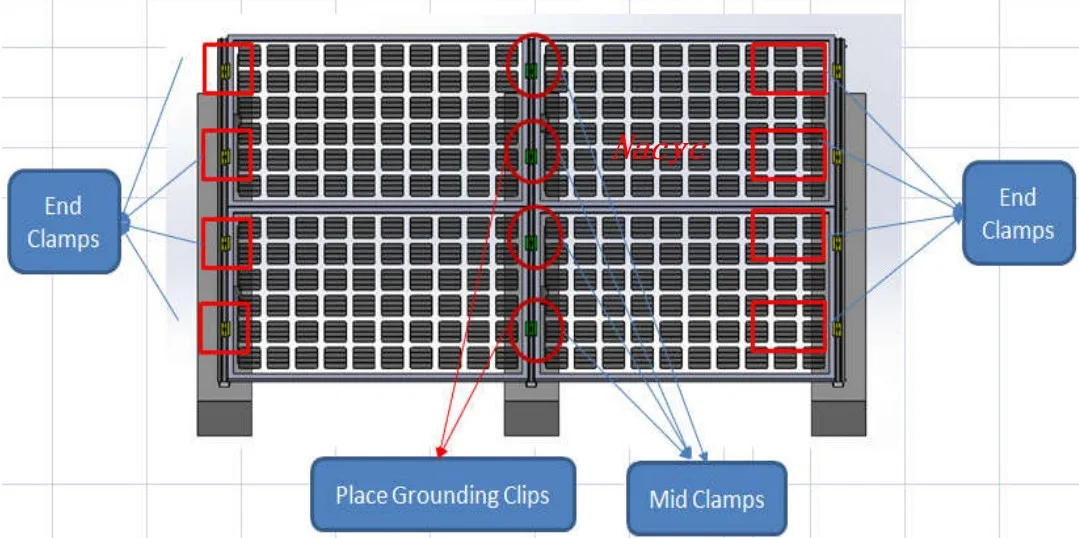

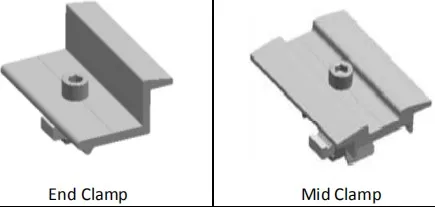

Put end clamps and mid clamps at the 1/4 and 3/4 length of module
and put the grounding clips between modules.
Tighten the mid clamps
(mid clamps are used between modules）
Install the end clamp
（use end clamp to fix the ends of arrays）
Step 5.Completed
The installation are finished when all steps completed.
Application :
Solar Panel Bracket-Tripod (Pre-assembled )

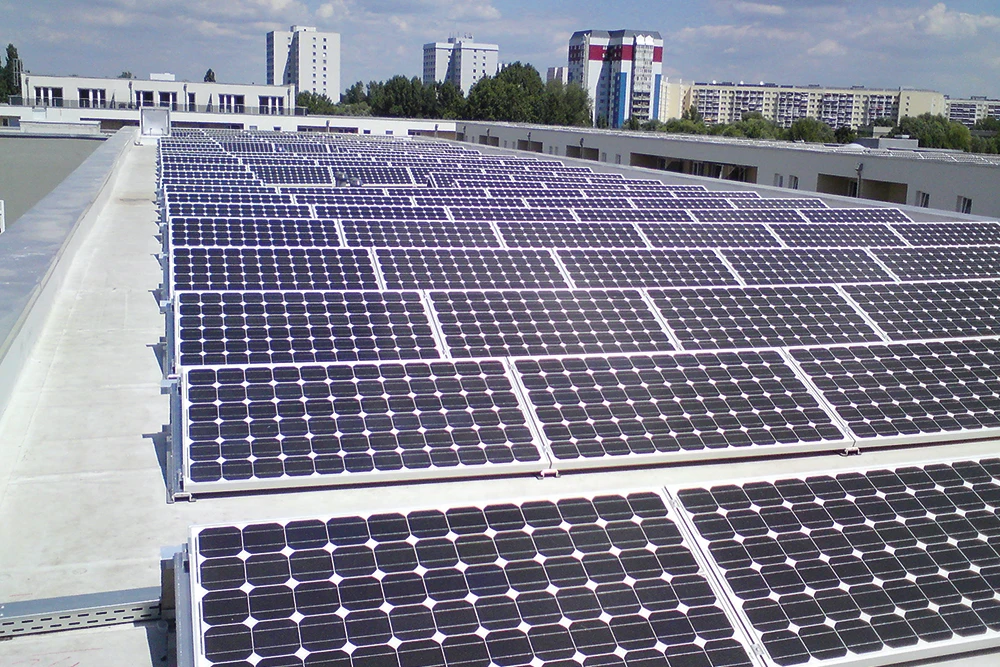

Install on Ground (Concrete Block)

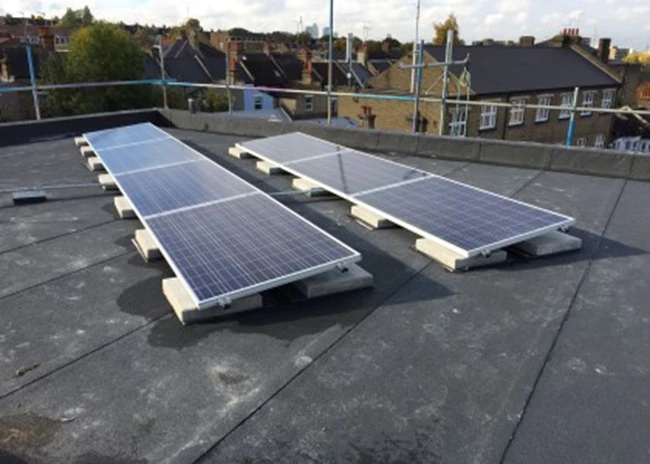

Install on Flat Roof (Drill the Bolts&Nuts)
Latest Order :
Exhibition
About US
Packing & Delivery
Certifications

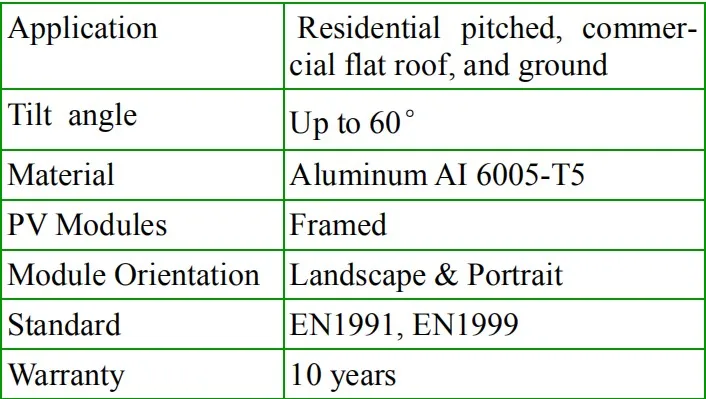

Key Features | ||||||||
Maximum Lifespan | Aluminium AL6005-T5, a lightweight and recyclable solution for solar construction. | |||||||
Easy Installation | Easy and quick fixed with high factory preassembled components | |||||||
Satefy and Reliability | Check and test the structure strictly to against the extreme weather condition | |||||||
Guaranteed Durability | Nacyc provides a guarantee of 10 years on the durability of all components used. | |||||||
