Hot new products concrete pump truck
- Category: >>>
- Supplier: Zhengzhou Sanqgroup Machinery And Equipment Co. Ltd
Share on (60629997261):
Product Overview
Description

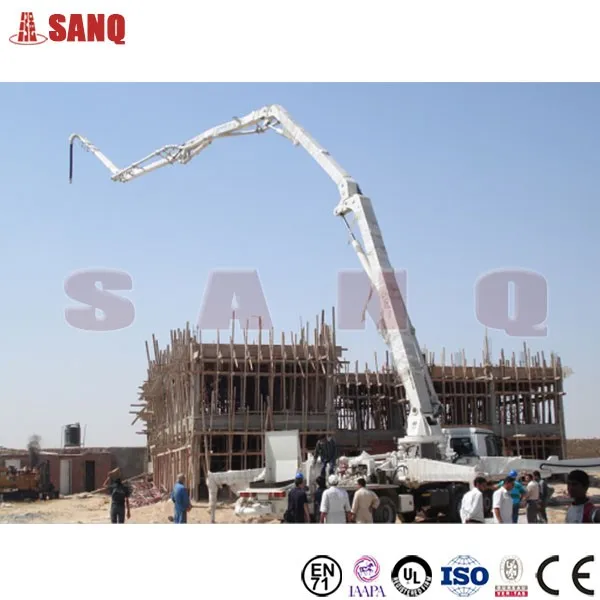

hot new products concrete pump truck with ISUZU chassis for sale in Dubai, uaz and South Africa
Product Description
1-Introduction
Concrete Pump Truck with Foldable Booms is developed by Sanq Group on the basis of drawing on advanced domestic and foreign experience and using advanced modern computer simulation techniques to systematically analyze the effect of changes in various parameters like stress, displacement and natural frequency on the boom’s fatigue life.
Technical Parameter
| Brand | Sanqgroup |
| Model | SQ45/5 |
| Theoretical output | 125m3/h |
| Pumping capacity index | 586Mpa.m3/h |
| Theoretical pumping pressure | 8.5Mpa |
| Hopper volume | 700L |
| Feeding height | 1400mm |
| Distribution valve type | S valve |
| Max. concrete placing radius | 40.7m |
| Max. concrete placing height | 44.7m |
| Max. concrete placing depth | 31.3m |
| Placing boom open height | 8495mm |
| Front leg span | 9550mm |
| Rear leg span | 9550mm |
| Front leg longitudinal distance | 9190mm |
| Concrete pipe diameter | 125mm |
| Reducing boom hose length | 3m |
| Rotation angle of pagoda | 365° |
| Number of placing boom | 5 |
| Rotation angle of each arm | 90/180/180/180/270° |
| Remote control distance | 33m |
| Remote distance | 200m |
| Max. speed | 80km/h |
| Min. turning radius | 11900mm |
| Braking distance | 10m |
| Approach angle | 16° |
| Departure angle | 11° |
| Chassis model | ISUZU CYH51Y 8*4 |
| First, two wheelbase | 1850mm |
| Second, three wheelbase | 4605mm |
| Third, four wheelbase | 1310mm |
| Front track | 2065mm |
| Rear track | 1850mm |
| Max. engine output power | 287(2200r/min)kw |
| Max. engine output torque | 1863/(1100r/min) n.m |
| Max. gradient | 35% |
| Fuel consumption limit | 40L/100km |
| Overall dimensions (L * w * h) | 13100*2500*3900mm |
| Full load mass | 38000kg |

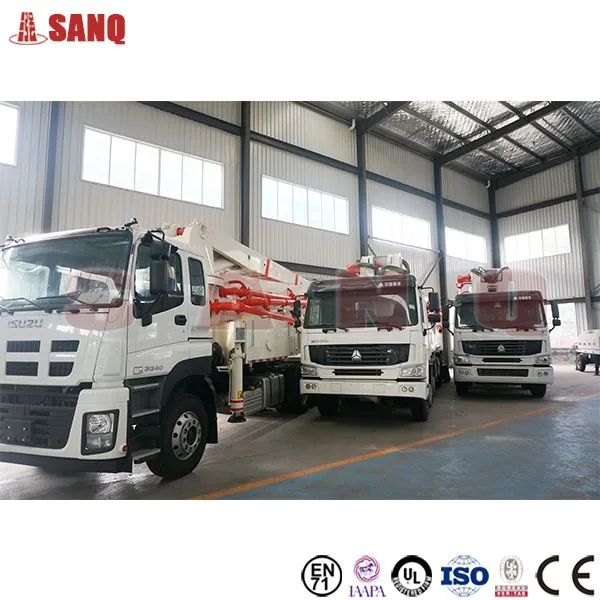

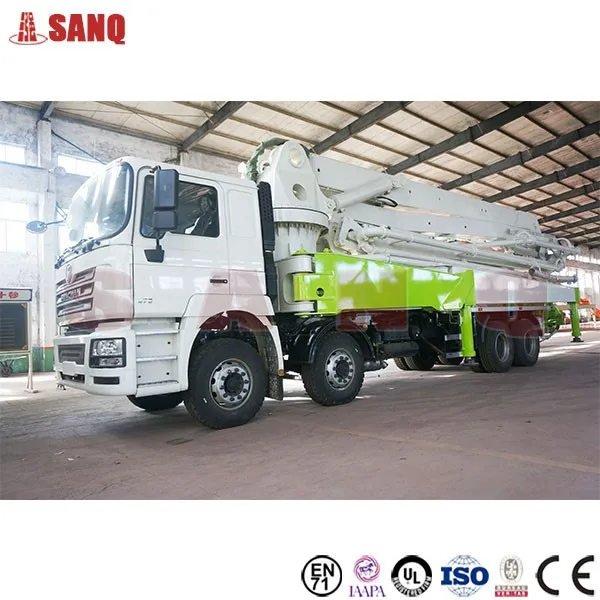

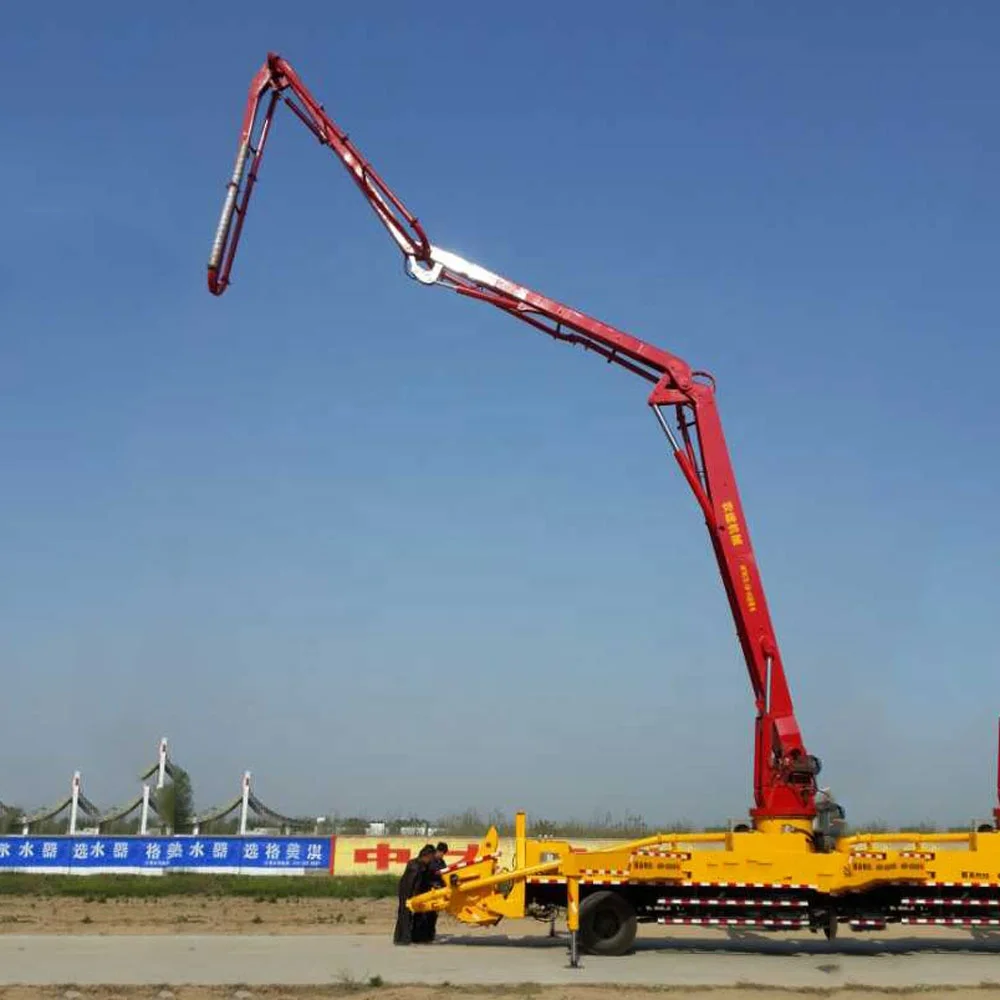

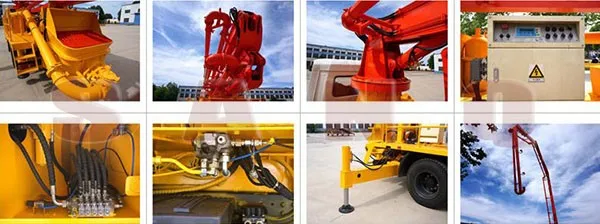

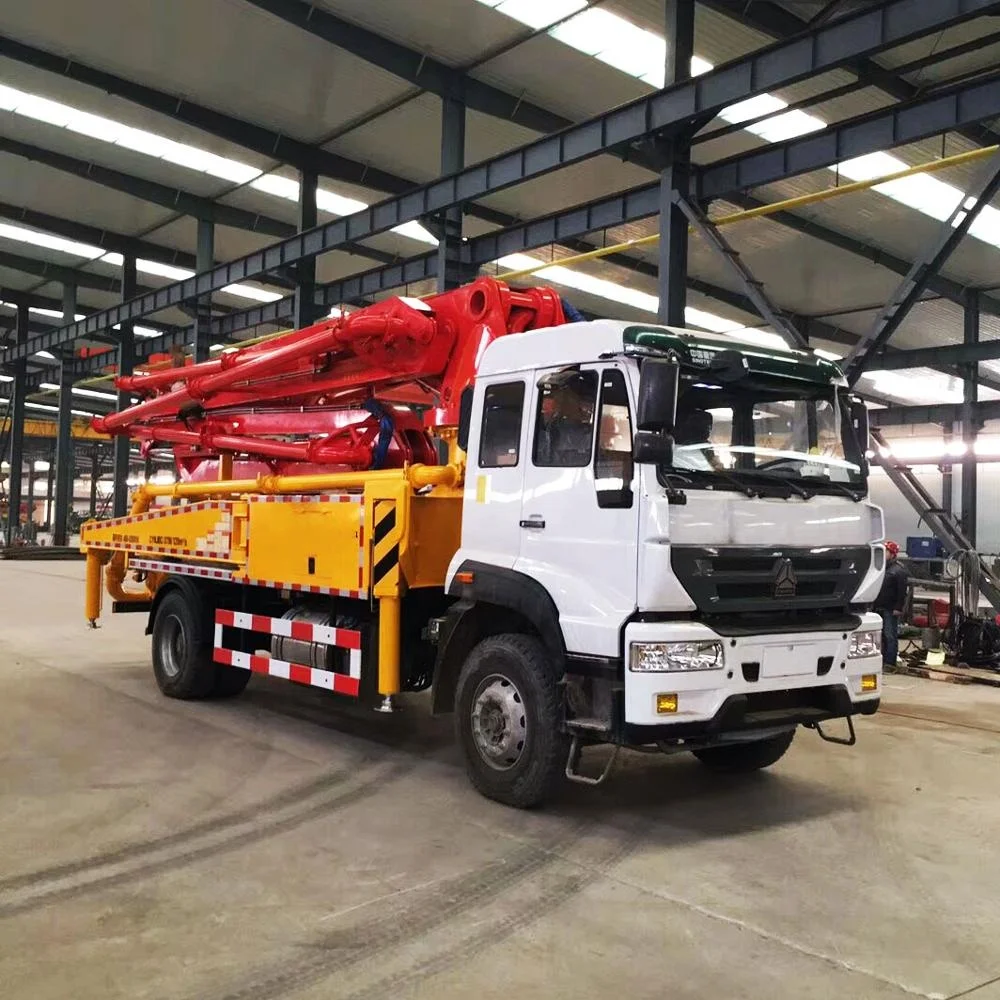

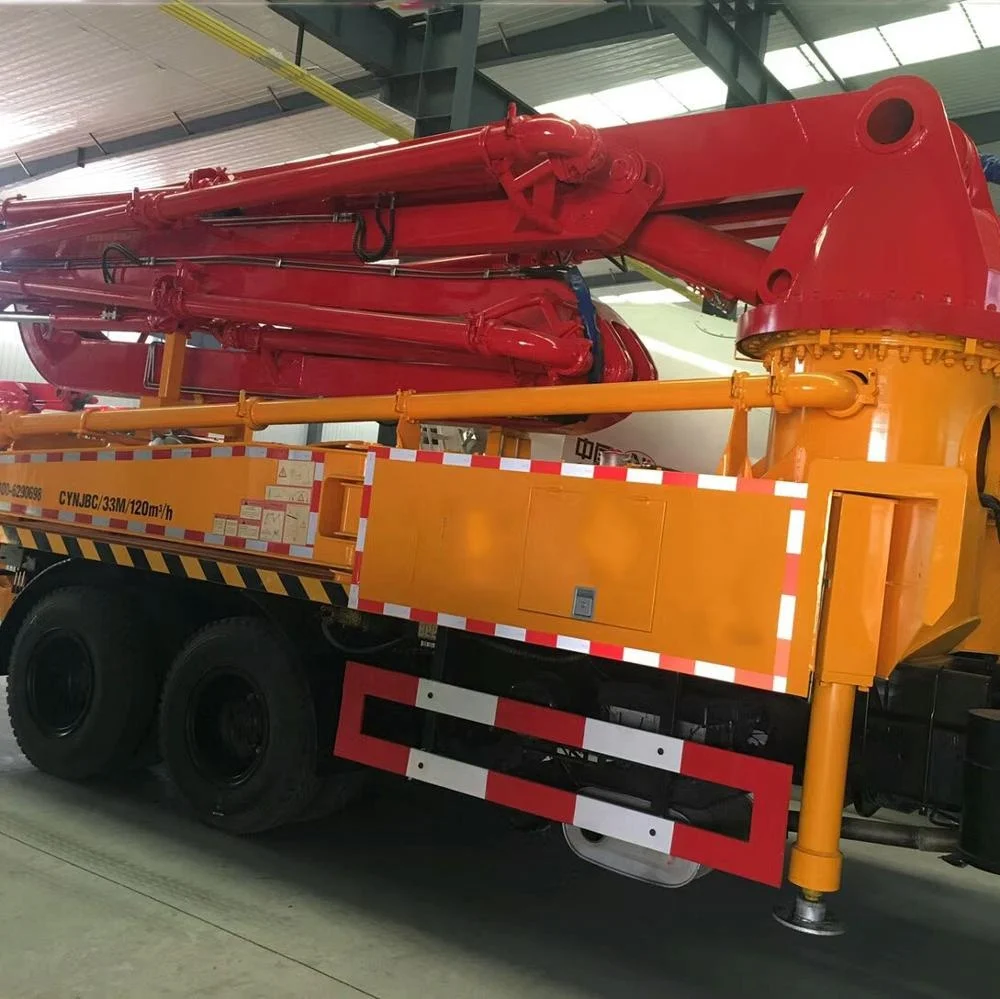

Detailed Images

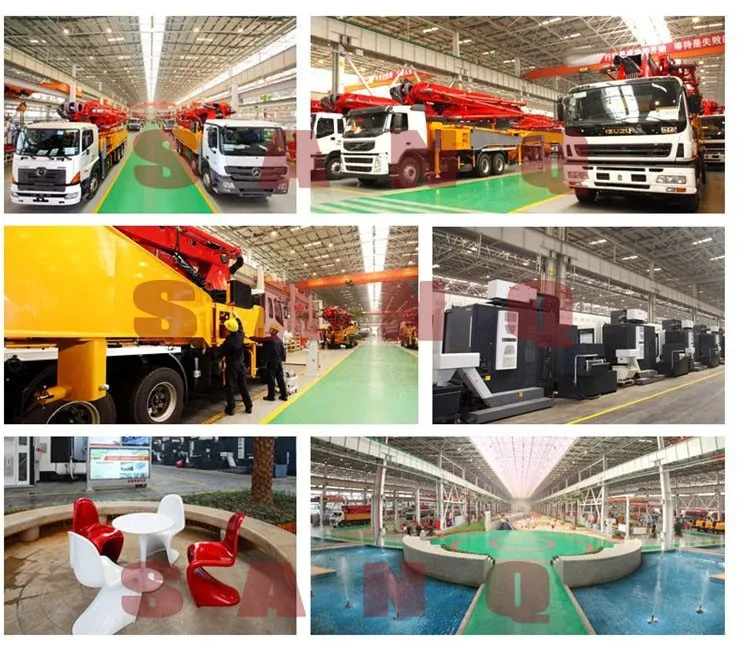

Company Information

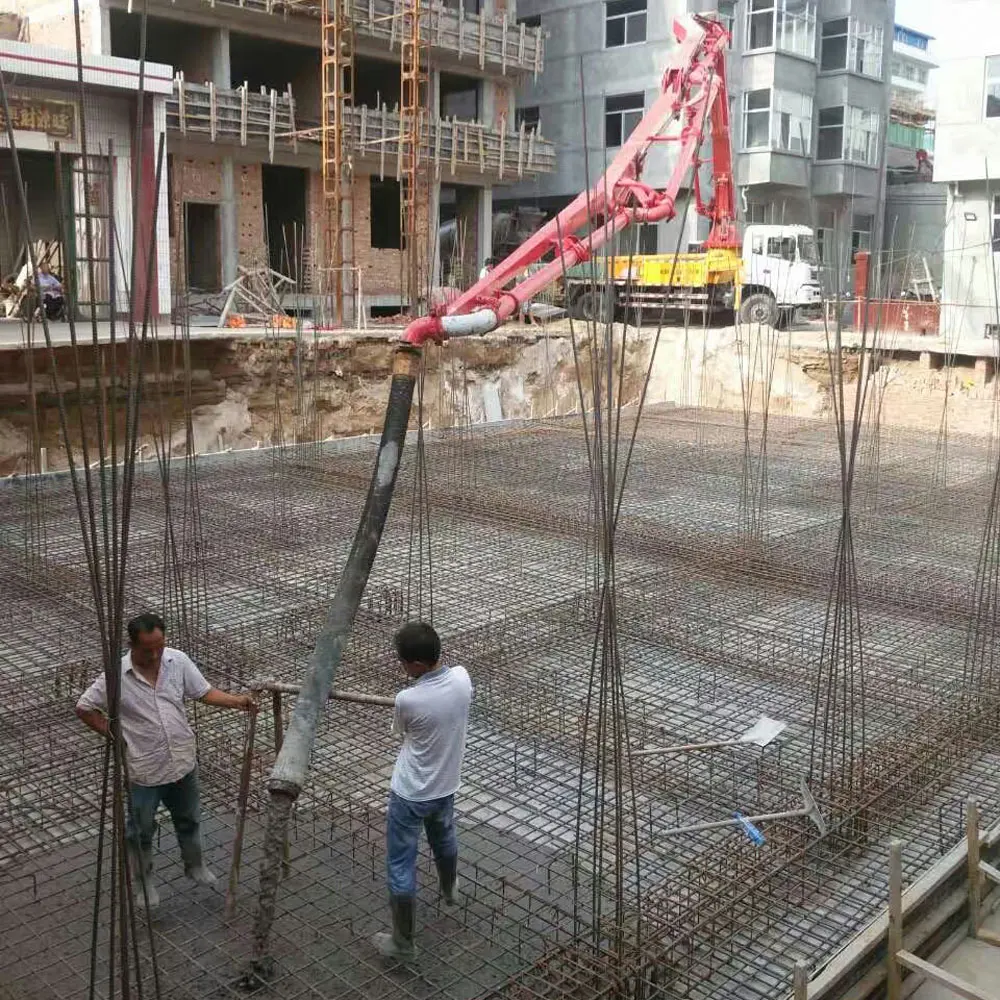

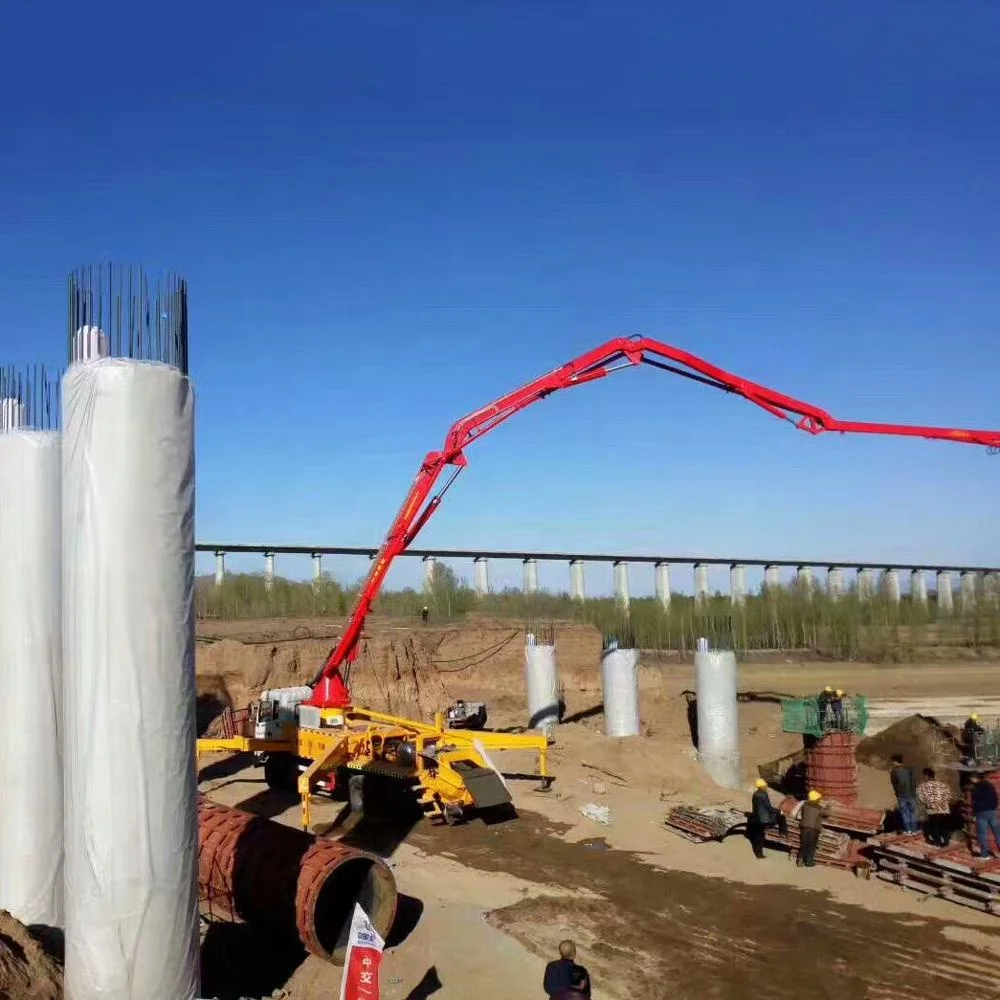

Successful Case
