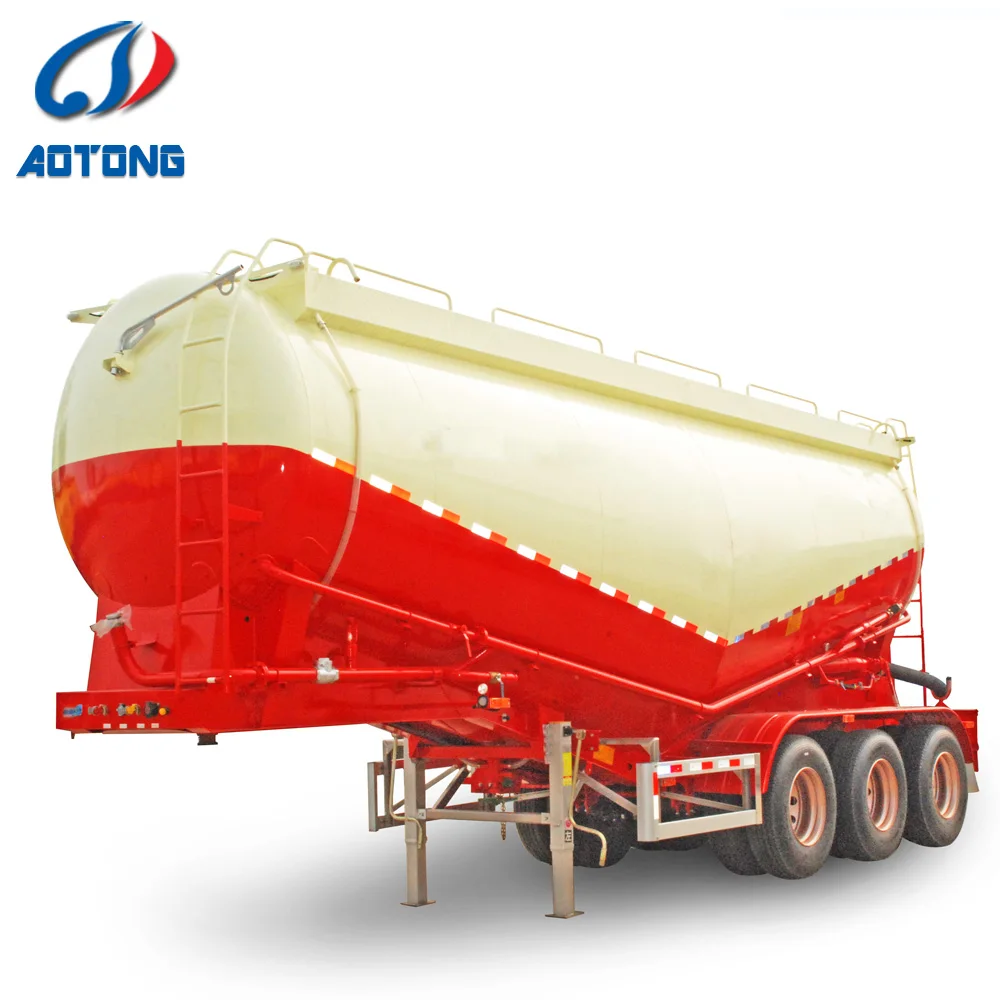

low price 3 Axles 60 Tons Powder Material Carrier Mobile Road Tanker 50CBM Dry Bulk Cement Tank Truck Trailer
- Category: >>>
- Supplier: Qingdao Juyuan International Trading Co. Ltd.
Share on (60630083336):
Product Overview
Description

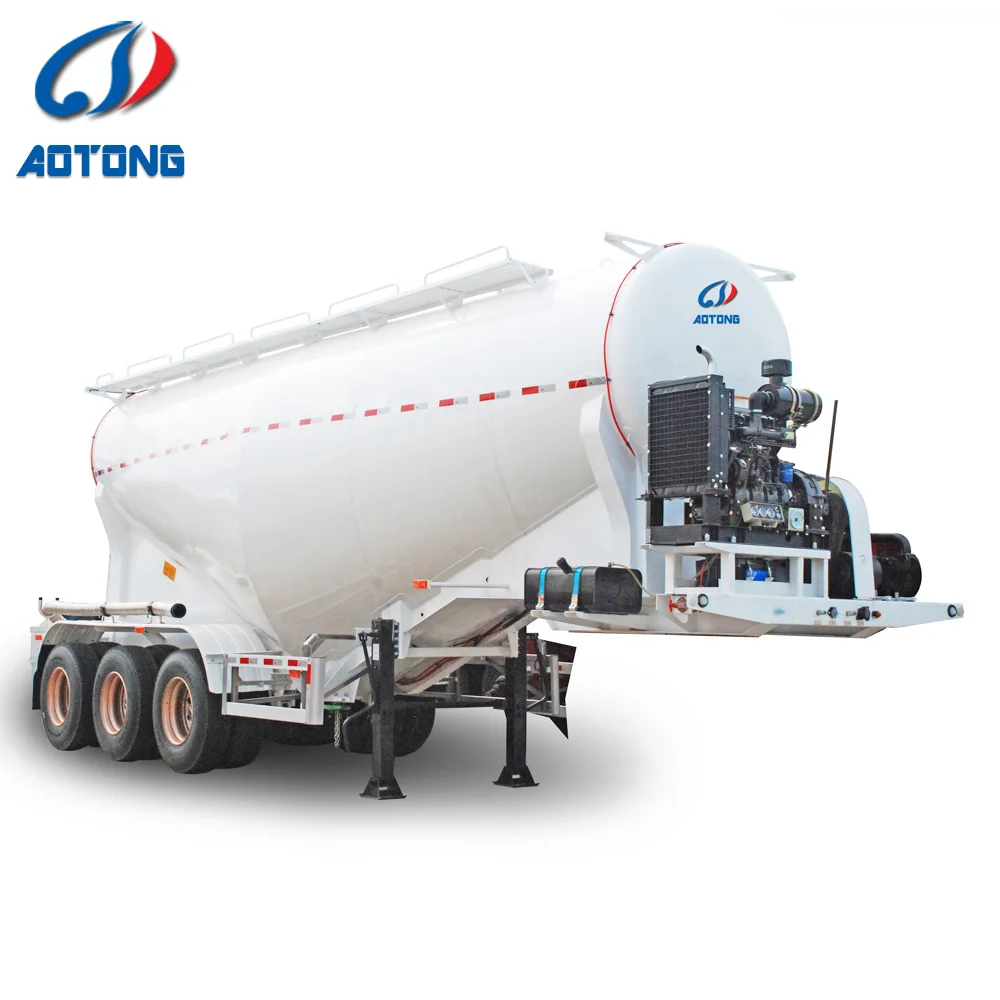

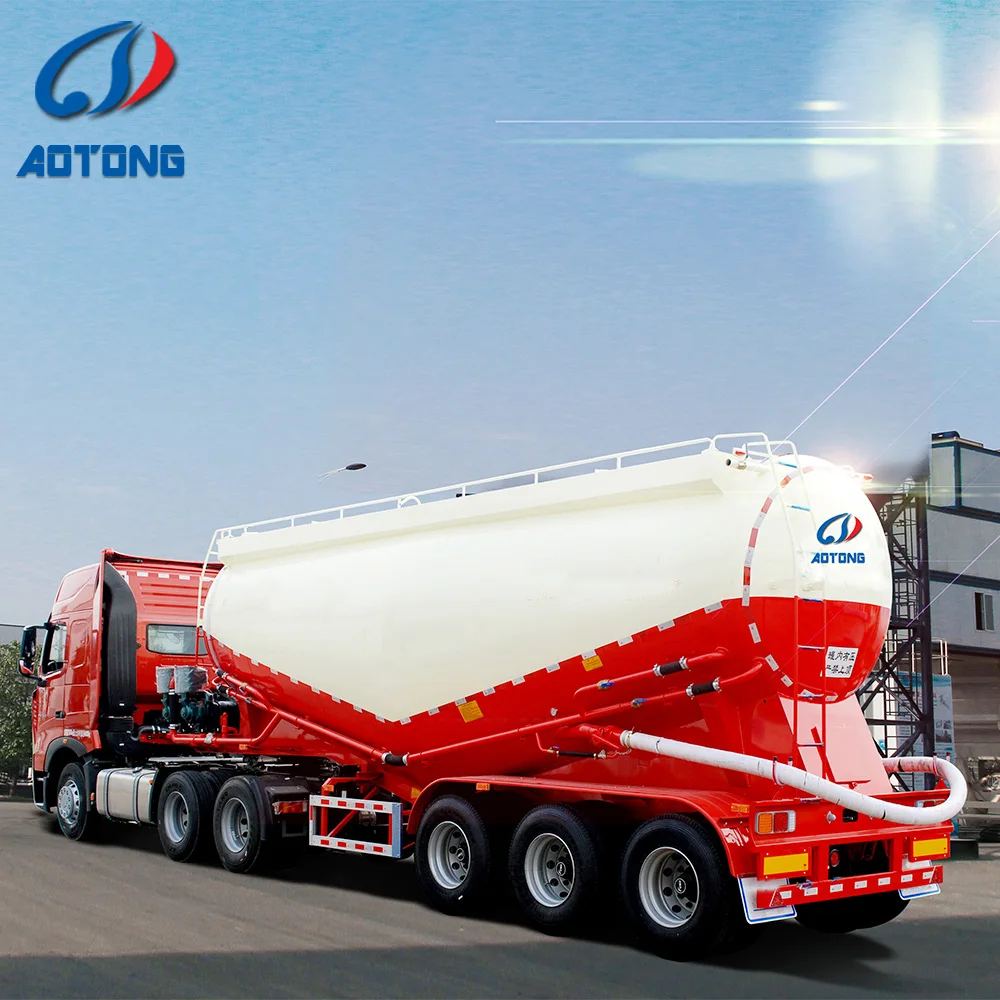

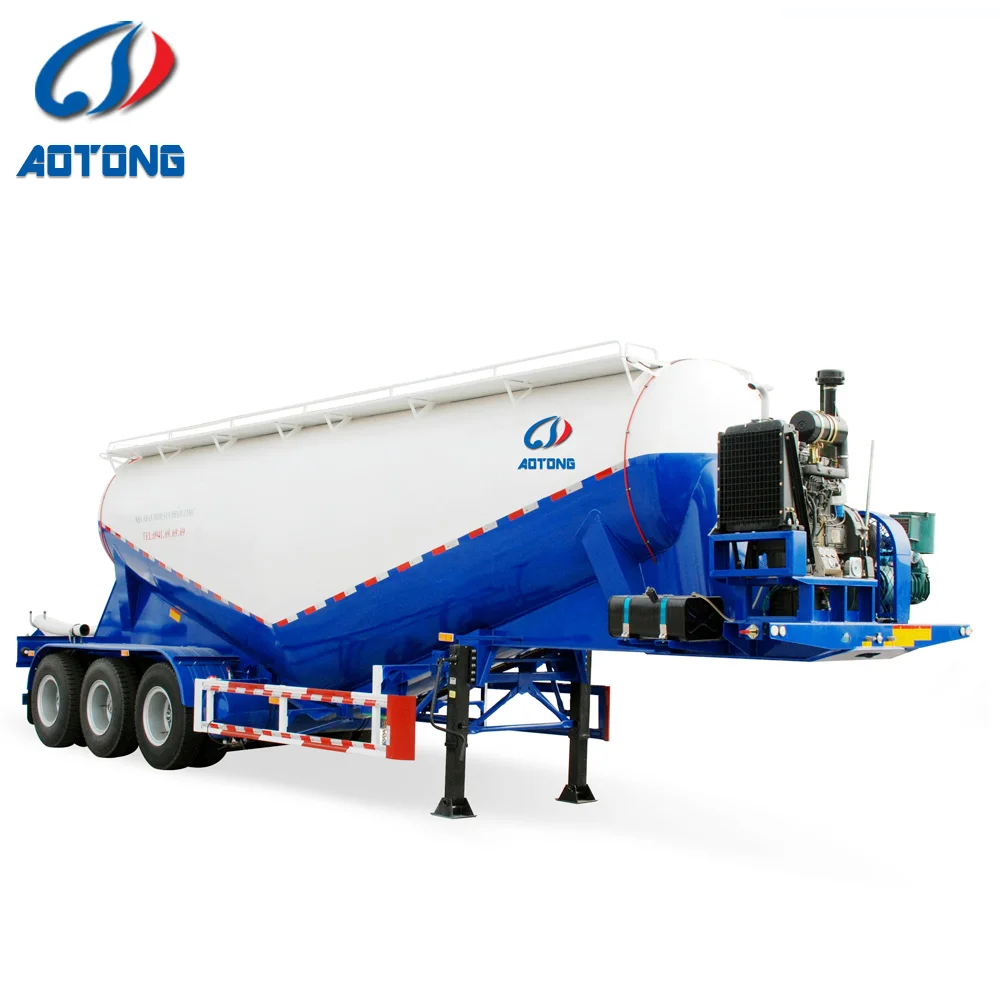

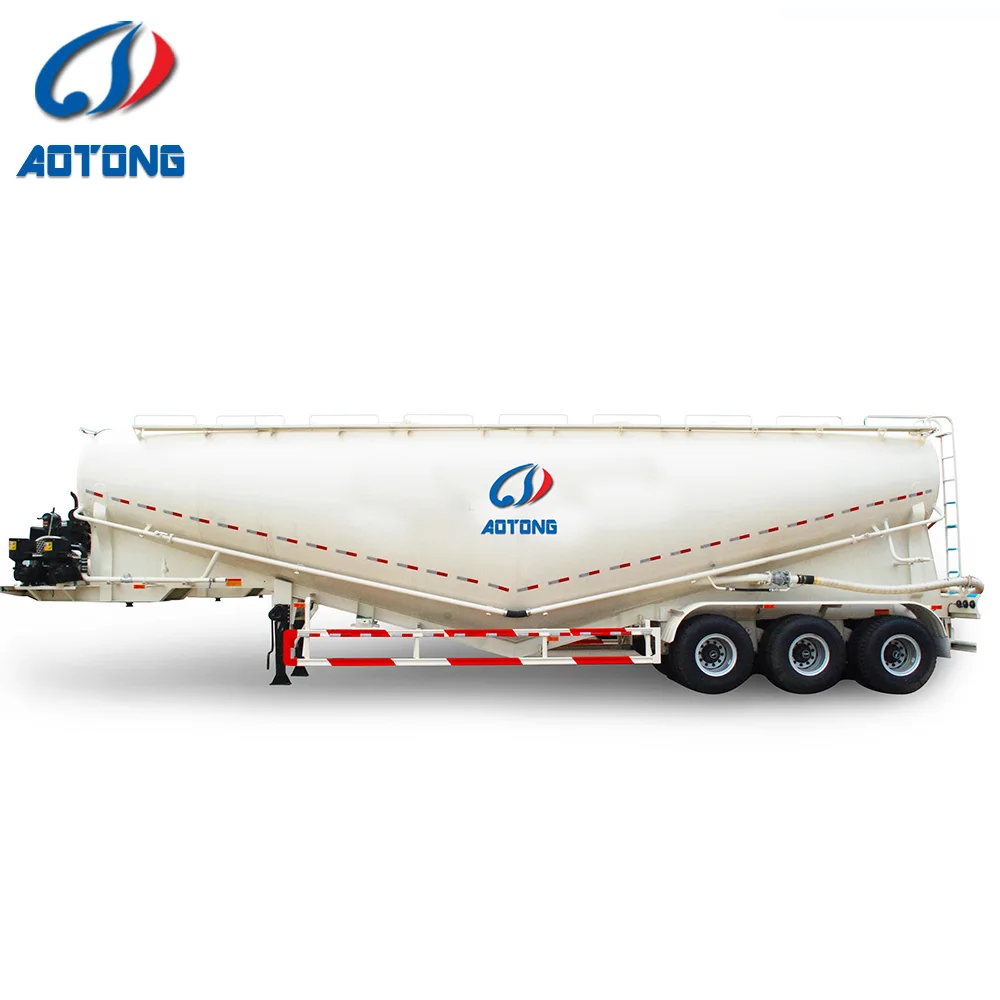

low price 3 Axles 60 Tons Powder Material Carrier Mobile Road Tanker 50CBM Dry Bulk Cement Tank Truck Trailer
Product Description
Cement Bulker Application:
1. This cement bulker semi trailer is applicable for the transportations of the bulk cement, fly ash, lime powder, mineral powder, granular base materials and other dry powder, which is widely used on cement plant, cement warehouses and large construction sites,
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension.
Cement Bulker Specifications:
Model | Outside Dimension L×W×H(mm) | Axle | Tire size | Total Weight (kg) | Rated Load (kg) | ||
LAT9402GFL | 12700X2500X4000 | 3 | 1100R20 | 41000 | 30000 | ||
Manufacture | Liangshan Juyuan special vehicle manufacturing Co., Ltd | ||||||
Main Frame and tank material | Q235A manganese plates, automatic submerged arc welded | ||||||
Axle | brand: FUWA (BPW optional) | ||||||
Suspension | Independent stamping steel rigid suspension ( air suspension) | ||||||
King Pin | 2" or 3.5" traction pin made in China( Jost optional) | ||||||
Landing Gear | chinese brand loading 28000kg (JOST optional) | ||||||
Spare Wheel Carrier | One set of spare wheel carrier including a riser. | ||||||
Braking System | Kemi or other Brand of China; ABS (optional ) | ||||||
Brake Air Chamber | Four double and two single chamber | ||||||
Electrical System | 1. Voltage: 24v 2. Receptacle:7 ways(7 wire harness) | ||||||
Painting | Sand blasting processing clean rust 1 coat of anticorrosive primer 2 coats of finish urethane paint Color as customer choice | ||||||
Accessory | One tooling box with a set of standard trailer tool | ||||||
Usage | The cargo's carrying part is tank-style designed, is suitable for the transportation of powedred cement,chemical material,fertilizers,flour,flyash products | ||||||
Characteristics | 1. High transport efficiency, ensuring the products will not be deteriorated in the process of transportation,saving the packing materials to reduce the transport costs. 2. Equipped with gasification bed, intake control system, and thrusting control system to ensure the pipelines unimpeded. 3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed. 4. The diesel engine (air compressor unit), providing compressed air. | ||||||
Other Descriptions | The sealing head of the tank shell can be torque and ellipse, and internal anti-wave plates are installed. Heat preservation organization adopts the single-layer insulation by using compressed thick glass fiber, with good presence and light weight. The internal part can be single layer or dual layer | ||||||
Remark | We can designed model according to client's requirement. | ||||||
Packaging & Shipping
Company Information
Factory strength:
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| CNC Flame Plasma Cutting Machine | GS | 2 | 4.0 | Acceptable |
| Press Machine | JC21-160 | 4 | 4.0 | Acceptable |
| Hydraulic Plate Bender | WC67Y-200/4000 | 2 | 3.0 | Acceptable |
| Hydraulic Pendulum Plate Shears | QC12Y-12*3200 | 2 | 3.0 | Acceptable |
| Drilling Machine with Jointed Arm | ZN3050*16 | 4 | 4.0 | Acceptable |
| Shaping Machine | BS6065 | 2 | 4.0 | Acceptable |
| Universal Rotary Milling Machine | X6232 | 1 | 4.0 | Acceptable |
| CNC Lathe | EL6140N | 2 | 4.0 | Acceptable |
| Saw Machine | GD4028N | 2 | 5.0 | Acceptable |
| Expander | ZX-3000 | 1 | 3.0 | Acceptable |
| Rolling Machine | W11-4-200 | 2 | 3.0 | Acceptable |
| Automatic Round Welding Machine | W11SNC-10-6500 | 1 | 4.0 | Acceptable |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Vernier Caliper | 0.02 mm | 2 | 3.0 | Acceptable |
| Ultrasonic Thickness Gauge | SMART SENSOR | 1 | 3.0 | Acceptable |
| Sound Level Meter | AZ8928 | 1 | 3.0 | Acceptable |
