Product Overview
Description

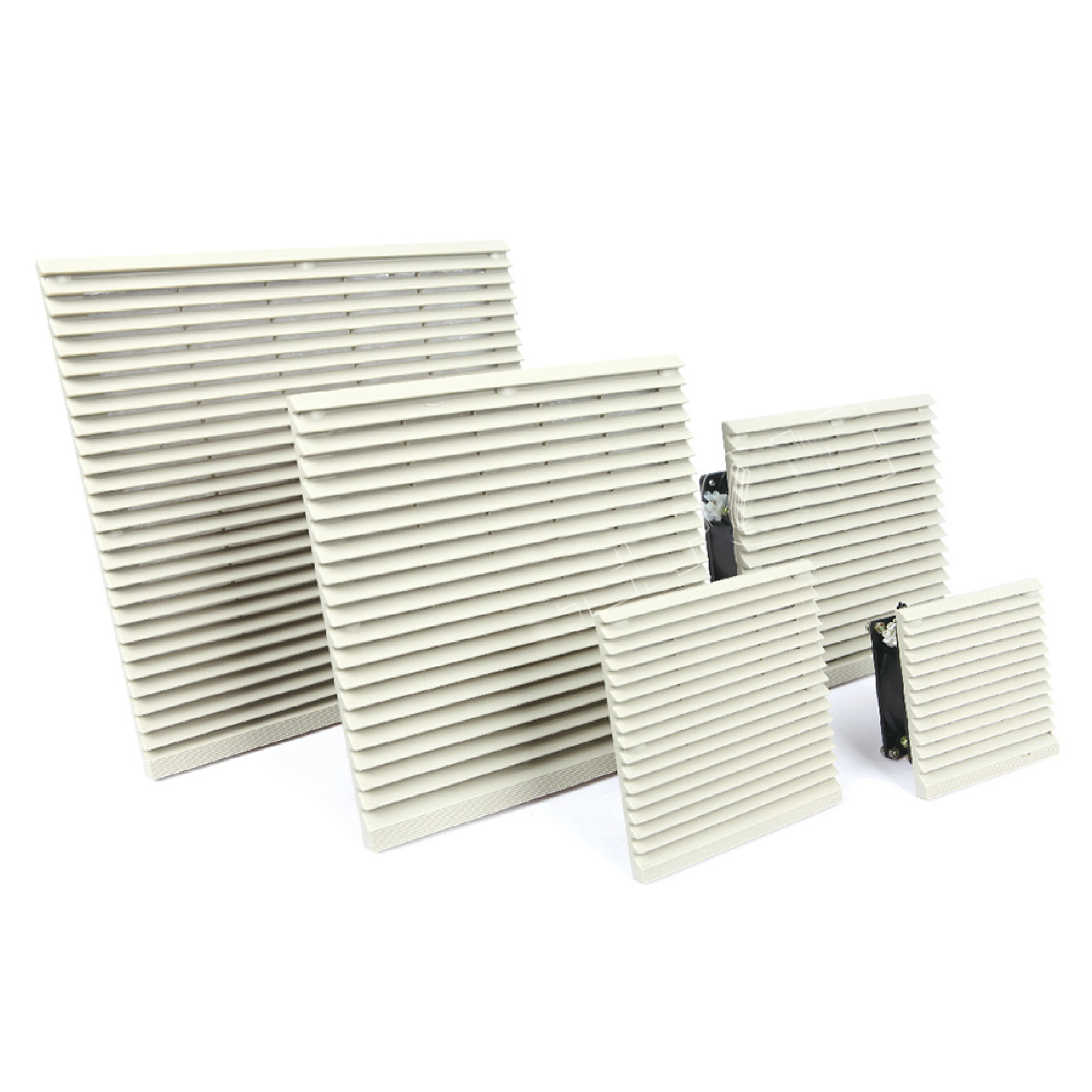

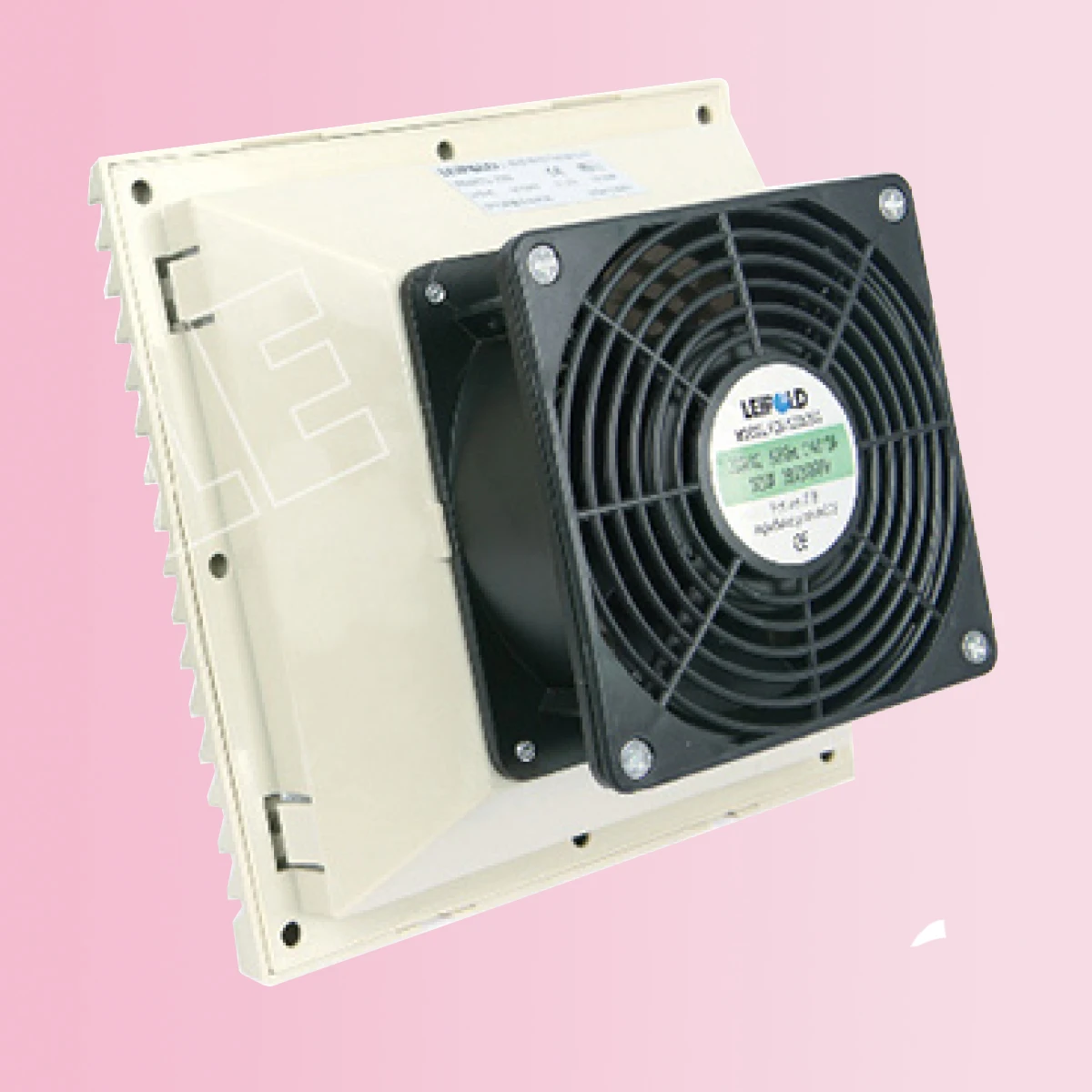

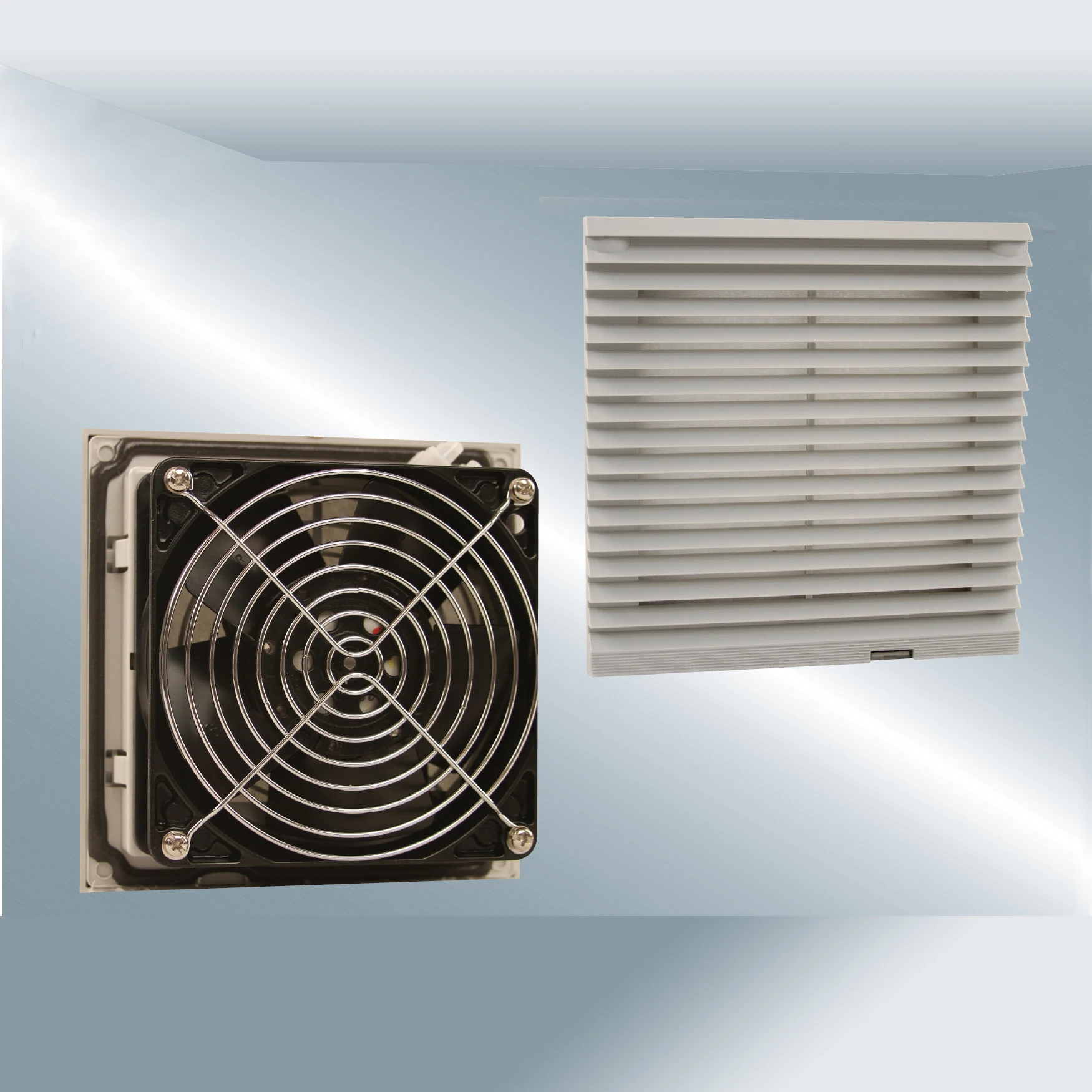

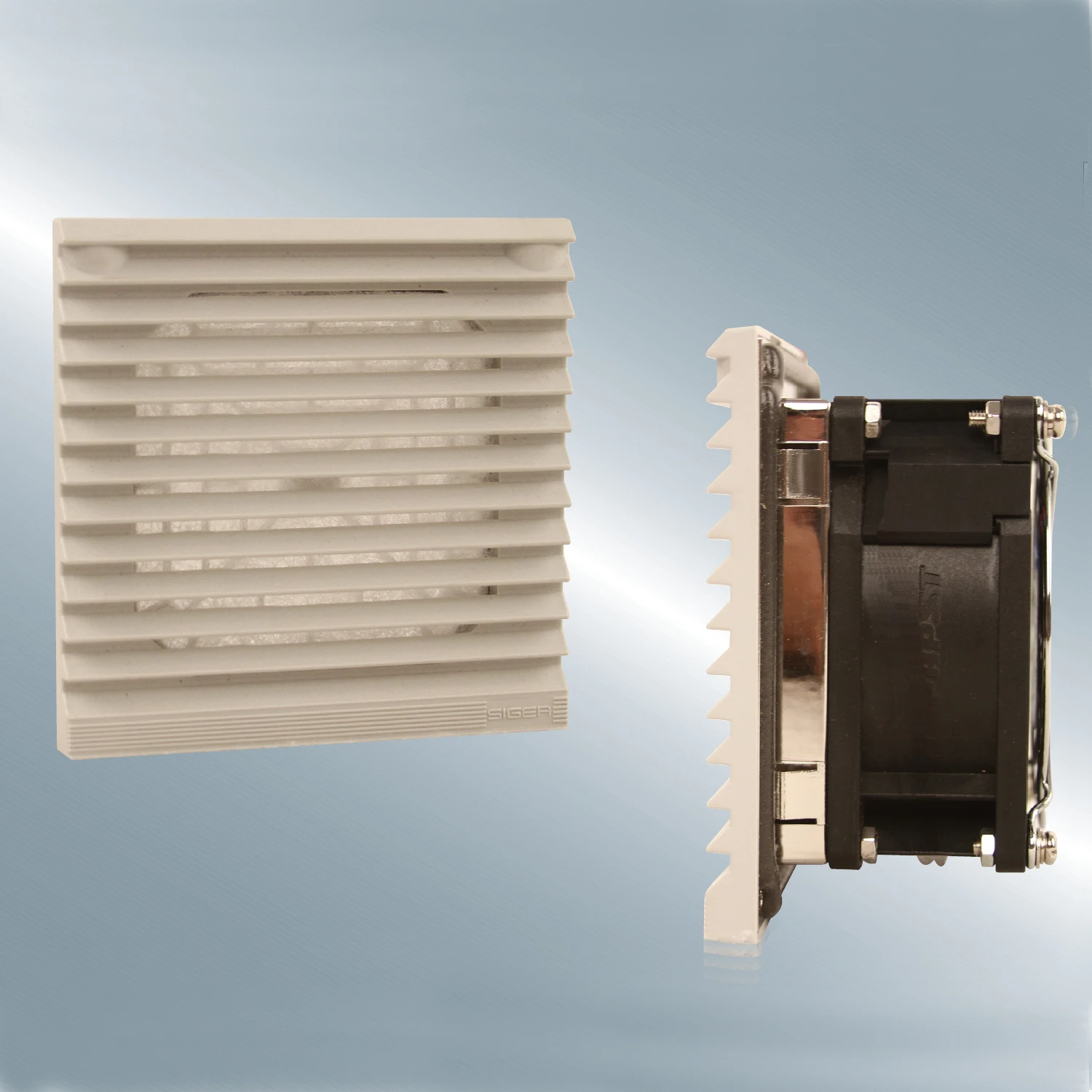

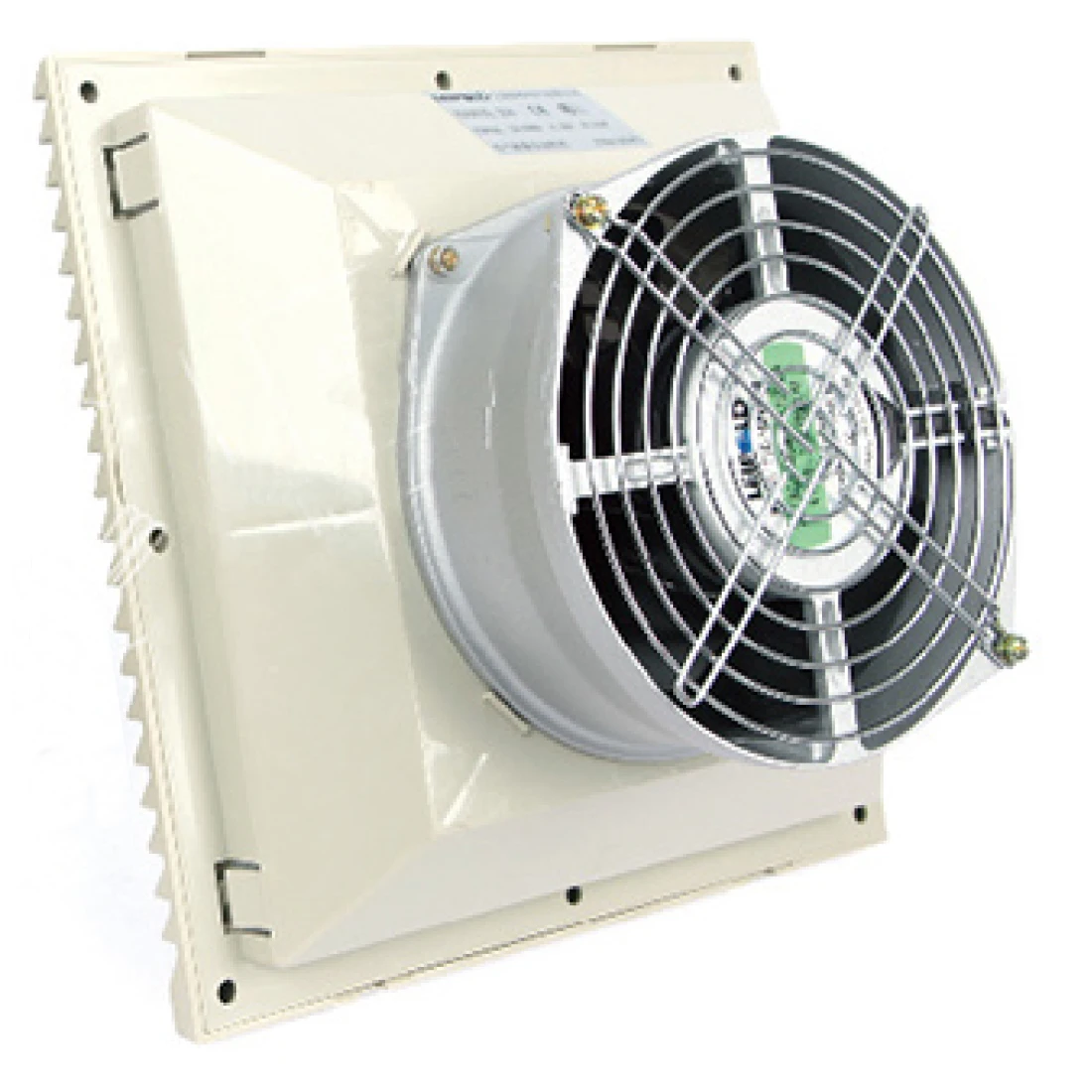

FILTER VENTILATION SHUTTERS WITH FAN
SG200 series cabinet ventilation filter shutters can ventilate and dustproof the cabinet. The main body is made of flame retardant ABS resin with anti-ultraviolet performance. The filter material is made of nylon fiber synthetic resin, and the dust removal rate is as high as 89%, which effectively prevents dust from entering the electric control cabinet. Multifunctional design with rain and dust resistance. Ensure the effective heat dissipation of the controller and precision electronic parts inside the cabinet. Filter protection grade up to IP44
SPECIFICATIONS
Airflow parameters | SG200.230 | SG200.115 | SG200.024 | SG200.048 |
Supply Voltage | 230V/50/60Hz(AC) | 115V/50/60Hz(AC) | 24V(DC) | 48V(DC) |
filter element | 150g/m2 | 150g/m2 | 150g/m2 | 150g/m2 |
Air volume | 55/66m3/h | 55/66m3/h | 55/66m3/h | 55/66m3/h |
maximum static air pressure | 61 Pa | 61 Pa | 61 Pa | 61 Pa |
Filtration efficiency | 73% | 73% | 73% | 73% |
Filter grade | G2 | G2 | G2 | G2 |
noise | 46/49dB(A) | 46/49dB(A) | 46/49dB(A) | 46/49dB(A) |
Mechanical parameters | SG200.230 | SG200.115 | SG200.024 | SG200.048 |

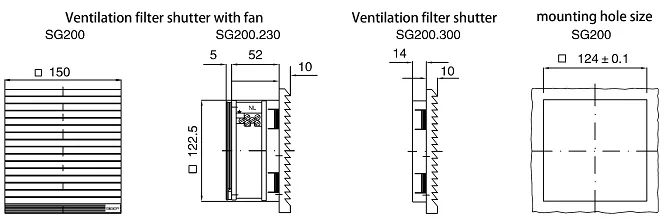

Dimensions(mm) | 150*150*57 | 150*150*57 | 150*150*57 | 150*150*57 |
Bearing Type | ball bearing | ball bearing | ball bearing | ball bearing |
Installation method | Can in any direction, horizontal installation is recommended | |||
Structural materials | Flame retardant ABS-FR according to UL 94 V0 | |||
weight | 0.62kg | 0.62kg | 0.41kg | 0.41kg |
Security Level | According to EN 60529 | |||
Certified | RoHS, UL, EMS, CE | |||
Protection level | IP54 | IP54 | IP54 | IP54 |
