Thermoelectric Cooling/Heating Unit TECC HL 170W 24V 1

Thermoelectric Cooling/Heating Unit TECC HL 170W 24V 1

Category: Industrial Chiller >>>
Supplier: Thermonamic Electronics(Jiangxi) Corp. Ltd.

Price:RUB 7,581.80 - RUB 75,818.00

Quantity:

Product Overview

Description

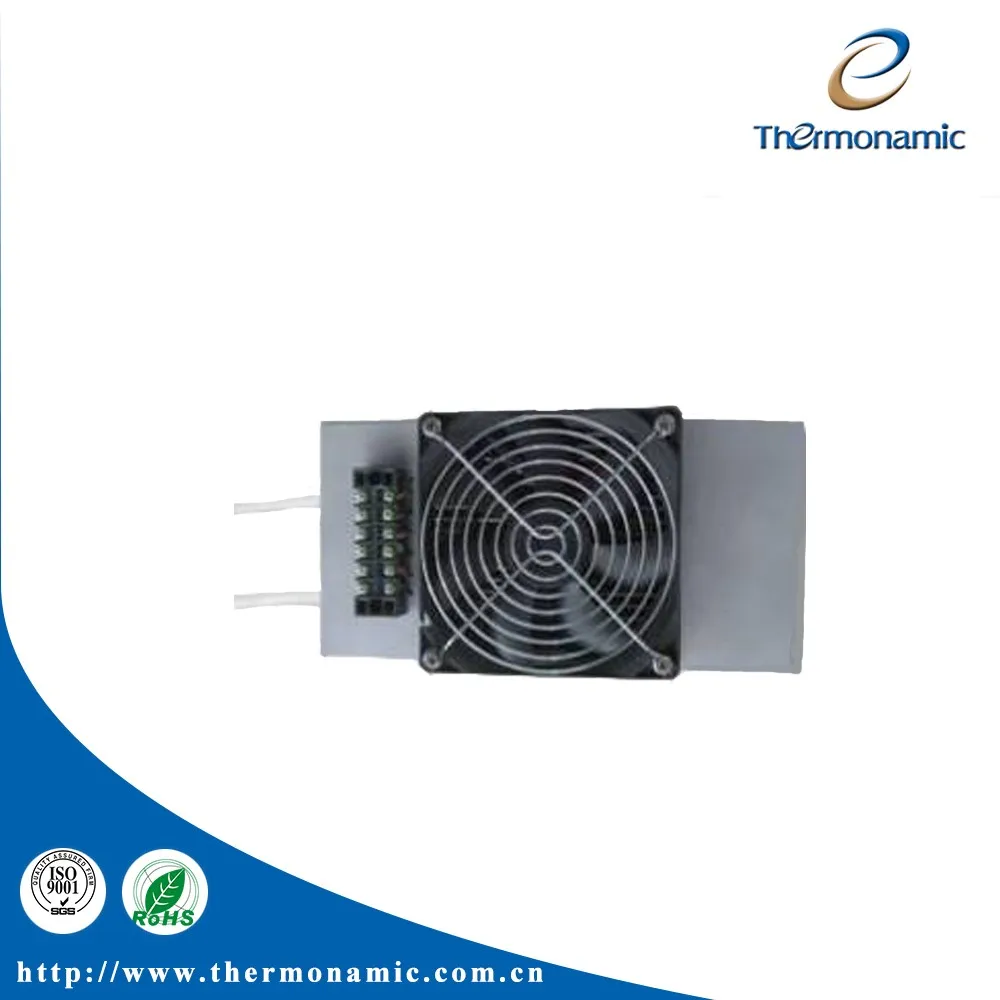

TECC-Series Thermoelectric Cooling/Heating System

TECC-Series Thermoelectric Cooling/Heating System

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

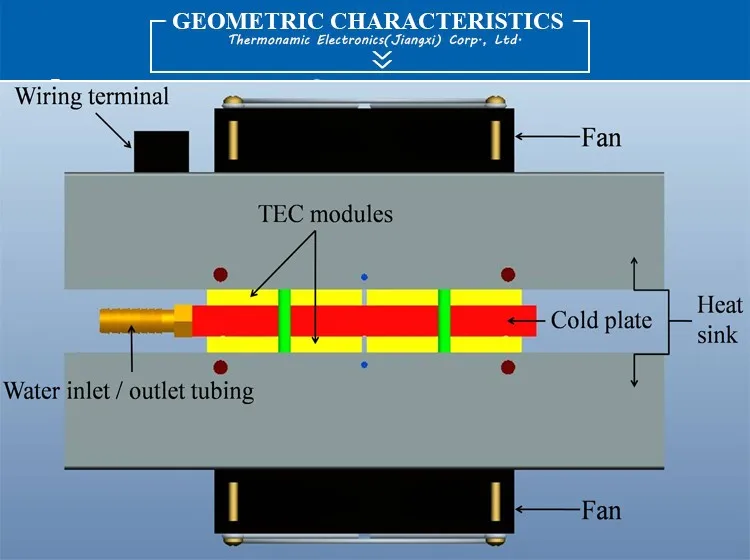

The system introduced here is Air to Liquid type thermoelectric cooling/heating unit with 340 watts cooling power where we use heat sink with fans for heat dissipating of thermoelectric modules to cool or heat up the circulated water or liquid. The unit is designed for cooling or heating circulated liquid purpose. It can cool 4 Liters of water from 25℃down to 1℃ within one hour, and also can be used to heat up water up to 100℃. Built up with our high performance TEHC series thermoelectric cooling modules, the unit demonstrates superior performance.

340 W thermoelectric cooling/heating consist of 4 pieces thermoelectric cooling units, 2 in series and 2 series in parallel. It runs on 24 VDC with 22.4 A current drawn. When the red wire is connected to positive and black to negative it is in cooling mode, and if the polarity is reversed, then in heating mode.

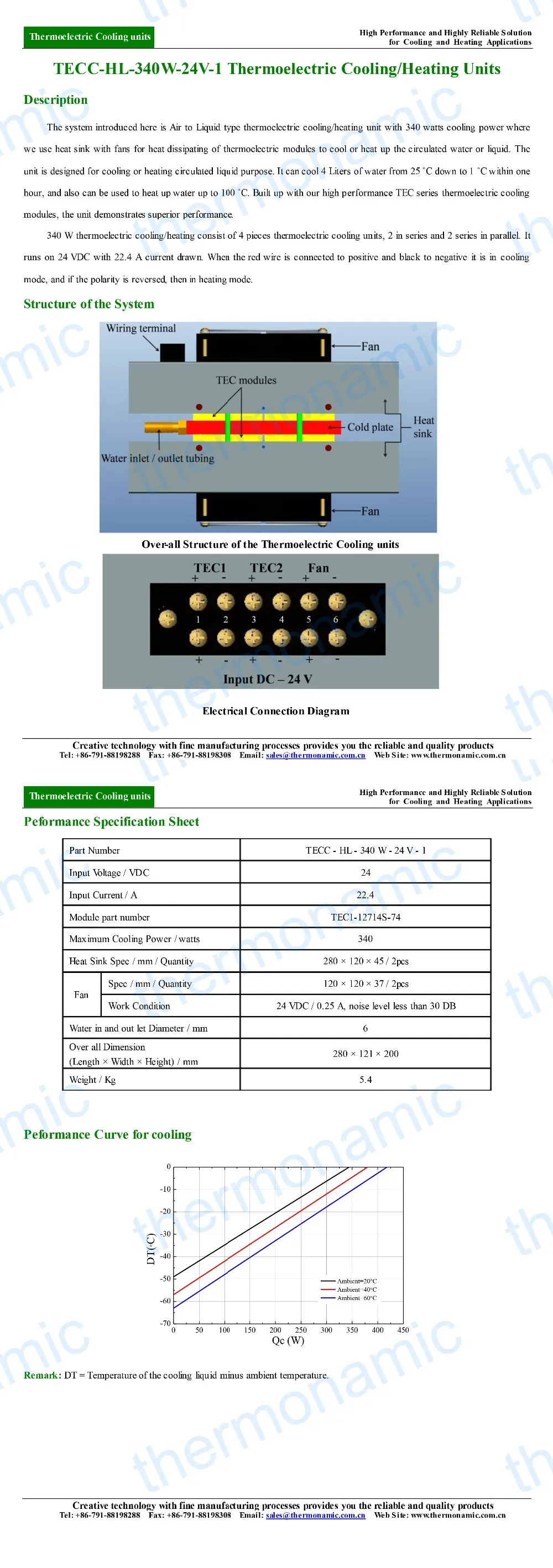

Performance Specification Sheet

Application

1.Infrared (IR) Sensors

2.CCD Sensor

3.Gas Analyzers

4.Calibration Equipment

5.CPU cooler and scientific instrument

6.Photonic and medical system

7.Guidance Systems
