-80C laboratory low temperature Circulating Winterization Chiller


-80C laboratory low temperature Circulating Winterization Chiller are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.low temperature chiller





-80C laboratory low temperature Circulating Winterization Chiller are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.









Features of low temperature circulating chiller:


--No dry ice or liquid nitrogen needed


--Advanced PID digital temp controller


--Built-in chilling fluid filter protects the recirculating pump and prevent blockage


--All steel construction for durability


--Cost saving as the water consumption is completely eliminated


--Built-in casters for mobility


--Eco-friendly R404A refrigerant


--Insulated tubing included


 10L 20L 30L laboratory low temperature Circulating Chiller


Specifications of low temperature circulating chiller:





































































Model



DLSB-5/30



DLSB-10/30



DLSB-20/30



DLSB-30/30



DLSB-50/30



Volume (L)



5



10



20



30



50



Temp. Range



-30℃(zero load)--- Room temperature



Temp. Wave



±1℃



Cooling capacity (W)



450-1375



1200-2427



1400-2737



900-5475



1200-9125



Flow Rate



20L/min



Lift Head



6-8m



refrigerant



RE404A



Power



Single phase 220V, 60Hz



Rated Power (W)



550



1000



1200



2200



4000



Mark



-10C, -20C, -30C, -60C, -80C, -120C is also available, customized chiller is also available

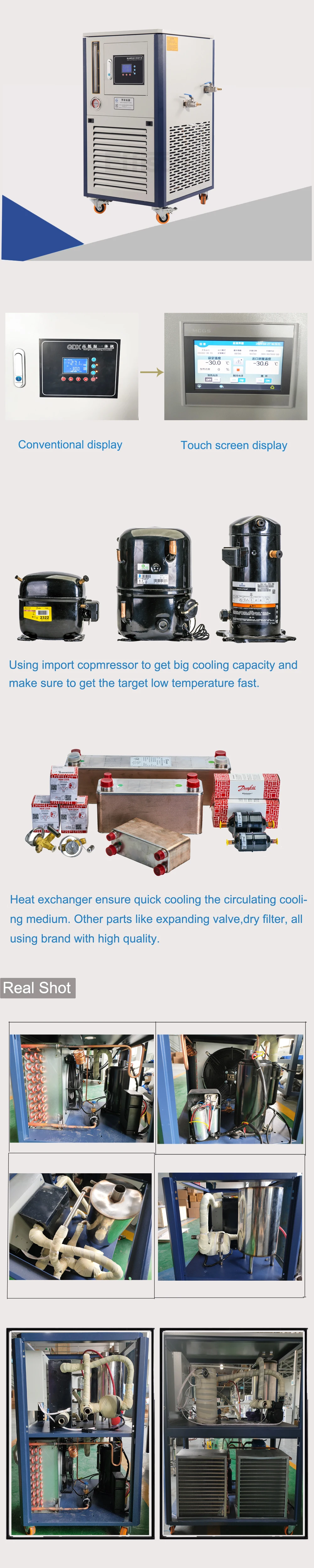

Detailed Images






10L 20L 30L laboratory low temperature Circulating Chiller10L 20L 30L laboratory low temperature Circulating Chiller
