Product Overview
Description

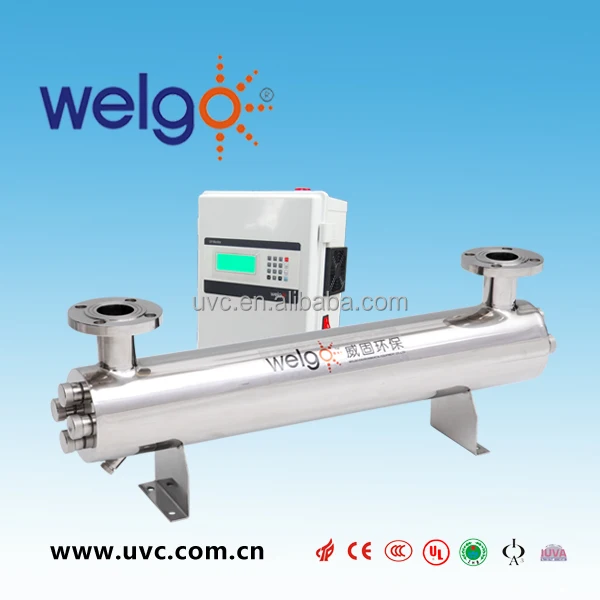

320 WATT Amalgam Lamp UV Water Purification System
320 WATT Amalgam Lamp UV Water Purification System
Product Description
1. World leading UV lamp tube, stable dose, service life of more than 12,000h.
2. Advanced and stable ballast (invention patent: 200810027332.3) dedicated to UV lamps, specially designed for preheat-type lamp tubes, matching lamp tubes perfectly, avoiding burning of lamp tubes.
3.Each UV cavity must be processed with the 7kg - 15kg/cm2 pressure leakage test. Drawing processing, instead of the traditional welding processing, is applied to the water inlet, by which water leakage can be avoided and the service life of the cavity can be prolonged for 30%.
4. Manual / automatic cleaning is alternative (independently developed cleaning ring with the patented invention technology). The remote control function and standby system switching function are available. Automatic cleaning includes two alternative cleaning modes, i.e. Pneumatic cleaning and electric cleaning.
5. The SCM automatic control system is available to realize online monitoring of power switch of the UV sterilizer, cleaning system, UV light intensity, real-time temperature and system fault. Such operation is simple, and it is convenient to be used.
6. It can be customized according to the requirements of customers.
Technical Parameter
Model | 30mj/cm2 Flow rate | Lamp watts (W) | Lamp Qty | Total Power (W) | Chamber Dimensions L1*D*H(mm) | Inlet/Outlet | ||||
GPM | m3/Hr | |||||||||
WGUV-SQ-5.5T40-2U | 24 | 5.5 | 40 | 2 | 100 | 1030*194*333 | G 1 1/4"outer thread | |||
WGUV-SQ-8.5T40-3U | 38 | 8.5 | 40 | 3 | 140 | 1030*220*349 | G 1 ½"outer thread | |||
WGUV-SQ-12T80-2U | 53 | 12 | 80 | 2 | 200 | 1030*194*333 | 2"Flange(DN50) | |||
WGUV-SQ-20T80-3U | 88 | 20 | 80 | 3 | 280 | 1030*220*349 | 2½"Flange(DN65) | |||
WGUV-SQ-25T80-4U | 110 | 25 | 80 | 4 | 360 | 1030*220*349 | 3"Flange(DN80) | |||
WGUV-SQ-30T80-5U | 130 | 30 | 80 | 5 | 440 | 1030*280*409 | 3"Flange(DN80) | |||
WGUV-SQ-35T80-6U | 152 | 35 | 80 | 6 | 520 | 1030*280*409 | 4"Flange(DN100) | |||
WGUV-SQ-40T80-7U | 175 | 40 | 80 | 7 | 560 | 1030*280*409 | 4"Flange(DN100) | |||
WGUV-SQ-45T155-4U | 198 | 45 | 155 | 4 | 650 | 1725*220*359 | 4"Flange(DN100) | |||
WGUV-SQ-55T155-5U | 264 | 55 | 155 | 5 | 800 | 1725*280*409 | 4"Flange(DN100) | |||
WGUV-SQ-66T155-6U | 352 | 66 | 155 | 6 | 960 | 1725*280*409 | 5"Flange(DN125) | |||
WGUV-SQ-88T155-8U | 385 | 88 | 155 | 8 | 1300 | 1725*334*463 | 5"Flange(DN125) | |||
WGUV-SQ-90T320-4U | 392 | 90 | 320 | 4 | 1330 | 1725*220*359 | 5"Flange(DN125) | |||
WGUV-SQ-110T320-5U | 480 | 110 | 320 | 5 | 1650 | 1725*280*409 | 6"Flange(DN150) | |||
WGUV-SQ-130T320-6U | 580 | 130 | 320 | 6 | 1970 | 1725*280*409 | 6"Flange(DN150) | |||
WGUV-SQ-150T320-7U | 655 | 150 | 320 | 7 | 2300 | 1660*325*525 | 8"Flange(DN200) | |||
WGUV-SQ-180T320-8U | 790 | 180 | 320 | 8 | 2700 | 1725*334*463 | 8"Flange(DN200) | |||
1. Q: Can I get your products with our logo and design?
A: Customized service is available.
2. Q: What about Lead time ?
A: About 15 work days normally. Your order will be arranged to production once the deposit be received.
3. Q: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
4 Q: What's the MOQ ?
A: We can offer the quantity you required, as we do not have MOQ requirement.
5. How do you control the quality?
A: Strictly check the material and control the quality at every stage of production, from the incoming raw materials to the finished product.
6. What is the Packing material?
A: Carton, Plywood case, Pallet. They are suitable for shipment.
7.What information we need to let you know before order?
a. What is the raw water?
b.What's the flow rate per hour?
c.What is your industrial voltage and frequency?
8.What's the payment terms?
1) Small order: T/T100% payment in advance
Big order: T/T 30% deposit in advance, 70% paid before shipment.
2)Western Union
3)Alibaba Escrow.
4)L/C at sight.
9.After sales service
(1) 24 hours we are ready to explain question for you.
(2) Professional engineers supported, along with strong technical service.
(3) Welgo will send engineers to customers factory to Offer installation, debug and technology training to if you need.
