Electronic Fabric Strength Tester YG026T

Product Overview

Description

YG026T Electronic Fabric Strength Tester







APPLICATION

YG026T   Electronic Fabric Strength Tester is used to determine the tensile strength and elongation of lea yarn or fabric. It is constant rate of extension (CRE) test method.



ELATED STANDARDS

STANDARDS	Lea yarn strength	ISO 6939
	Tensile	ISO 9073-3, 13934-1/2; ASTM D461, 5034, 5035; JIS L1096
	Tearing	ISO 13937-2/3/4; ASTM D2261
	Seam slippage	ISO 13936-1/2; ASTM D434, 1683

Note: this Electronic Fabric Strength Tester can conform to but not limit to the standards above, for more standards conformance, please contact us.



FEATURES of fabric strength tester:

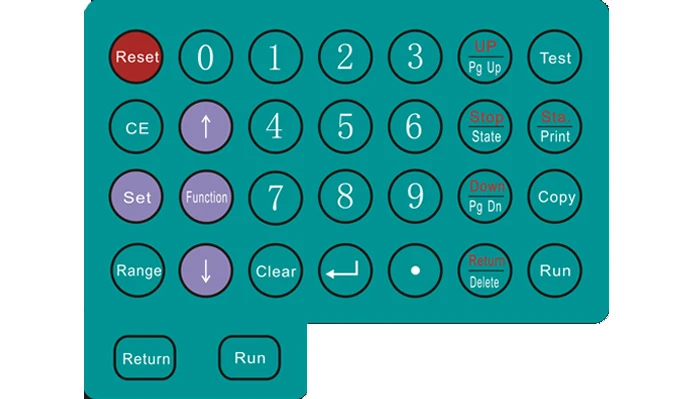

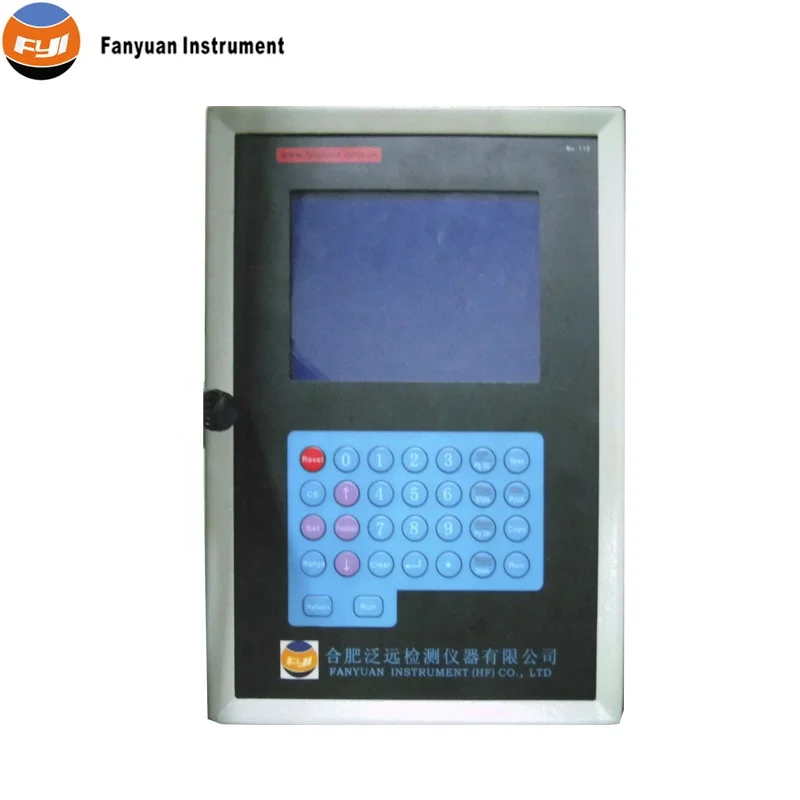

l  Multi-function control panel, large screen display, convenient to use

l  Imported sensor;

l  High-force loading conditions, rigid frame configuration, precise ball screw preload;

l  Two kinds of measuring range are available. Small measuring range is suitable for peeling, bursting and other small force test, which can improve accuracy to 0.1N;

(1)          Big measuring range: H  0~5000N  1N

(2)          Small measuring range: L  0~500N  0.1N

l  Several kinds of stretching test can be achieved;

(1)          Breaking

(2)          Peeling

(3)          Elastic recovery

(4)          Constant speed Constant timing

(5)          Constant load

(6)          Constant elongation

l  Manual and pneumatic clamp are optional;

(1)          Manual clamp

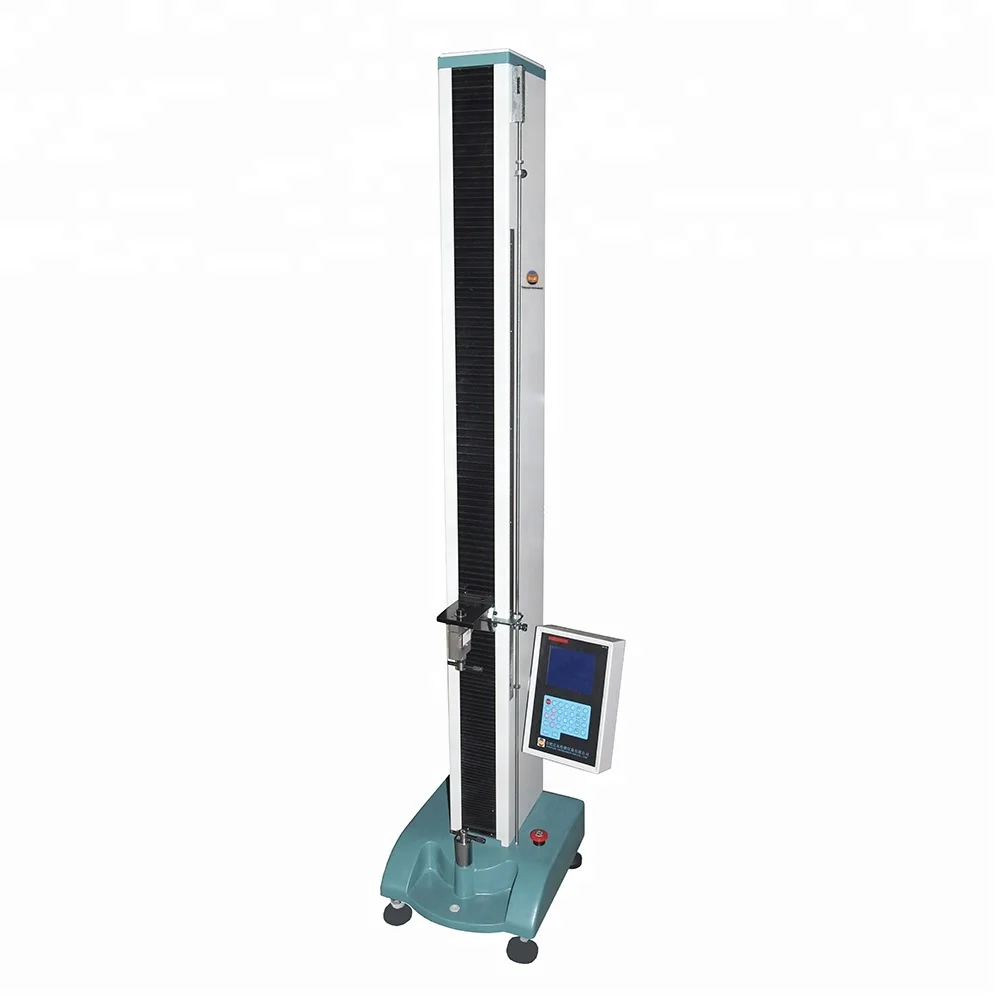

Please refer to the photo of main machine on the first page

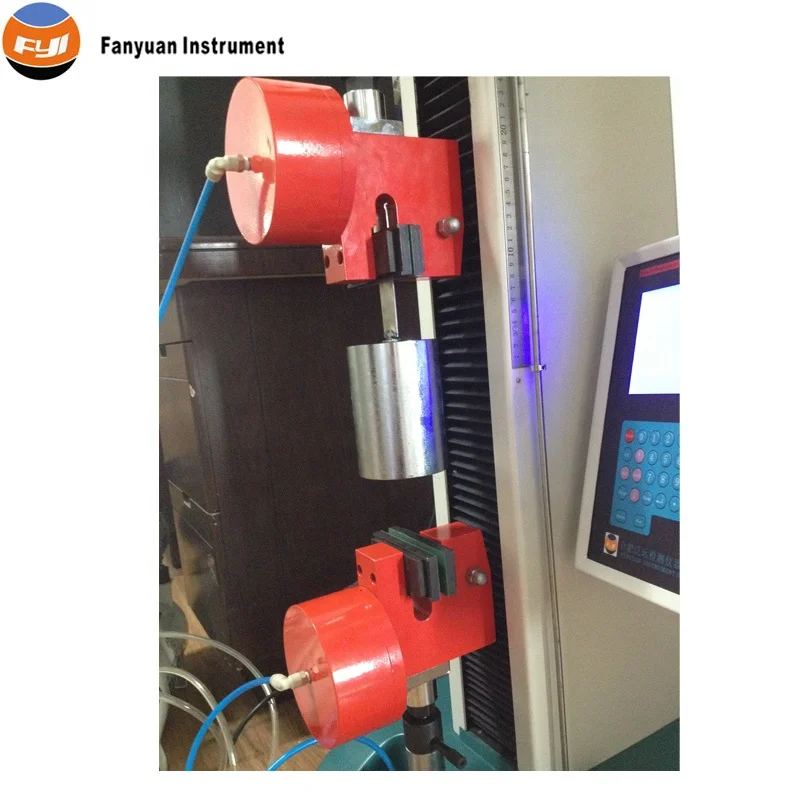

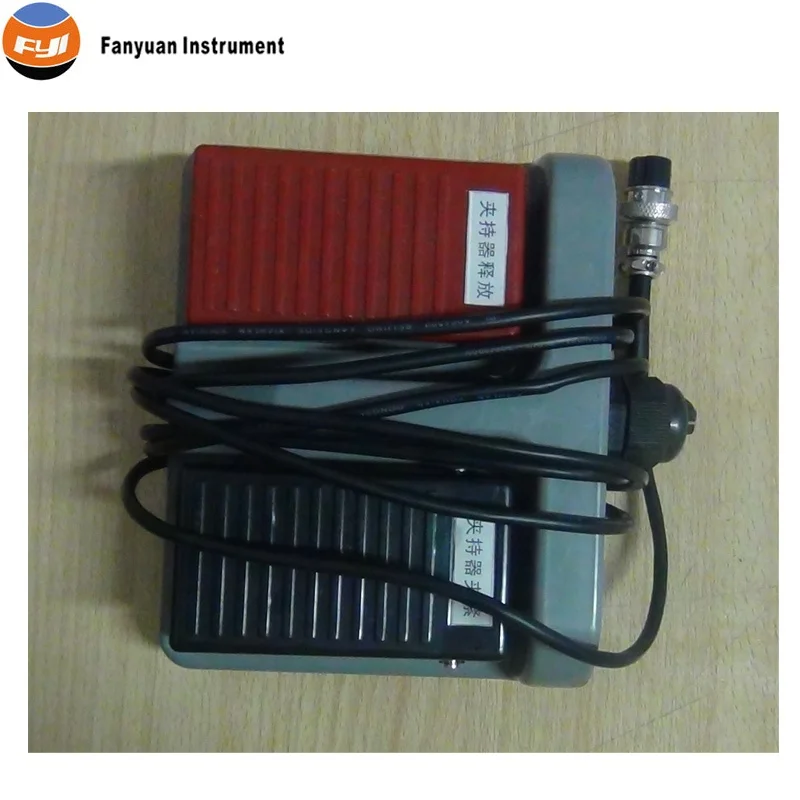

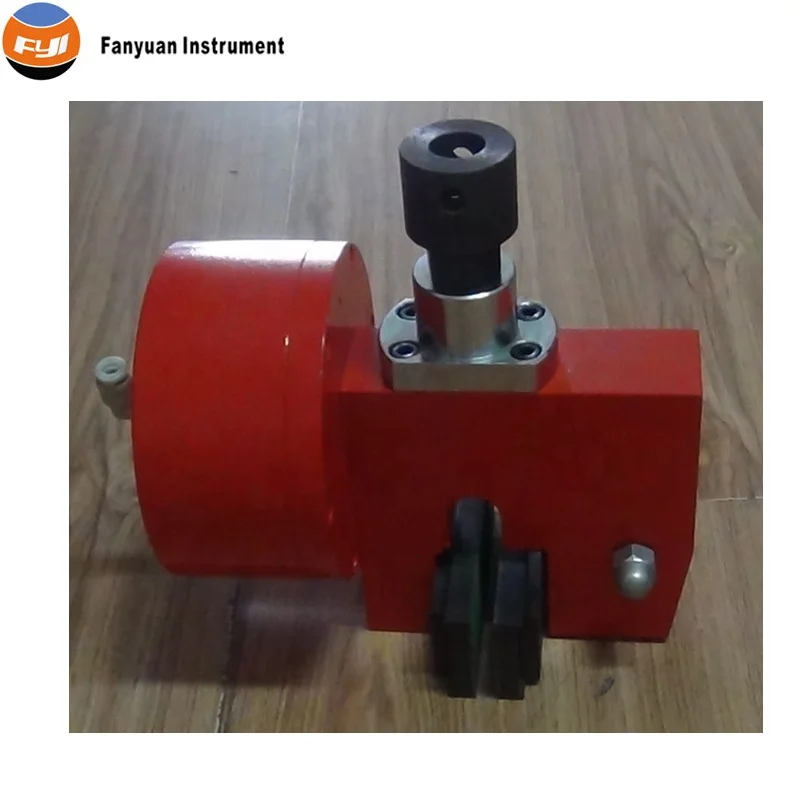

(2)          Pnenumatic clamp

Magnet is used which makes change clamps more easier than traditional screw

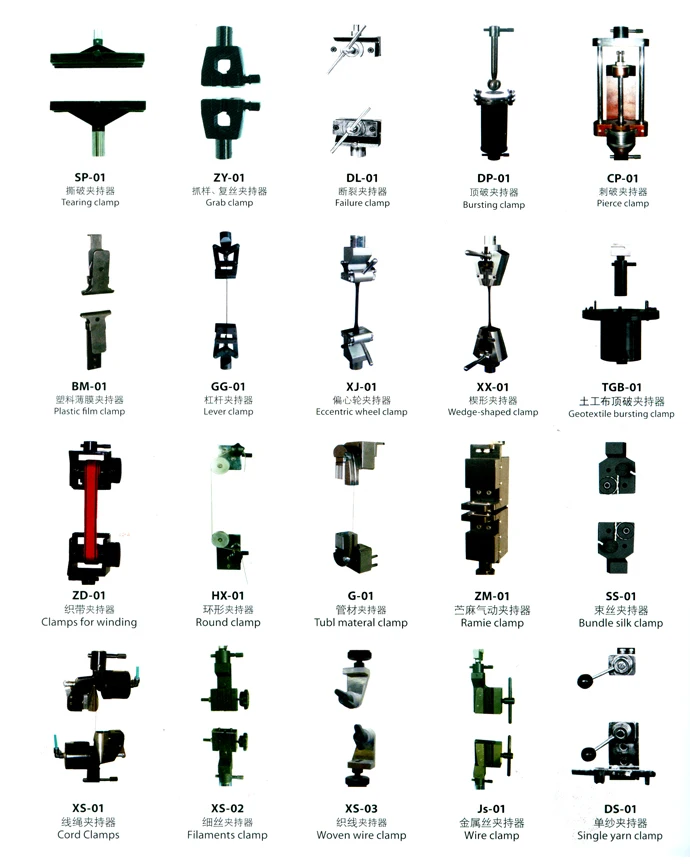

l  Frequently used clamps for fabric strength tester are as follows:;

l  Connect to PC, more analysis functions can be achieved;

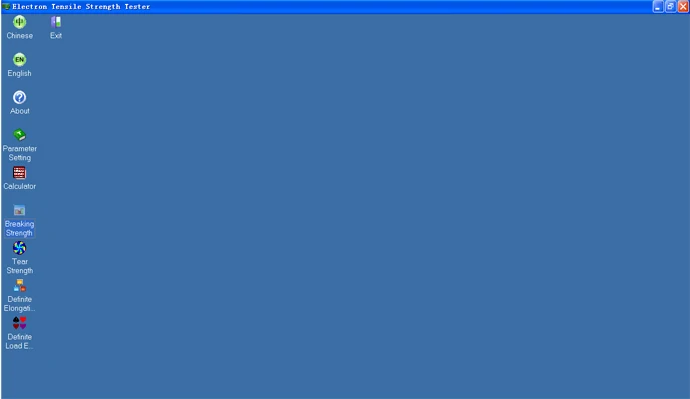

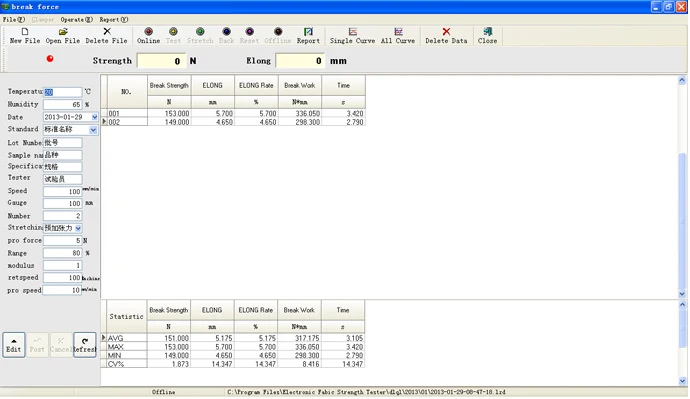

(1)        Figure One: Software (Chinese and English can be available)

(2)        Figure Two: Breaking strength test

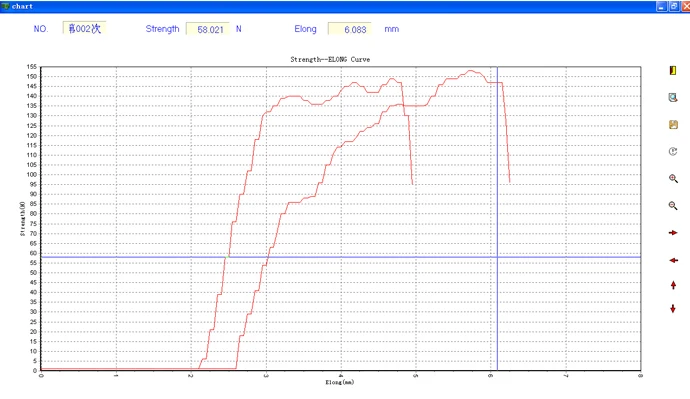

(3)        Figure Three: Curve

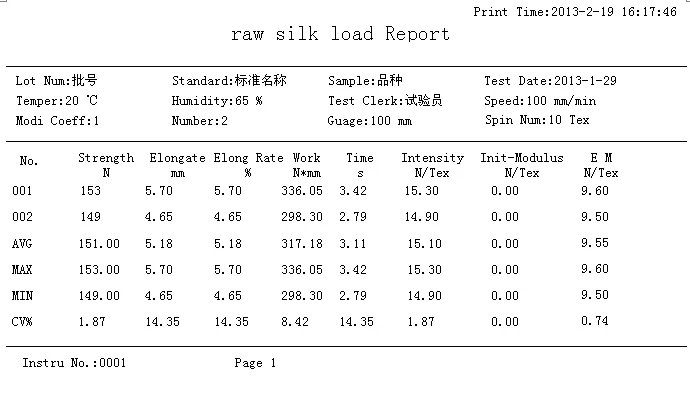

                              (4)        Figure Four: Report

KEY SPECIFICATION of fabric strength tester





l  Maximum force value	5,000N
l  Force error	≤0.5%
l  Moving range of upper clamp	25mm~500mm  (selectable)
l  Jog speed	2mm/min~1200mm/min
l  Return speed	2mm/min~1000mm/min
l  Speed control error	<2%
l  Breakage time error	≤0.01s
l  Linear density range	1.0~99.9 tex
l  Power Supply	AC220V±10%, 50Hz, 400W
l  Dimensions	380×480×1400mm (L×W×H)
l  Net Weight	98kg
