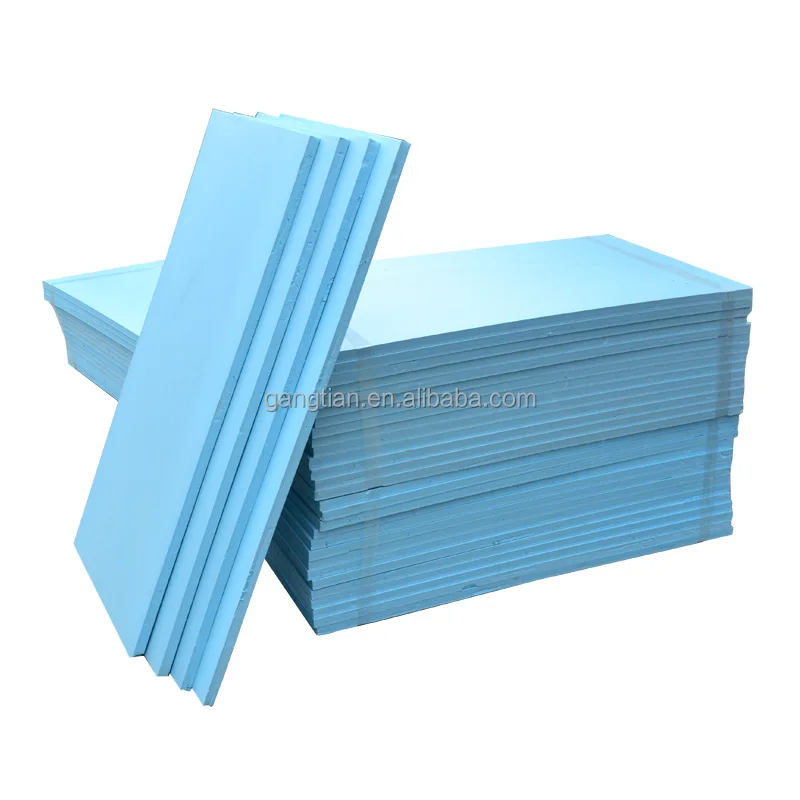

XPS Boards are high performance, reinforced insulation boards made of waterproof extruded polystyrene, each side being faced with fibreglass mesh embedded into a waterproof cement polymer mortar.
XPS Boards are light-weight construction boards offering the perfect solution for insulating and waterproofing in one operation. In addition to that, Boards are provided with a specially modified layer enhancing the adhesive tensile strength of the tile adhesive.
Widely used as a structural, in underfloor heating insulation, wet rooms, water pipes, ceilings and shower trays as a water barrier
1.Mainly we produce 5 style extruded polystyrene sheet:
1) Non-combustible Class B1 extruded polystyrene insulation board (XPS) with smooth surface
2) Extruded polystyrene sheet with pattern coated
3) Extruded polystyrene sheet with stucco coated
4) Double-clotted extruded polystyrene sheet
5) Central air conditioning duct
2.Physical Performance of our extrusion polystyrene (XPS) thermal insulation boards:
Item
Unit
( Specification)
(Test Method)
Compressive Strength
Kpa
≥150
GB/T 8813-1988
Water Absorption
(96h)
%(V/V)
≤1.0
GB/T 8810-1988
(coefficient)
(23°C±1°C)
(RH50%±5%)
ng/(m·s·Pa)
≤3.0
QB/T 2411-1998
(Conductivity factor)
(Avaerage temperature)
10°C
25°C
W/(m·k)
≤0.028
≤0.030
GB/T 10294-198
(Dimension stability)
70°C±2°C,48h
%
≤1.5
GB/T 8811-198
(Oxygen index)
≥26
GB/T 8626-1988
3.Product/Specification:
Item
Unit
Size
Length
mm
1200~8000
Width
mm
600
Thick
mm
20,25,30,40,50,60,70,80,90,100
4.Effective protection against cold and damp
XPS boards not only take care of the heat, they are also an effective guard against the cold and damp. The cold will be held back by the non conducting characteristics of the foam and as XPS board is also water repellent it will not rot or go mouldy and will help hold back any damp from your floor.
XPS boards are also resistant to cement, plaster, and most alkalis, however not against organic solvents
5.Sound insulation
In addition the boards have an excellent sound insulating effect, which makes the floor “ quieter ” to walk on and an ideal product for use when you need to reduce sound transmission to the room below.
6.Application place:

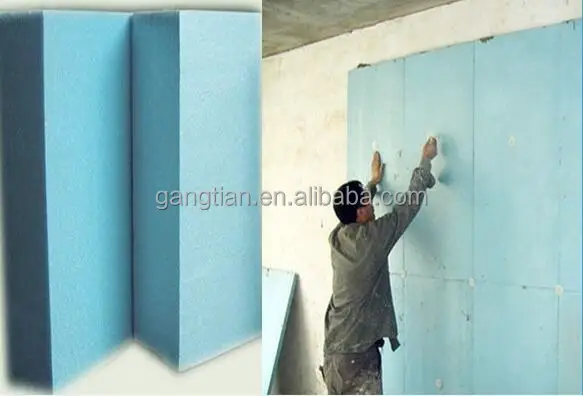

Interior wall insulation/Roofing insulation/Ceiling insulation/Foundation insulationPrecast concrete systems/Support for tiles installation/Highways insulationRoad insulation/Insulation under railways/Airport runways insulation/Waterproof protection/Swimming pools/Home and industrial applications/Agricultural buildingsRefrigerated trucks for roads and rails/Earth shelters/Ice rinks/Tanks insulation/Industrial freezers
7.Surfaces Type:
Surface: Embossing, Slotting, Rough, Smooth
8. Edge:
Packaging & Shipping
The packaging of our products, and customers' brand or logo can be print on our packing.
Shipping:By Container
Our Services
Q1,How can you get one sample of XPS insulation foam board?
We cooperate with DHL,TNT,UPS etc for export.SF express for inland.Hope that can help you.
Hebei Gangtian Import & Export Co., Ltd founded in 2014 year. In order to build ourself brand, we build a new company “Hebei Gangtian Import & Export Co., Ltd”as our export agency and engage in import and export of building materials goods.
Now our ceiling business products mainly including: Ceiling Tiles,Ceiling Grid Components, Insulation Materials,Accessories etc.For the full range of cooperation with our customers,our company can help all clients as your import and export agency,make deep cooperation, and ultimately achieve a win-win situation.
FAQ
1. What are our main products of insulation material?
1).10 years speciality2).2product lines big factory3).
3. What are the product qualifications:
1). CEcertificates2). China well-known trademark3). Fire retardant building material eco-friendly marks
4.Are you a manufacturer or trading company?
Almost products are produced by our-self. Other products we have long time cooperate factories. No matter each style,we always want to offer best quality goods and service to you.
5.Where is your factory?How to arrive your factory?
Mainly factories located in hebei provice. You can take by air or train to direct go here. You just contact us,then we will help you make Trip plan.
6.How to get the price-list or product samples?
You can contact with with us by email or calling and tell us your requirements,then we can offer the quotation to you in time.
7.How to contact us?
You can contact with us through the below details:
