Welding electrode E6013 is a kind of mild steel welding rod with rutile sand or titanium type coating. The current can be AC or DC. Our welding electrode E6013 is able to provide both excellent welding and operating performance. It's easy to ignite and restrike the arc. The slag is fluid and when harded it
is impact and easy to remove. Besides it has less smoke. Our welding electrode E6013 can also provide fast melting rate, high deposition efficiency, more stable arc, less spatter and beautiful welding line shape.
Chemical Composition of Deposited Metal(%).
Chemical Composition
C
Mn
Si
S
P
Guarantee Value
≤0.12
0.3-0.6
≤0.35
≤0.035
≤0.040
Mechanical Properties of Deposited Metal.
Test Item
Rm(Mpa)
Rel(Mpa)
A(%)
KV2(J)
KV2(J)
Guarantee Value
≥420
≥330
≥17
-(normal temperature)
-(0℃)
Gegeral Result
460-540
≥340
18-26
50-80
≥47
Welding electrode E7018 is a kind of carbon steel with iron powder of low hydrogen
potassium type coating.It can improve deposition efficiency because of the iron powder
in the coating.Its arc is more stable with less spatter.It is easy to remove the residue.
It can provide both beautiful welding line shape and good deposited metal mechanical
performance.And the current can be AC or DC.It can be used for all position welding.
Chemical composition of deposited metal(%)
C
Mn
Si
S
P
Ni
Cr
Mo
V
≤0.12
≤1.60
≤0.75
≤0.035
≤0.040
≤0.30
≤0.20
≤0.30
≤0.08
Reference current(AC,DC)
Diameter(mm)
Φ2.5
φ3.2
Φ4.0
Φ5.0
Welding current(A)
60-100
80-140
110-210
160-230
Application
Welding electrode E6013 is widely used for welding low carbon steel structures, especially suitable for welding thin plates and cosmetic welding which requires the welding beads to be beautiful and glossy. It is sutable for all position welding. Welding Electrode E6013 is often used for welding structure of steel sheets, vehicles, buildings, vessels, machinery-manufacture and various structures of low carbon steel. It has excellent fabrication weldability, suitable for welding on the plate of low carbon steel or light strucures where beautiful bead appearance is requested.
Advantages
1 Easy to ignite and restrike the arc.
2 More stable arc, Less spatter.
3 High deposition efficiency.
4 Beautifu welding line shape.

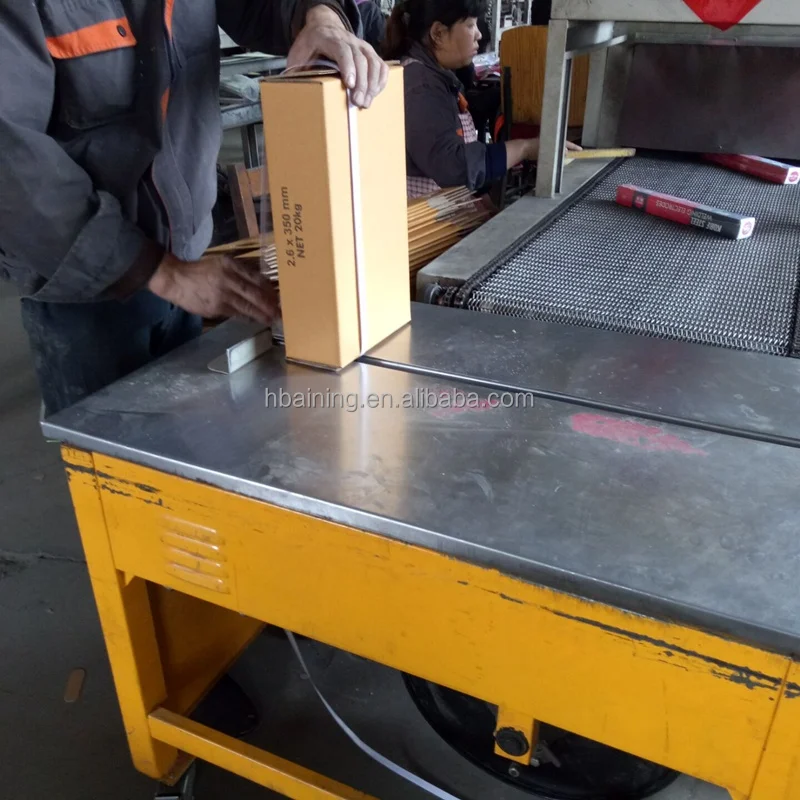

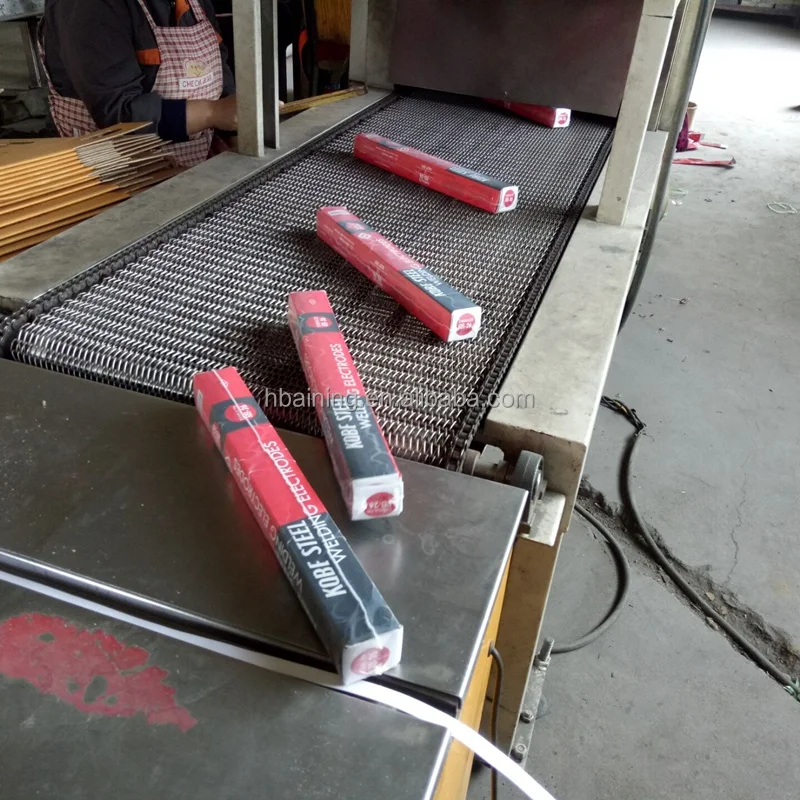

Production process

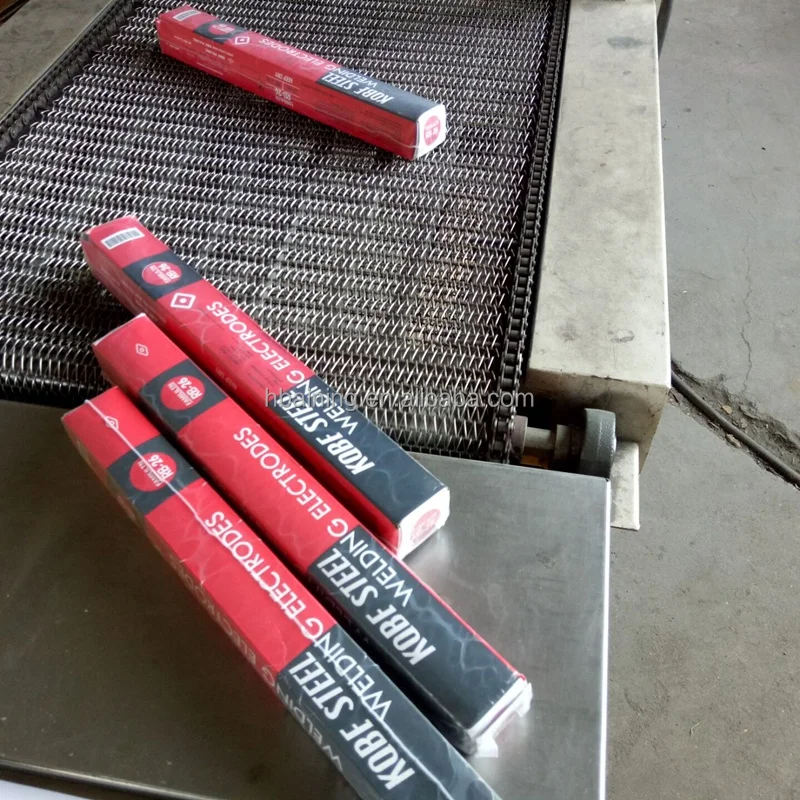

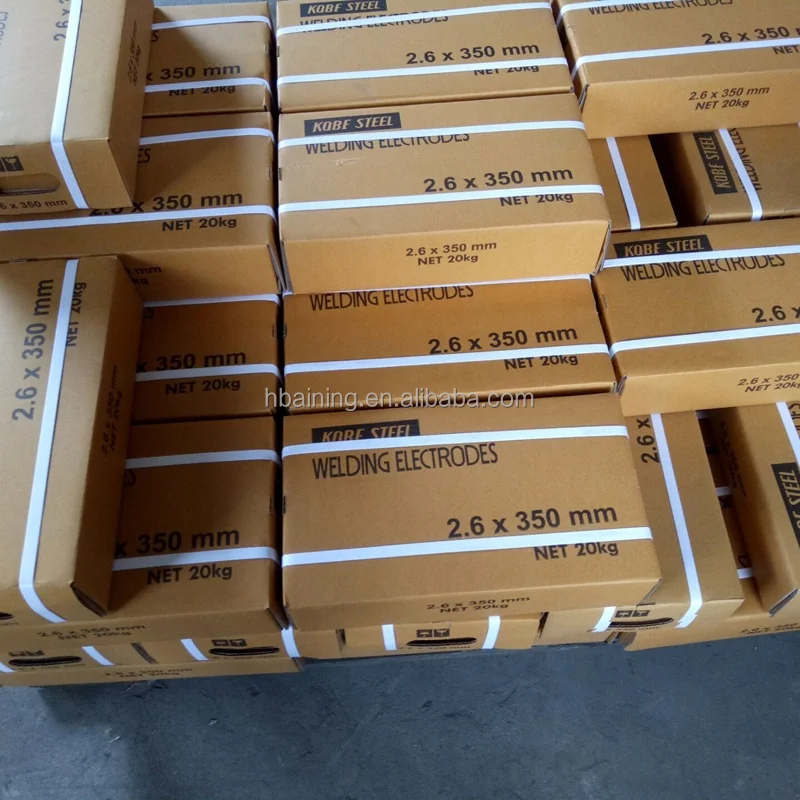

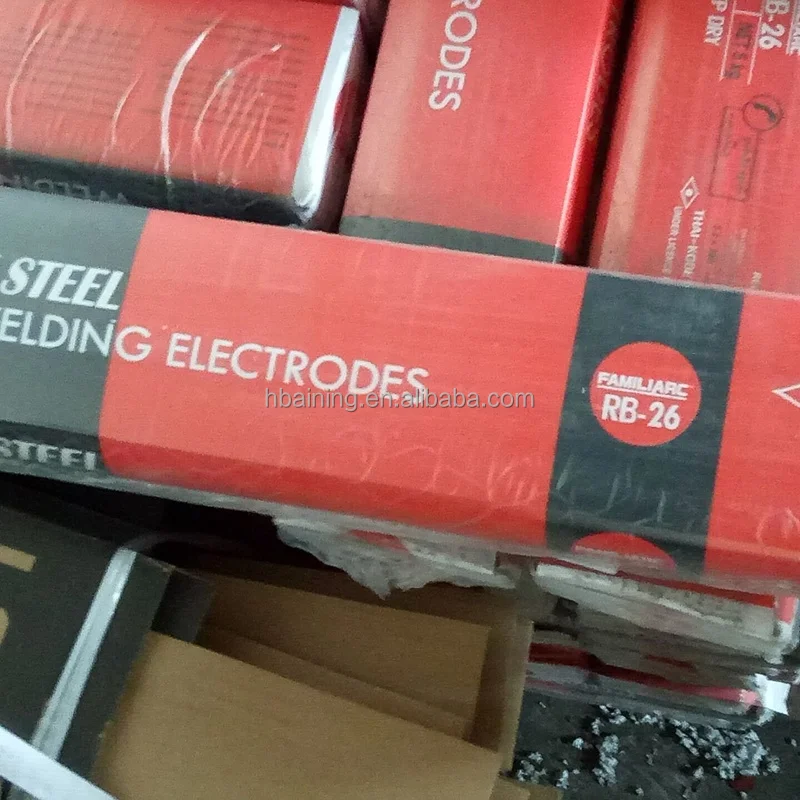

Detailed images
Our Services
1 Professional service for products.
2 Much more competitive price.
3 Honest and excellent supplier.
4 On-time delivery.
5 We believe the good quality is the basis for cooperation.
6 We can provide free samples to you for test.
7 Our company policy is Qulaity First and to establish Long Term business not just for one time.
Factory informantion
Factory Size (Sq.meters):
5,000-10,000 square meters
Factory Location:
East Gaoqian Street, Sijiazhuang Town, Luquan Shijiazhuang city Hebei province China
Number of Production Lines:
6
Number of R&D Staff:
10-15 People
Number of QC Staff:
10-15 People
Contract Manufacturing:
OEM Service Offered Design Service Offered
We maily produce and export the following products:
