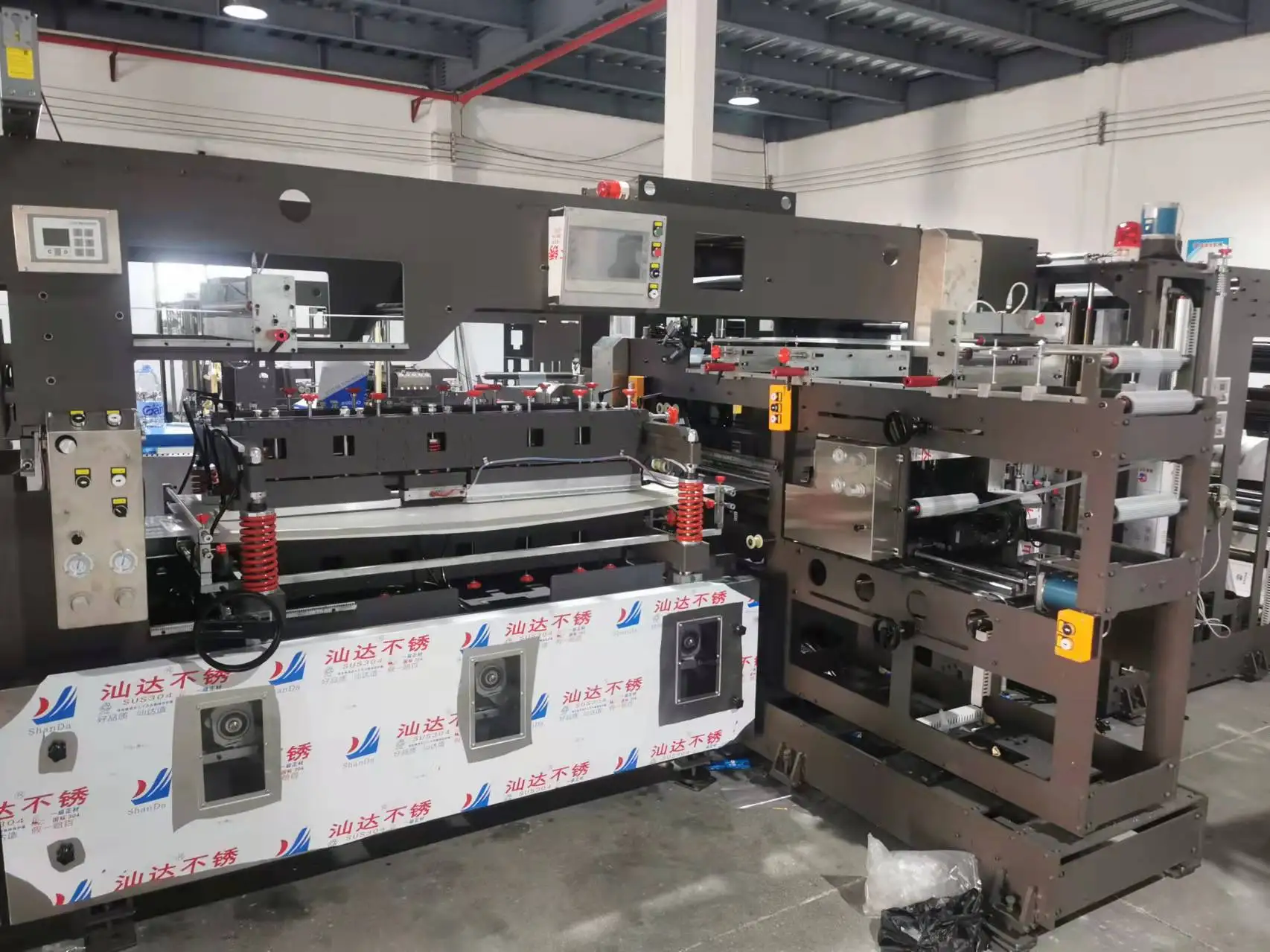

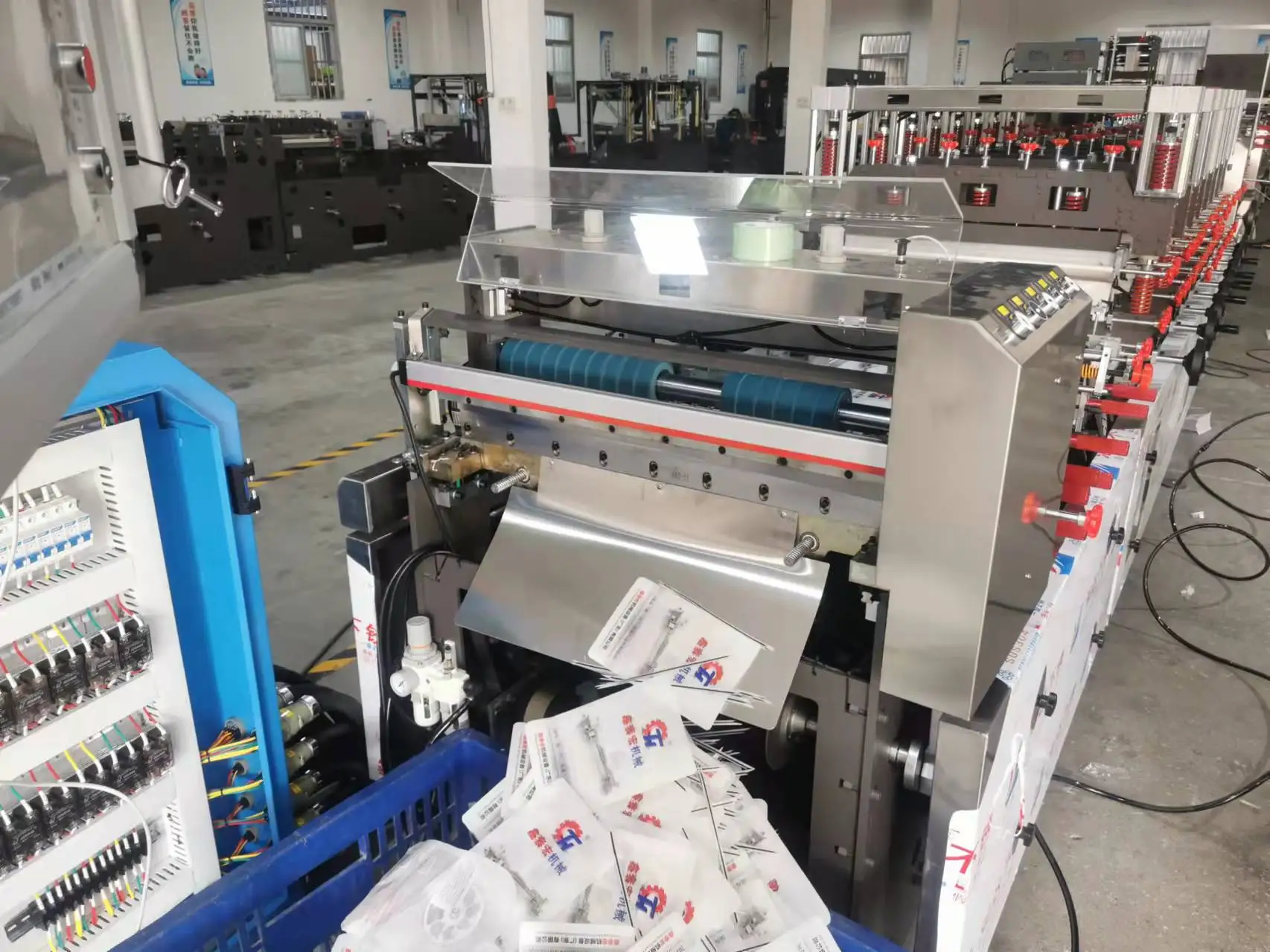

High Speed 3 line sealing bag making machine,three side sealing bag packing machine

INTRODUCTION

    Our machine with good advantage of electricity,air by servo motor,it is a high quality,high speed and suitable machine for soft packing market.The machine suitable for eight side seal bag,three side zipper bag and four side seal bag.
    The whole process controlled by industrial computer with high precision, main and assistant traction can setting length,it adopt AC servo motor and actuator.
    The transverse positioning device adopt sensor from Italy.Heater and sealing blade made of AL-M alloy with high strength and high quality sealing.
    The machine also with time sending function,which can produce extra-long packing bag.All electric parts and pneumatic parts adopt international brand and famous brand local.

A. BASIC SPCIFICATION

a. Material applicable: BOPP,PET,PA,AL film plastic or paper lamination film

b. Film roller size: 1200mm(Max width),800mm(Max dia.)

c. Auxiliary material size:150mm(Max width),400mm(Max dia.)

MAIN PARAMETER

a. Speed of making bag:180section/min,45m probable;

   stand up bag :120sections/min,36m probable

b. Width for sealing bag:600mm max.

c. Length for sealing bag: 50- 400mm(Can use double feeding unit when over length)

   **It can set by manual when length over than 350mm,but less than 700mm.

DRIVE TYPE

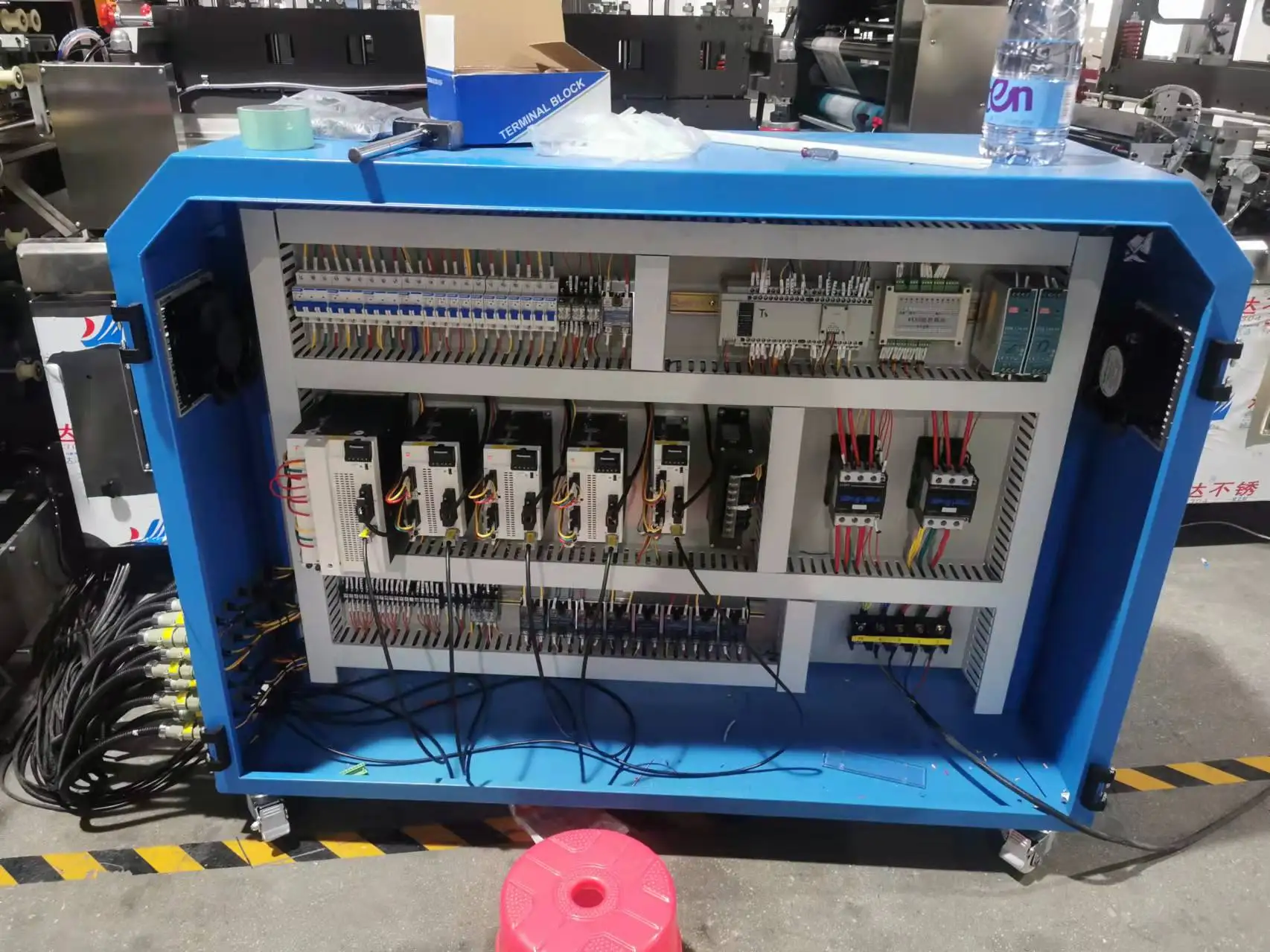

 The whole machine adopt fully servo drive( Brand:Panasonic Japan)

a. Feeding unit: Servo motor drive

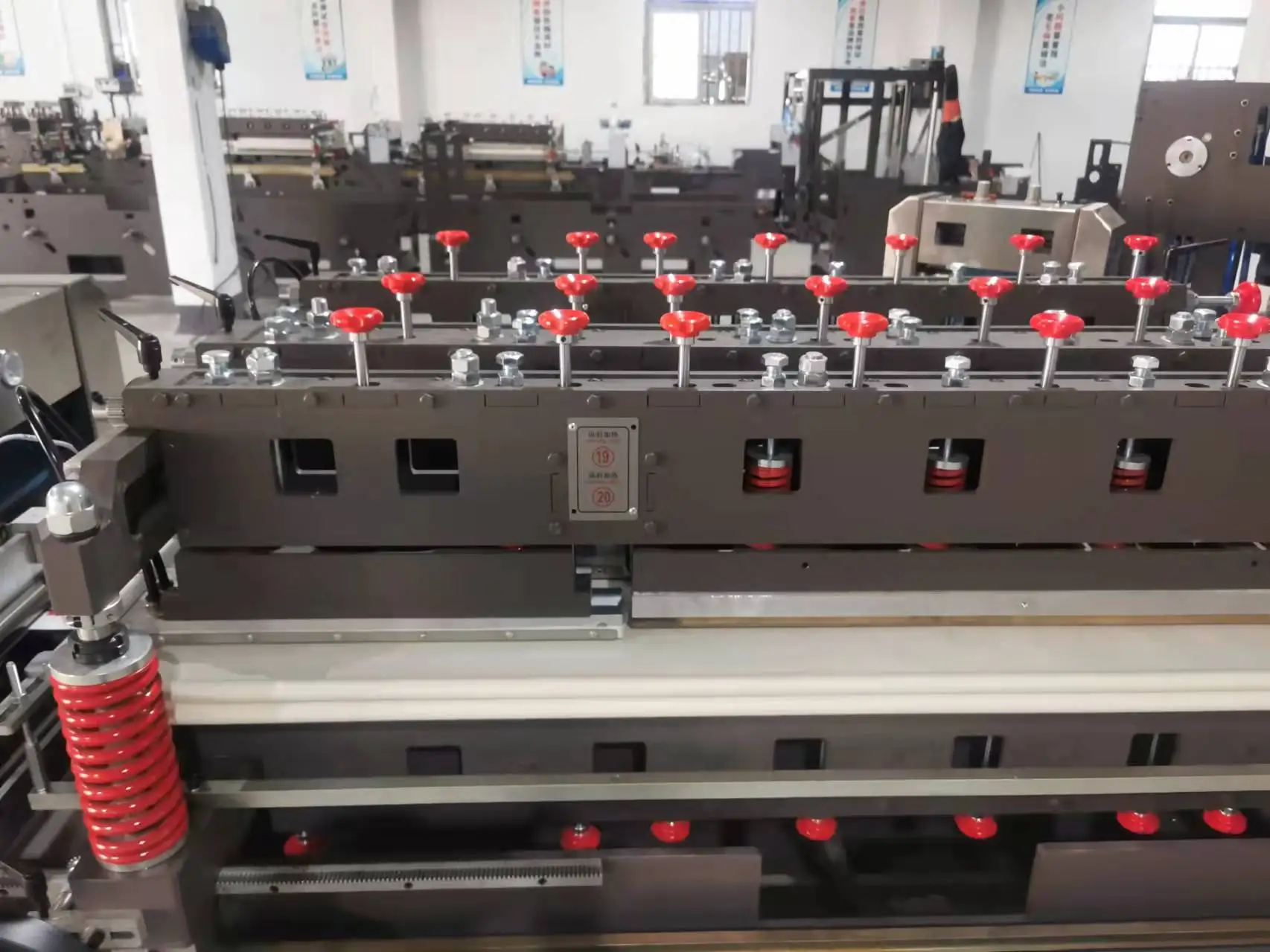

b. Up and down sealing: Servo motor drive

c. The machine adopt servo sealing,can setting sealing time,and use servo blade without gap.

PARAMETER

a. Pressure 0.6-0.8MPA

b. Cooling water 15L/MIN

c. Measurement 15200mm *2900mm*2000mm

d. Total weight 7.5T
