plastic bottle making machine price





ITEM		UNIT	OGS-1	OGS-2	OGS-4	OGS-1-20
	Theoretical output	Pcs/h	500	900	1800	90
PRODUCT	Max. Volume	L	5.0	2.0	2.0	20
	Max. height	mm	360	360	360	550
	Max. diameter	mm	120	105	105	300
MOULD	Number of cavities	/	1	2	4	1
	Mould plate dimension (L*H)	mm	490*470	490*405	490*405	620*620
	Mould thickness	mm	250	220	220	380
	Mould opening stroke	mm	220	180	180	360
ELECTRICAL	Power	KW	220-380V/ 50-60Hz	220-380V/ 50-60Hz	220-380V/ 50-60Hz	220-380V/ 50-60Hz
	Total Power	KW	11	11	21	36
	Heating Power	KW	10	10	20	37
MACHINE	Main body dimension (L*W*H)	M	1.5*0.65*2.0	1.5*0.65*2.0	1.5*0.65*2.0	2.1*0.75*1.8
	Main body weight	KG	600	550	550	900
	Pre-heater (L*W*H)	M	1.5*0.65*1.5	1.4*0.65*1.5	1.8*0.65*1.5	2.7*0.7*1.6
	Pre-heater weight	KG	300	300	350	400

The above technical parameters are subject to continual update, please take the real product as the base. Machines can be customized for specia products.





Features:







1.Adopt special electronic controlling circuit for heating; high efficiency in simultaneous controlling one lamp or more; lower power consumption.



2.Adopt the theory of heat transfer and feedback while designing the shape and thikness of preform.

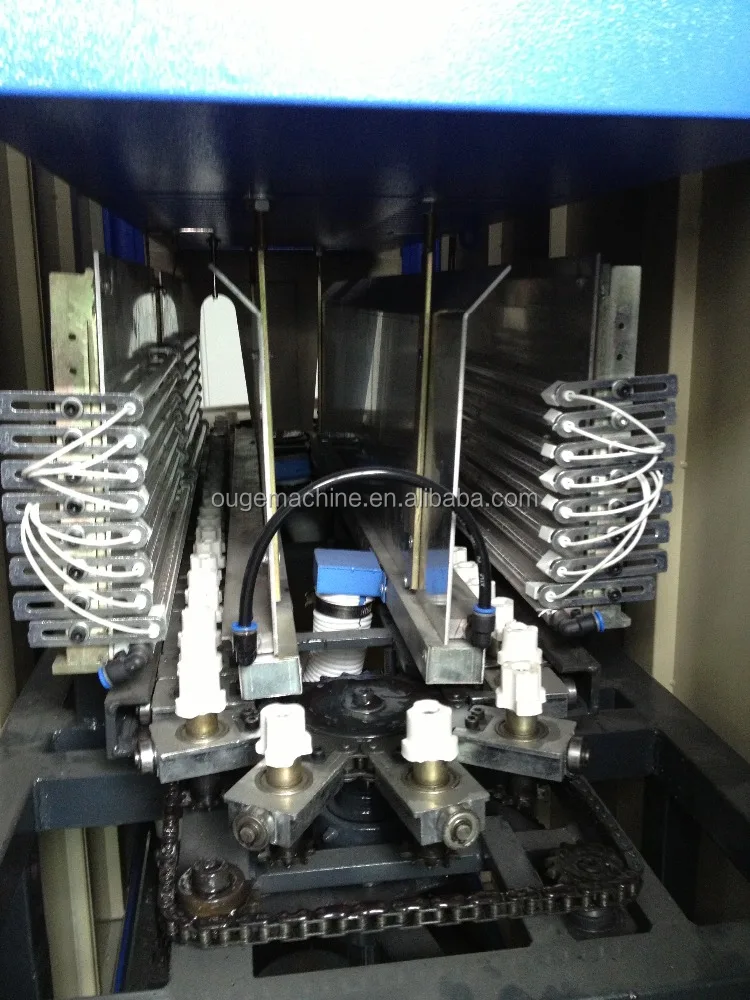

3.The preform will be heated evenly, not be influenced by outside environment.



4. Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles.



5.The air exhaust system designed by CAD can guarantee the deviation of heating furance temperature +/-1 degree.

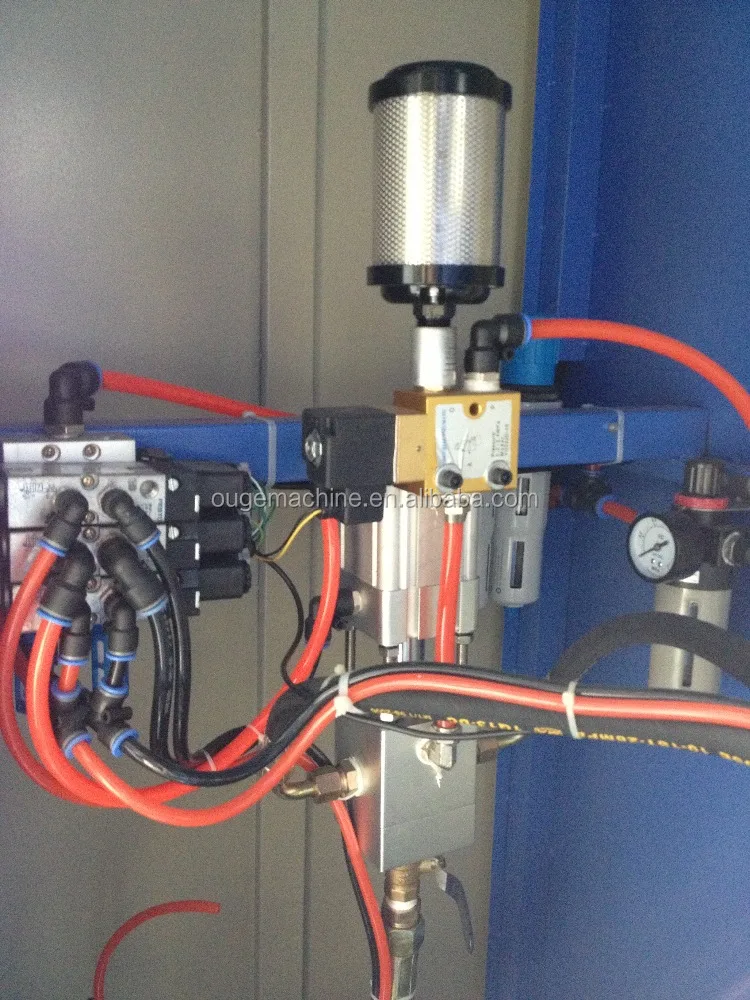

6.Air circuit system consists of movement and blowing so as to meet the needs of different air pressure, also to provide



stable high pressure for blowing different shapes of big capacity bottles.



7.The system is equipped with silencer, connecting rod and articulated refueling devices.



8.Two modes of operation: semi-automatic mode and automatic mode.



9.Small size, low investment. one person enough to operate, simple and safe.

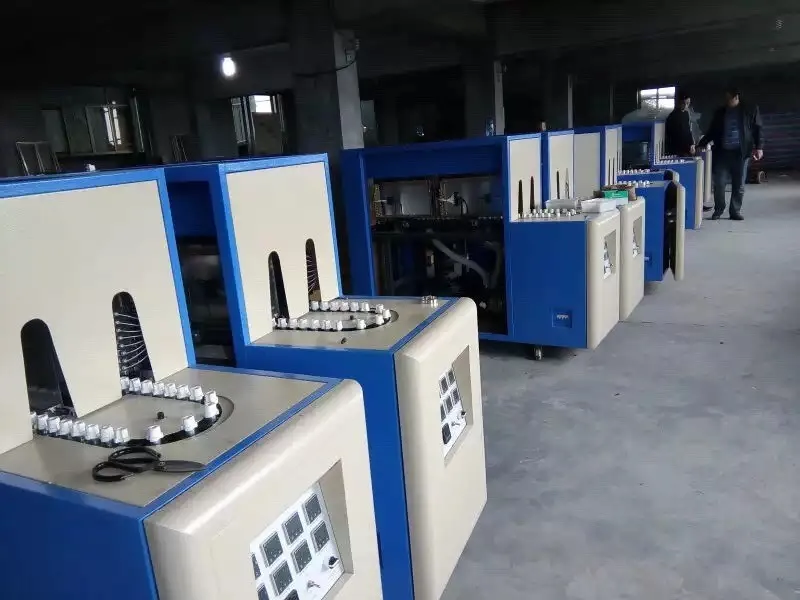

Photo of factory









Talking at fair



Meeting at factory



Packing and shipping









 FAQ

(1) Q: Are you a factory or trading company?

A: We are a factory, professional bottle blowing machine manufacturer.



(2) Q: Where is your factory located? How can i visit there?

    A: Our factory is located in Taizhou huangyan city,Zhejiang province.

     Near shanghai&Ningbo port. 3hours by train from shanghai.2 hous by air from guangzhou.



(3) Q: How about the quality control in your factory?

    A: Quality is the first.

    OUGE machine focus on quality, pay great attention to quality control from begining to end.Every piece of machine is tested strictly before packing and delivery.



(4) Q:How long is the warranty of your equipment?

    A: One year warranty after receipt check upon delivery.



(5) Q: Can i ask instruction in my own language?

    A: OUGE machine translate the instruction from chinese to English, Spanish, Russian and French without any charge only if you have required in advance. We also can translate the language of the PLC and touch screen to make sure you will have an easy operation.



(6) Q: Do provide bottle and other auxiliary equipment like air compressor?

    A: Yes, we can offer complete system you will no need spend a lot of time to find suitable goods. We also can make the drawing based on the picture as your willing.





 Welcome to contact us for more informations!
