Высококачественный неконтактный насос для перекачки крови с автоматическим заполнением бутылок, медицинский Перистальтический Насос
- Category: Pumps >>>
- Supplier: Nanjing Runze Fluid Control Equipment Co. Ltd.
Share on (60637411244):
Product Overview
Description
Product Feature
- Bench-top type, plug and play, easy operation
- Stepper motor drive, high precision liquid delivery
- Handle mechanism allows tube loading in seconds
- OEM Acrylic label to highlight your company brand
- 3/6 rollers provide high-flow or high-precision pulsation-free pumping
- Reliable performance and long service life
Model Selection
Model No. | Description | SKU | Compatible Tubing |
SR400-YZ1515X-3H | YZ1515X 3 roller black big motor | YZ15 3 Roller Black | ID1.6*WT1.6 (#14) ID3.2*WT1.6 (#16) ID4.8*WT1.6 (#25) ID6.4*WT1.6 (#17) ID8.0*WT1.6 (#18) |
SR400-YZ1515X-3B | YZ1515X 3 roller white big motor | YZ15 3 Roller White | |
SR400-YZ1515X-6H | YZ1515X 6 roller black big motor | YZ15 6 Roller Black | |
SR400-YZ1515X-6B | YZ1515X 6 roller white big motor | YZ15 6 Roller White | |
SR400-YZ2515X-3H | YZ2515X 3 roller black big motor | YZ25 3 Roller Black | ID4.8*WT2.5 (#15) ID6.4*WT2.5 (#24) |
SR400-YZ2515X-3B | YZ2515X 3 roller white big motor | YZ25 3 Roller White | |
SR400-YZ2515X-6H | YZ2515X 6 roller black big motor | YZ25 6 Roller Black | |
SR400-YZ2515X-6B | YZ2515X 6 roller white big motor | YZ25 6 Roller White |
Technical Parameter
Model No. | SR400-YZ1515X-3B/3H/6B/6H SR400-YZ2515X-3B/3H/6B/6H |
Pump Roller | SST 3/6 rollers |
Pump Head | ABS engineering plastic |
Fast Tubing | YES |
Pump Color | White/Black |
Motor Type | Stepper motor |
Motor Speed | 1-400rpm |
Flow Range | 0-1700ml/min |
Tubing Size | ID1.6-8.0mm WT1.6-2.5mm OD≤11.4mm |
Tubing Life | Silicone≥200H BPT Rubber≥1000H |
Pressure Rating | Up to 2 bar(30psi) |
Working Environment | 0-40℃, <80% non-condensing |
Max DB | 65db |
Suction | 5m |
Head | 8m |
Dimension (L*W*H) | 301*151.5*233mm |
Net Weight | 5508g(3 roller)/5608g(6 roller) |
Function of Foot Pedal
Foot pedal is the replacement of ON/OFF button, when user can't press button to stop and start the pump, foot pedal play its role.

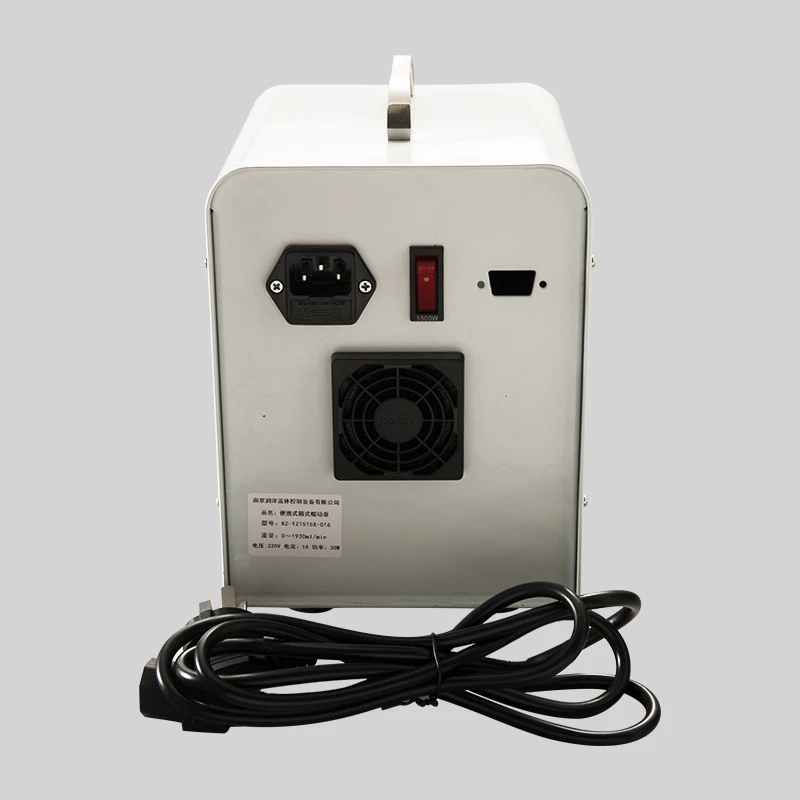

Step 1. Connect the plug into socket, power on the main switch at back of pump.
Step 2. Step on the foot pedal to start the pump, then leave your foot, pump will keep working (dosing liquid)
Step 3. When you need to stop the pump, step on the foot pedal again, pump will keep non-working
Step 4. When you need to start the pump again, step on the foot pedal to start the pump, then leave your foot, pump will keep working.
......
Three Types of Peristaltic Tubing Available
Picture | Material | Features | Service Life |
|
Silicone | Food grade, High flexibility Temp. range -4℃ - +180℃ For non-corrosive liquid |
≥200h |
|
Pharmed BPT | Saint-Gobain, Temp. range -51℃- +132℃ Anti weak acid and alkali |
≥1000h |
|
Viton | MasterFlex, Temp. range -20℃- +260℃ Anti strong acid and alkali |
≥1000h |
Note
1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks.
2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed helps to extend the service life of tubing.
3. Please replace new pump tube regularly to achieve higher precision liquid transfe
SR400-YZ1515X Flow Rate Instruction
Tubing | Speed (rpm) | Tubing size (ID*WT: mm) | 3 Roller Flow rate (ml/min) | 6 Roller Flow rate (ml/min) |
Rubber tube | 0-400rpm | 1.6*1.6 | 0-113 | 0-88 |
3.2*1.6 | 0-462 | 0-347 | ||
4.8*1.6 | 0-966 | 0-612 | ||
6.4*1.6 | 0-1447 | 0-804 | ||
8.0*1.6 | 0-1887 | 0-1332 | ||
Silicon tube | 1.6*1.6 | 0-117 | 0-92 | |
3.2*1.6 | 0-491 | 0-375 | ||
4.8*1.6 | 0-1020 | 0-652 | ||
6.4*1.6 | 0-1494 | 0-848 | ||
8.0*1.6 | 0-1700 | 0-1400 |
