Composite Abrasion Resistant Alloy Carbon Steel Sheet Plate Dillidur 400 with Factory Price
- Category: Carbon Steel >>>
- Supplier: Shanghai Hengtie Steel Trading Co. Ltd.
Share on (60639035246):
Product Overview
Description
Product Description
1. Steel Grade: Dillidur 400
2.Size: thickness:5-150mm
width:1500-2500mm
length;6000-12000mm
Standard specifications
| QUALITY DESIGNATION | STEEL NUMBER | THICKNESS |
DILLIDUR® 400 V (400 HB) | 1.8715 | 8 – 150 mm |
DILLIDUR® 450 V (450 HB) | 1.8720 | 8 – 100 mm |
DILLIDUR® 500 V (500 HB) | 1.8721 | 8 – 100 mm |
DILLIDUR® IMPACT | 40 – 150 mm | |
X120Mn12 | 1.3401 | 2 – 50 mm |
Range of application
DILLIDUR 400 V can be delivered in thicknesses from 5 mm to 150 mm (6 in.), according to the dimensional program. Other dimensions may be possible on request.
Chemical composition
For the ladle analysis, the following limiting values in % are applicable:
| C | Si | Mn | P | S |
| ≤ 0.20 | ≤ 0.50 | ≤ 1.80 | ≤ 0.025 | ≤ 0.010 |
Depending on thickness, the following alloying elements are used singly or in combination for control of full hardening:
| Mo | Ni | Cr | V | Nb | B |
| ≤ 0.50 | ≤ 0.80 | ≤ 1.50 | ≤ 0.08 | ≤ 0.05 | ≤ 0.005 |
The steel is fully killed and fine-grain treated.
Indicative values for the carbon equivalent:
| Plate thickness [mm] | 10 | 25 | 40 | 80 | 120 |
| CEV 1) | 0.37 | 0.46 | 0.51 | 0.61 | 0.64 |
| CET 2) | 0.28 | 0.31 | 0.33 | 0.35 | 0.36 |
Delivery condition
Controlled water quenched.
1) CEV = C + Mn/6 + (Cr + Mo + V)/5 + (Ni + Cu)/15
2) CET = C + (Mn + Mo)/10 + (Cr + Cu)/20 + Ni/40
Mechanical properties in the delivery condition
Hardness
Hardness at room temperature: 370 – 430 HBW
Tensile testing on transverse specimens at room temperature (indicative values for 20 mm (0.8 in.) plate thickness)
Tensile strength 1200 MPa (175 ksi)
Yield point 800 MPa (116 ksi)
Elongation 12 % (lo = 5.65√So)
In spite of their high tensile properties, DILLIDUR steels are not intended for safety relevant components. For this purpose high strength steels DILLIMAX are available.
Charpy-V impact test on longitudinal specimens (indicative values for 20 mm (0.8 in.) plate thickness)
Toughness 30 J at -40 °C (-40 °F)

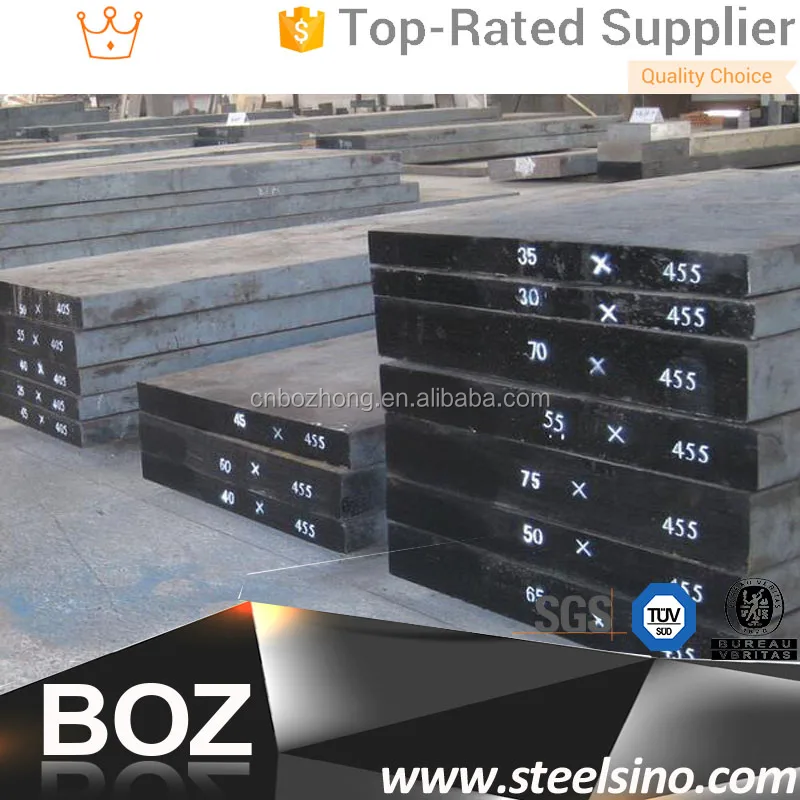

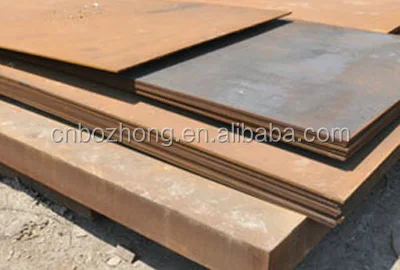

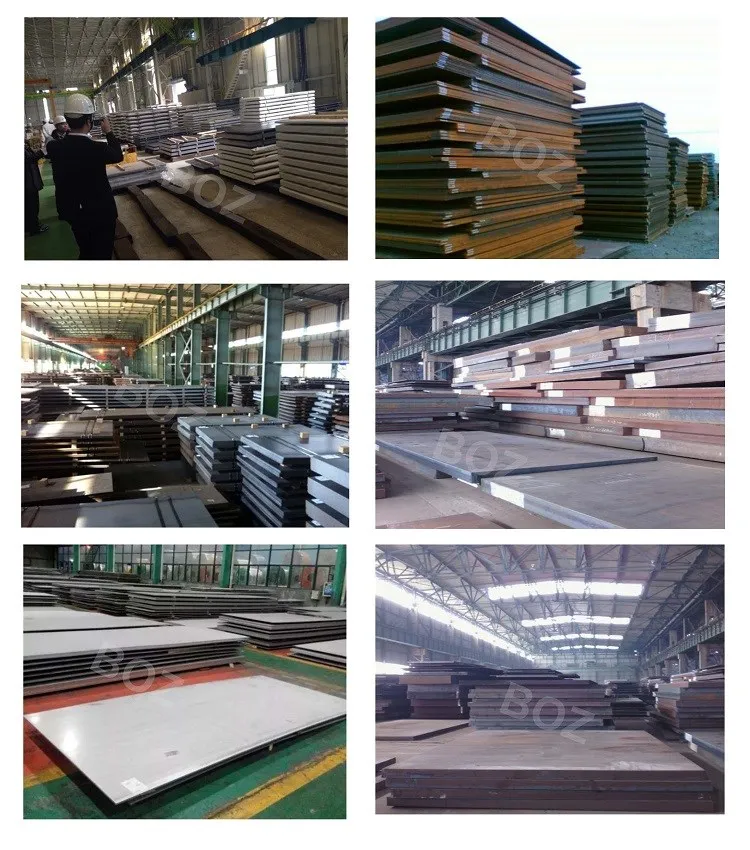

Product Photo
Product Photo:

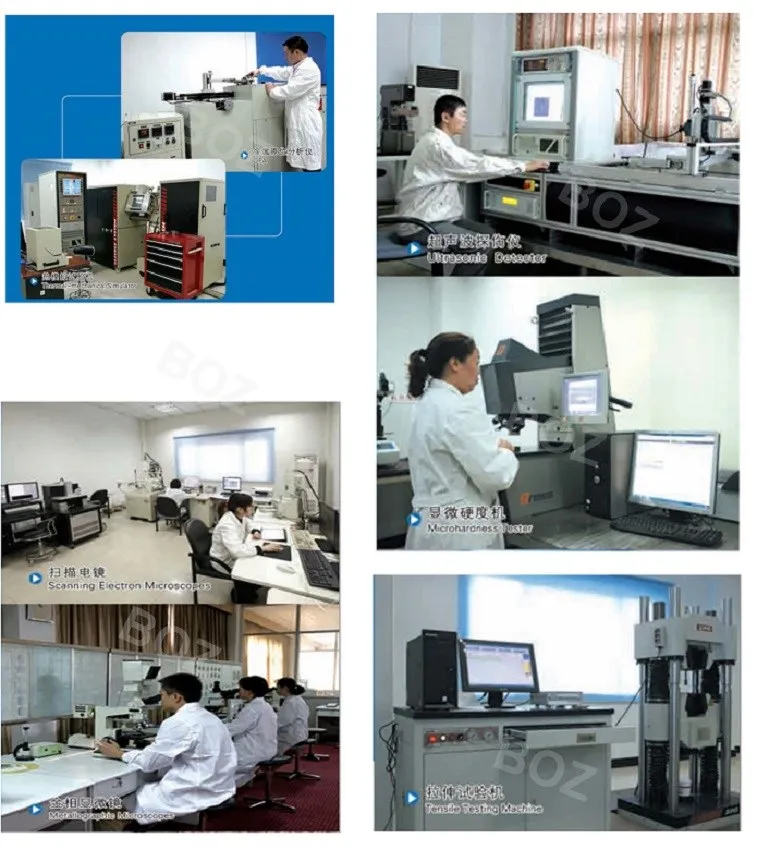

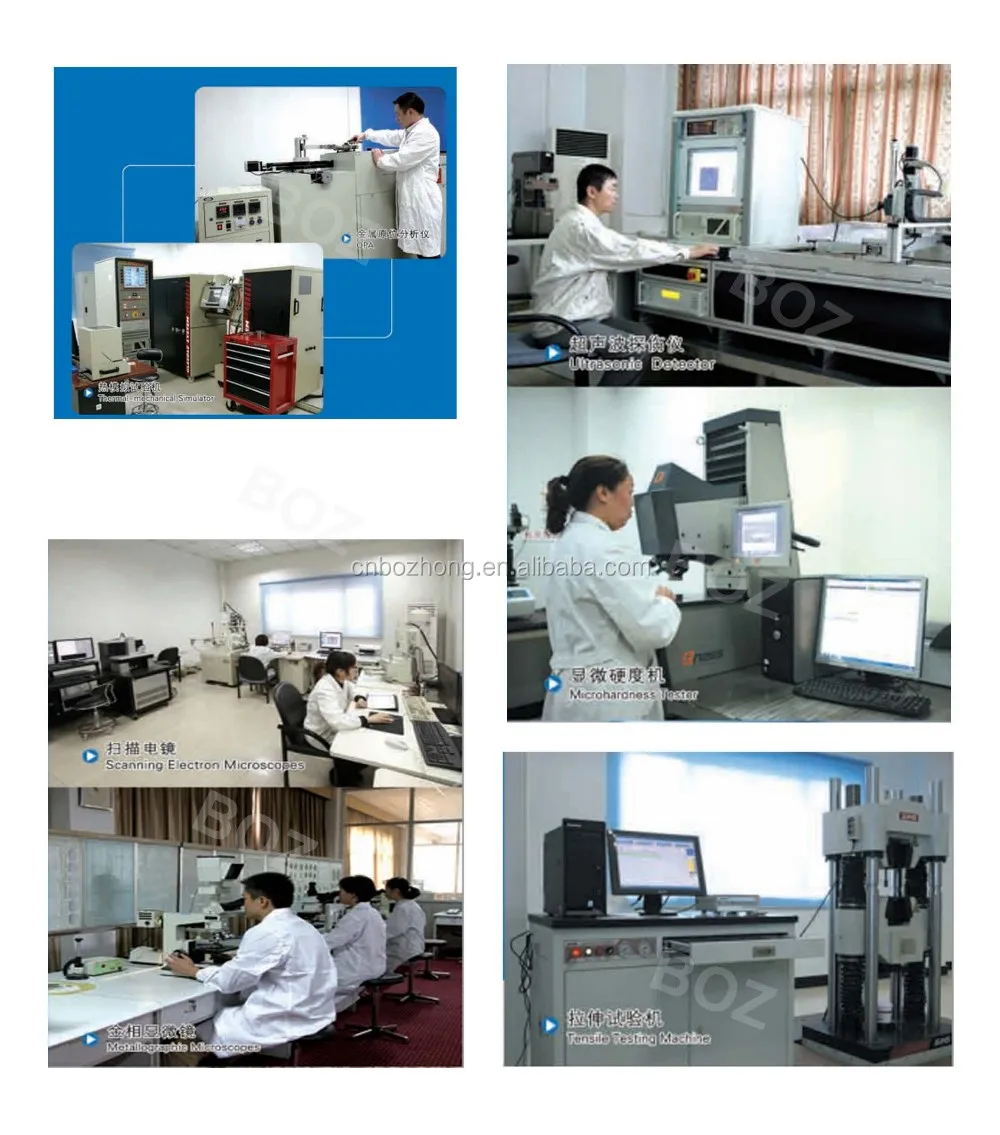

Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET
Customer Visiting
Warmly welcome! Pick up your phone and Call us!
Send us the inquiry here!
We will reply you at the first time.
FAQ
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don’t have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
Company Information
Bozhong Group Mainly supply in forms of coil, sheet, plate, rod, bar, tube, pipe, beam, angle, flange, wire, strip, channel, etc., with various varieties, wide range of dimensions, high purity, stable chemical composition, high dimensional accuracy and excellent surface quality. The products are mainly used in the fields of industries such as automobile engineering, railway transportation, aviation, aerospace, machinery, petrochemical, energy, environmental protection, offshore, chemical, oil & gas, military, power plant, nuclear power, pressure vessel, boiler equipment, mold manufacture, etc.
l steel coil
l steel plate
l steel sheet
l steel bar/rod
steel round bar
steel flat bar
steel square bar
l steel pipe/tube ( welded or seamless )
steel round pipes
steel square pipes
steel welded tubes
steel seamless tubes
l steel strip
l steel beam
l steel angle
l steel channel
l steel flange
l Steel wire
Bozhong Group can supply a variety of structural steel, high-strength steel, wear-resistant steel plate, boiler and pressure vessel steel, marine engineering and stainless steel plate in the thick steel and various European standard bars and pipes and profiles.Our global sales and service network throughout all around the world to ensure that the goods reach the customer in the shortest time.
We can follow your drawings and requirements, to provide you with oxygen cutting, plasma cutting and laser cutting and other processing services. You can also perform ultrasonic testing in accordance with EN10160 standard, EN10164 standard test Z15, Z25, Z35, weld bending detection, PWHT detection,etc.
We have ISO9001: 2000 quality management system certification, and obtain the quality certification from all the well-known certification company, including TuV / LRS / GL / CE and so on.
Special steel includes as below:
Boiler and pressure vessel steel
Pipeline steel
Bridge steel
Nuclear power steel
Structural steel
Die steel
High strength steel
Abrasion resistant steel
Weathering, corrosion resistant and fire resistant steel
High rise building steel
Shipbuilding and offshore engineering steel

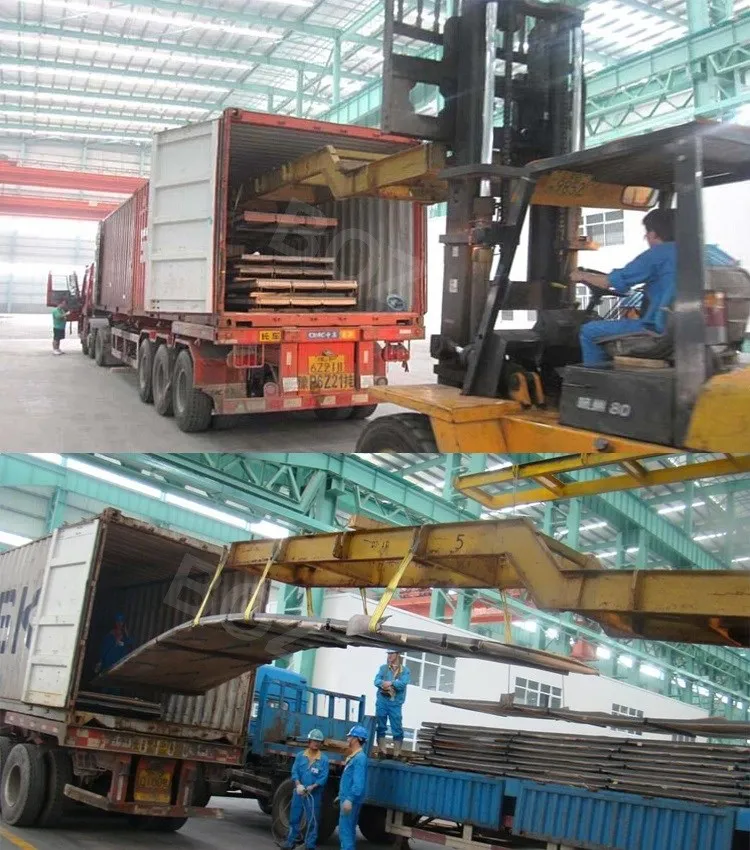

wrkshp&wrhse&shppg
