Product Overview

Description

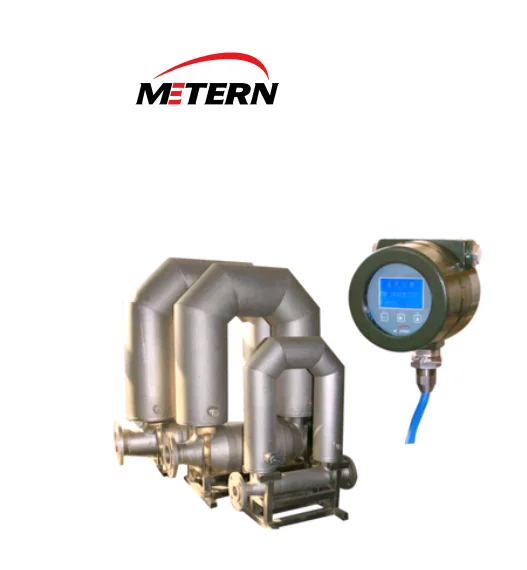

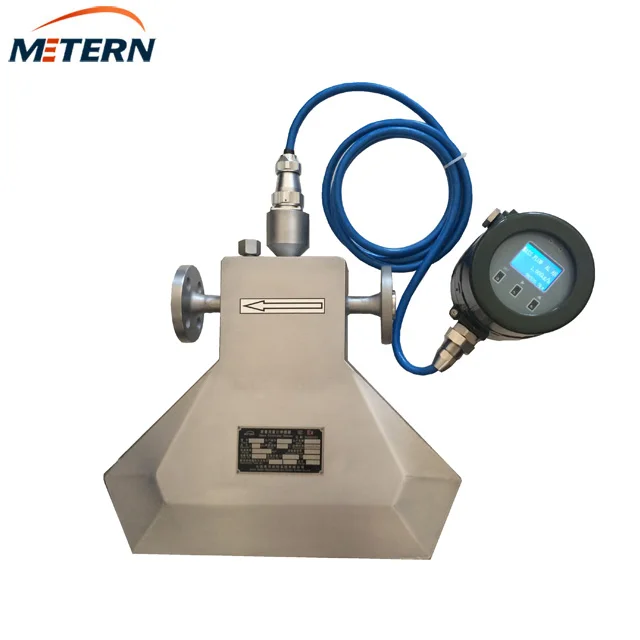

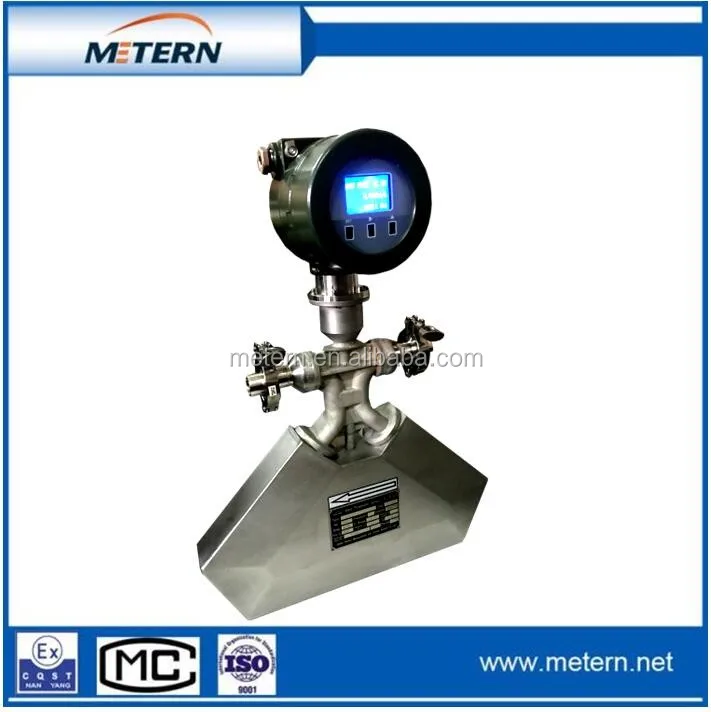

High accuracy Coriolis mass flow meter

Fuel cost is one of the biggest factors for operating ships and represents 50-70 % of the total operating cost of the vessel. As the prices of fuel reach a new high every day and the environmental policies on ships’ emission become more stringent, it becomes very important for the shipping companies to keep a check on fuel consumption and utilization and develop ways to correctly measure the quantity of the fuel used on board ship.



The fuel flow metering technology – Coriolis Technology has been developed which might help greatly in fuel measuring on board ships.



Application of Coriolis Technology

• Bunker measurement: Bunker fuel measurement disputes are very common as accurate measurement of the marine fuel is not often possible with conventional flow meter system. Hence the Coriolis system can play an important role in bunkering operation.

• Efficiency and power calculation: Fuel Efficiency of the ships’ plant and power can be measured more authentically if an accurate and correct flow measurement is available.

Advantages of Coriolis Technology

• They are free from rotating parts hence less chances of breakdowns.

• Measurement is accurate.

• No need of further mathematical calculations.

• Elimination of human error factor.

• Best suited for HFO applications as not affected by density and viscosity of the fluid.

• Can tolerate portion of air in the liquid & still delivers acceptable performance.



• In addition to mass measurement, density and temperature are also measured.





Product advantage

1. Unchallengeable MTCMF performance on liquid mass flow, volume flow, and density measurement
2. Unique design delivers unparalleled measurement sensitivity and stability

3. Guarantees consistent, reliable performance over the widest flow range
4. Designed to minimize process, mounting, and environmental effect

5. Factory supply ensure competive price and fast delivery

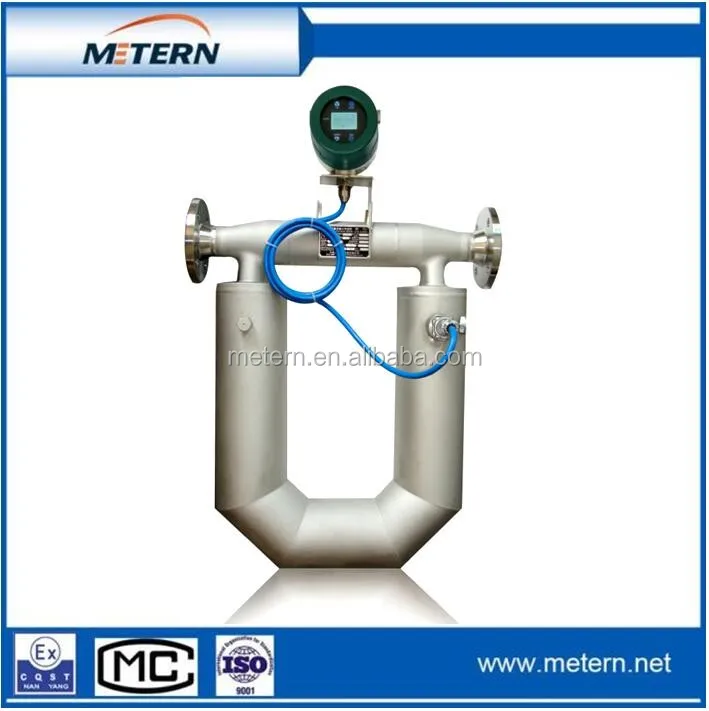

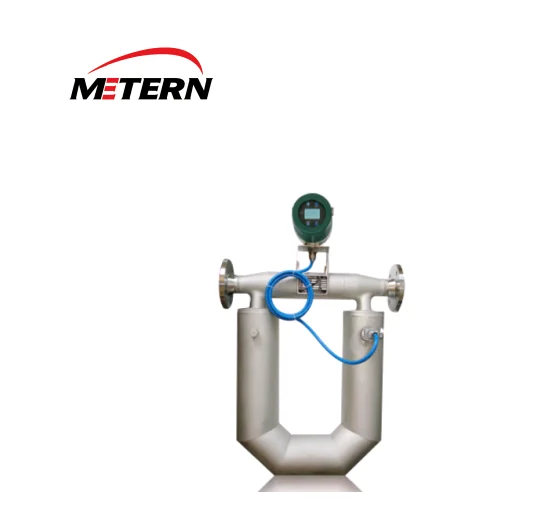

6. U type dimension is the same as Micro Motion ELITE Series

7.  MODBUS and HART Protocol is availabel for your choice.



Technical parameters

Model	Meter Size (mm)	Flow Range (kg/hr)
MTCMF-003	3	0~180
MTCMF-006	6	0~720
MTCMF-008	8	0~1200
MTCMF-010	10	0~2100
MTCMF-015	15	0~4500
MTCMF-020	20	0~7200
MTCMF-025	25	0~12000
MTCMF-032	32	0~21000
MTCMF-040	40	0~36000
MTCMF-050	50	0~60000
MTCMF-080	80	0~180000
MTCMF-100	100	0~280000
MTCMF-150	150	0~600000





Accuracy	±0.2%, ±0.1% optional
Repeatability	±0.1~0.25%
Fluid temperature	Standard:-50~+200℃ -200~+350℃ can be customized
Ambient temperature	-20~+60℃
Fluid pressure	Standard: 0~40bar 0~350bar can be customized
Meauring tube material	SS316L
Housing material	SS304
Ex-proof	Exd(ia)IICT6Gb
Process connection	Flange/Thread/Tri-clamp/DIN11851
Display	LCD digital display
Measuring variable	Mass flow, volume flow, temperature, density
Power supply	18~36VDC; 85~265VAC
Output signal	Pulse/4-20mA/Frequency
Communication	Modbus/HART



Installation

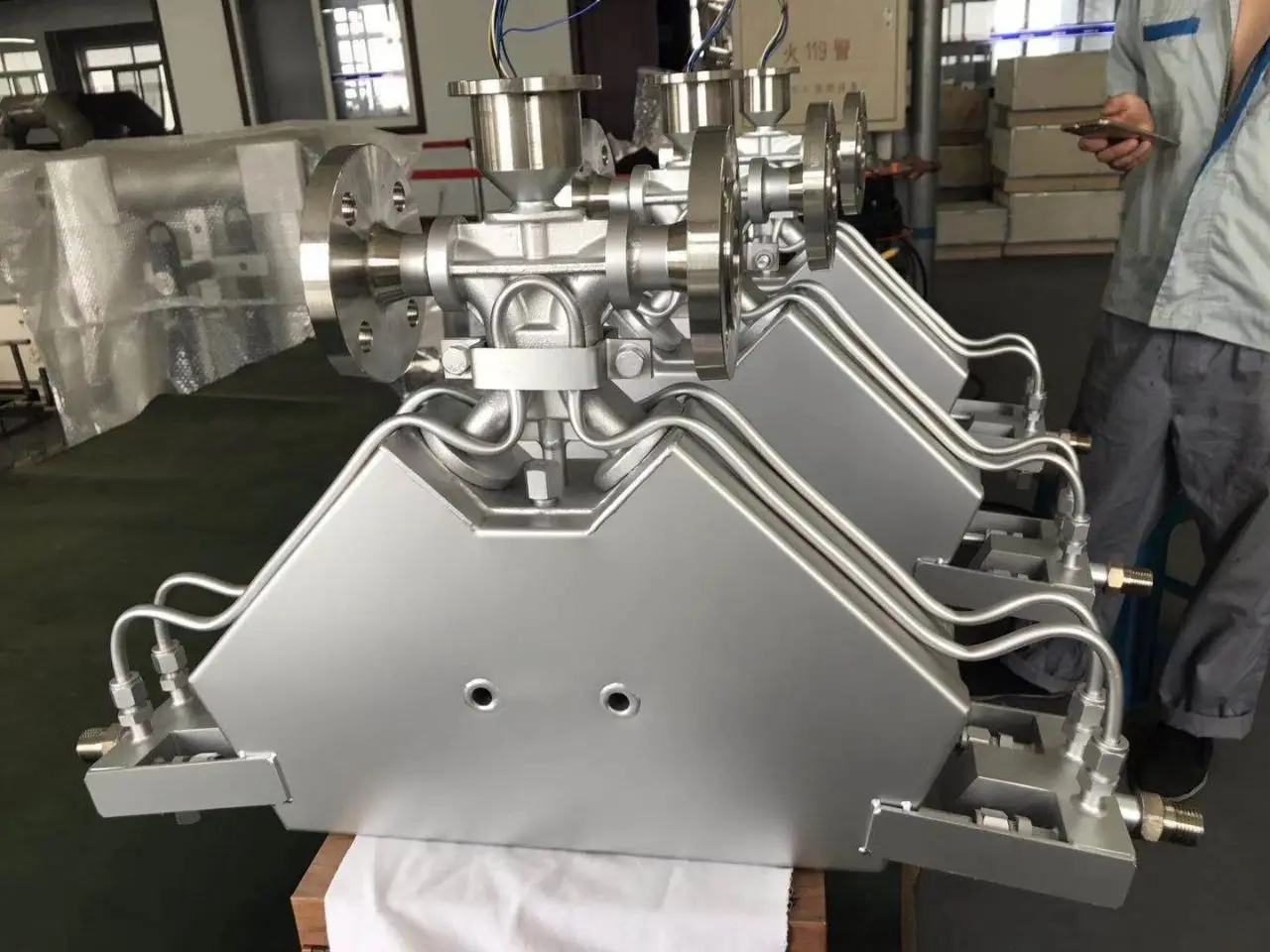

Product line

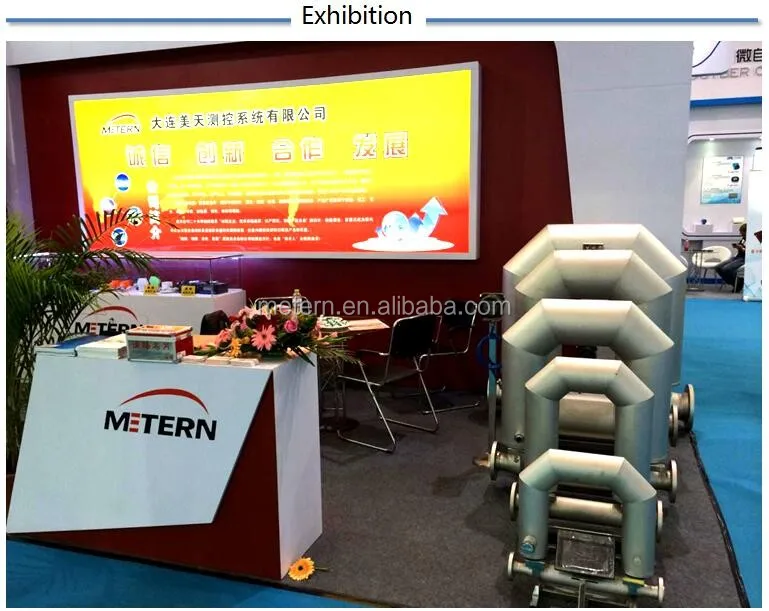

 Exhibition







Be founded in 1998.

Registered capital: USD 10 million

Building area: 30000m2

Established R&D of Coriolis mass flow meter since 2005

Started production and sales of Coriolis mass flow meter since 2008

Products are exported to Italy, Spain, Belgium, Brazil, Colombia,  Malaysia, ect.





 Certificate
