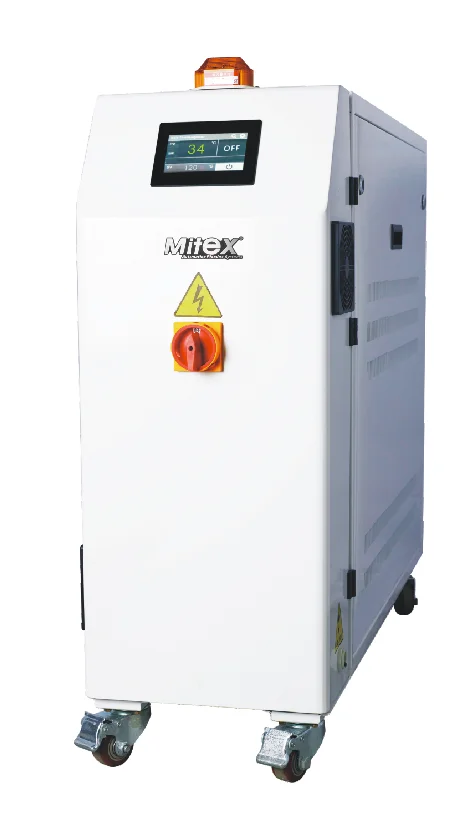

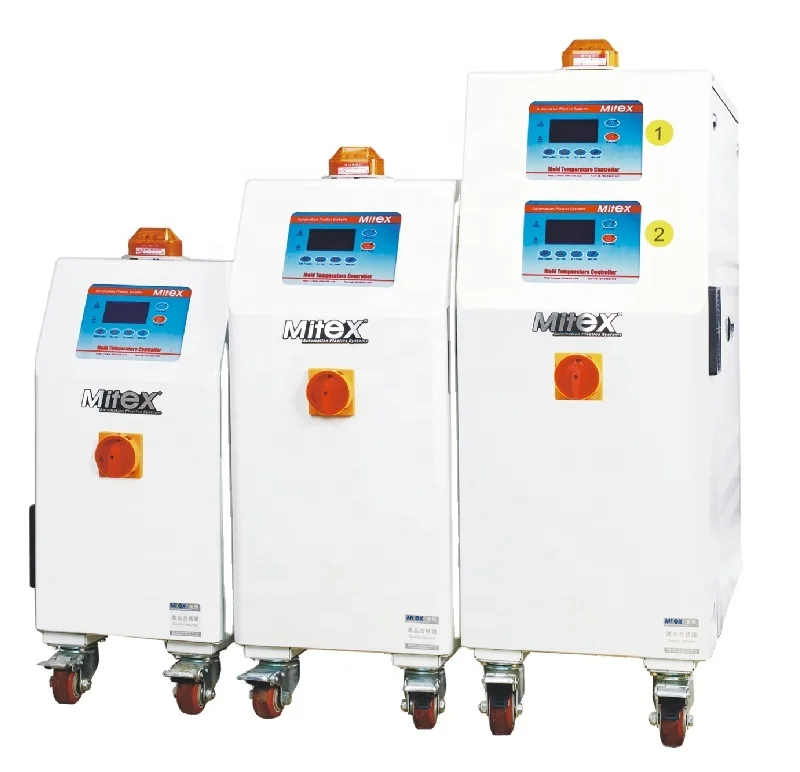

MTC series water heaters have both standard and high temperature models, which are used to heat up the mould and maintain temperature, although they can be used in other similar applications. High temperature water from the mould is returned to the cooling tank and cooled by either indirect cooling (For high temperature and high temperature plus pressure models) or direct cooling (For standard models). It is then pressurised by the high-pressure pump, sent to the heating tank and finally to the mould with a constant temperature. The OMRON temperature controller can maintain an accuracy of ±0.3°C
Standard Equipment
1. LCD Display, Choice of Language, 2. Siemens control parts, 3. Electric Cabinet Separation design 4. Over temperature Trip. 5. Return Temperature Display 6. Auto Ventilation 7. Safety Valve, 8. Liquid Level Sensor 9.Booster Pump. 10. Mannetic Drive pump

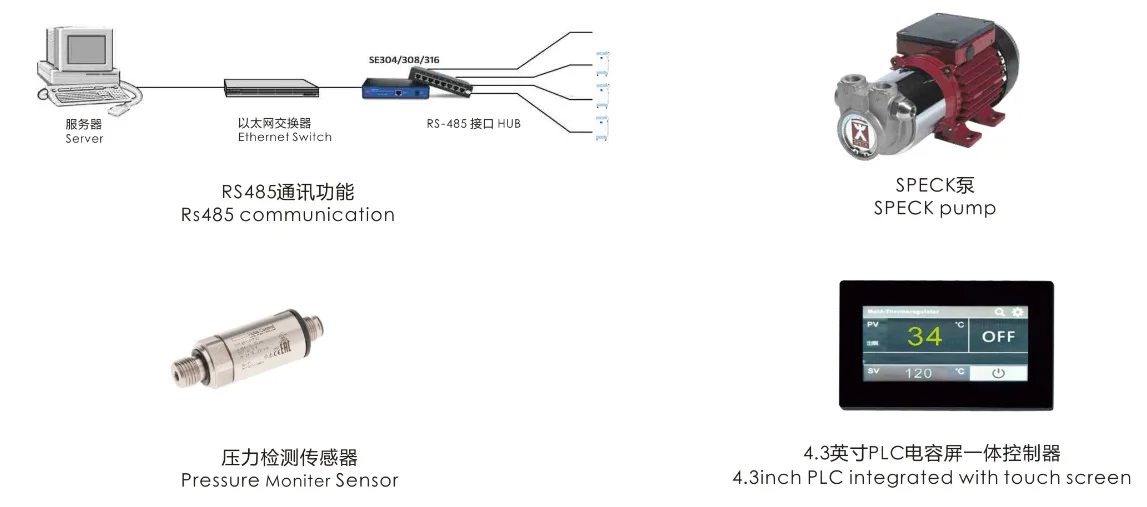

For Option

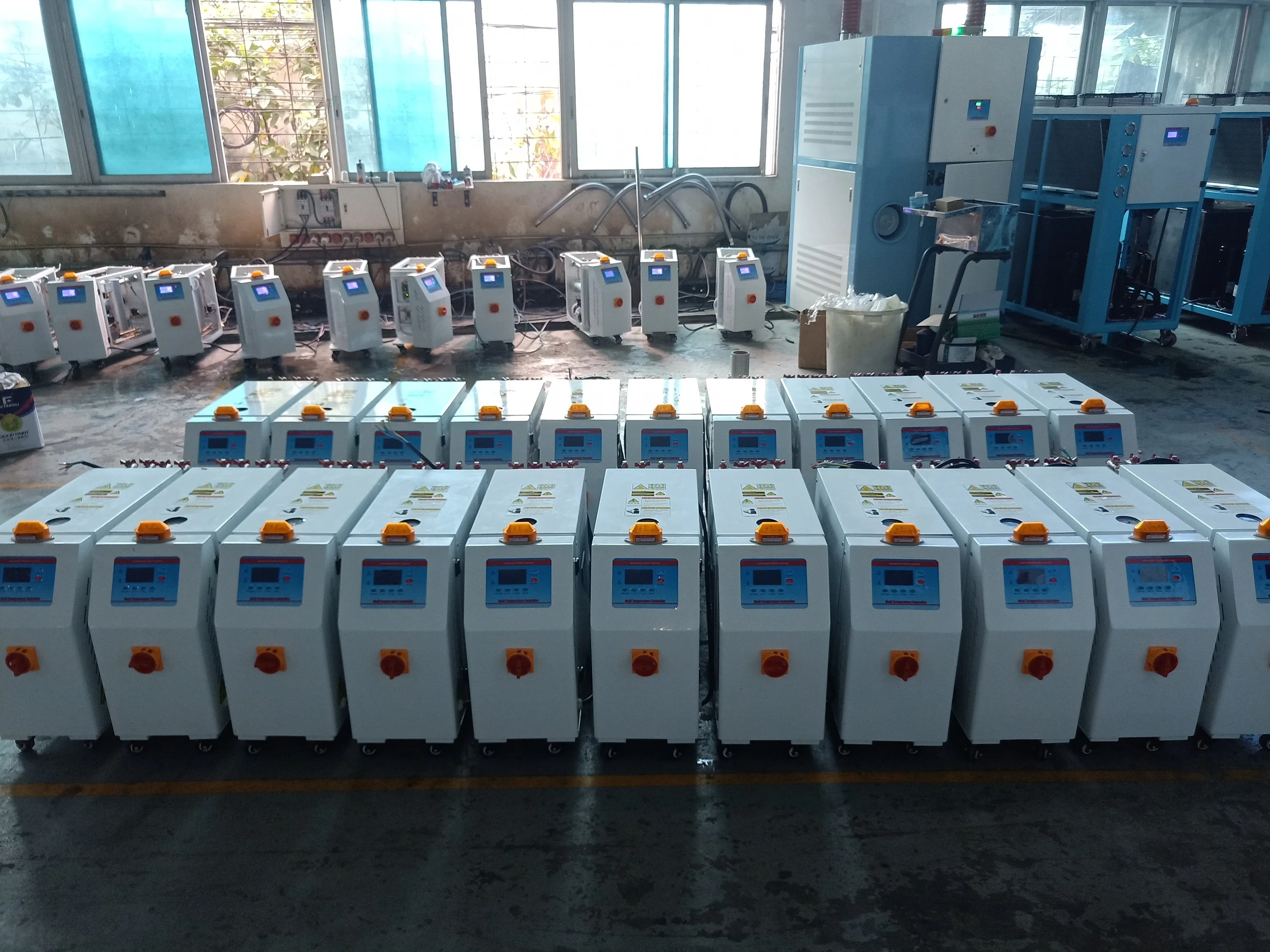

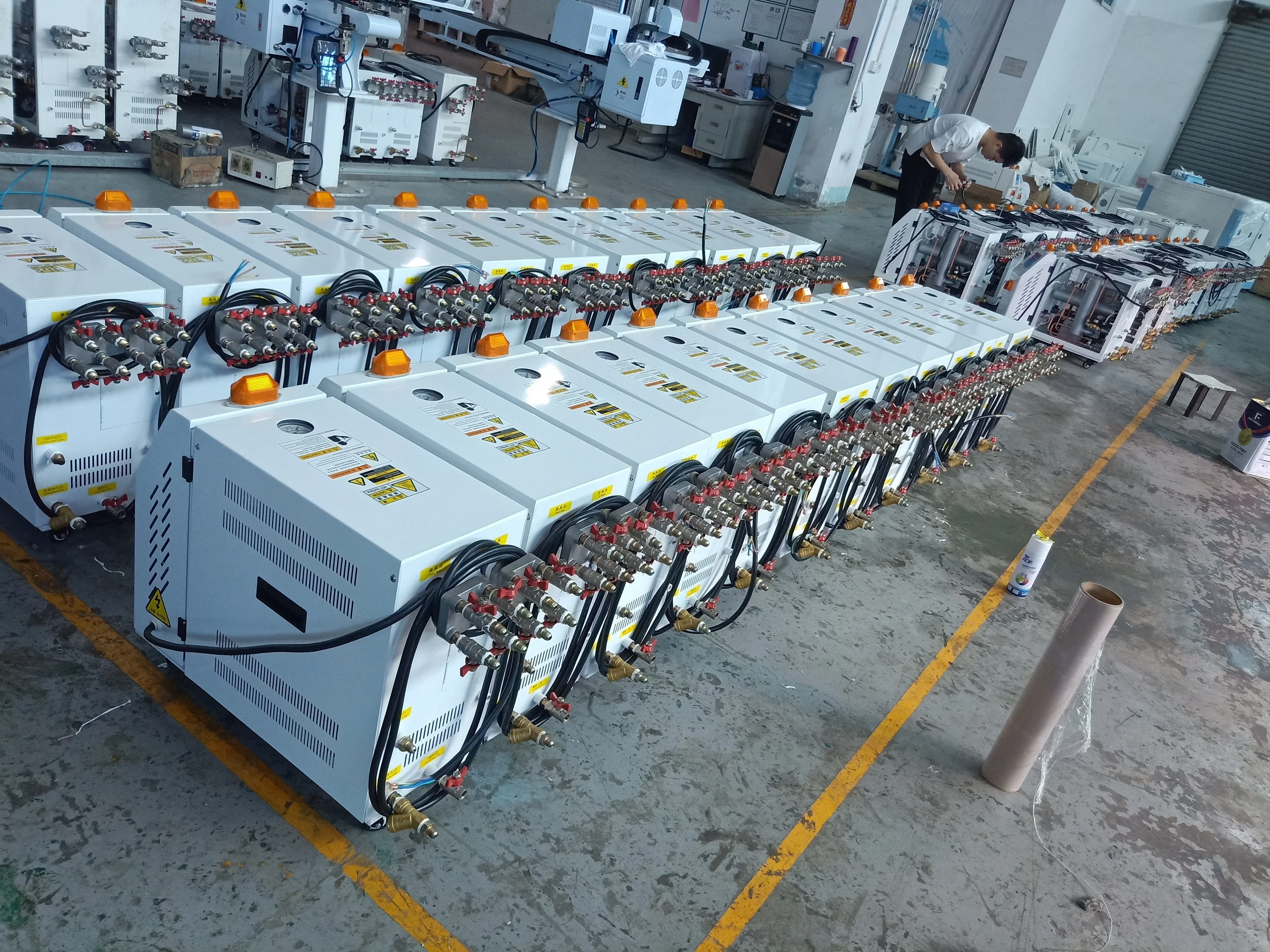

WORKSHOP.
Details Images

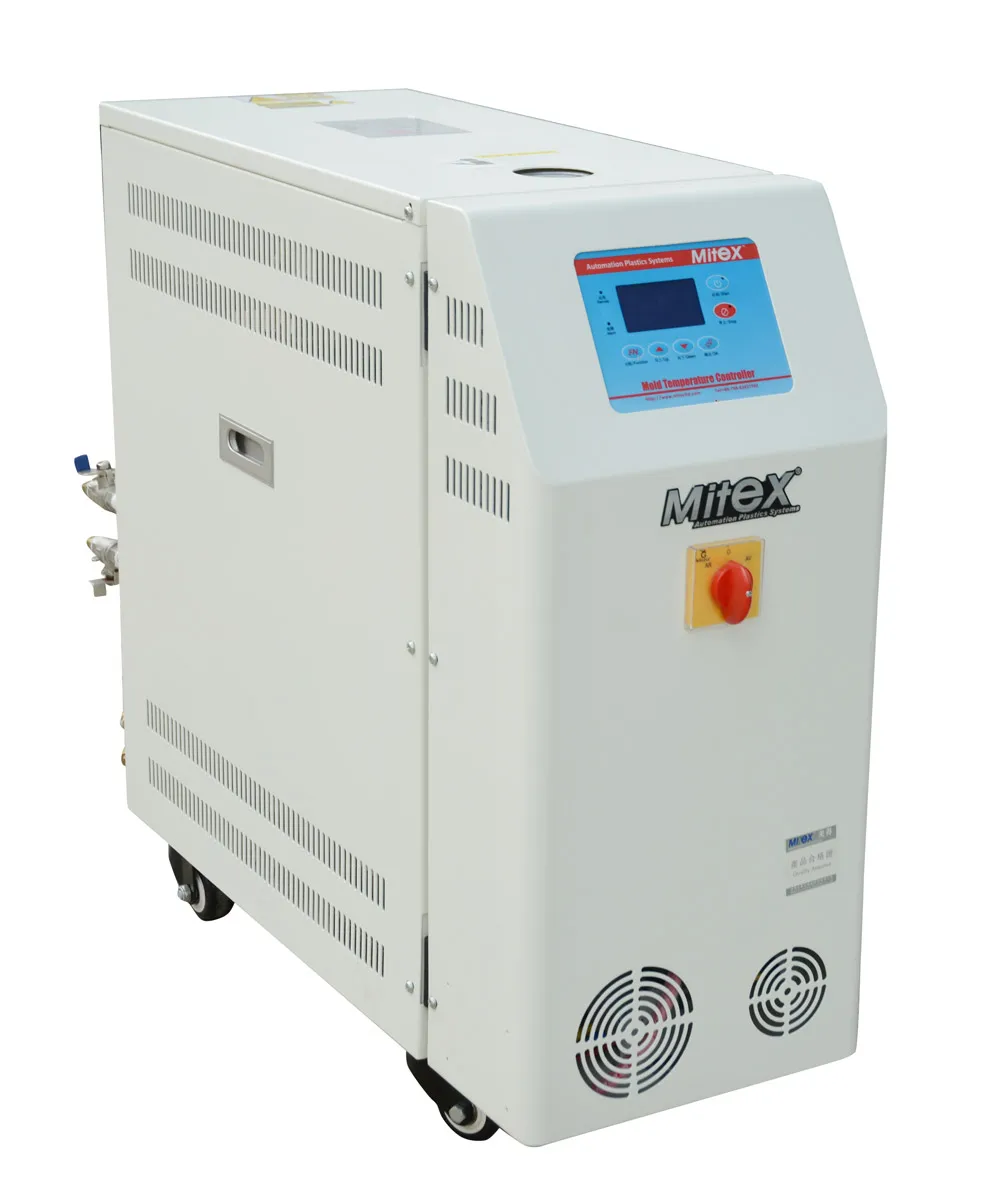

Side View
Back View
Inside
Inside
Electries
TAIWAN YS Magnetic Drive Pump
KOREA Rainbow Overheat protector
Pressure guage

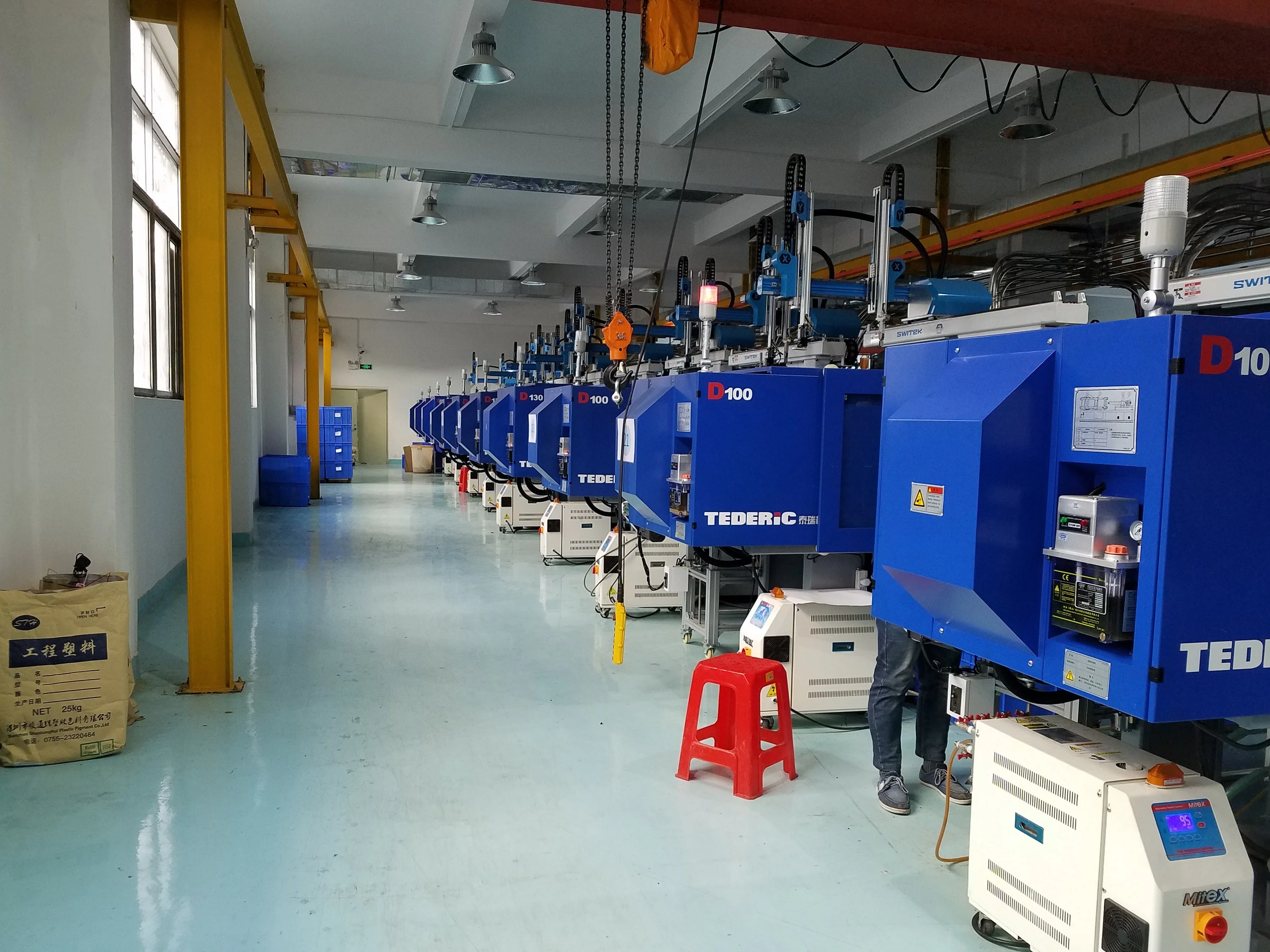

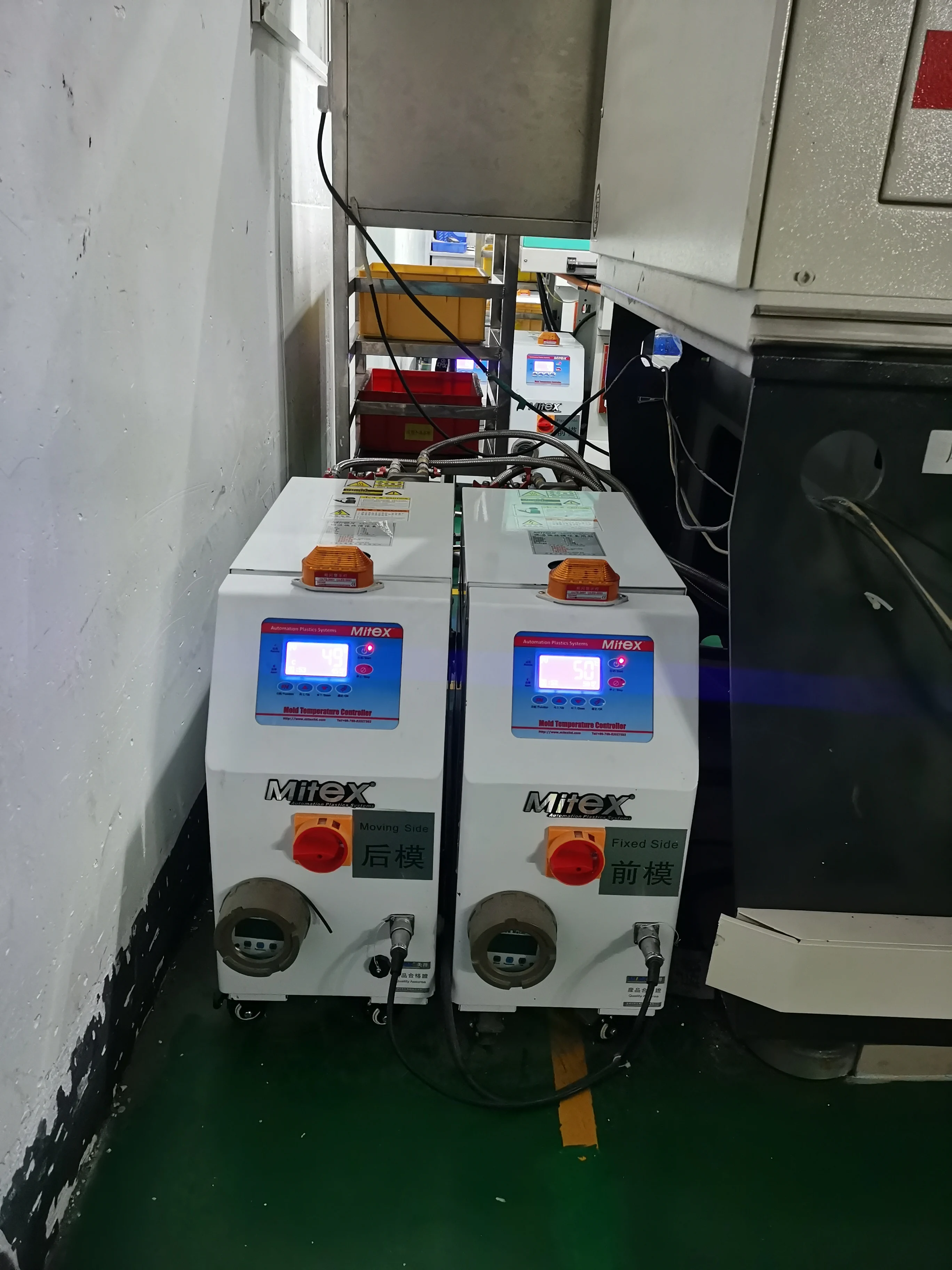

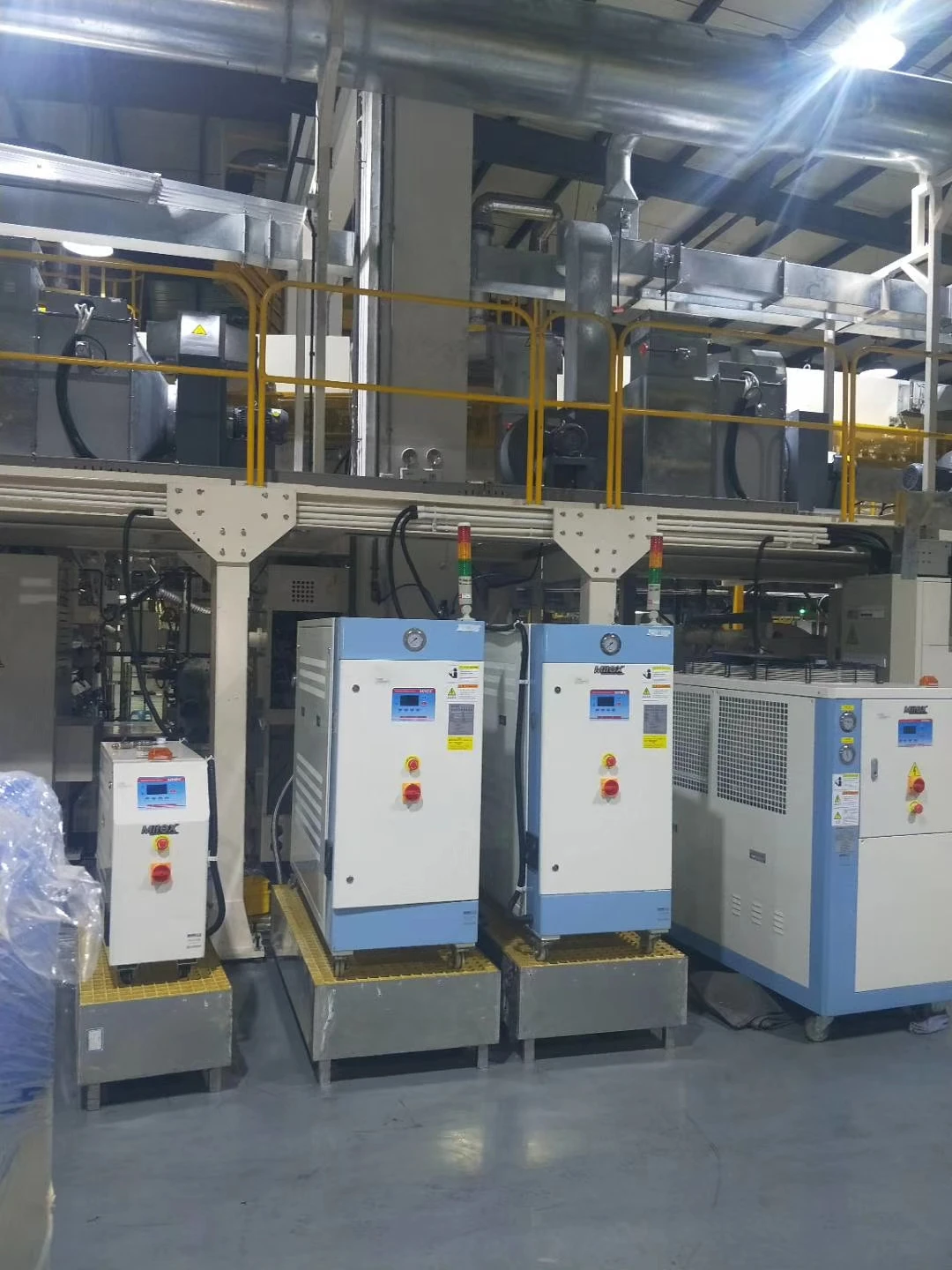

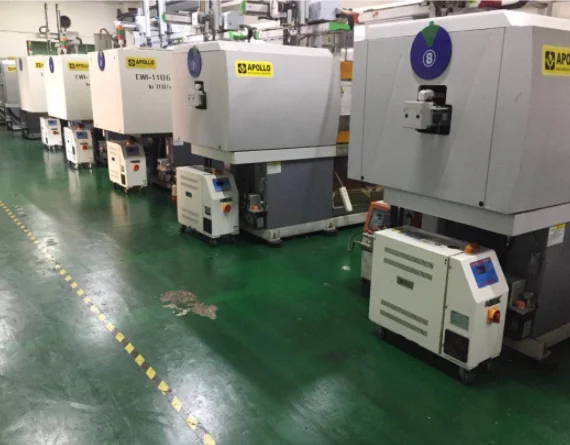

Customer cases
Product Paramenters
Model
MTC
1205G
1210G
1210S
1220S
1230S
1210G-TS
Medium
Fresh Water
Max. working temp.
120℃
Control Method
P.I.D control
Heater Capacity
6kw
9kw
9kw
12kw/18kw
18/24kw
9kw*2
Pump
seal method
Mechanical method
Motor capacity
0.37KW
0.75KW
0.75KW
1.5KW
2.2KW
0.75kw*2
Max. pressure
0.28Mpa
0.38Mpa
0.22Mpa
0.24Mpa
0.26Mpa
0.38Mpa
Max. flow
42L/Min
56L/Min
165L/Min
235L/Min
315L/MIn
56L/Min
Cooling method
direct cooling
Cooling capacity (KW)
11
50
11
11*2
circulation line
Main Pipe
1 inch
15
1inch
Branch pipe
3/8" 2 direction
3/8" 8 direction
3/8" 8 direction
Cooling Line
3/8"
3/4''
3/8"
3/8"
Alarm
Phase reverse, Medium shortage, pump overload, tem. upper and lower limite, overheat protectiion
Power supply
AC 380V, 3 Phase, 50hz
Water pressure
0.1-0.3Mpa
Accessorires
5 Meters power cable
Dimension (MM)
850*290*655
850*290* 655
1070*310*695
1130*340*835
1130*340*835
1100*340*935
Net weight (kgs)
50
54
60
110
120
105
Related Products

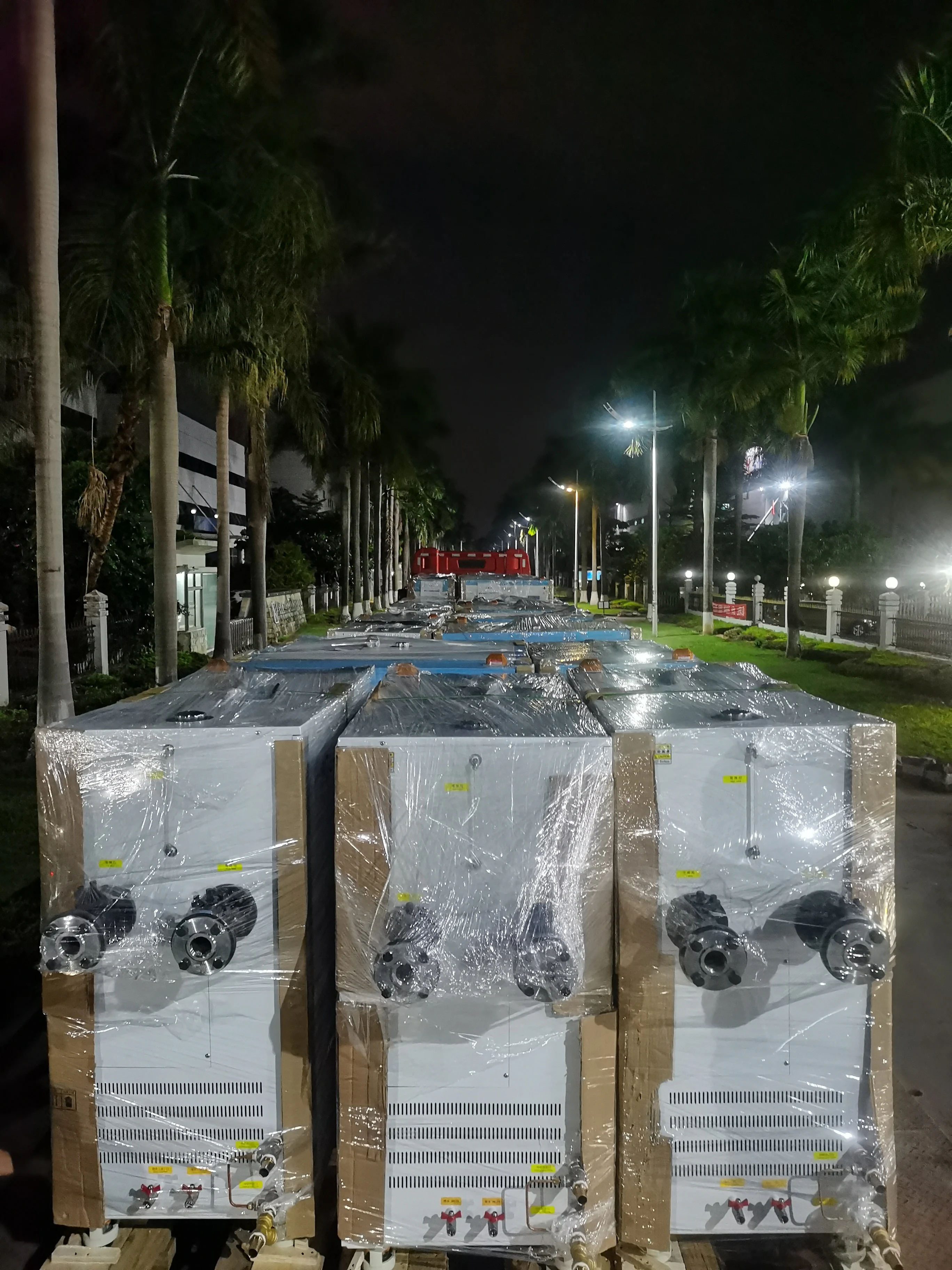

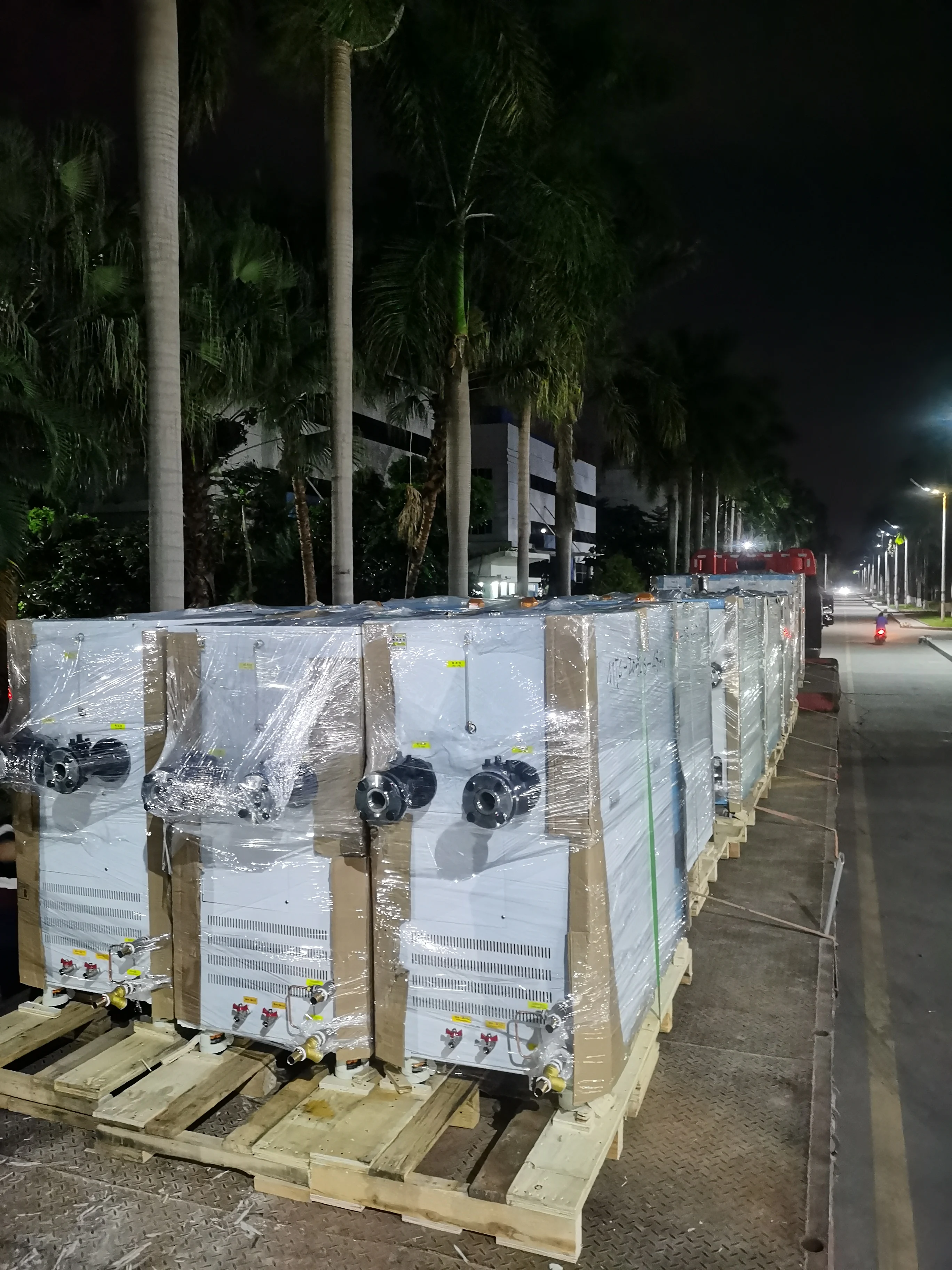

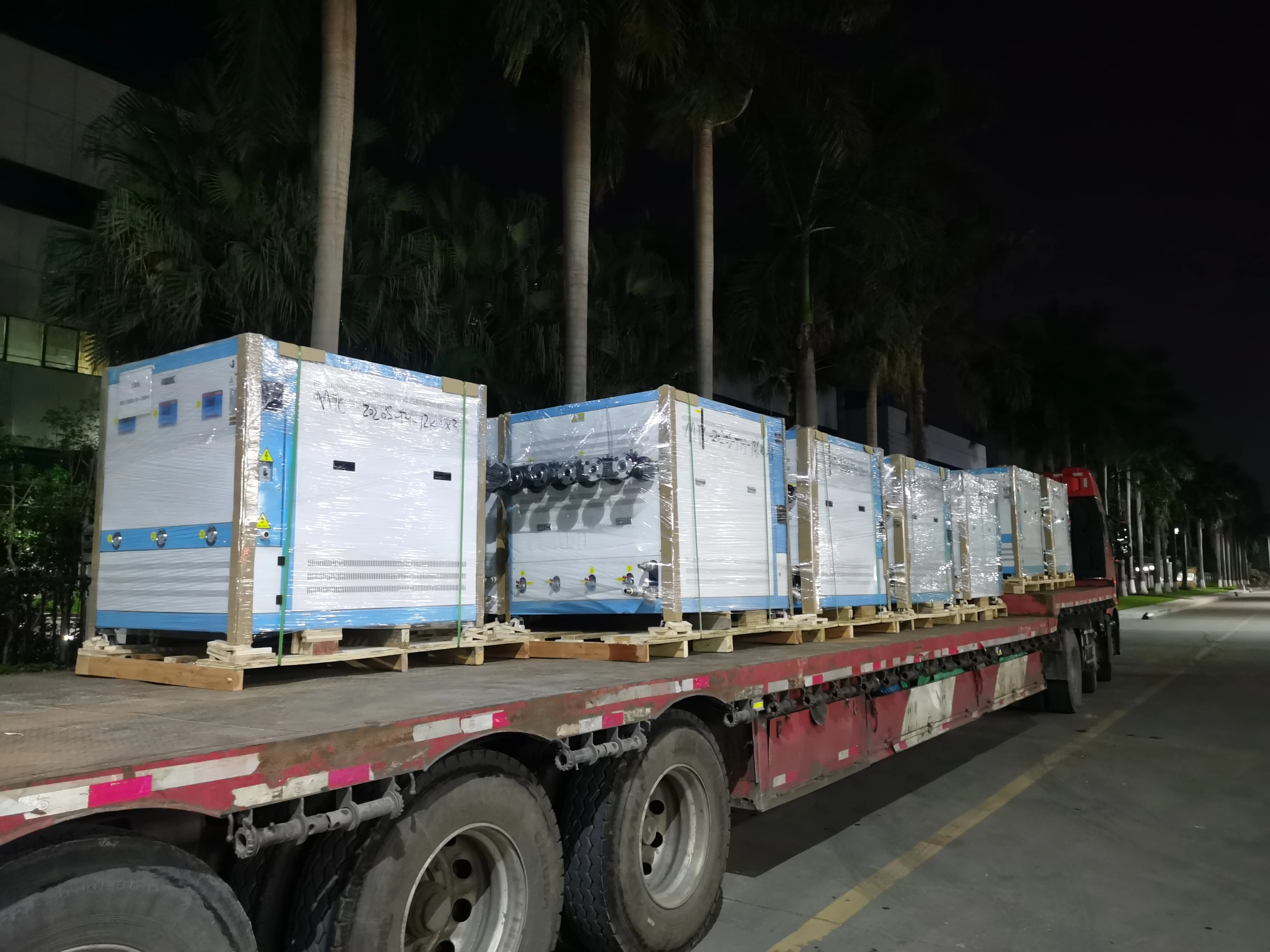

Packing&Shipping
