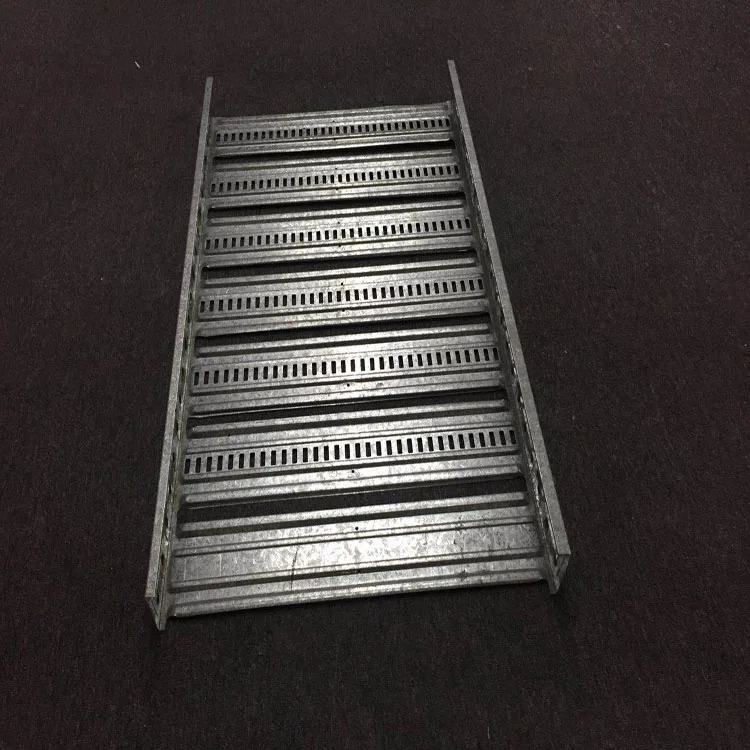

  • High Quality Automatic Trapezoid Cable Tray Making Machine Production Line
High Quality Automatic Trapezoid Cable Tray Making Machine Production Line
High Quality Automatic Trapezoid Cable Tray Making Machine Production Line
High Quality Automatic Trapezoid Cable Tray Making Machine Production Line
High Quality Automatic Trapezoid Cable Tray Making Machine Production Line
High Quality Automatic Trapezoid Cable Tray Making Machine Production Line
High Quality Automatic Trapezoid Cable Tray Making Machine Production Line
High Quality Automatic Trapezoid Cable Tray Making Machine Production Line

High Quality Automatic Trapezoid Cable Tray Making Machine Production Line

Share on (60639478667):


Price:$58,000.00 - $60,000.00

Quantity:


Product Overview

Description



Words From Our Hearts


We can sell a machine at a very low price and still have profits like others.
But your terrible using experience will prevent you from purchasing our machines in the future.
We only do high quality machines and seek for win-win and long-term cooperation.

1.CE&ISO&SGS Certificaiton 2. Customization Accepted 3. High Stability and Precision
4. Famous Brand Control System(PLC:Panasonic, Transducer: Yaskawa, Encoder: Omron, Electronics: Schneider)






Product Description


Items
Specifications
Hydraulic decoiler
5 ton
Rolling Speed
8 -12 m/min
Diameter of roller shaft
90mm
Hydraulic cutting power
22kw
Material of cutting
CR 12 with quench treatment,HRC58-62°
Tolerance
+ - 1.5mm
Control System
PLC with touch screen Japanese Panasonic and Yaskawa Brand
Way of drive
by chain

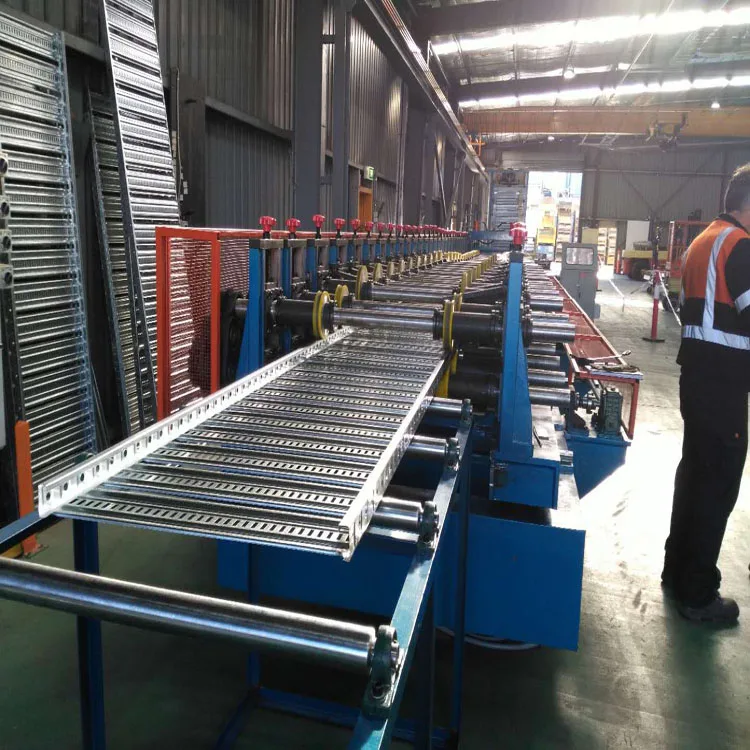

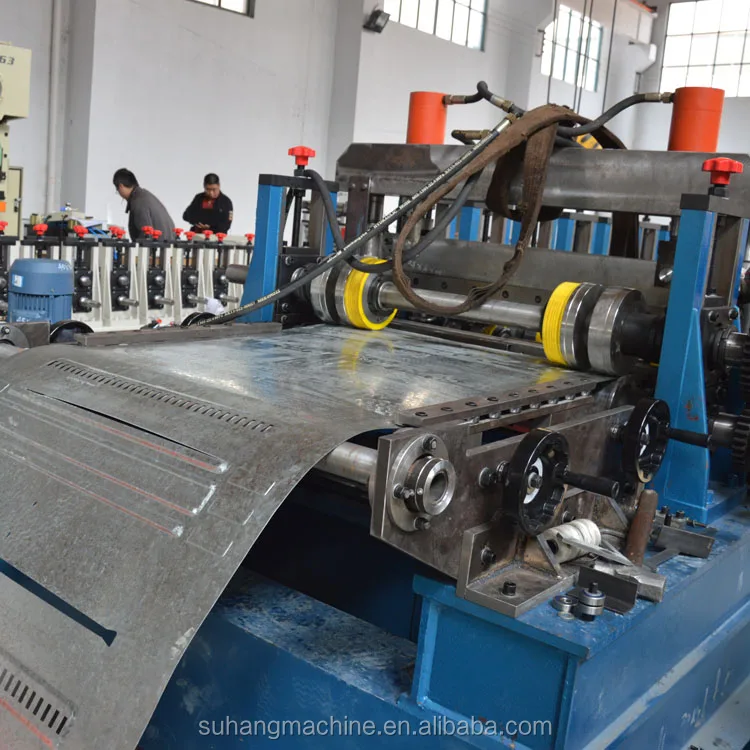

Working flow of roll forming machine

Uncoiling—Feeding&Leveling-Punching--Pre--cutting -Roll forming—Products collecting





                                                                                           Main Components
5 tons hydraulic decoiler
1 set
Leveling device
1 set
Servo feeding device
1 set

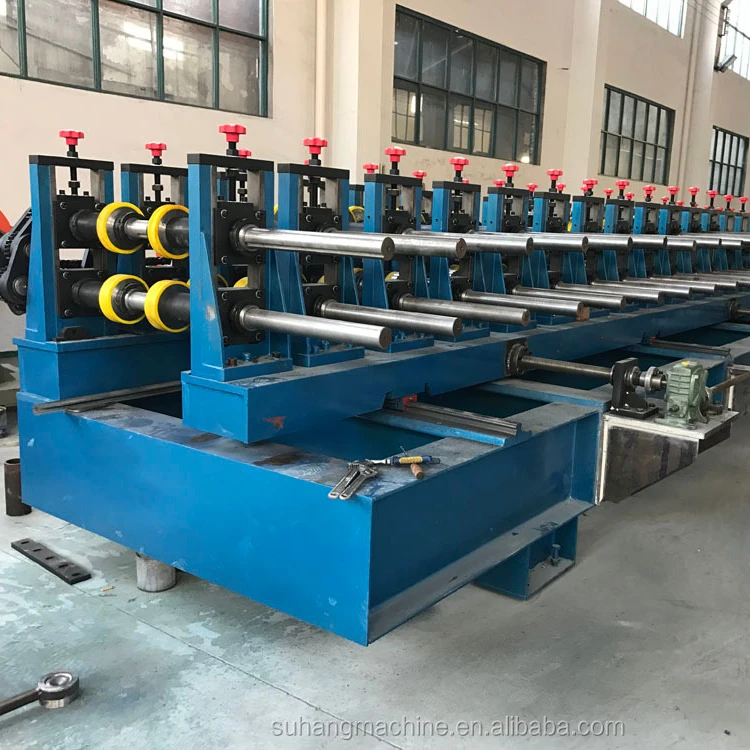

Roll forming machine
1 set
Punching Press machine
1 set
Pre cutting
1 set
Hydraulic station
1 set
PLC control box
1 set
Cutting device
1 set
Out tables
2 sets
Spare parts
1 set








Details of machine


Feeding Servo feeding motor: 2.9KW Yaskawa (Japanese Brand)

Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can be+-0.05mm, the servo motor can control the speed, and can accept the input signal, and react quickly, and performance well, the touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.



JH21 series press machine description:

JH21series open back press with dry clutch and hydraulic overload protector

◆    Welded body with steel plate and high intensity.

◆    Main motor is made by Siemens.

◆    Adopts combined pneumatic friction clutch and brake.

◆    Cluster gear adopts the flooding oil lubrication.

◆    Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.

◆    Equipped with hydraulic overload protecting device.

◆    JH21-25/25B/45 adopts manual shut height adjustment,among these types JH21-25/45 adopts scale display and JH21-25B with digital display.JH21-63 and above type adopts electric shut height adjustment with digital display.

◆    JH21-45 can equip with die set height adjustment motor, the value will be displayed by digital.

◆    JH21-25B, JH21-45 and above type equipped with balance cylinder.

◆    Duplex valves imported.

◆    Electric compelling grease lubrication system.

◆    Balancing cylinder adopts manual lubrication system.

◆  One set of blowing device.

◆    Controlled by PLC with international brand.

◆    Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.

◆    Equipped with optional air cushion device, automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments.

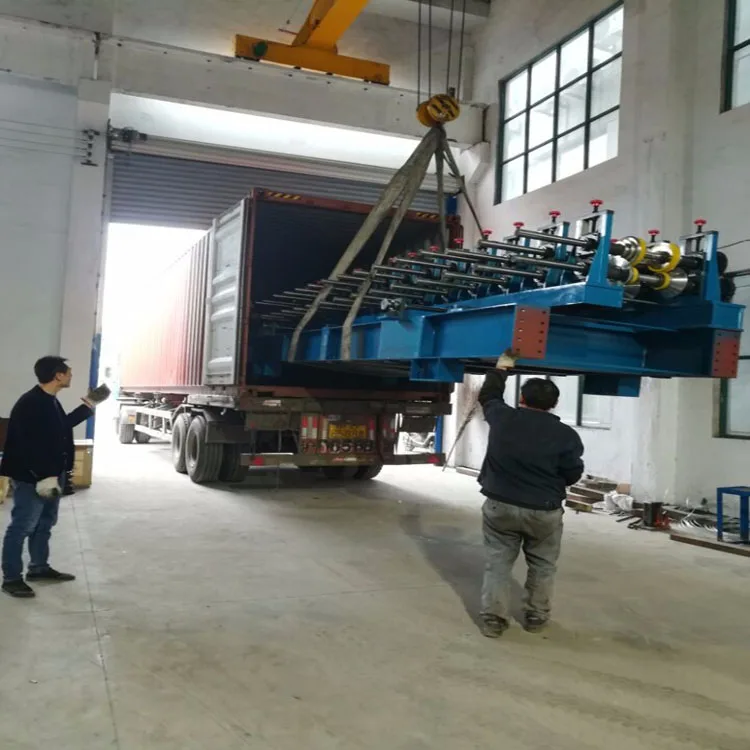

Packing & Delivery


The machine is in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 75 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.










Customers






FAQ


1.Does one machine can only produce one size?
Not exactly, it depends on the machine.

2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.

3. You are trade company or factory?
We are Manufacturer.

4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 60 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.

6.How to visit your factory?
By high speed train from Shanghai to Wuxi, half an hour.

7.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.

8.May we visit your factory?
Sure,Warmly welcome to our factory at any time.
