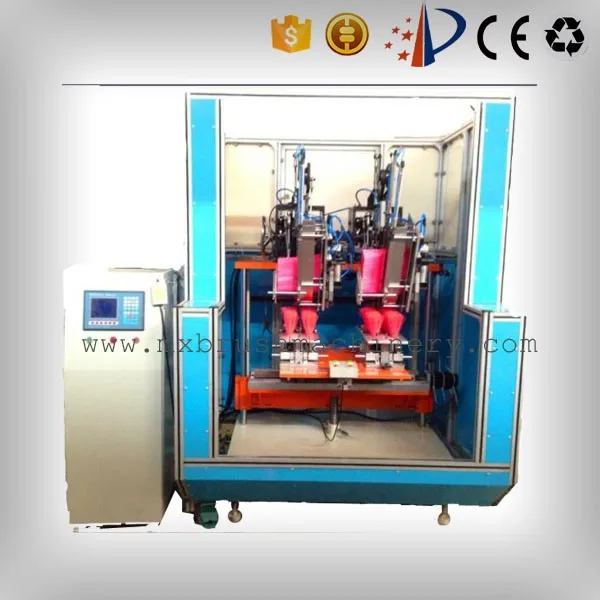

CNC 2 axis double tufting head plastic brush making machine/high efficient broom making machine/broom tufting machine
CNC 2 axis double tufting head plastic brush making machine/high efficient broom making machine/broom tufting machine
CNC 2 axis double tufting head plastic brush making machine/high efficient broom making machine/broom tufting machine
CNC 2 axis double tufting head plastic brush making machine/high efficient broom making machine/broom tufting machine
CNC 2 axis double tufting head plastic brush making machine/high efficient broom making machine/broom tufting machine
CNC 2 axis double tufting head plastic brush making machine/high efficient broom making machine/broom tufting machine
CNC 2 axis double tufting head plastic brush making machine/high efficient broom making machine/broom tufting machine

CNC 2 axis double tufting head plastic brush making machine/high efficient broom making machine/broom tufting machine

Share on (60640114017):


Price:

Quantity:


Product Overview

Description


Description:
ModelMX-2AT002
NO. of axis2 axis
Qty of heads2 tufting

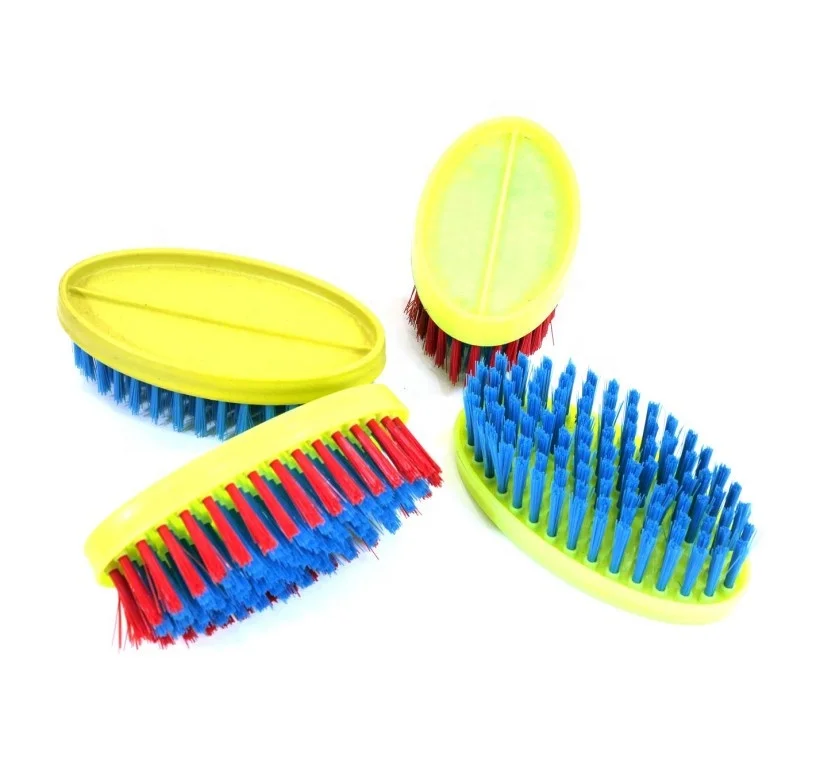

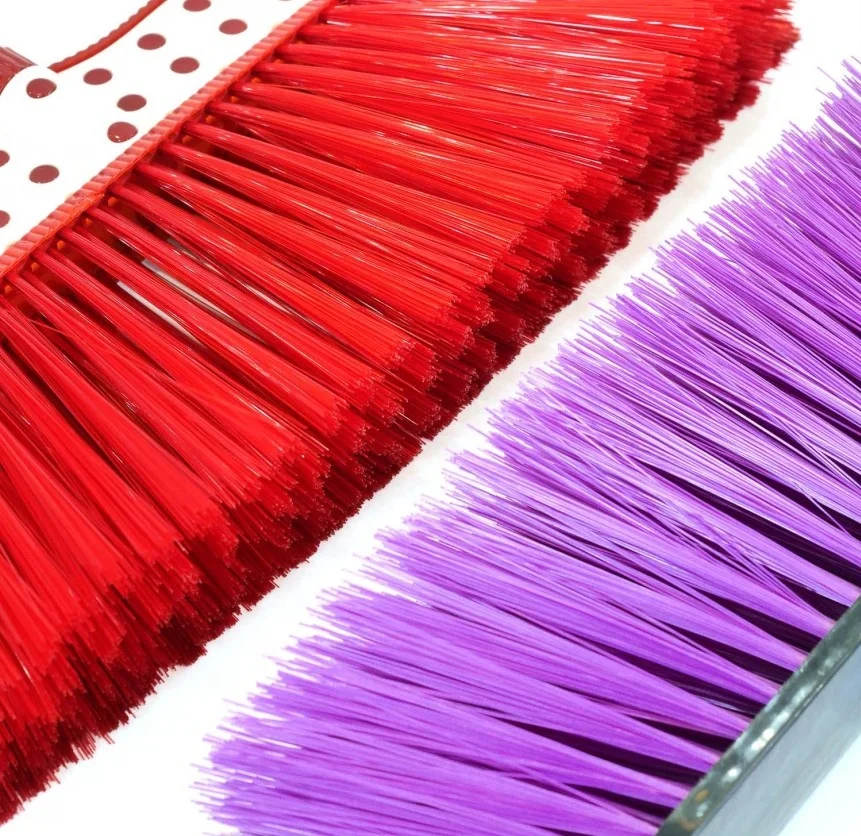

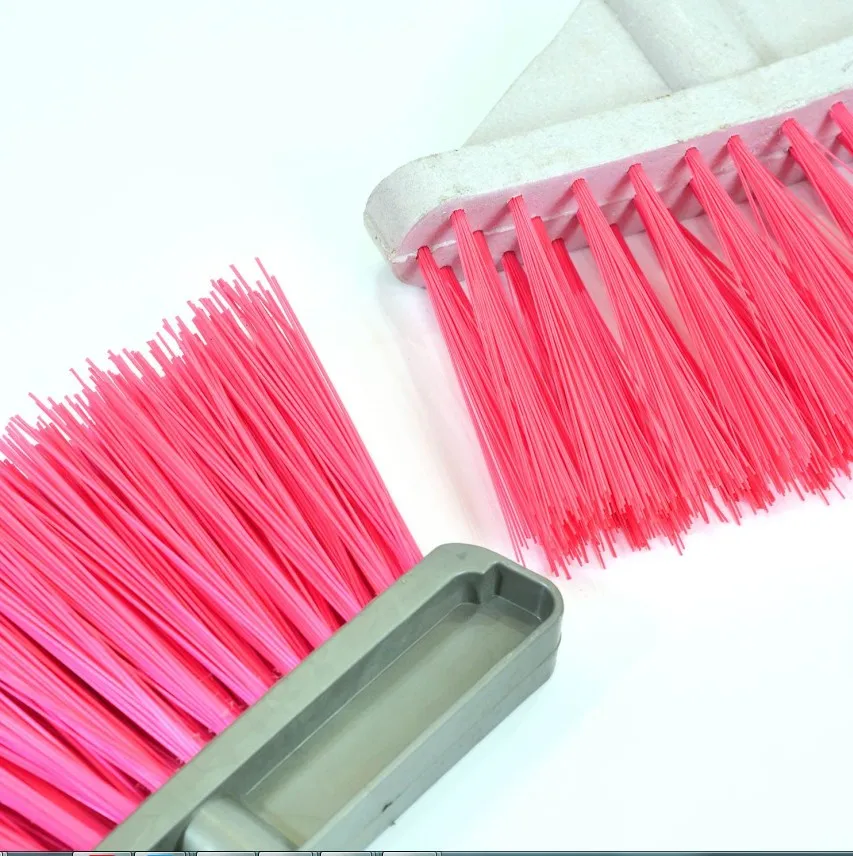

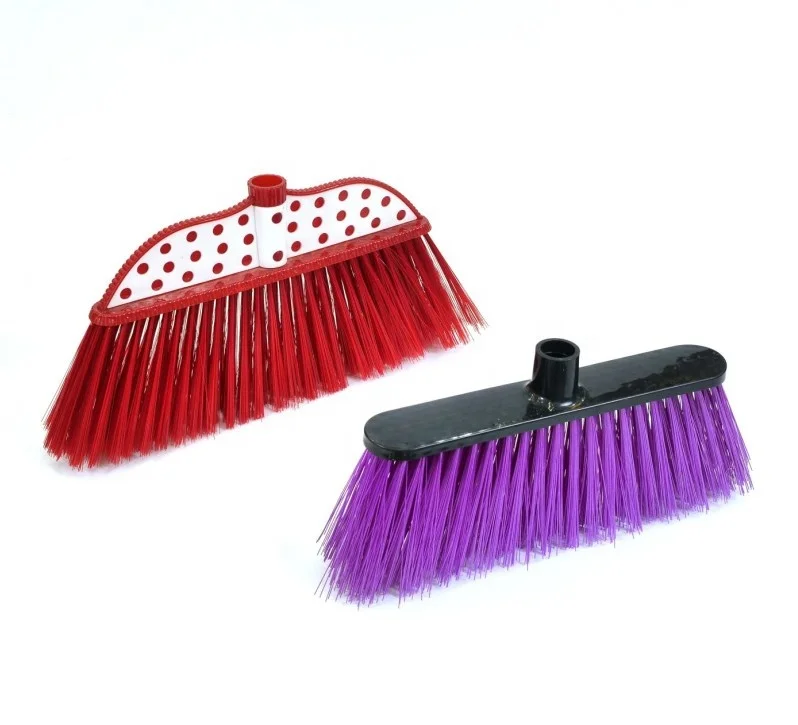

ApplicationFlat brush ,broom
brush typesFlat brush base with holes
Brush base materialsPlastic, wood
Filament materialsPP,PET, Nylon,animal hair plant fiber etc.
The mold fixture size300*50mm
Diameter of hole 4~6mm
The length of filament(outside the hole)15~200mm
Colors of Brush Filaments2 colors
Parameter:
 tufting Speed4~6 holes/sec.
Power voltage, frequence220/380v , 50/60HZ  (customer choose)
Main motor power1.5kw
Air Source Input0.4~0.5Mpa
Equipment size1300*1100*1700mm
Weight800kgs
Electrical parts:
Control System(PLC)MEIXIN Chinese and English version
Touch screenMEIXIN Chinese and English version
Main motor SNMA
Servo motorMaxsine
Relay IDEC (Janpan)
Variable-FrequencyDELTA (Taiwan)
Safety Protection:Schneider (France brand)
