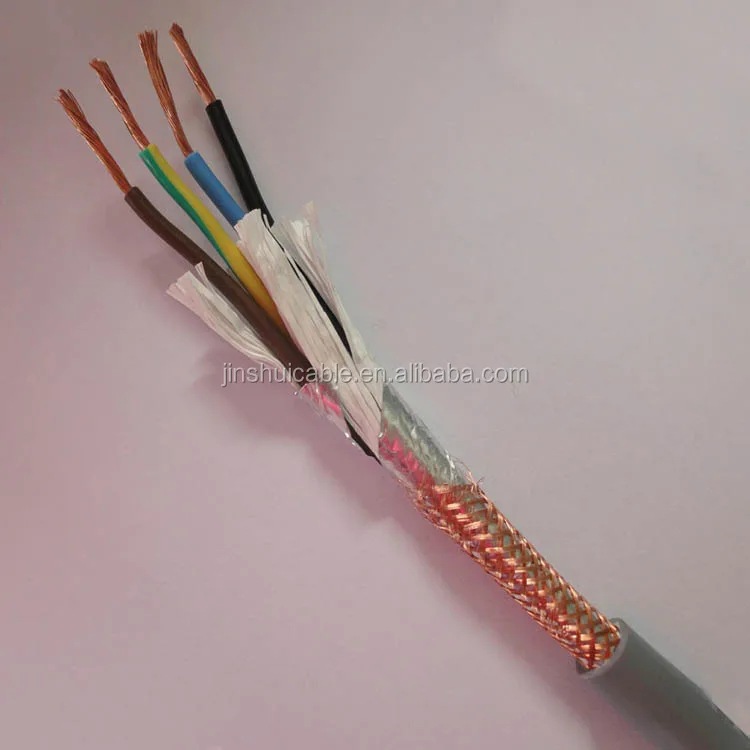

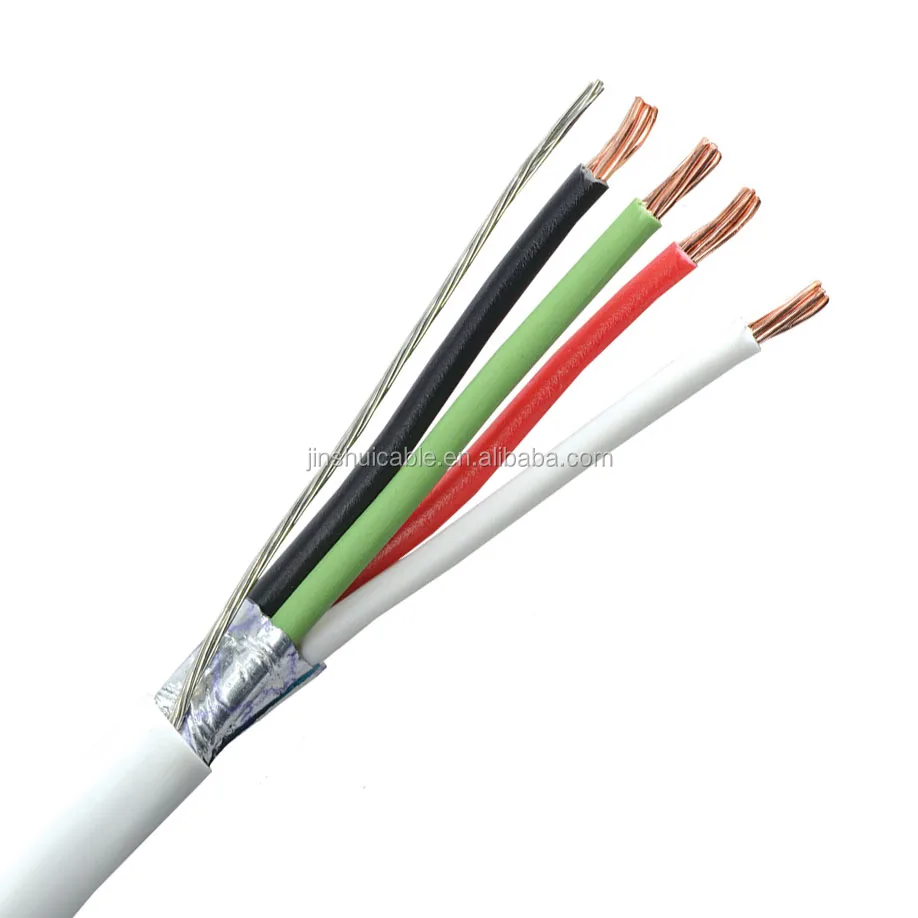

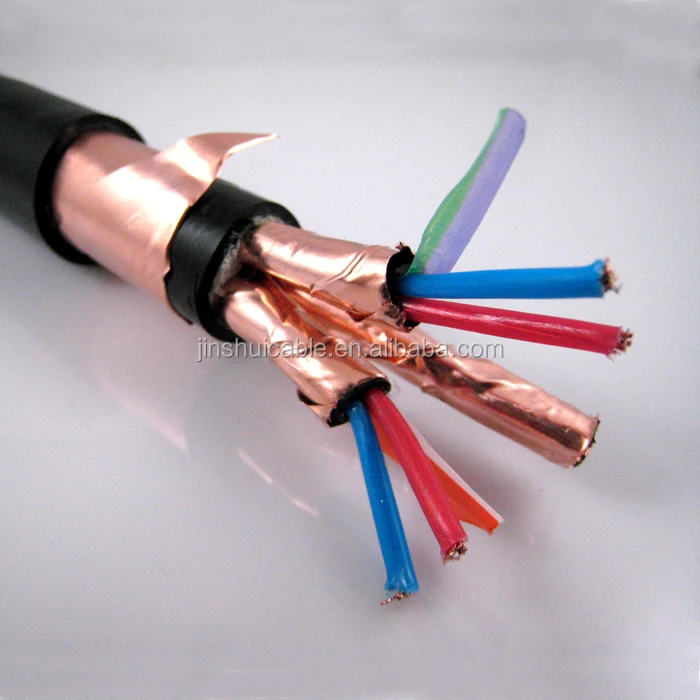

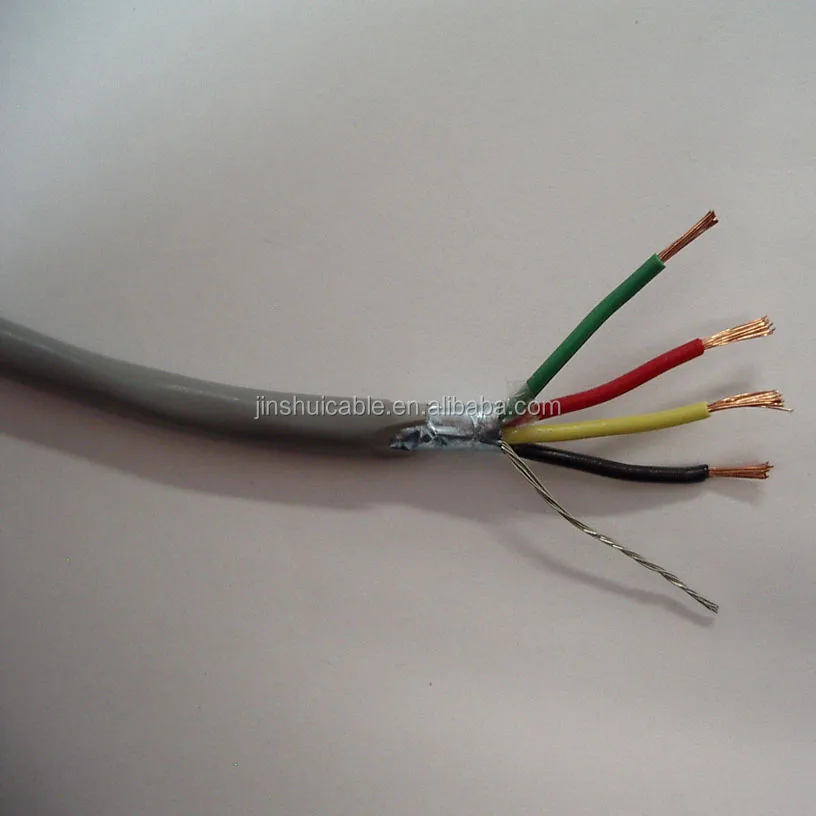

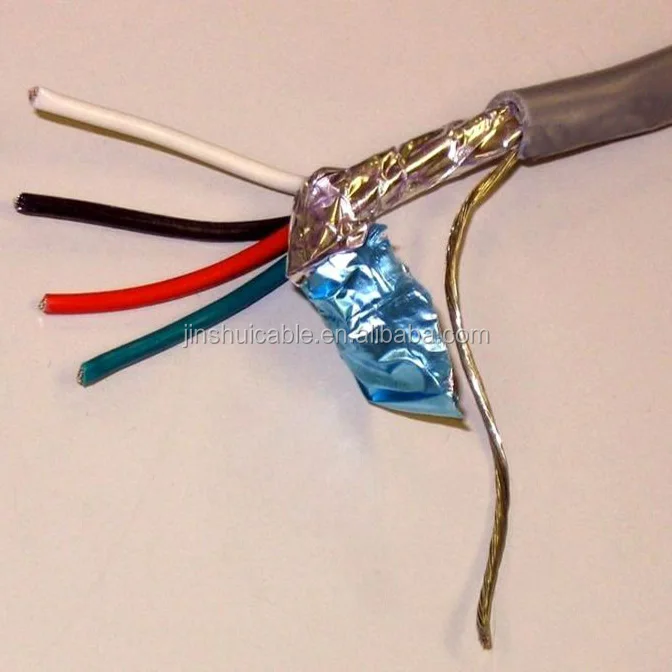

Low Voltage Shielded Twisted Pair Cable 2x2x1.5 MM2

Standard

IEC 60502: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) up to 30 kV (Um=36 kV) - Part 1: Cables for rated voltages of 1 kV (Um=1.2 kV) and 3 kV (Um=3.6 kV)

Application

This shielded twisted pair cable is used in computing systems of rated voltage 600/1000V and below. The screen and twisted pair structure can make the cable to reduce electro-magnetic interference and signal noise effectively.

Product Details

1) Conductor: stranded plain or tinned copper

2) Sectional area: 1.5 mm2

3) Insulation: PVC, 0.6 mm

4) No. of pairs: 2

5) No. of cores per pair: 2

6) Screen: aluminum/polyester tape

7) Drain wire: stranded tinned copper, 0.5 mm2

8) Outer sheath: PVC, 1.0 mm

9) Overall diameter: 12.3 mm

10) Approx. weight: 155 kg/km

11) Max. working temperature: 70 degrees

12) Max. DC resistance at 20 degrees: 12.1 ohm/km (plain copper), 12.2 ohm/km (tinned copper)
