37 ton Closed Circuit Cooling Tower
- Category: Cooling Towers >>>
- Supplier: Wuxi Sanjiu Cooling Equipment Co. Ltd.
Share on (60640371176):
Product Overview
Description
37 ton Not FRP Closed Circuit Small Jet Water Cooling Tower
Product Description
Note: All the data is under the condition of 25.5℃ wet temperature.
If any change of condition,the data will change.
Model No. | GHM-230(closed circuit) | |
Nominal Flow Rate | 37 m³/h, adjustable as different temperature | |
Cooling Range | From 65~55℃to45~35℃ | |
Water pressure | 0.32Mpa | |
Pipe diameter | Input diameter(mm) | DN80 |
Output diameter(mm) | DN80 | |
Rated Power | Fan (KW) | 1.1x2 |
Spray pump(KW) | 1.5 | |
Material of shell/tower body | Superdyma(imported from Japan) | |
Material of tupe | SUS304;Red copper | |
Installation Method | Modular Design,Easy Install | |
Quality Control
The primary use of cooling towers is to remove the heat absorbed in the circulating cooling water system used in power plants, petroleum refineries, petrochemical plants, natural gas processing plants, food processing plants, semi-conductor plants Etc… So Same Cooled Water Can Be Used Again… Which Saves Precious water …The smallest cooling towers are designed to handle water streams of only a few Liters of water per minute supplied in small pipes like those might see in a residence, while the largest cool hundreds of thousands of Liters per minute supplied in pipes as much as 15 feet (about 5 meters) in diameter on a large power plant.
A Cooling Tower is a heat exchange system that removes waste heat from a process system fluid, usually water.Cooling towers are used in both commercial and industrial applications.

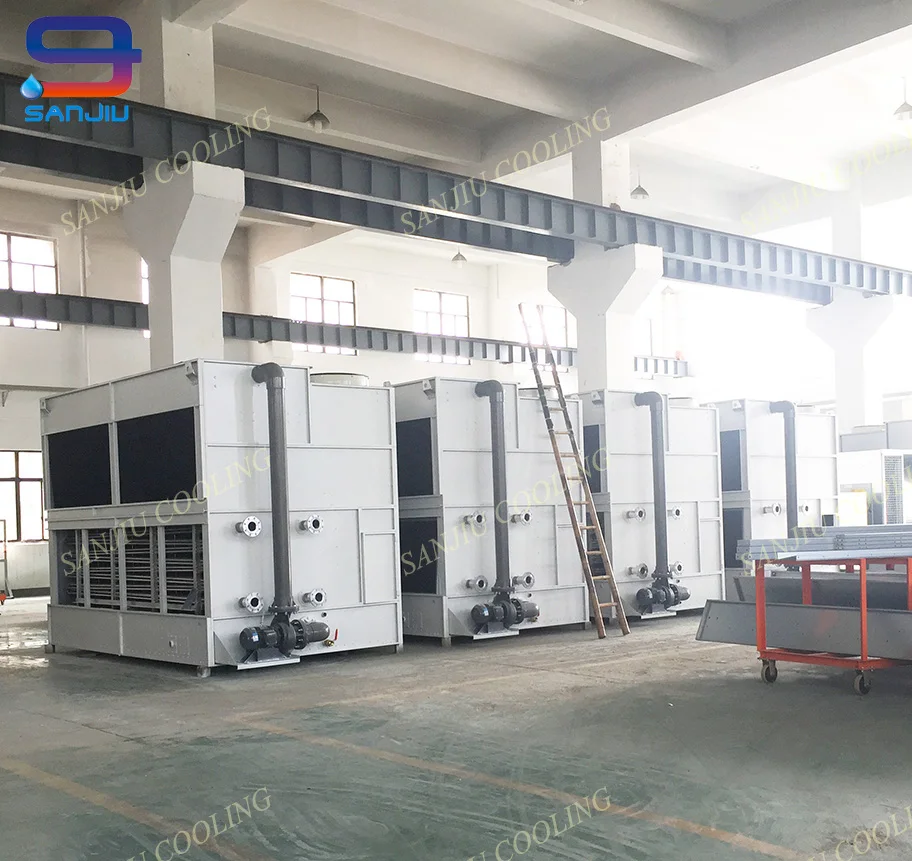

Packaging & Shipping

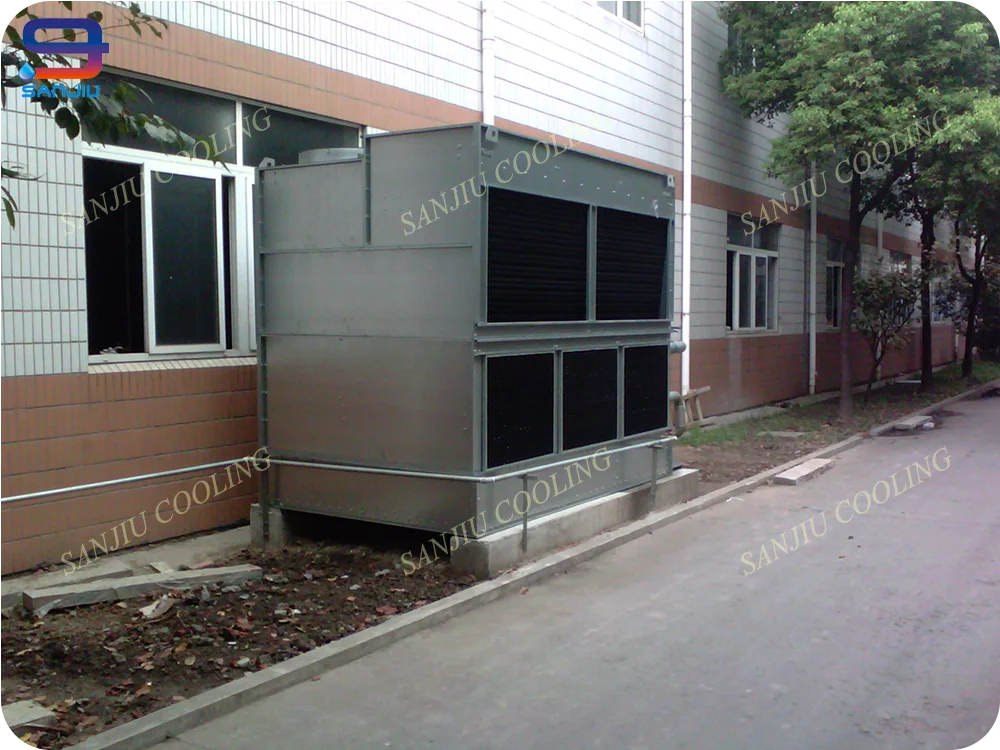

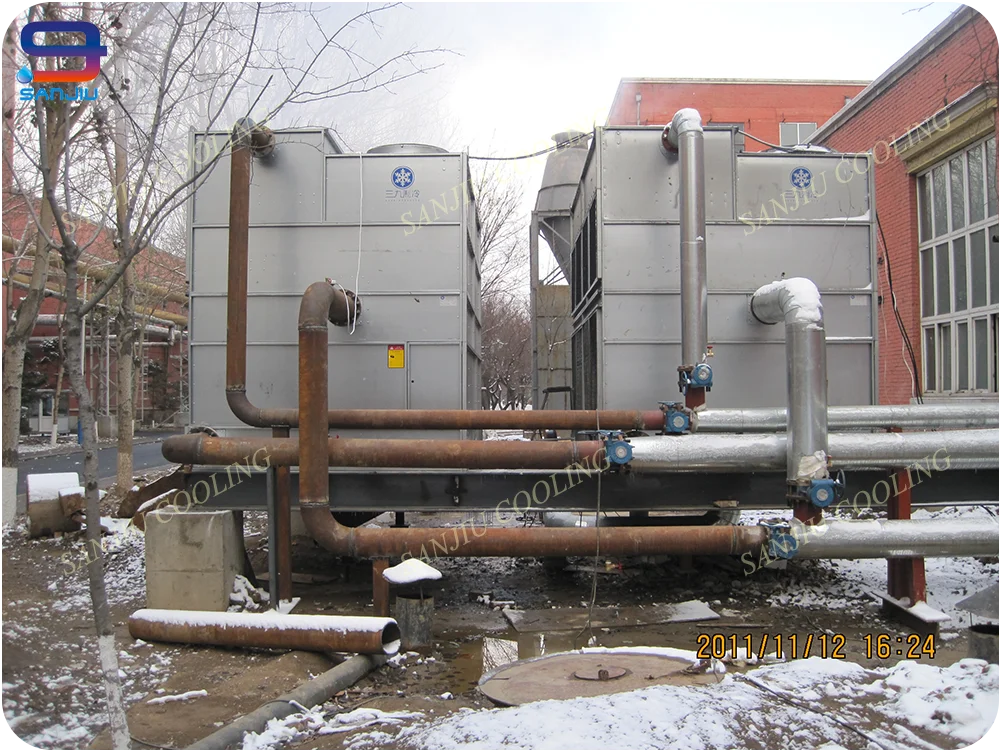

Project Sites
Our Services
-Quick response in 12 hours
-Professional and economical cooling solution for every client
-Top Cost Performance in Worldwide
FAQ
Below information are normally required to know for selection of a most proper tower model and solution:
| Application: | (Explanations: Where the cooling towers will be used for? e.g. for HAVC system, Air Compressors, Melting Furnaces, etc.) | |||
| * Water Flow Rate: | m³/h | (Explanations: How many Tons of water required per hour?) | ||
| * Inlet Water Temp.: | °C | (Explanations: Temperature of hot water to be cooled) | (also descriped as "water temperature drop") | |
| * Outlet Water Temp.: | °C | (Explanations: Temperature of cooled water, usually it shall be at least 3~4 °C higher than the wet-bulb temp.) | ||
| * Wet-bulb Temp.: | °C | (Explanations: Highest wet bulb temp. of the location/area or city to install the tower is essential to know to evaluate the size of towers) | ||
| * Power Supply: | (Explanations: 380V/3 Phases is standard, which we could have in stock, but for customized towers, the delivery time could be longer) | |||
For easier discussions, 24 hours on line service available: Angela is online: skype: oasanjiu Mob./WhatsApp: 13559666650
Many thanks for your interests, and your inquires are always well attended!
