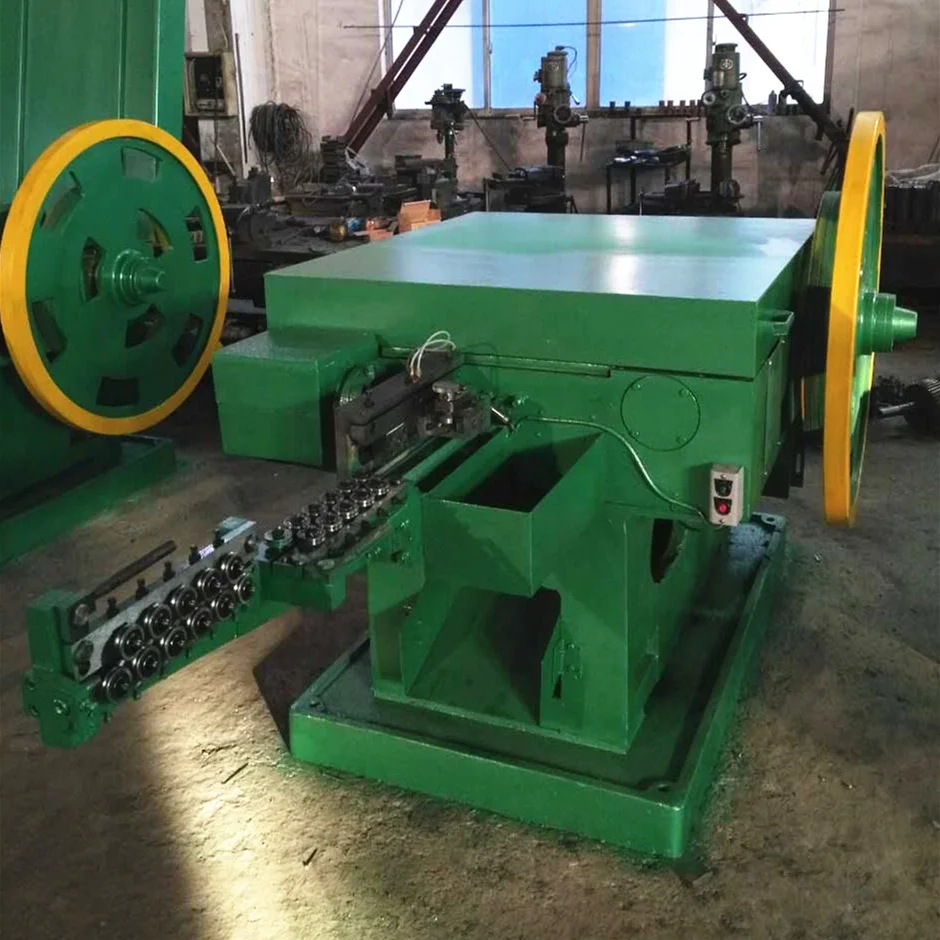

Z94 type H heavy duty durable low noise automatic wire nail/concrete nail making machine
Z94 type H heavy-duty durable low noise automatic wire nail/concrete nail making machine
Z94 type H heavy-duty durable low noise automatic wire nail/concrete nail making machine
Z94 type H heavy-duty durable low noise automatic wire nail/concrete nail making machine
Z94 type H heavy-duty durable low noise automatic wire nail/concrete nail making machine

Z94 type H heavy duty durable low noise automatic wire nail/concrete nail making machine

Share on (60640781180):


Price:RUB 363,926.40 - RUB 591,380.40

Quantity:


Product Overview

Description

Introduction
The Z94-3.4H and Z94-4.5H heavy-duty automatic nail making machines are of mechantronics integration, except for the
characteristics in high speed, low noise and high precision, they are also of 3 times service life than Z94-C series.

The machines apply automatic oiling system so user can set the oiling time freely. When the oil is below the liquid level line,
the machines stop automatically to prevent abrasive wear.
During wire feeding the automatic stop of the machines activates immediately once detecting curved wire, tangled wire and lack of
wire so as to avoid accidents and save electrical energy.

The Z94-3.4H and Z94-4.5H nail making machines are especially suitable for making clout nails and concrete nails. The kind of Series H machines are of solid, heavy structure and higher stability. With some
modification, the machines can make special-shaped nails. Due to the introduction of nail points' chip remover, the high quality
of clout and roofing nails are fully ensured.

What's more:

The rolling part of the machines applies the combination of bush bearing rolling and bearing rolling, which enhances the size stability of nail heads' formation and brings convenience to the maintenance of the machines. The main parts of the machines are made of high -quality steel, such as crankshaft, sliding block of heading device made of 40CrNiMo, drive bevel gear made of 20CrMoti and all heat treated, making the machines impact resistant, wear resistant and durable.

 TECHNICAL SPECIFICATIONS
Model
Unit
Z94-4.5H
Z94-3.4H
Max. dia. Of nail
mm
4.5
3.7
Min. dia. Of nail
mm
2.8
1.8
Max. length of nail
mm
100
80
Min. length of nail
mm
50
20
Designed capacity
pcs/min
300
350
Motor power
KW
4
3
Weight
kg
3800
1800
Overall dimensions(L*W*H)
mm
3000*1600*1650
2400*1500*1500
