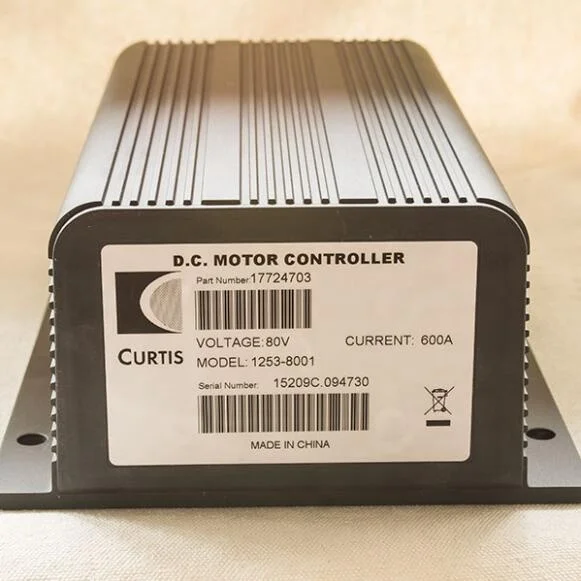

Hydraulic Pump DC Motor Controller (80v 600a)
- Category: Motor Controller >>>
- Supplier: Hefei Huanxin Technology Development Co. Ltd.
Share on (60641080817):
Product Overview
Description
Products Description
* CURTIS Model | 1253-8001 | ||||||
* Norminal Battery Voltage (Volts) | 80V | ||||||
* Amature Current Limit (amps) | 600 | ||||||
* Programmable Undervoltage Cutback (Volts) | 54-70 | ||||||
* Overvoltage Cutoff (Volts) | 102 | ||||||
* PWM operating frequency | 15.6 kHz | ||||||
Notice: For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS 1253 Controller Manual before making the purchase.
Notice: By default, we will deliver the controller with default setting of 80V / 600A / 0-5kΩ. For better applying the controller to your system, the buyer should confirm with the seller the throttle type (0-5kΩ, 5k-0Ω or 0 – 5V, etc.). As a professional supplier, we possess OEM programs (controller settings) of many utility vehicles and forklifts. Buyers may contact us and send us the vehicle (forklift) information (manufacturer, model, year of production, etc.), for knowing if we can
provide the controller with its OEM program. This 1253-8001 can be programmed by CURTIS 1313-4331 Handheld Programmer or CURTIS 1314 PC Programming Station. There is no extra cost for reprogramming the controller (Example: Click here to download the pump controller setting of a HELI 3T 80V forklift, PDF format).
Overview
The CURTIS 1253 provides a cost-effective solution for control of high power DC series-wound hydraulic pump motors. Its system
integration features are designed primarily for Class I and Class II material handling vehicles. Typical applications include the
pump systems of material handling trucks (counterbalance trucks, reach trucks), aerial lift platforms (scissor lifts,
articulating/telescoping booms), and other industrial vehicles.
The 1253 accepts inputs from up to four Speed Select switches and also from an analog throttle. Its internal microprocessor-based
logic controller provides maximum flexibility at minimum cost. Its performance characteristics can be tailored through an array of
programmable parameters.
The 1253 controller is fully programmable through a CURTIS 1313-4331 Handheld Programmer or 1314 PC Programming Station. The
programming device provides diagnostic and test capability in addition to configuration flexibility.
Notice: By default, we will deliver the controller with default setting of 80V / 600A / 0-5kΩ. For better applying the controller to your system, the buyer should confirm with the seller the throttle type (0-5kΩ, 5k-0Ω or 0 – 5V, etc.). As a professional supplier, we possess OEM programs (controller settings) of many utility vehicles and forklifts. Buyers may contact us and send us the vehicle (forklift) information (manufacturer, model, year of production, etc.), for knowing if we can
provide the controller with its OEM program. This 1253-8001 can be programmed by CURTIS 1313-4331 Handheld Programmer or CURTIS 1314 PC Programming Station. There is no extra cost for reprogramming the controller (Example: Click here to download the pump controller setting of a HELI 3T 80V forklift, PDF format).
Overview
The CURTIS 1253 provides a cost-effective solution for control of high power DC series-wound hydraulic pump motors. Its system
integration features are designed primarily for Class I and Class II material handling vehicles. Typical applications include the
pump systems of material handling trucks (counterbalance trucks, reach trucks), aerial lift platforms (scissor lifts,
articulating/telescoping booms), and other industrial vehicles.
The 1253 accepts inputs from up to four Speed Select switches and also from an analog throttle. Its internal microprocessor-based
logic controller provides maximum flexibility at minimum cost. Its performance characteristics can be tailored through an array of
programmable parameters.
The 1253 controller is fully programmable through a CURTIS 1313-4331 Handheld Programmer or 1314 PC Programming Station. The
programming device provides diagnostic and test capability in addition to configuration flexibility.
