1.The machine adopts synchronous control technique.
2.The welding time and separate welding are controlled by PLC for system digital input panel or touch screen buttons.It can be more intelligent operations and rationalizing.
3.The advantages of the device are stable performance ,strong welding spot and accurate weldingaperture.
4.The machine adopts synchronous control technology of power electric,auto-sharding,automatic rolling,high yield,stable performance,strong welding spot,without welded tracks.
5.It is easy for operator.
It is usually applied to wall reinforcement,has the characteristics of seismic resistance.
Main Parameter
Wire diameter
1.6-3.0mm
Warp wire distance
40mm
Welding type
Pressure welding
Weft wire distance
100-500mm
Mesh width
300mm
Voltage
380V 3P 50Hz
Machine weight
2.5T
Welding power
65KVA
Welding speed
60-80times/min
Machine size
3.2*2.0*1.4m

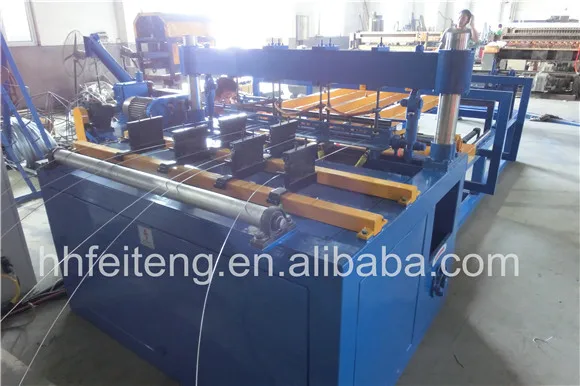

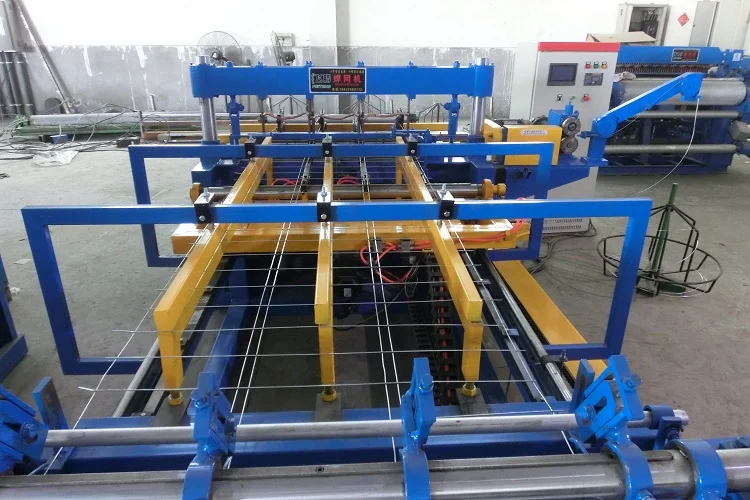

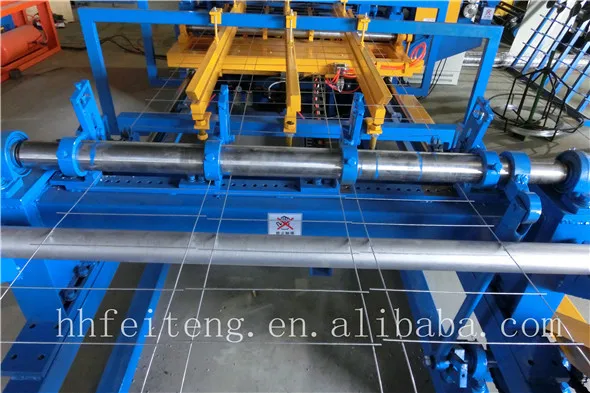

Detailed Images
Advanced Unit
1. Control system: intelligent PLCMitsubishi or Panasonic (Japan)
2. Touch screen: Weinview (Taiwan)
3. Eletrical components: Schneider(France)
4. Pneumatic components: Japan SMC, more stable
5. Cross wire feeding step hopper, longitude wire feeding: equipped with feeding car
6. Mesh pulling: servo motor Siense (Germany)
7. Line guide way: TBI(Taiwan ) or HIWIN(Taiwan)

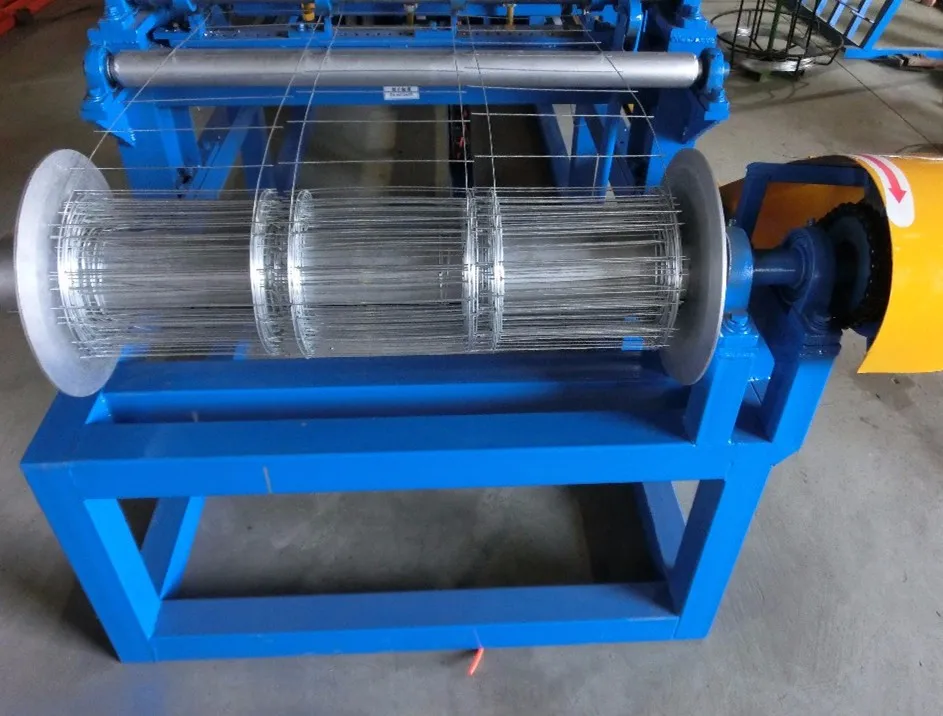

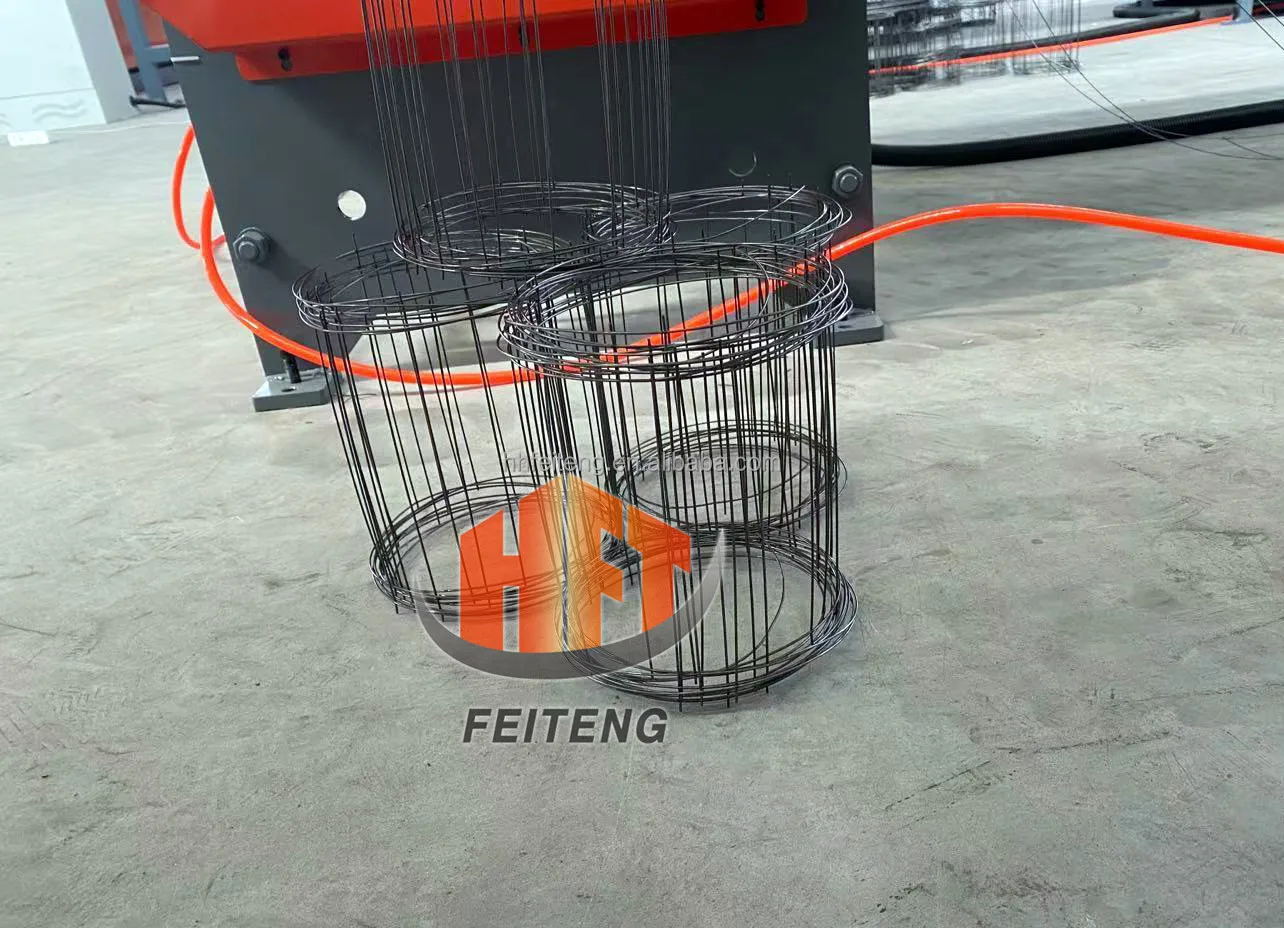

Finished Mesh
Packing & Delivery
Packaging Details: Plastic bag or at customers' request.
Delivery Time: Shipped in 45 days after payment.
Our Service
Pre-sale service
1. Select equipment model. 2. Design and manufacture products according to clients' special requirement. 3. Train technical personnel for clients. Services during the sale
1. Pre-check and accept products ahead of delivery. 2. Help clients to draft solving plans.
After-sale service 1. We will reply you for your inquiry in 24 hours. 2. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.
Company Information
Established in 1997, Huanghua Feiteng Wire Mesh Welding Machine Co.,Ltd. is a pressional manufacture and expoter that is concerned with the design, development and sale of wire mesh welding equipment. Click More
We can customize the machine by your demand. Just tell me your details below:
