Automatic Wood Turning Copy Lathe For Sale Baseball Engraving Machine

Product Overview

Description



Used Automatic Wood Turning Copy Lathe For Sale

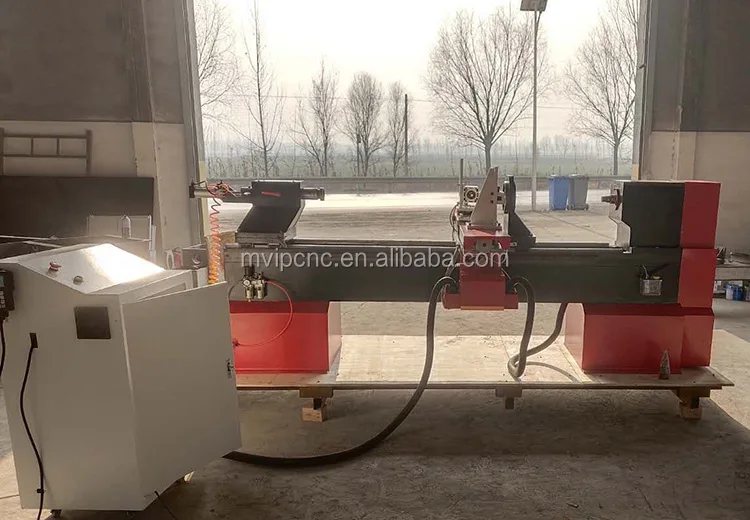

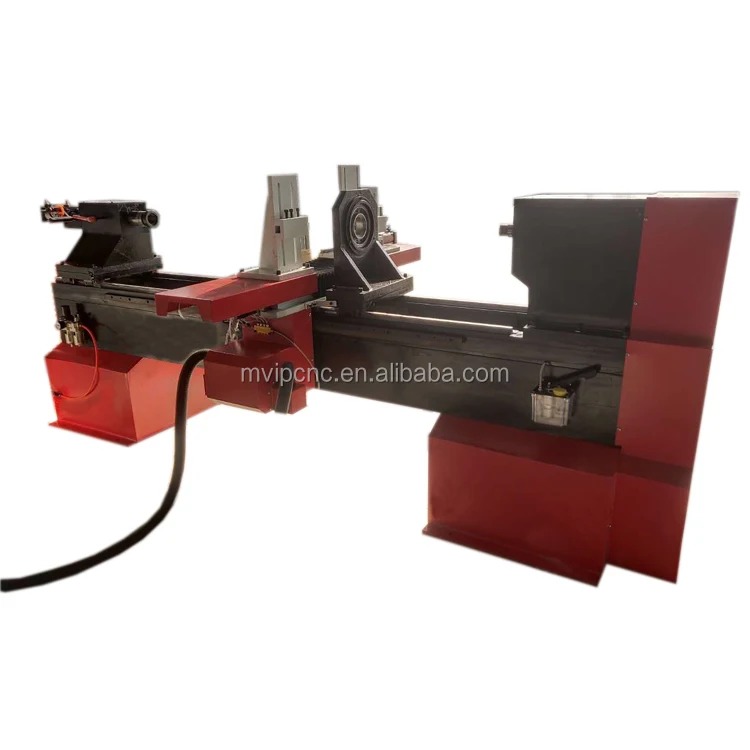

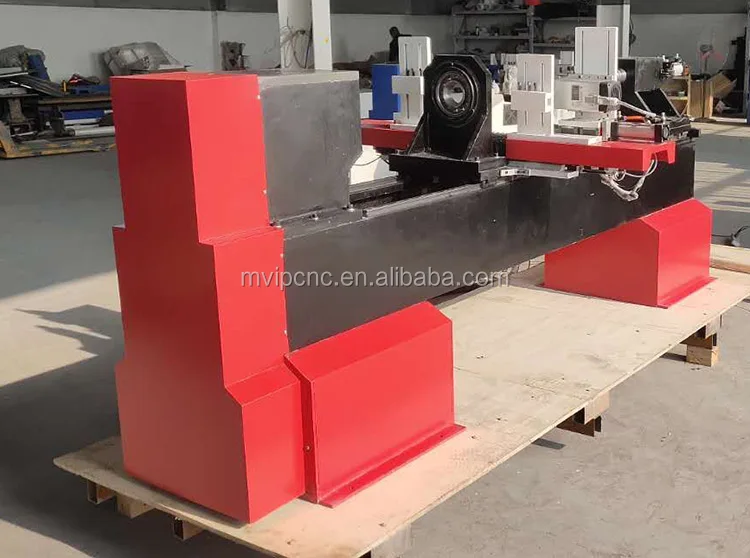

Machine show of used automatic wood turning copy lathe for sale



Machine video link: https://youtu.be/LYnAmV7-jbM



Max working diameter	300mm
Max working length	1500mm
Machine body	cast iron
Rotary spindle	3.5kw rotary spindle(single axis and double cutters)
Guide rail	Helical Taiwan Hiwin 25, flange slider, TBI ball screw
Inverter	4kw Best inverter
motor	Baolong 450C
Driver	Yako 2811
Control system	DSP control system for wood lathe
Spindle speed	0-3000RPM
Air pressure	0.6-0.8Mpa
Working Voltage	380V



Main features of used automatic wood turning copy lathe for sale



1: imported HIWIN square orbit 25 , more stable

2: helical rack and pinion , bigger touch surface , more stronger

3: cast steel structure , avoid shake during work

4: 3.5KW air cooling spindle , suit for engraving , broaching , cutting hard work



Parts show of used automatic wood turning copy lathe for sale



Machine adopt 450C motor, more powerful

Best inverter, famous brand

YAKO driver, low failure rate

Servo motor for option



center sheath for long and thin material

Helical Taiwan Hiwin 25, flange slider

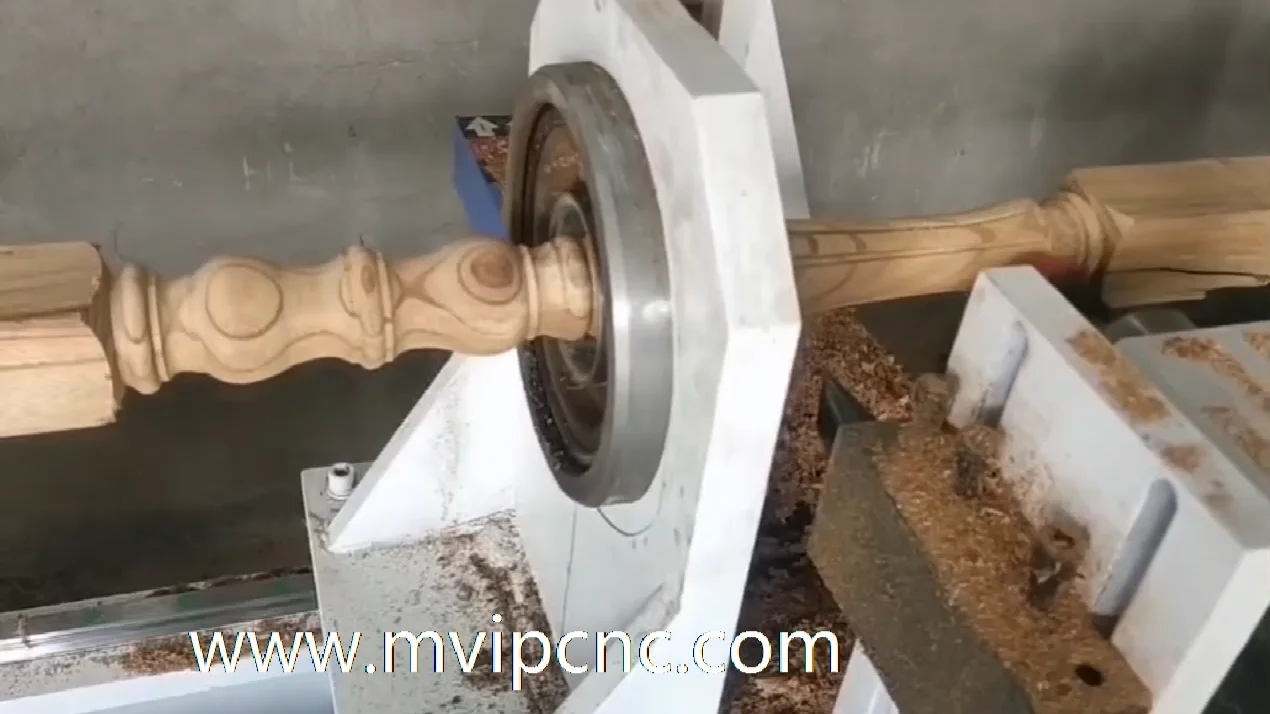

Double cutters, one is rough turning cutter, another is finish turning cutter work synchronously with layered process.

so that can improve the efficiency and workpiece surface quality.

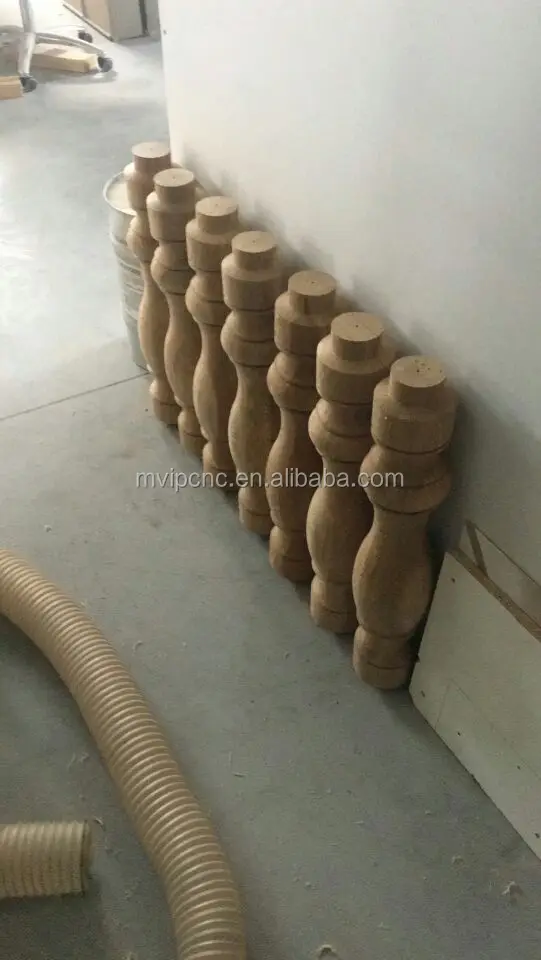

Samples show of used automatic wood turning copy lathe for sale

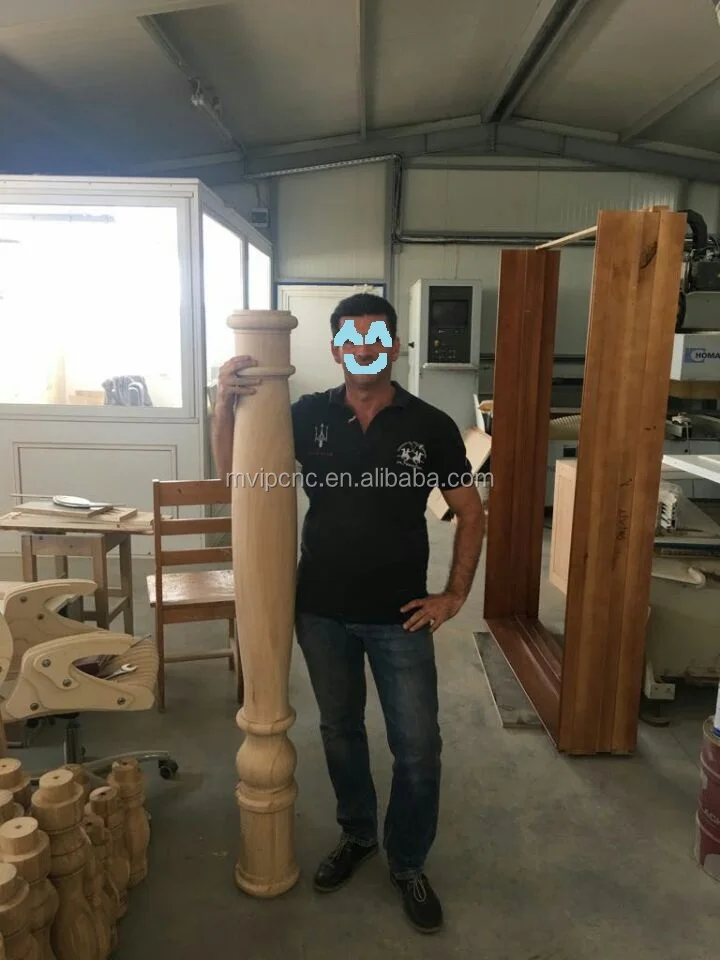

our customer and customer's samples



Optional Parts:



1. More rotary axis

2. Spindle

3. Different power requirement

4. Upgrade controller

5. Servo motor

6. Bigger working diameter and length, etc.

7. Dust collect, which is used to collect the wood exhaust.

8. Φ160 mm Four-Jaw Chuck for large sizes timber or barrel shape turning.

2 aixs double cutters

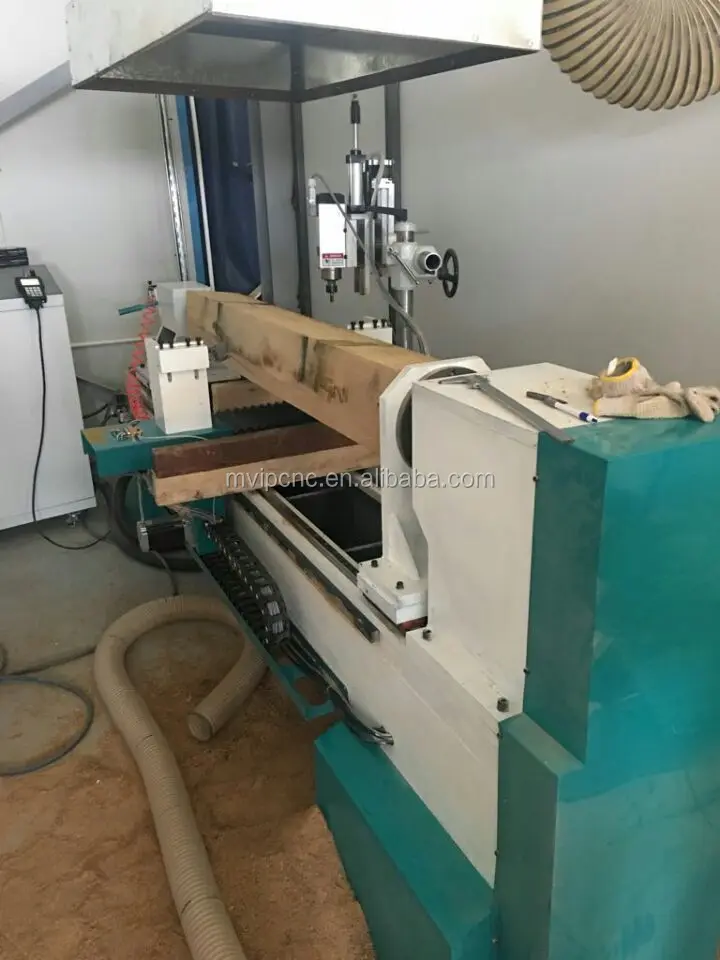

multi-direction spindle for cylinder broaching





servo motor spindle



Consumable Parts:

We suggest customers buy more consumable parts for future use.

 (1). Tool.  This machine use white steel tool. Customers could change the tools easily.

 (2). Bearing. Customers could change the bearing easily.

 (3). Centre rest bushing with 5cm and 6cm square timber.if have other sizes,please inform inadvance.



Application of used automatic wood turning copy lathe for sale



Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
