Abrasion resistant polycarbonate sheet anti scratch polycarbonate sheet

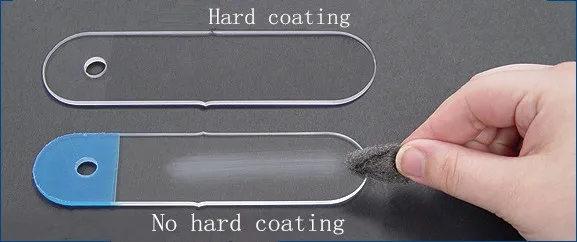

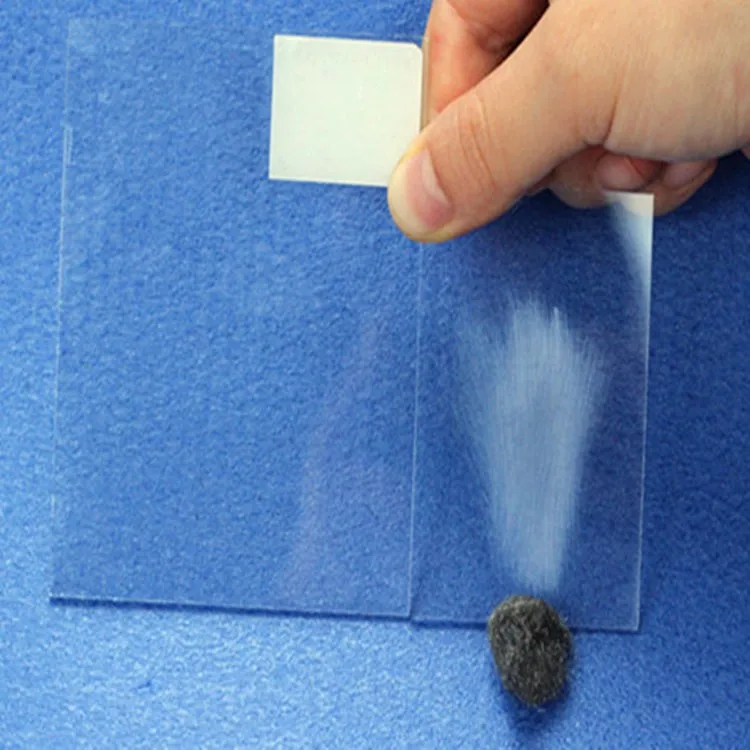

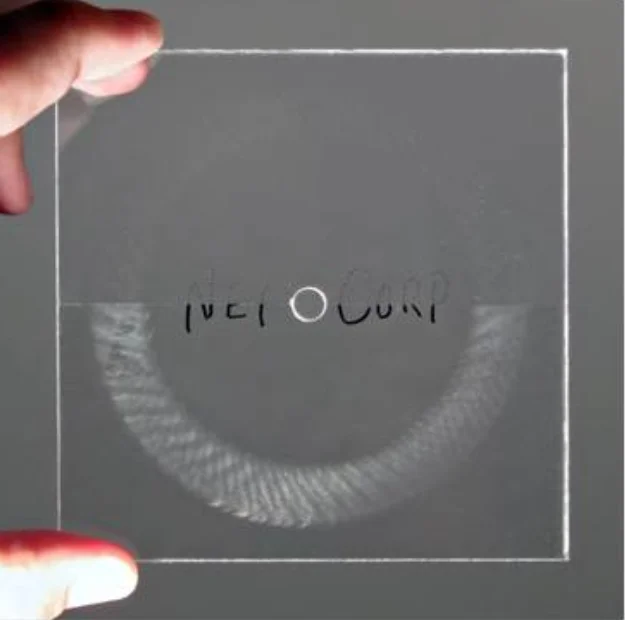

Abrasion-resistant Polycarbonate sheet has a hard-coated surface treatment applied to one side or both sides of the sheet. The proprietary hard-coat also provides chemical resistance and long lasting outdoor weathering performance. This product is available in clear as well as transparent solar gray and bronze.

Abrasion-resistant Polycarbonate sheet is used extensively in school and factory glazing for protection against both accidental breakage and deliberate vandalism. In manufacturing environments, this high-impact material excels in applications like machine guards, noise abatement shields, clear work station partitions, freight doors and other in-plant glazing.

Item	Property	Test Method	U/M	Value
Mechanical	Hardness 1KG	ANSI Z87.1 2010	H	1
	High velocity impact	ANSI Z87.1 2010	ft/s	>300
	Cross-Cut tape test	ISO 527	NA	Pass
	Elongation, yield	ISO 527	%	7
	Elongation, break	ISO 527	%	110
	Tensile stress, yield	ISO 527	Mpa	60
	Tensile modulus MPa	ISO 527	Mpa	2300
	Flexural strength, yield	ISO 178	Mpa	100
	Flexural modulus	ISO 178	Mpa	2500
	Izod notched impact, 20 °C	ANSI Z87.1 2010	KJ/m²	65
Physical	Gravity	ISO 1183	g/cm³	1.2
	Water absorption, 24 hours	ANSI Z87.1 2010	%	0.15
Thermal	Mold shrinkage	ISO 11359	%	0.5-0.7
	Thermal expansion	ISO 11357	1/ °C	7×10-5
	Vicat Softening Temp., Rate B / 120(base sheet)	ASTM D5470	°C	150
	HDT, 0.45 MPa	ISO 11357	°C	138
Hard coated polycarbonate sheet Abrasion-resistant Polycarbonate sheet

Features

1)Optical clarity
2)Abrasion resistance
3)Chemical resistance
4)Half the weight of glass
5)10 times stronger than glass

Application

1)Sports Arena/Architectural/Security Glazing
2)Automotive Interiors
3)Instrument Cluster Pane
4)Menu Boards/Signs
5)Electronic and Museum Displays
6)Framing

Description	Size			Weight	Mini-bending Radius
	thickness(mm)	width(mm)	length(mm)	kg/m2
polycarbonate solid sheet                dimension	1.5	1220-2100	As your requested	1.8	234
	2	1220-2100	As your requested	2.4	360
	3	1220-2100	As your requested	3.6	540
	4	1220-2100	As your requested	4.8	720
	5	1220-2100	As your requested	6	900
	6	1220-2100	As your requested	7.2	1080
	8	1220-2100	As your requested	9.6	1440
	10	1220-2100	As your requested	12	1800
	12	1220-2100	As your requested	14.4	2250
	15	1220-2100	As your requested	18	2700
Hard coated polycarbonate sheet

Company profilm

Our advantage

Certification

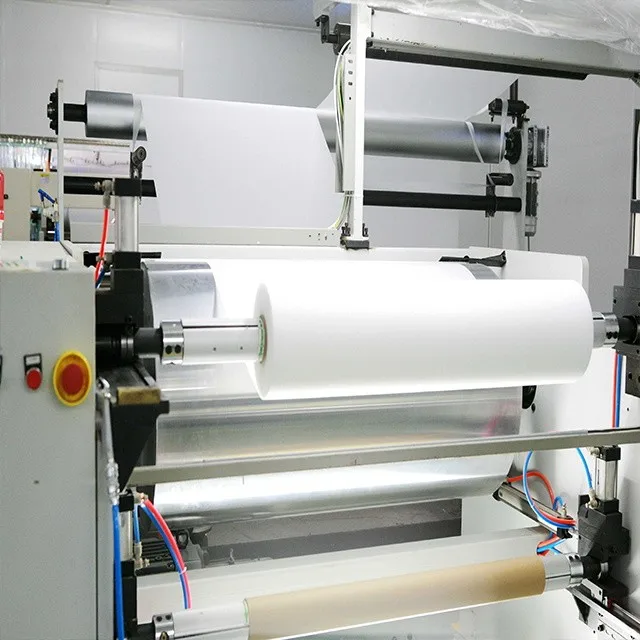

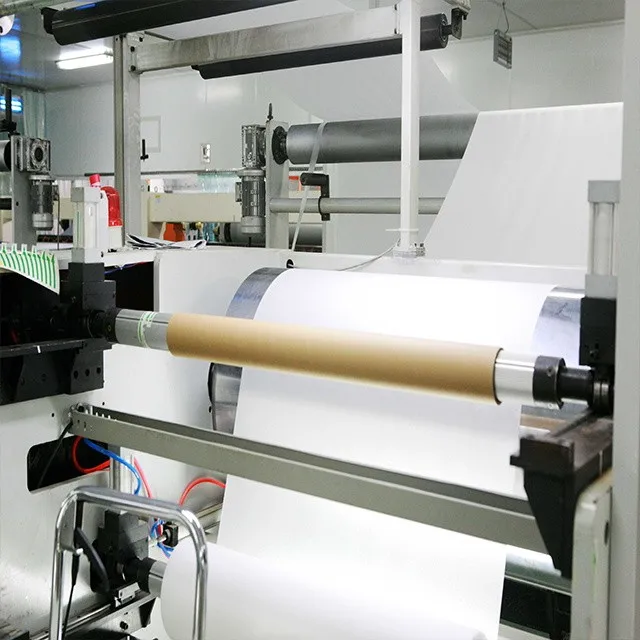

Dust-free workshop

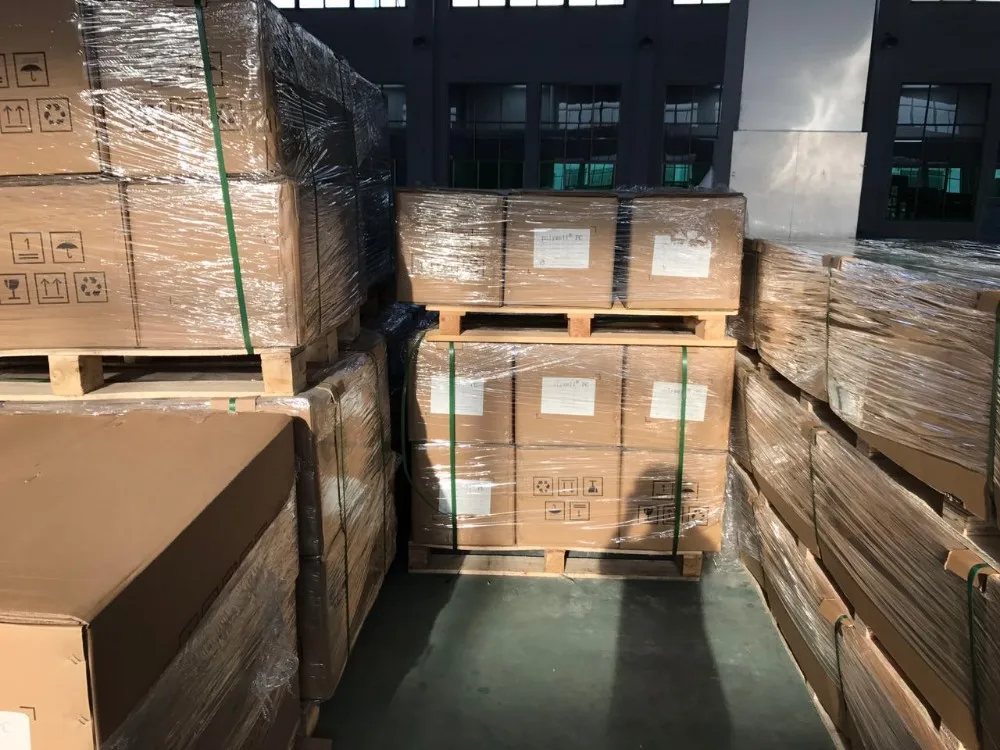

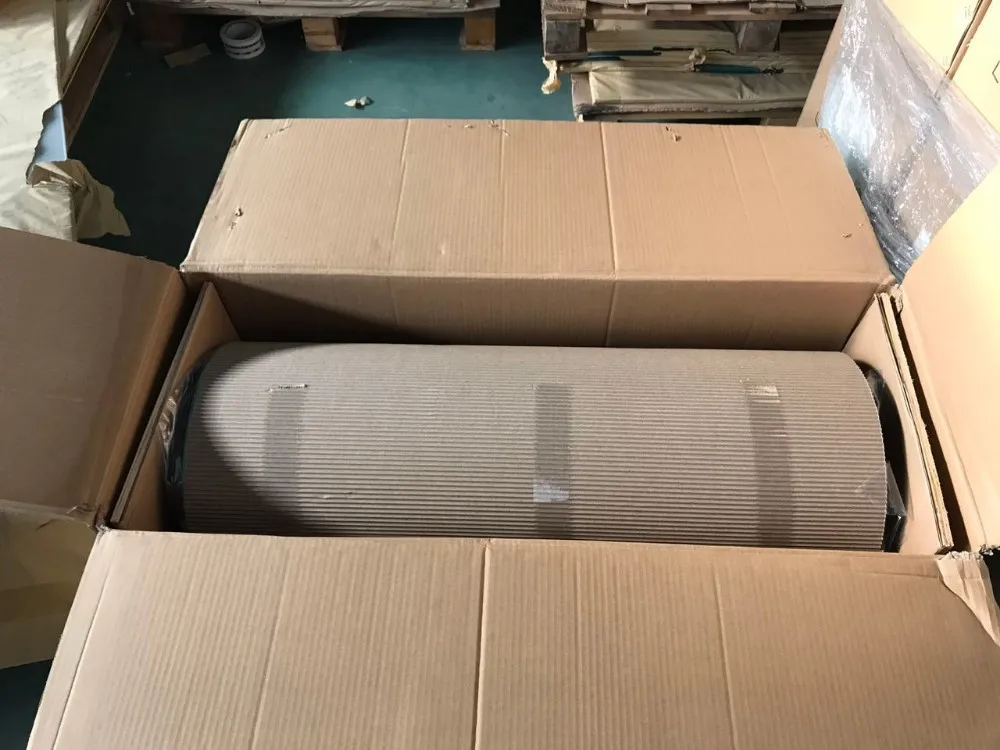

Packing
